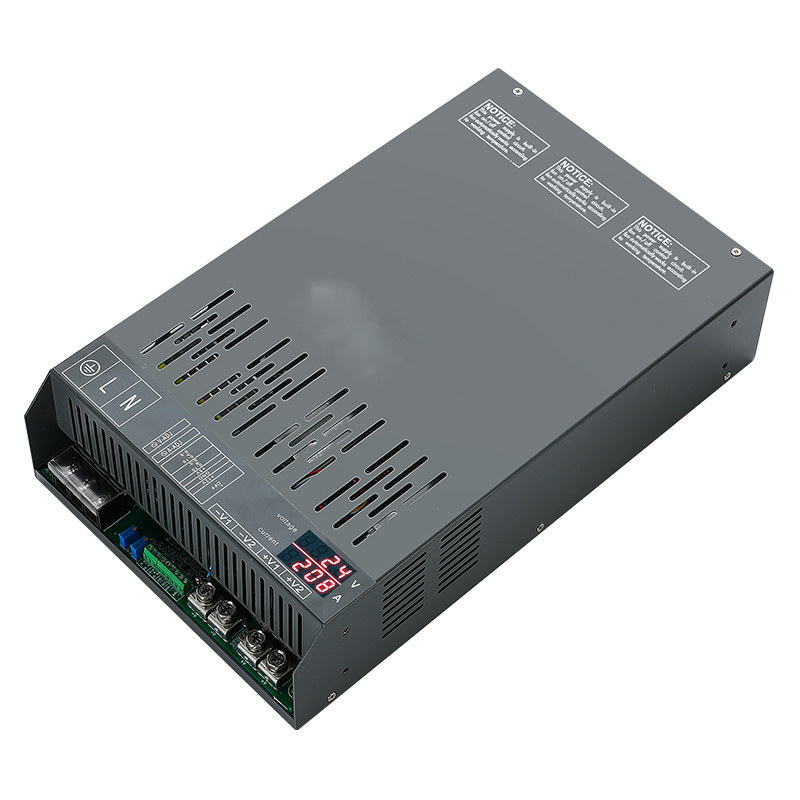

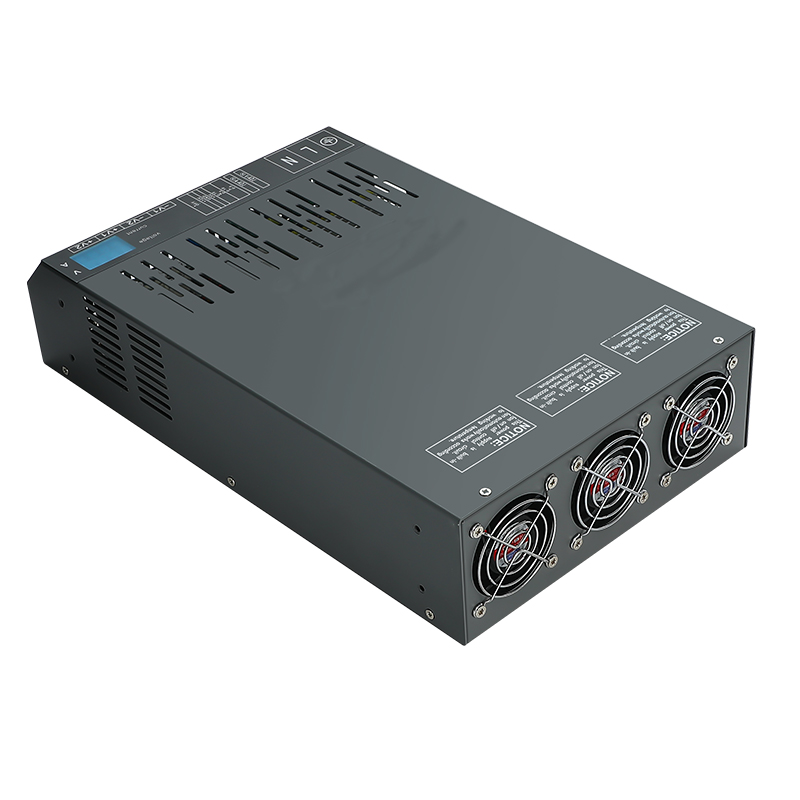

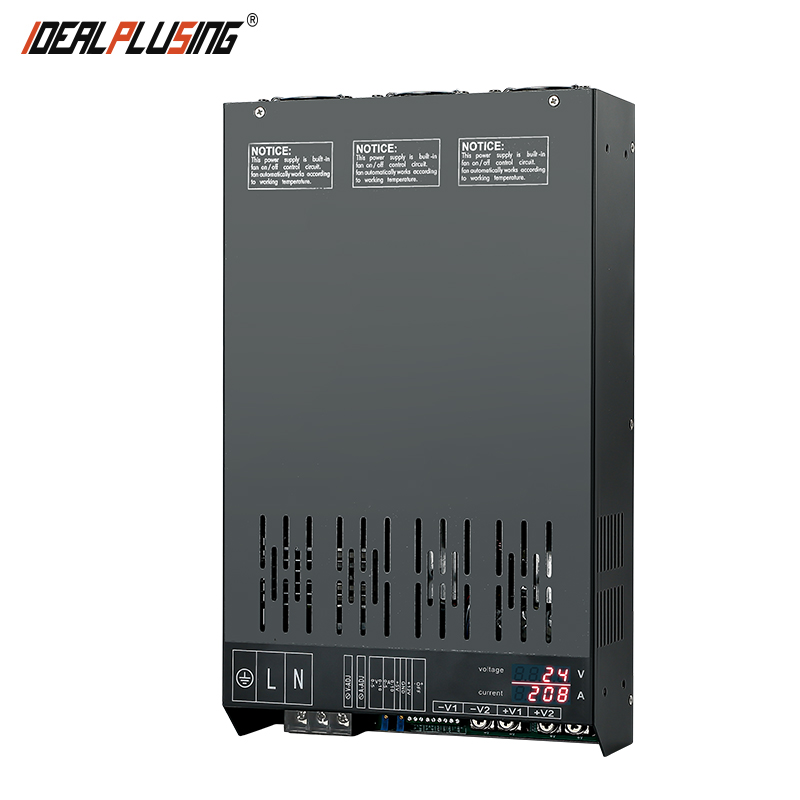

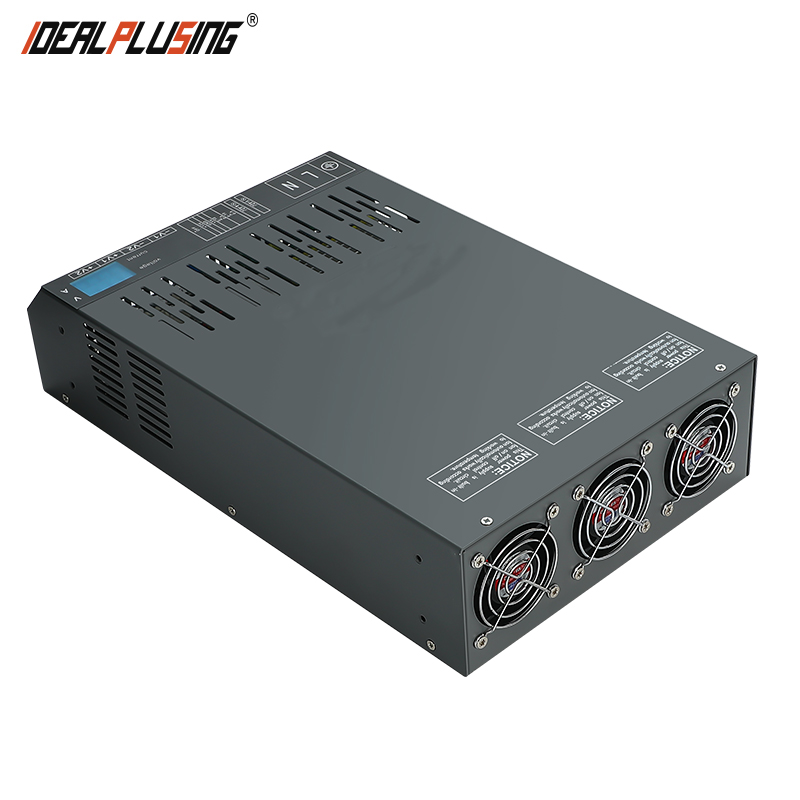

Hot Selling 24V 48V 72V 96V 150V 33A Switch Power Supply Module 5000W Switching Power Supply for Led Lights
Product Description
⚡
High Performance Switching Power Supply Solutions (5000W)
We focus on the research and development, sales and service of DC to DC power supply module, AC to DC rectifier module, DC to AC inverter, AC power supply, DC power supply, LED power supply, charger, rectifier system and other fields, providing personalized, efficient, reliable and cost-effective power supply solutions for all industries.
🎯
We offer the right power supply solutions with optimized quotations based on your specific requirements.
⚙️
Product Features & Technical Advantages
1. Adjustable with Compact size and light weight
2. AC input 200-240VAC 50/60HZ (110VAC/120VAC support)
3. 100% full load burn-in test
4. Protection: Short circuit / Over load / Over voltage
5. Fixed switching frequency at 25KHz
6. High efficiency, reliability quality, competitive cost
7. External control (0-5Vdc / 0-10Vdc) available
8. Extra adjustable potentiometer (Optional)
| Technical Specifications | |
|---|---|
| Type | Switching Mode Power Supply |
| Model | IPS-SP150-33 |
| Input voltage | Single phase 200~240VAC |
| Input frequency | 50/60hz |
| DC Output Voltage | Based on model |
| Output Power | 5000W Max |
| Dimension | 356*216*80 (mm) |
| Net/Gross Weight | 6.5KG / 6.7KG |
📦
Hot Selling Power Supply Models
IPS-PFC500-24
Output: 24VDC, 20.83A
IPS-PFC500-48
Output: 48VDC, 10.42A
IPS-PFC350-12
Output: 12VDC, 29.17A
📊
5000W Model Configuration List
| Model | Input Voltage (VAC) | Output Voltage (VDC) | Output Current (A) |
|---|---|---|---|
| IPS-SP12-300 | 200-240VAC | 12VDC | 300A |
| IPS-SP24-208 | 200-240VAC | 24VDC | 208A |
| IPS-SP48-104 | 200-240VAC | 48VDC | 104A |
| IPS-SP72-69 | 200-240VAC | 72VDC | 69A |
| IPS-SP110-45 | 200-240VAC | 110VDC | 45A |
| IPS-SP150-33 | 200-240VAC | 150VDC | 33A |
| IPS-SP220-22.7 | 200-240VAC | 220VDC | 22.7A |
🛠️
Customized Solutions & Services
We specialize in customizing switching converters to meet your specific needs. Our products support customized input and output voltages and currents ranging from 1V to 1000V and 1A to 1000A. We provide one-to-one customization services to ensure the most suitable product for your usage scenarios and load information.
🏭
Application & Factory Overview
❓
Frequently Asked Questions
1. Can the output voltage and current be customized?
Yes, we provide one-to-one customization. We can support output voltages from 1V to 1000V and currents from 1A to 1000A based on your specific load requirements.
2. What types of protection are included in the power supplies?
All our switching power supply modules are equipped with comprehensive protection mechanisms, including short circuit, overload, and over-voltage protection.
3. Does the product support external control?
Yes, we offer optional external control functionality, typically supporting 0-5Vdc or 0-10Vdc signals for remote output adjustment.
4. Can I use these power supplies with 110VAC input?
Standard models are 200-240VAC. However, we can customize units to support 110VAC/120VAC input if required for your project.
5. Are the products tested before shipping?
Absolutely. Every unit undergoes a 100% full load burn-in test to ensure stability, reliability, and long-term performance quality.
6. What industries use these switching power supplies?
Our products are widely used in LED lighting, industrial control systems, CCTV cameras, telecommunications, UV curing equipment, and battery charging applications.
