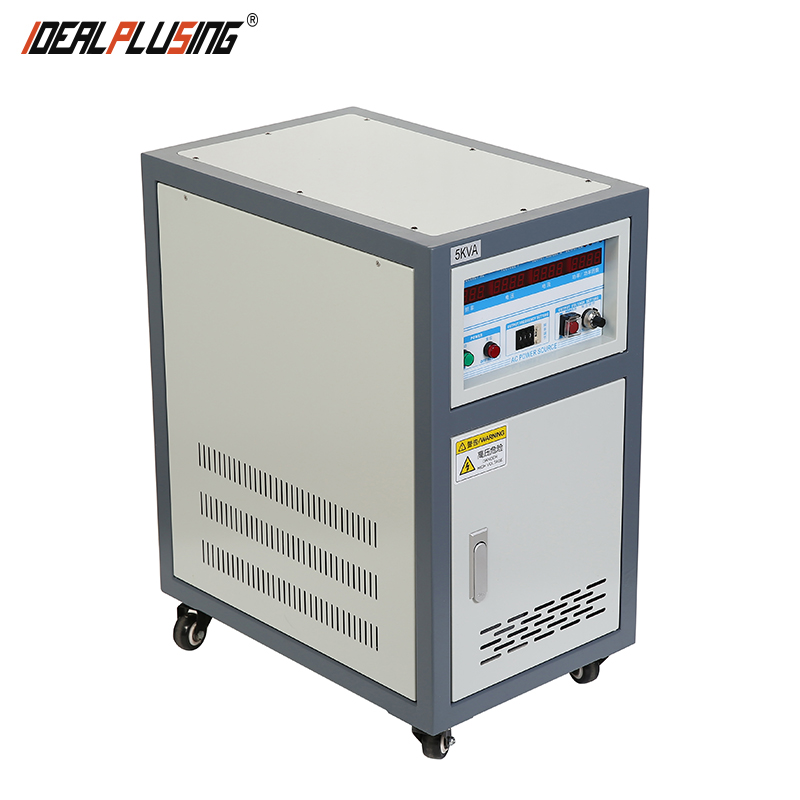

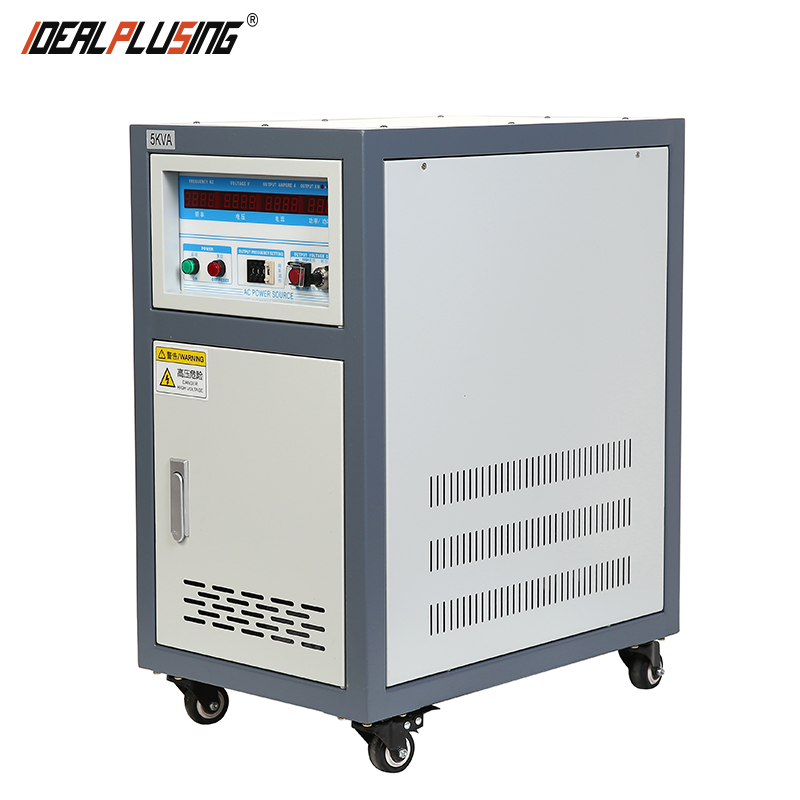

5 KVA 3 Phase Variable Frequency 220v 50hz to 400hz Frequency Inverter 3 Phase Ac Power Supply
Product Description
3 Phases Input Single Phase Output frequency converter inverter 50KVA ac power supply for Motor and Electronics Industry
Product Description
PERFORMANCE CHARACTERISTICS
01
Complete isolation of input and output technology, safe and reliable power supply
02
SPWM sine wave pulse width modulation technology is adopted, with fast response speed and stable output
03
IGBT high-frequency static inverter, small size, lightweight, low noise, and high efficiency
04
The unique double-loop control mode of instantaneous value and effective value is adopted, with high control precision and good waveform quality, which can adapt to various loads
05
High power IGBT module and highly integrated module drive circuit, reliable operation, strong overload capacity, low loss, and high efficiency
06
Suitable for resistive, inductive, rectifier, and other loads
07
It has multiple protection functions for abnormal conditions such as overheating, overcurrent, and short circuit
08
It has the function of setting parameter memory, (10-groups) shortcut key operation
09
The power supply voltage and frequency can be adjusted online, and the frequency can change in real-time
APPLICATION
✔ Home appliances
✔ Motors
✔ Power tools
✔ Switching power supplies
✔ Power adapters
✔ UPS
✔ Information and communication
✔ Photovoltaic
✔ Lamps
✔ Electronic transformers
✔ Electronic components
✔ Low-voltage distribution
✔ Power
✔ Other industries
Specifications
SPECIFICATION (IPS-FC61) SINGLE-PHASE INPUT SINGLE-PHASE OUTPUT
| Model (IPS-FC61) | 61005 | 6101 | 6102 | 6103 | 6105 | 6106 | 6110 | 6115 | ||
| Output capacity (KVA) | 0.5 | 1 | 2 | 3 | 5 | 6 | 10 | 15 | ||
| Rated power output(KW) | 0.4 | 0.8 | 1.6 | 2.4 | 4 | 4.8 | 8 | 12 | ||
| Circuit mode | IGBT/SPWM | |||||||||
| AC input | Single-phase 220V/50Hz or 60Hz | |||||||||
| AC output | Output Phase | Single-phase 220V | ||||||||
| Voltage | Low range | 0~150V Adjustable | ||||||||
| High range | 0~300V adjustable | |||||||||
| Frequency | 40~499.9HZ can be setting by software | |||||||||
| Max current | low-grade | 4.2A | 8.4 A | 17 A | 25 A | 42 A | 50 A | 84 A | 125 A | |
| high-grade | 2.1 A | 4.2 A | 8.4 A | 12.5 | 21 A | 25 A | 42 A | 63 A | ||
| Frequency stability rate | Frequency stability rate | |||||||||
| Load voltage stabilizing rate | Load voltage stabilizing rate | |||||||||
| Waveform distortion degree | Waveform distortion degree | |||||||||
| Response time | Response time | |||||||||
| Indication resolution | Digit frequency | 4 digits display, resolution 0.1Hz | ||||||||
| Digit voltage | 4 digits virtual value display, resolution 0.1V | |||||||||
| Digit current | 4 digits virtual value display, resolution 0.01A | |||||||||
| Digit power | 4 digits virtual value display, resolution 1W | |||||||||
| Protection | overvoltage, over current, overload, over temperature and short-circuit, as well as automatic jump protection and alarm device | |||||||||
| Cooling | Forced fan cooling | |||||||||
| Working temperature | 0℃~45℃ | |||||||||
| Environment humidity | Relative 0~90%( non-coagulation state ) | |||||||||
| Product Dimension(cm) | 43*18*44 | 43*18*47 | 43*65*52 | 55*74*52 | ||||||
| Net weight (kg) | 26 | 32 | 37 | 48 | 63 | 80 | 145 | 175 | ||
SPECIFICATION (IPS-FC62) SINGLE-PHASE INPUT TRI-PHASE OUTPUT
| Model (IPS-FC62) | 6220 | 6230 | 6245 | 6260 | 62100 | 62120 | 621150 | 62200 | ||
| Output capacity (KVA) | 20 | 30 | 45 | 60 | 100 | 120 | 150 | 200 | ||
| Rated power output(KW) | 16 | 24 | 36 | 48 | 80 | 96 | 120 | 160 | ||
| Circuit mode | IGBT/SPWM | |||||||||
| AC input | Tri-phase 220V/50Hz or 60Hz | |||||||||
| AC output | Output Phase | 3-phases 380V | ||||||||
| Voltage | Low range | 0~150V Adjustable | ||||||||
| High range | 0~300V adjustable | |||||||||
| Frequency | 40~499.9HZ can be setting by software | |||||||||
| Max current | low-grade | 168A | 250 A | 375 A | 500 A | 834 A | 1000 A | 1250 A | 1667 A | |
| high-grade | 84 A | 125 A | 188 A | 250 A | 417 A | 500 A | 625 A | 834 A | ||
| Frequency stability rate | Frequency stability rate | |||||||||
| Load voltage stabilizing rate | Load voltage stabilizing rate | |||||||||
| Waveform distortion degree | Waveform distortion degree | |||||||||
| Response time | Response time | |||||||||
| Indication resolution | Digit frequency | 4 digits display, resolution 0.1Hz | ||||||||
| Digit voltage | 4 digits virtual value display, resolution 0.1V | |||||||||
| Digit current | 4 digits virtual value display, resolution 0.01A | |||||||||
| Digit power | 4 digits virtual value display, resolution 1W | |||||||||
| Protection | overvoltage, over current, overload, over temperature and short-circuit, as well as automatic jump protection and alarm device | |||||||||
| Cooling | Forced fan cooling | |||||||||
| Working temperature | 0℃~45℃ | |||||||||
| Environment humidity | Relative 0~90%( non-coagulation state ) | |||||||||
| Product Dimension(cm) | 58*74*52 | 70*120*110 | 80*120*150 | 100*150*160 | ||||||
| Net weight (kg) | 285 | 385 | 420 | 560 | 960 | 1150 | 1450 | 1900 | ||
SPECIFICATION (IPS-FC63) 3-PHASES INPUT SINGLE-PHASE OUTPUT
| Model IPS-FC63 | 6303 | 6306 | 6310 | 6315 | 6320 | 6330 | 6345 | 6360 | 63100 | 63120 | 63400 | 63500 | 63600 |
| Rated Capacity (KVA) | 3 | 6 | 10 | 15 | 20 | 30 | 45 | 60 | 100 | 120 | 400 | 500 | 600 |
| Phase Capacity (KVA) | 1 | 2 | 3.3 | 5 | 7 | 10 | 15 | 20 | 33 | 40 | 134 | 167 | 200 |
| AC Input | Single phase 220V/50Hz,60Hz | Tri phase 380V/50Hz,60Hz | |||||||||||
| AC Output | |||||||||||||
| Phase | Trip phase (phase difference 120°±2°) | ||||||||||||
| Output Frequency | 40~499.9HZ can be setting by software | ||||||||||||
| AC Voltage Output | |||||||||||||
| Low Range | Phase voltage:0V~150V (line voltage:0V~260V) | ||||||||||||
| High Range | Phase voltage:0V~300V (line voltage:0V~520V) | ||||||||||||
| Max Current output | |||||||||||||
| 0~150V | 8.4A | 16.8A | 28A | 42A | 50A | 84A | 125A | 168A | 276A | 336A | 1112A | 1400A | 1667A |
| 0~300V | 4.2A | 8.4A | 14A | 21A | 25A | 42A | 63A | 84A | 138A | 168A | 556A | 700A | 833A |
| Frequency Stability Rate | ≤±0. 1% | ||||||||||||
| Load Stability Rate | ±0.5% | ||||||||||||
| Waveform Distortion | ≤±2%(resistance load) | ||||||||||||
| Response Time | ≤2ms | ||||||||||||
| Indication Resolution | |||||||||||||
| Digit Frequency | 4 digit resolution 0.1Hz | A,B,C phase can change optionally | |||||||||||
| Digit Voltage | 4 digit resolution 0.1V | ||||||||||||
| Digit Current | 4 digit resolution: below 4A:0.001A; above 4A:0.01A | ||||||||||||
| Digit Power | 4 digit resolution 1W | ||||||||||||
| Protection | Input no fuse switch, output fuse switch, electronics circuit speed detect the over voltage, over current, over load, over temperature, short circuit and automatic jump protection and alarm. | ||||||||||||
| Cooling | Forced fan cooling | ||||||||||||
| Environment | |||||||||||||
| Operation Temperature | 0℃~45℃ | ||||||||||||
| Relative Humidity | 0~90%(non condensing ) | ||||||||||||
| Working Temperature | 0℃~45℃, Relative 0~90%( non-coagulation state ) | ||||||||||||
| Shape | |||||||||||||
| Dimensions (MM) | 190*305*430 | 280*450*500 | 620*320*620 | 950*560*650 | 700*1340*1280 | 1700*1750*1000 | 1650*850*1090 | 1650*800*1200 | |||||
| Weight(Kg) | 30 | 35 | 45 | 60 | 78 | 140 | 170 | 280 | 650 | 1050 | 1250 | 1350 | 1450 |
SPECIFICATION (IPS-FC68) 3-PHASES INPUT 3-PHASES OUTPUT
| Model | 68005 | 6801 | 6802 | 6803 | 6805 | 6810 | 6815 | 6820 | 6830 | 6845 | 6860 | 68100 | |
| Rated Capacity (KVA) | 500 | 1 | 2 | 3 | 5 | 10 | 15 | 20 | 30 | 45 | 60 | 100 | |
| Circuit Mode | IGBT/PWM | ||||||||||||
| AC Input | Single-phase 220V/50Hz,60Hz | Tri-phase 380V/50Hz,60Hz | |||||||||||
| AC Output | |||||||||||||
| AC Output | Phase | Single phase | |||||||||||
| Voltage | Low Range | 0V~150V | |||||||||||
| High Range | 0V~300V | ||||||||||||
| Frequency | 40~499.9HZ can be setting by software | ||||||||||||
| Max Current | 0V-150V | 4.2A | 8.4A | 16.8A | 25A | 42A | 84A | 126A | 168A | 250A | 375A | 500A | 834A |
| 0V-300V | 2.1A | 4.2A | 8.4A | 12.5A | 21A | 42A | 63A | 84A | 125A | 188A | 250A | 417A | |
| Frequency Stability Rate | ≤±0.1% | ||||||||||||
| Load Stability Rate | ±0.5% | ||||||||||||
| Waveform Distortion | ≤2%(linear load) | ||||||||||||
| Respond Time | Max 2ms | ||||||||||||
| Indication Resolution | |||||||||||||
| Digit Frequency | 4 digit resolution 0.1Hz | ||||||||||||
| Digit Voltage | 4 digit resolution 0.1V | ||||||||||||
| Digit Current | 4 digit resolution below 4A:0.001A above 4A:0.01A | ||||||||||||
| Digit Power | 4 digit resolution below 200W:0.1W above 200W:1W | ||||||||||||
| Digit Frequency (PF) | 4 digit resolution 0.001 | ||||||||||||
| Protector | Input no fuse switch, output fuse switch, electronics circuit speed detect the over voltage, over current, over load, over temperature, short circuit and automatic jump protection and alarm. | ||||||||||||
| Cooling | Forced fan cooling | ||||||||||||
| Environment | |||||||||||||
| Operate Temperature | 0℃~45℃ | ||||||||||||
| Related Humidity | 0~90%(non condensing ) | ||||||||||||
| Dimension H*W*D(mm) | 187*428*440 | 650*430*520 | 900*450*710 | 900*560*710 | 1200*560*800 | 1200*850*1020 | 1600*800*1200 | ||||||

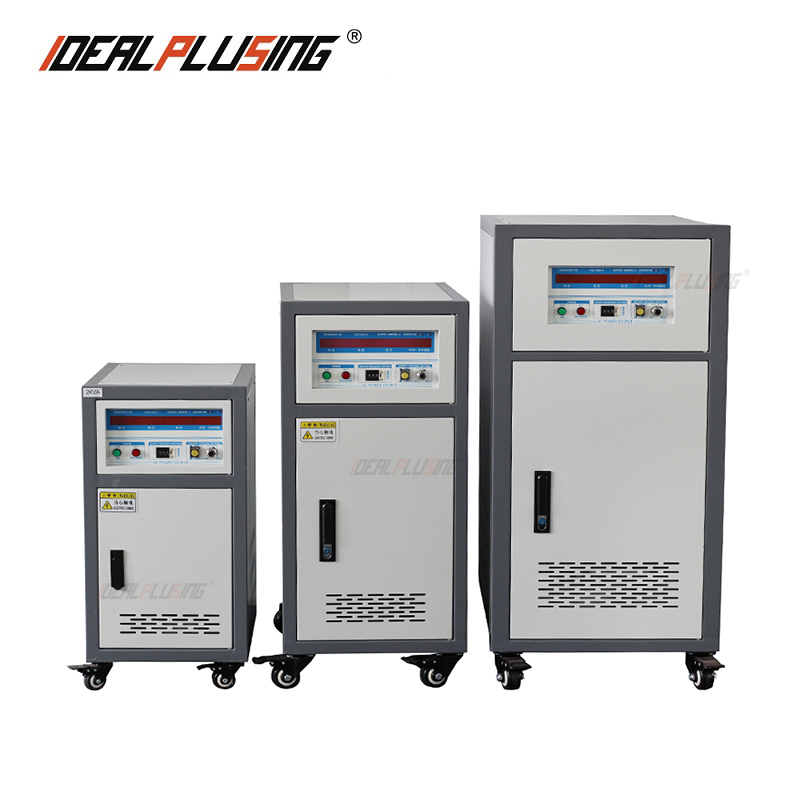

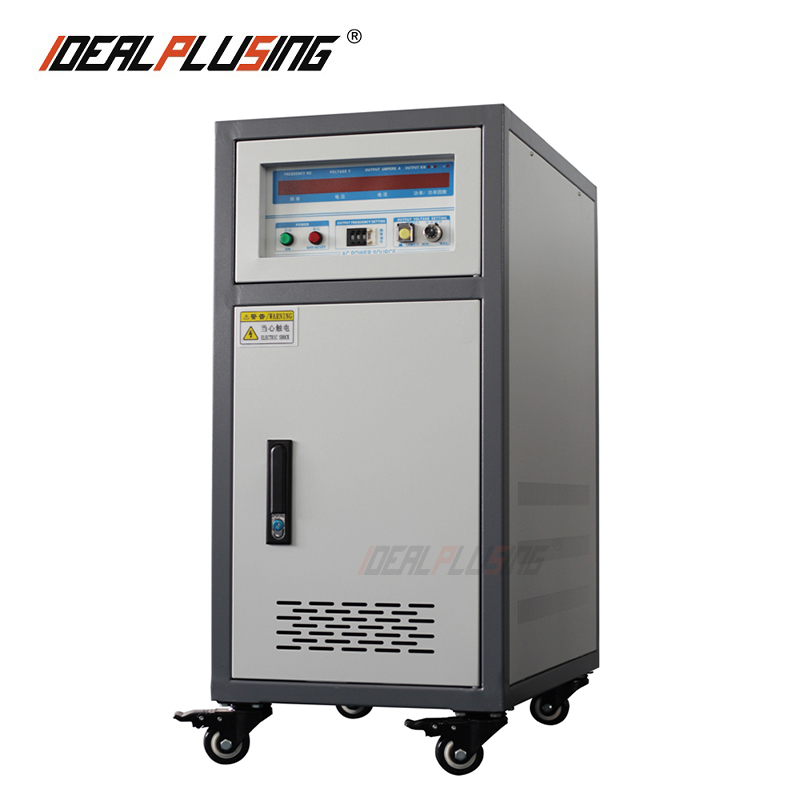

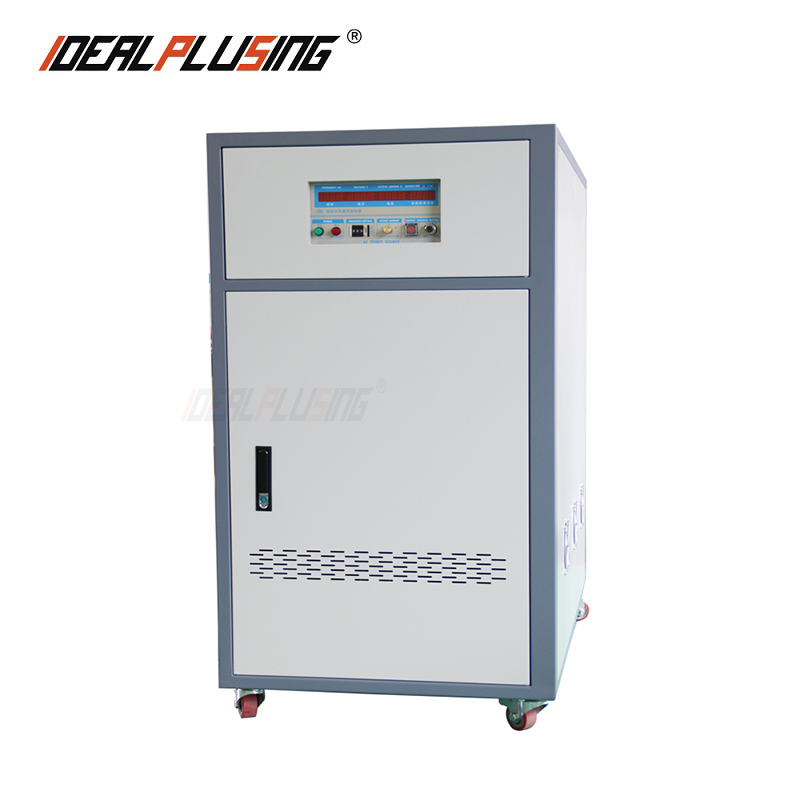

Product Show-ACAC
Product Overview
Model List
Frequently Asked Questions (FAQ)
1. What are the main applications of this frequency converter inverter?
This high-performance AC power supply is widely used in motors, electronics industry, home appliances, power tools, switching power supplies, power adapters, UPS, photovoltaic, lamps, electronic transformers, low-voltage distribution, and information systems.
2. What core technology does this variable frequency power supply use?
The equipment adopts SPWM sine wave pulse width modulation technology and high-power IGBT high-frequency static inverter technology to ensure fast response, low noise, high efficiency, and stable output performance.
3. What safety protection features are integrated into the system?
It features complete electrical isolation between input and output. It also includes comprehensive electronic protection against overvoltage, overcurrent, overload, over-temperature, and short-circuit faults alongside an automatic jump protection and alarm mechanism.
4. Can this power supply handle inductive or non-linear rectifier loads?
Yes, thanks to its unique double-loop control mode of instantaneous and effective values, the power supply maintains high control precision and exceptional waveform quality, making it fully compatible with resistive, inductive, rectifier, and mixed loads.
5. Is the output voltage and frequency adjustable on the fly?
Yes, the AC voltage (with configurable low range 0-150V and high range 0-300V) and output frequency (adjustable from 40Hz to 499.9Hz via control software) can be adjusted online in real-time. It also supports parameter memory with 10 groups of shortcut key operations.
