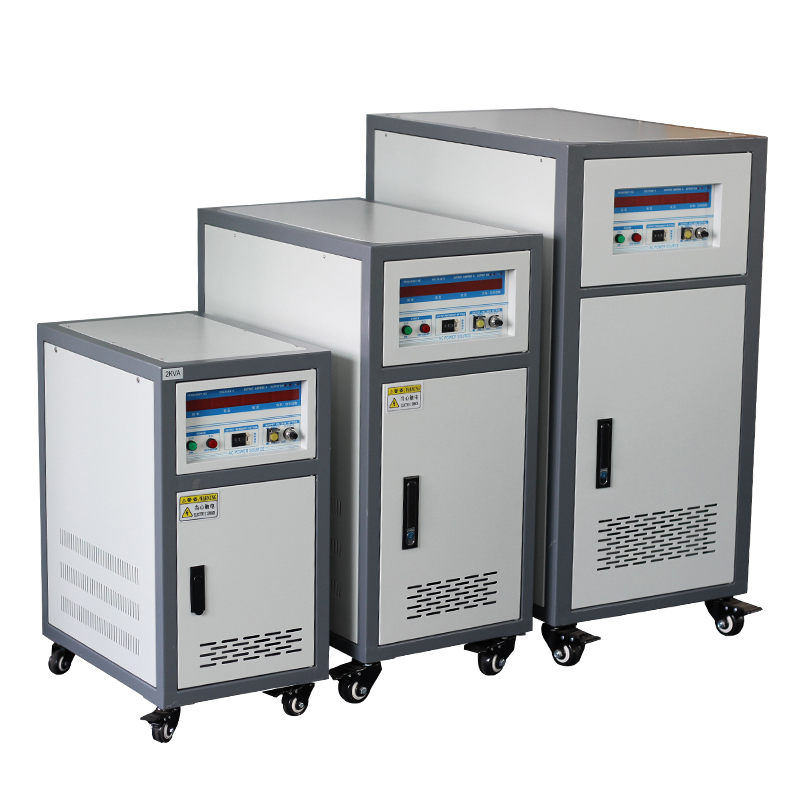

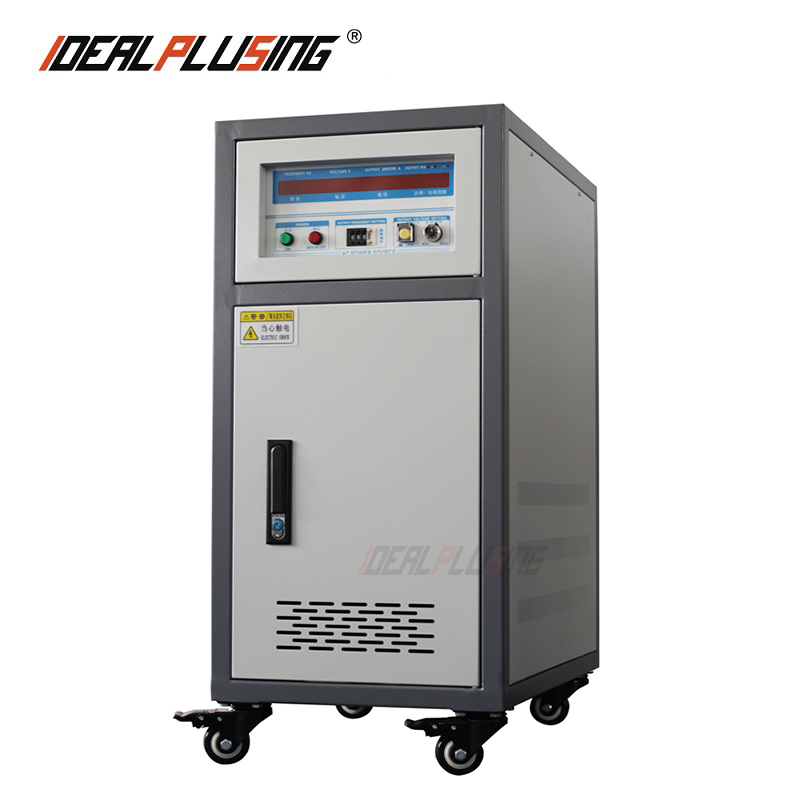

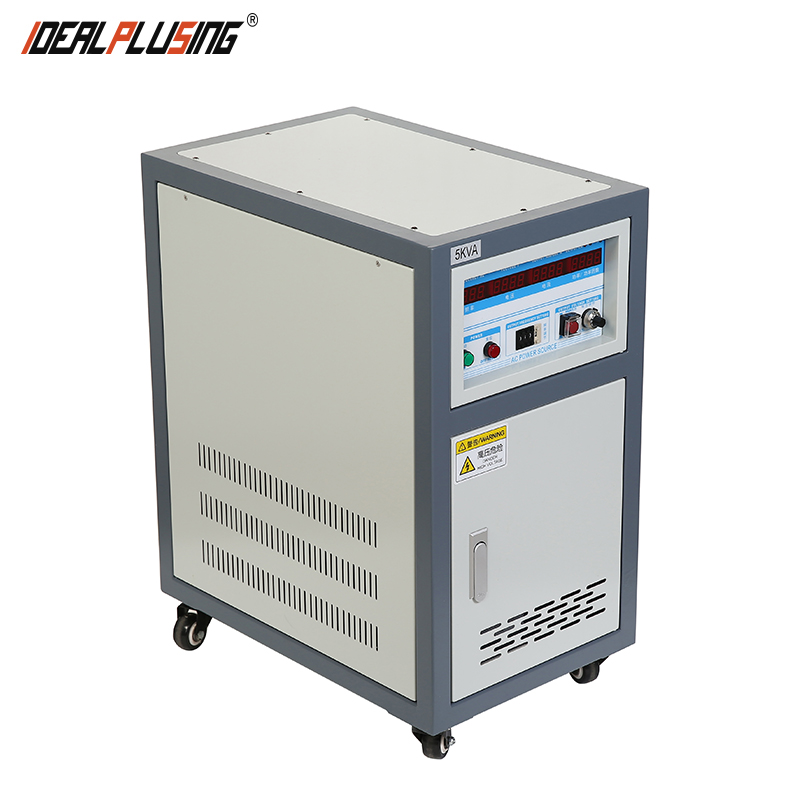

300kva 50hz 3 Phase Converter Electric Automatic Voltage Regulator Frequency Stabilizer
Product Description
300kVA 50Hz 3 Phase Converter Electric Automatic Voltage Regulator Frequency Stabilizer
★ PERFORMANCE CHARACTERISTICS
1 Complete isolation of input and output technology, safe and reliable power supply
2 SPWM sine wave pulse width modulation technology is adopted, with fast response speed and stable output
3 IGBT high-frequency static inverter, small size, lightweight, low noise, and high efficiency
4 Unique double-loop control mode of instantaneous value and effective value for high control precision
5 High power IGBT module and highly integrated module drive circuit, strong overload capacity
6 Suitable for resistive, inductive, rectifier, and other loads
7 Multiple protection functions: overheating, overcurrent, and short circuit
8 Parameter memory function (10-groups shortcut key operation)
9 Online voltage and frequency adjustment with real-time frequency changes
★ APPLICATION
| 1. Home appliances | 8. Photovoltaic |
| 2. Motors | 9. Lamps |
| 3. Power tools | 10. Electronic transformers |
| 4. Switching power supplies | 11. Electronic components |
| 5. Power adapters | 12. Low-voltage distribution |
| 6. UPS | 13. Power |
| 7. Information and communication | 14. Other industries |
★ SPECIFICATION (IPS-FC61) SINGLE-PHASE INPUT SINGLE-PHASE OUTPUT
| Model (IPS-FC61) | 61005 | 6101 | 6102 | 6103 | 6105 | 6106 | 6110 | 6115 | ||
| Output capacity (KVA) | 0.5 | 1 | 2 | 3 | 5 | 6 | 10 | 15 | ||
| Rated power output(KW) | 0.4 | 0.8 | 1.6 | 2.4 | 4 | 4.8 | 8 | 12 | ||
| Circuit mode | IGBT/SPWM | |||||||||
| AC input | Single-phase 220V/50Hz or 60Hz | |||||||||
| AC output | Output Phase | Single-phase 220V | ||||||||
| Voltage | Low range | 0~150V Adjustable | ||||||||
| High range | 0~300V adjustable | |||||||||
| Frequency | 40~499.9HZ can be setting by software | |||||||||
| Response time | Response time ≤2ms | |||||||||
★ SPECIFICATION (IPS-FC62) SINGLE-PHASE INPUT TRI-PHASE OUTPUT
| Model (IPS-FC62) | 6220 | 6230 | 6245 | 6260 | 62100 | 62120 | 621150 | 62200 | ||
| Output capacity (KVA) | 20 | 30 | 45 | 60 | 100 | 120 | 150 | 200 | ||
| Rated power output(KW) | 16 | 24 | 36 | 48 | 80 | 96 | 120 | 160 | ||
| Circuit mode | IGBT/SPWM | |||||||||
| AC input | Tri-phase 220V/50Hz or 60Hz | |||||||||
| AC output Phase | 3-phases 380V | |||||||||
★ PRODUCT SHOW
★ PRODUCT OVERVIEW
★ MODEL LIST
Frequently Asked Questions
What is the response time of this frequency converter?
The system utilizes SPWM technology and double-loop control, ensuring a fast response time of ≤2ms.
Can it handle inductive loads like motors?
Yes, this stabilizer is suitable for various loads including resistive, inductive, rectifier, and more.
What protection features are included?
It includes multiple protection functions for abnormal conditions such as overvoltage, overcurrent, overload, overheating, and short circuits.
Is the output frequency adjustable?
Yes, the output frequency can be adjusted online from 40 to 499.9Hz via the integrated software settings.
What cooling method does the device use?
The unit employs a forced fan cooling system to maintain optimal working temperatures between 0℃ and 45℃.
Is the input and output isolated?
Yes, it features complete isolation of input and output technology, providing a safe and reliable power supply for sensitive equipment.
