30KVA 3 Three Phase 50 60 400HZ 115V AC Varible Voltage and Frequency Power Supply
Product Description
⚙️ PERFORMANCE CHARACTERISTICS
1
Complete isolation of input and output technology, safe and reliable power supply
2
SPWM sine wave pulse width modulation technology is adopted, with fast response speed and stable output
3
IGBT high-frequency static inverter, small size, lightweight, low noise, and high efficiency
4
The unique double-loop control mode of instantaneous value and effective value is adopted, with high control precision and good waveform quality, which can adapt to various loads
5
High power IGBT module and highly integrated module drive circuit, reliable operation, strong overload capacity, low loss, and high efficiency
6
Suitable for resistive, inductive, rectifier, and other loads
7
It has multiple protection functions for abnormal conditions such as overheating, overcurrent, and short circuit
8
It has the function of setting parameter memory, (10-groups) shortcut key operation
9
The power supply voltage and frequency can be adjusted online, and the frequency can change in real-time
💡 APPLICATIONS
Home appliances
Motors
Power tools
Switching power supplies
Power adapters
UPS
Information and communication
Photovoltaic
Lamps
Electronic transformers
Electronic components
Low-voltage distribution
Power
Other industries
📊 TECHNICAL SPECIFICATIONS
SPECIFICATION (IPS-FC61) SINGLE-PHASE INPUT SINGLE-PHASE OUTPUT
| Model (IPS-FC61) | 61005 | 6101 | 6102 | 6103 | 6105 | 6106 | 6110 | 6115 | ||
| Output capacity (KVA) | 0.5 | 1 | 2 | 3 | 5 | 6 | 10 | 15 | ||
| Rated power output(KW) | 0.4 | 0.8 | 1.6 | 2.4 | 4 | 4.8 | 8 | 12 | ||
| Circuit mode | IGBT/SPWM | |||||||||
| AC input | Single-phase 220V/50Hz or 60Hz | |||||||||
| AC output | Output Phase | Single-phase 220V | ||||||||
| Voltage | Low range | 0~150V Adjustable | ||||||||
| High range | 0~300V adjustable | |||||||||
| Frequency | 40~499.9HZ can be setting by software | |||||||||
| Max current | low-grade | 4.2A | 8.4 A | 17 A | 25 A | 42 A | 50 A | 84 A | 125 A | |
| high-grade | 2.1 A | 4.2 A | 8.4 A | 12.5 | 21 A | 25 A | 42 A | 63 A | ||
| Frequency stability rate | Frequency stability rate | |||||||||
| Load voltage stabilizing rate | Load voltage stabilizing rate | |||||||||
| Waveform distortion degree | Waveform distortion degree | |||||||||
| Response time | Response time | |||||||||
| Indication resolution | Digit frequency | 4 digits display, resolution 0.1Hz | ||||||||
| Digit voltage | 4 digits virtual value display, resolution 0.1V | |||||||||
| Digit current | 4 digits virtual value display, resolution 0.01A | |||||||||
| Digit power | 4 digits virtual value display, resolution 1W | |||||||||
| Protection | overvoltage, over current, overload, over temperature and short-circuit, as well as automatic jump protection and alarm device | |||||||||
| Cooling | Forced fan cooling | |||||||||
| Working temperature | 0℃~45℃ | |||||||||
| Environment humidity | Relative 0~90%( non-coagulation state ) | |||||||||
| Product Dimension(cm) | 43*18*44 | 43*18*47 | 43*65*52 | 55*74*52 | ||||||
| Net weight (kg) | 26 | 32 | 37 | 48 | 63 | 80 | 145 | 175 | ||
SPECIFICATION (IPS-FC62) SINGLE-PHASE INPUT TRI-PHASE OUTPUT
| Model (IPS-FC62) | 6220 | 6230 | 6245 | 6260 | 62100 | 62120 | 621150 | 62200 | ||
| Output capacity (KVA) | 20 | 30 | 45 | 60 | 100 | 120 | 150 | 200 | ||
| Rated power output(KW) | 16 | 24 | 36 | 48 | 80 | 96 | 120 | 160 | ||
| Circuit mode | IGBT/SPWM | |||||||||
| AC input | Tri-phase 220V/50Hz or 60Hz | |||||||||
| AC output | Output Phase | 3-phases 380V | ||||||||
| Voltage | Low range | 0~150V Adjustable | ||||||||
| High range | 0~300V adjustable | |||||||||
| Frequency | 40~499.9HZ can be setting by software | |||||||||
| Max current | low-grade | 168A | 250 A | 375 A | 500 A | 834 A | 1000 A | 1250 A | 1667 A | |
| high-grade | 84 A | 125 A | 188 A | 250 A | 417 A | 500 A | 625 A | 834 A | ||
| Frequency stability rate | Frequency stability rate | |||||||||
| Load voltage stabilizing rate | Load voltage stabilizing rate | |||||||||
| Waveform distortion degree | Waveform distortion degree | |||||||||
| Response time | Response time | |||||||||
| Indication resolution | Digit frequency | 4 digits display, resolution 0.1Hz | ||||||||
| Digit voltage | 4 digits virtual value display, resolution 0.1V | |||||||||
| Digit current | 4 digits virtual value display, resolution 0.01A | |||||||||
| Digit power | 4 digits virtual value display, resolution 1W | |||||||||
| Protection | overvoltage, over current, overload, over temperature and short-circuit, as well as automatic jump protection and alarm device | |||||||||
| Cooling | Forced fan cooling | |||||||||
| Working temperature | 0℃~45℃ | |||||||||
| Environment humidity | Relative 0~90%( non-coagulation state ) | |||||||||
| Product Dimension(cm) | 58*74*52 | 70*120*110 | 80*120*150 | 100*150*160 | ||||||
| Net weight (kg) | 285 | 385 | 420 | 560 | 960 | 1150 | 1450 | 1900 | ||
SPECIFICATION (IPS-FC63) 3-PHASE INPUT SINGLE-PHASE OUTPUT
| Model IPS-FC63 | 6303 | 6306 | 6310 | 6315 | 6320 | 6330 | 6345 | 6360 | 63100 | 63120 | 63400 | 63500 | 63600 |
| Rated Capacity (KVA) | 3 | 6 | 10 | 15 | 20 | 30 | 45 | 60 | 100 | 120 | 400 | 500 | 600 |
| Phase Capacity (KVA) | 1 | 2 | 3.3 | 5 | 7 | 10 | 15 | 20 | 33 | 40 | 134 | 167 | 200 |
| AC Input | Single phase 220V/50Hz,60Hz | Tri phase 380V/50Hz,60Hz | |||||||||||
| AC Output | |||||||||||||
| Phase | Trip phase (phase difference 120°±2°) | ||||||||||||
| Output Frequency | 40~499.9HZ can be setting by software; | ||||||||||||
| AC Voltage Output | |||||||||||||
| Low Range | Phase voltage:0V~150V (line voltage:0V~260V) | ||||||||||||
| High Range | Phase voltage:0V~300V (line voltage:0V~520V) | ||||||||||||
| Max Current output | |||||||||||||
| 0~150V | 8.4A | 16.8A | 28A | 42A | 50A | 84A | 125A | 168A | 276A | 336A | 1112A | 1400A | 1667A |
| 0~300V | 4.2A | 8.4A | 14A | 21A | 25A | 42A | 63A | 84A | 138A | 168A | 556A | 700A | 833A |
| Frequency Stability Rate | ≤±0. 1% | ||||||||||||
| Load Stability Rate | ±0.5% | ||||||||||||
| Waveform Distortion | ≤±2%(resistance load) | ||||||||||||
| Response Time | ≤2ms | ||||||||||||
| Indication Resolution | |||||||||||||
| Digit Frequency | 4 digit resolution 0.1Hz | A,B,C phase can change optionally | |||||||||||
| Digit Voltage | 4 digit resolution 0.1V | ||||||||||||
| Digit Current | 4 digit resolution: below 4A:0.001A; above 4A:0.01A | ||||||||||||
| Digit Power | 4 digit resolution 1W | ||||||||||||
| Protection | Input no fuse switch, output fuse switch, electronics circuit speed detect the over voltage, over current, over load, over temperature, short circuit and automatic jump protection and alarm. | ||||||||||||
| Cooling | Forced fan cooling | ||||||||||||
| Environment | |||||||||||||
| Operation Temperature | 0℃~45℃ | ||||||||||||
| Relative Humidity | 0~90%(non condensing ) | ||||||||||||
| Working Temperature | 0℃~45℃, Relative 0~90%( non-coagulation state ) | ||||||||||||
| Shape | |||||||||||||
| Dimensions (MM) | 190*305*430 | 280*450*500 | 620*320*620 | 950*560*650 | 700*1340*1280 | 1700*1750*1000 | 1650*850*1090 | 1650*800*1200 | |||||
| Weight(Kg) | 30 | 35 | 45 | 60 | 78 | 140 | 170 | 280 | 650 | 1050 | 1250 | 1350 | 1450 |
SPECIFICATION (IPS-FC68) 3-PHASE INPUT 3-PHASE OUTPUT
| Model | 68005 | 6801 | 6802 | 6803 | 6805 | 6810 | 6815 | 6820 | 6830 | 6845 | 6860 | 68100 | |
| Rated Capacity (KVA) | 500 | 1 | 2 | 3 | 5 | 10 | 15 | 20 | 30 | 45 | 60 | 100 | |
| Circuit Mode | IGBT/PWM | ||||||||||||
| AC Input | Single-phase 220V/50Hz,60Hz | Tri-phase 380V/50Hz,60Hz | |||||||||||
| AC Output | |||||||||||||
| AC Output | Phase | Single phase | |||||||||||
| Voltage | Low Range | 0V~150V | |||||||||||
| Low Range | 0V~300V | ||||||||||||
| Frequency | 40~499.9HZ can be setting by software | ||||||||||||
| Max Current | 0V-150V | 4.2A | 8.4A | 16.8A | 25A | 42A | 84A | 126A | 168A | 250A | 375A | 500A | 834A |
| 0V-300V | 2.1A | 4.2A | 8.4A | 12.5A | 21A | 42A | 63A | 84A | 125A | 188A | 250A | 417A | |
| Frequency Stability Rate | ≤±0.1% | ||||||||||||
| Load Stability Rate | ±0.5% | ||||||||||||
| Waveform Distortion | ≤2%(linear load) | ||||||||||||
| Respond Time | Max 2ms | ||||||||||||
| Indication Resolution | |||||||||||||
| Digit Frequency | 4 digit resolution 0.1Hz | ||||||||||||
| Digit Voltage | 4 digit resolution 0.1V | ||||||||||||
| Digit Current | 4 digit resolution below 4A:0.001A above 4A:0.01A | ||||||||||||
| Digit Power | 4 digit resolution below 200W:0.1W above 200W:1W | ||||||||||||
| Digit Frequency | 4 digit resolution 0.001 | ||||||||||||
| Protector | Input no fuse switch, output fuse switch, electronics circuit speed detect the over voltage, over current, over load, over temperature, short circuit and automatic jump protection and alarm. | ||||||||||||
| Cooling | Forced fan cooling | ||||||||||||
| Environment | |||||||||||||
| Operate Temperature | 0℃~45℃ | ||||||||||||
| Related Humidity | 0~90%(non condensing ) | ||||||||||||
| Dimension H*W*D(mm) | 187*428*440 | 650*430*520 | 900*450*710 | 900*560*710 | 1200*560*800 | 1200*850*1020 | 1600*800*1200 | ||||||

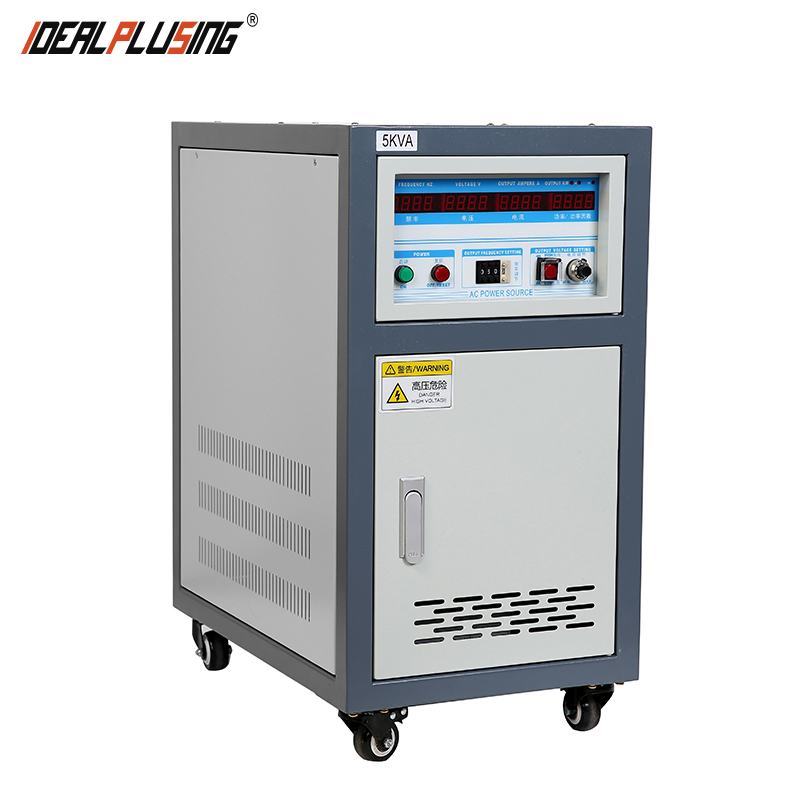

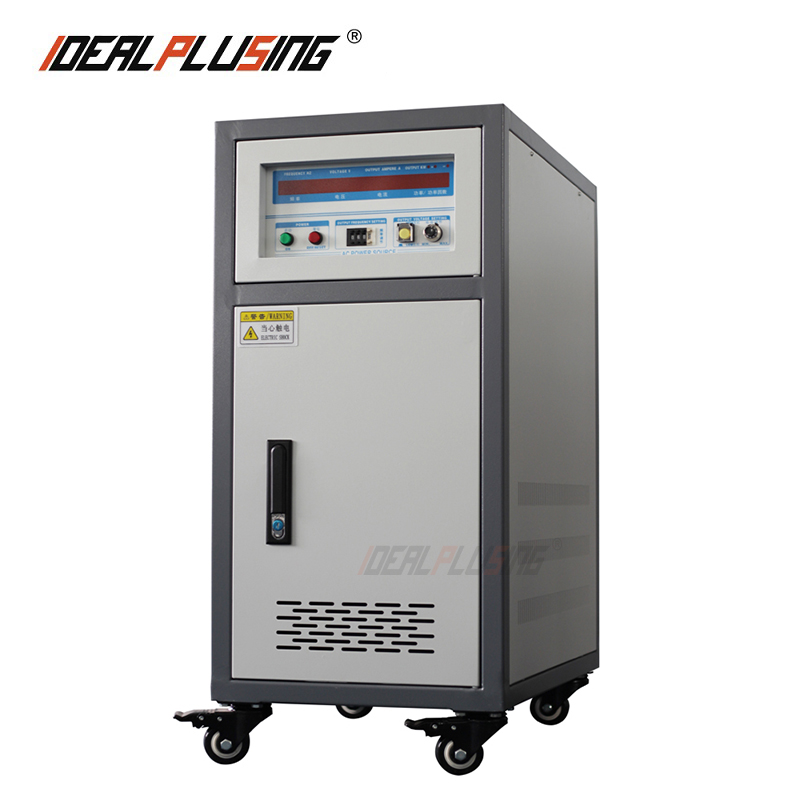

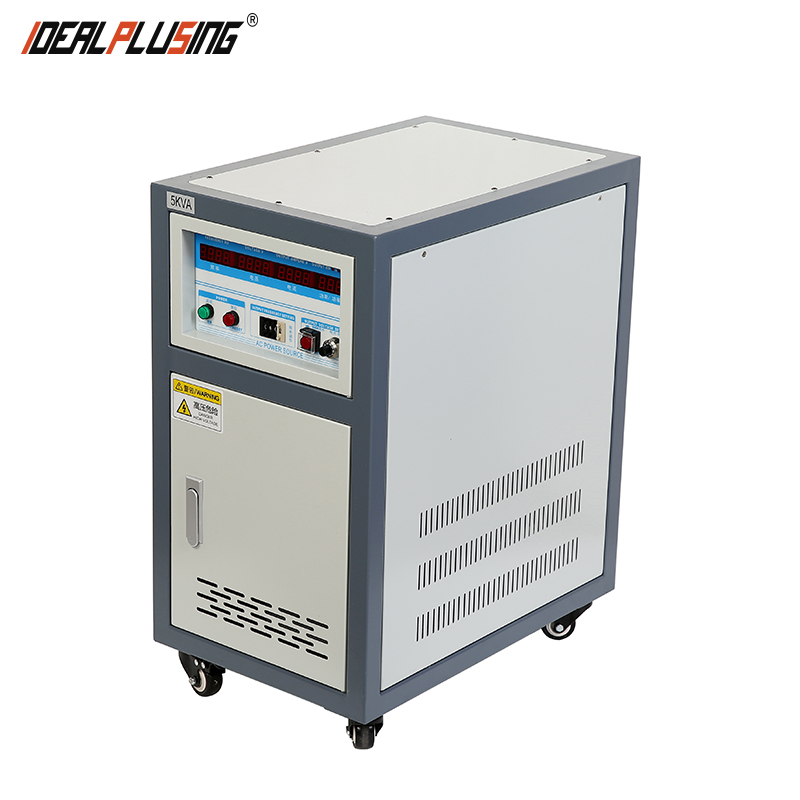

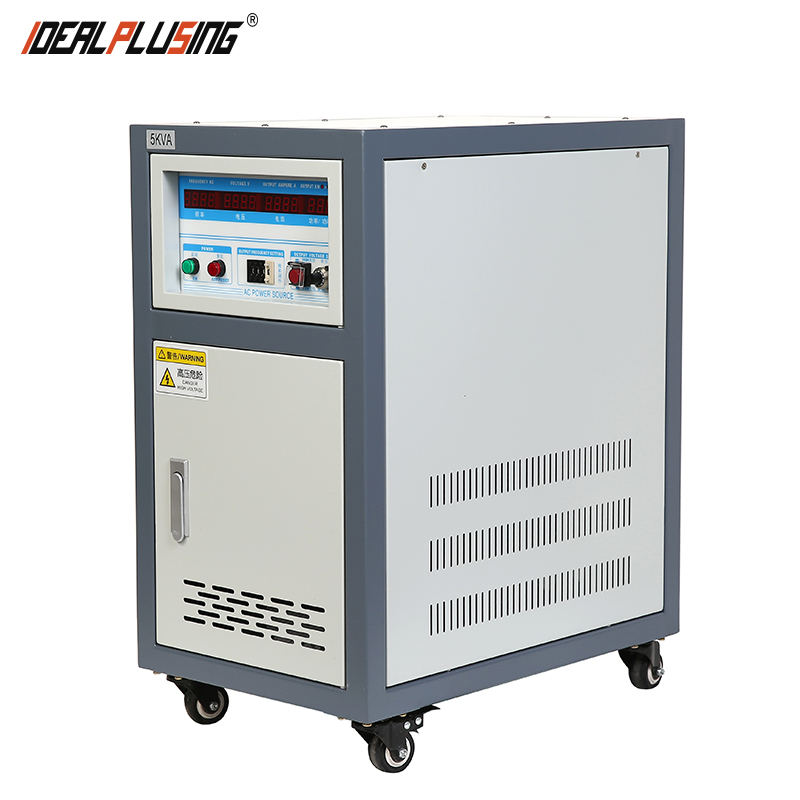

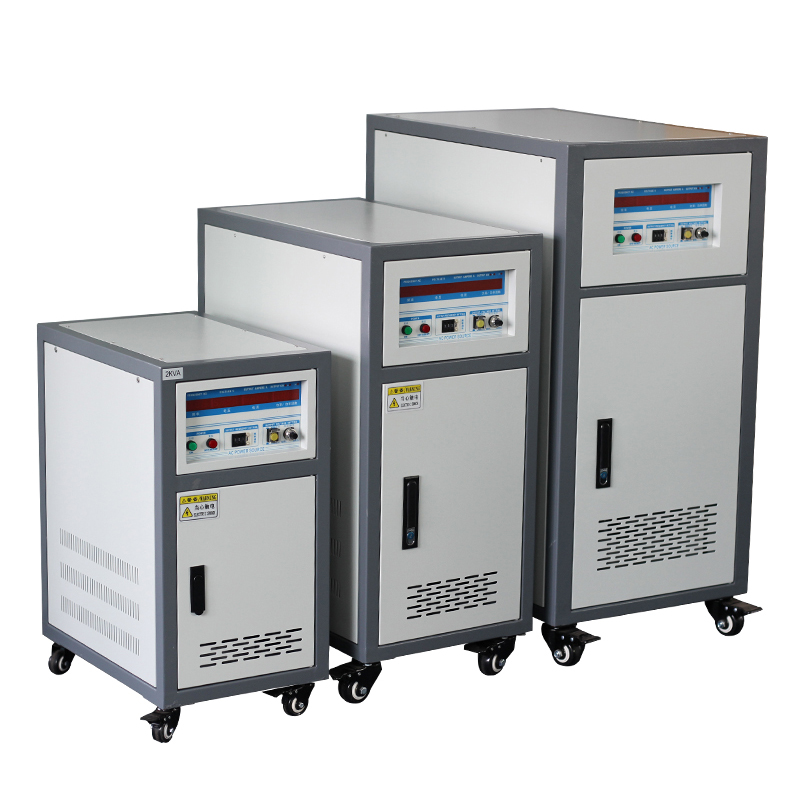

📷 PRODUCT SHOW
🔍 PRODUCT OVERVIEW
📋 MODEL LIST
❓ FREQUENTLY ASKED QUESTIONS (FAQ)
Q1: What are the key technology advantages of this power supply?
This variable voltage and frequency power supply adopts SPWM sine wave pulse width modulation technology and complete isolation of input/output to ensure a highly stable, safe, and reliable output.
Q2: Can I adjust the voltage and frequency output online?
Yes. The power supply voltage and frequency can be adjusted online in real-time. The output frequency can range from 40Hz to 499.9Hz adjustable via control software.
Q3: What types of electrical loads are compatible with this power supply?
The unit is highly versatile and fully suitable for resistive, inductive, rectifier, and other types of loads commonly found in test environments.
Q4: What protective measures are integrated to prevent system damage?
It features comprehensive built-in protection against overheating, overcurrent, overvoltage, overload, and short-circuit conditions, paired with automatic jump protection and alarm systems.
Q5: Does this power supply support preset configurations?
Yes, the device has a parameter memory function that supports up to 10 groups of shortcut key operations for quick setting recalls.
Q6: What cooling method does this power supply system use?
The system relies on forced fan cooling to manage operating temperatures efficiently within the nominal 0℃ to 45℃ operational range.
