400kva 200kVA Three Phase Available Aircraft Ground Power Unit 400Hz Frequency Converter
Product Description
400kVA / 200kVA Three Phase Aircraft Ground Power Unit
High-Performance 400Hz Frequency Converter
PERFORMANCE CHARACTERISTICS
1
Complete isolation of input and output technology, safe and reliable power supply.
2
SPWM sine wave pulse width modulation technology for fast response and stable output.
3
IGBT high-frequency static inverter: small size, lightweight, and low noise.
4
Double-loop control mode (instantaneous & effective value) for high precision waveform.
5
Highly integrated IGBT module drive circuit with strong overload capacity.
6
Versatile compatibility: Suitable for resistive, inductive, and rectifier loads.
7
Multi-protection: Covers overheating, overcurrent, and short circuit conditions.
8
Parameter memory function with 10-group shortcut key operations.
9
Real-time online adjustment for both power supply voltage and frequency.
APPLICATIONS
Home appliances
Motors
Power tools
Switching power supplies
Power adapters
UPS
Information & Communication
Photovoltaic
Lamps
Electronic transformers
Electronic components
Low-voltage distribution
Power systems
Aviation Industries
SPECIFICATIONS (SINGLE-PHASE INPUT / OUTPUT)
| Model (IPS-FC61) | 61005 | 6101 | 6102 | 6103 | 6105 | 6106 | 6110 | 6115 |
| Output capacity (KVA) | 0.5 | 1 | 2 | 3 | 5 | 6 | 10 | 15 |
| AC Input | Single-phase 220V/50Hz or 60Hz | |||||||
| Voltage Range | Low: 0~150V | High: 0~300V Adjustable | |||||||
| Frequency | 40~499.9HZ Adjustable | |||||||
SPECIFICATIONS (TRI-PHASE OUTPUT)
| Model (IPS-FC62) | 6220 | 6230 | 6245 | 6260 | 62100 | 62120 | 62150 | 62200 |
| Output capacity (KVA) | 20 | 30 | 45 | 60 | 100 | 120 | 150 | 200 |
| AC output Phase | 3-phases 380V | |||||||
| Max current (low-grade) | 168A | 250A | 375A | 500A | 834A | 1000A | 1250A | 1667A |

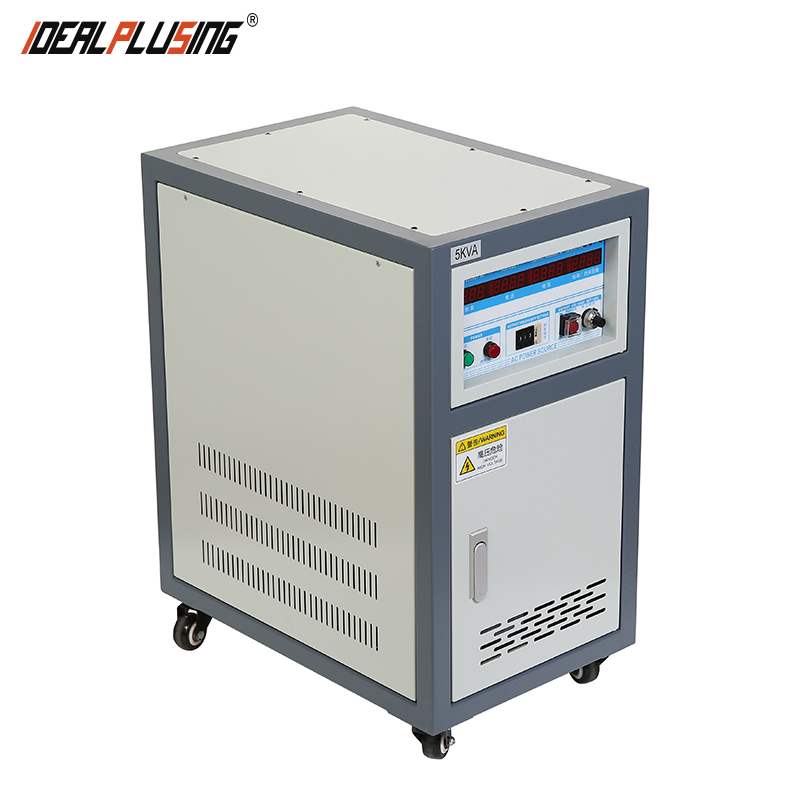

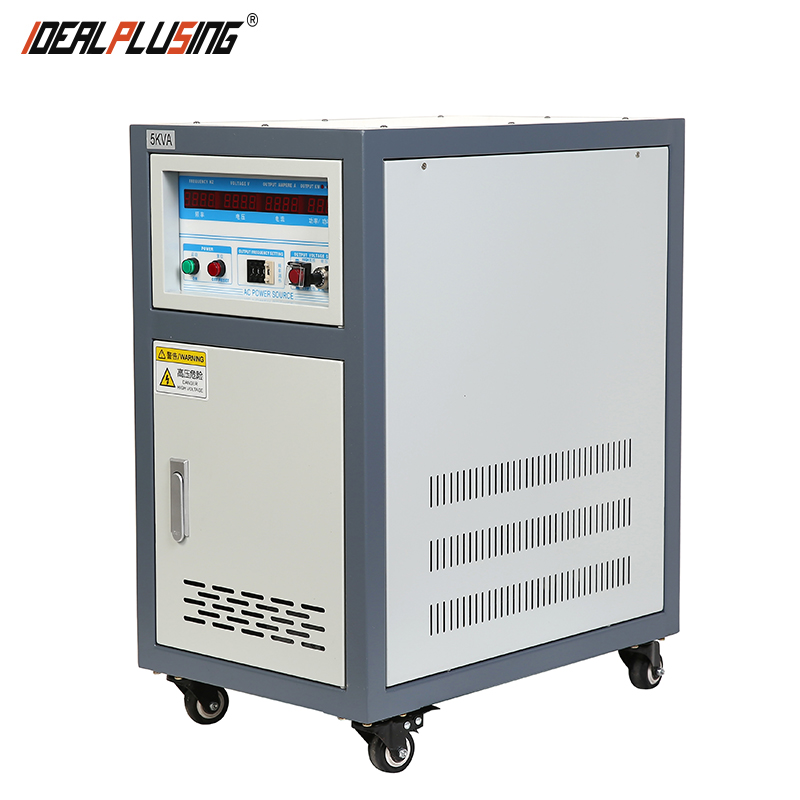

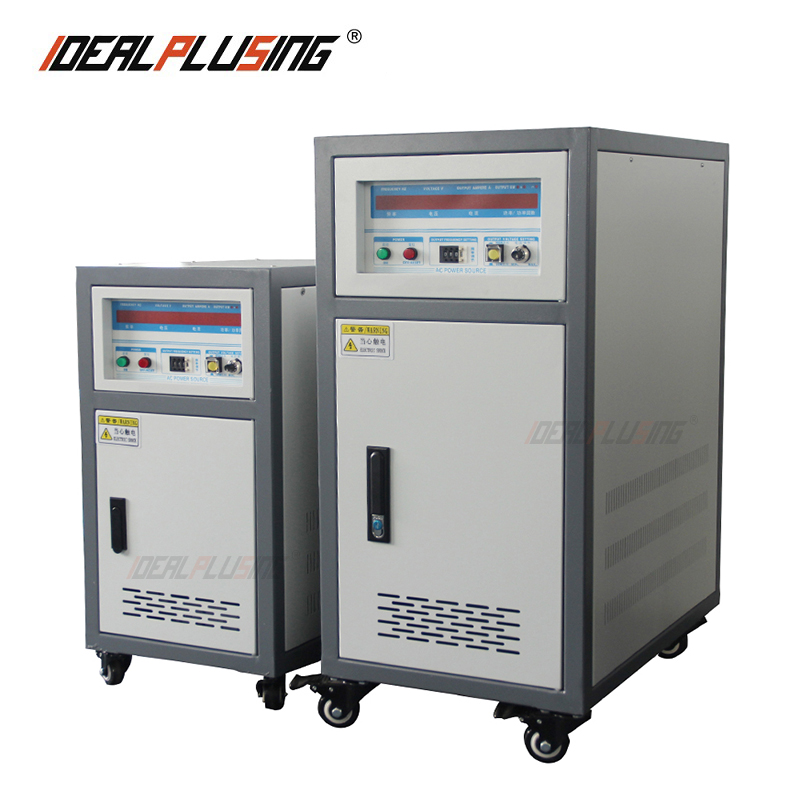

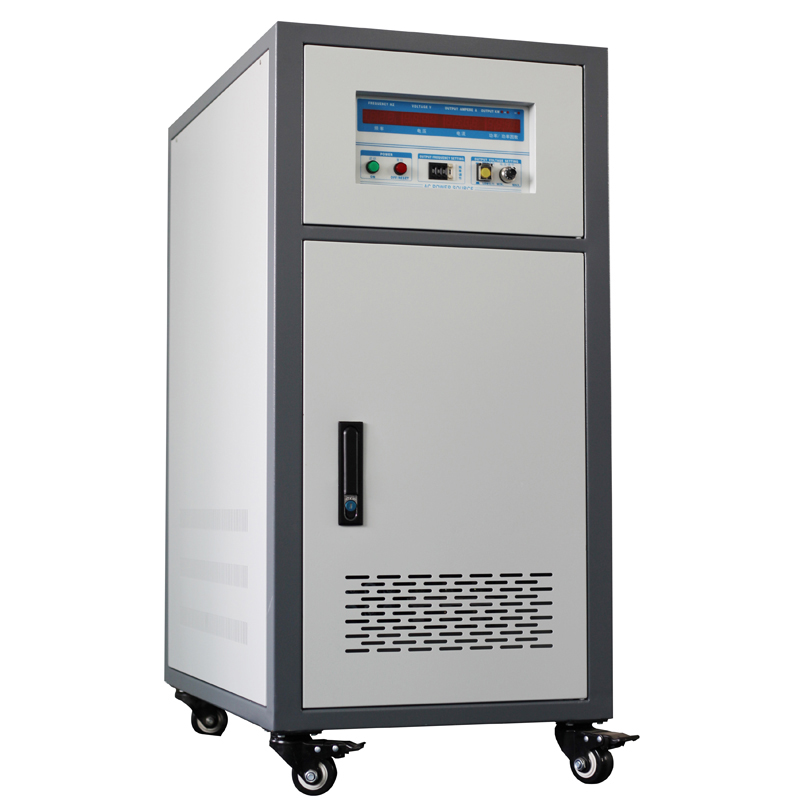

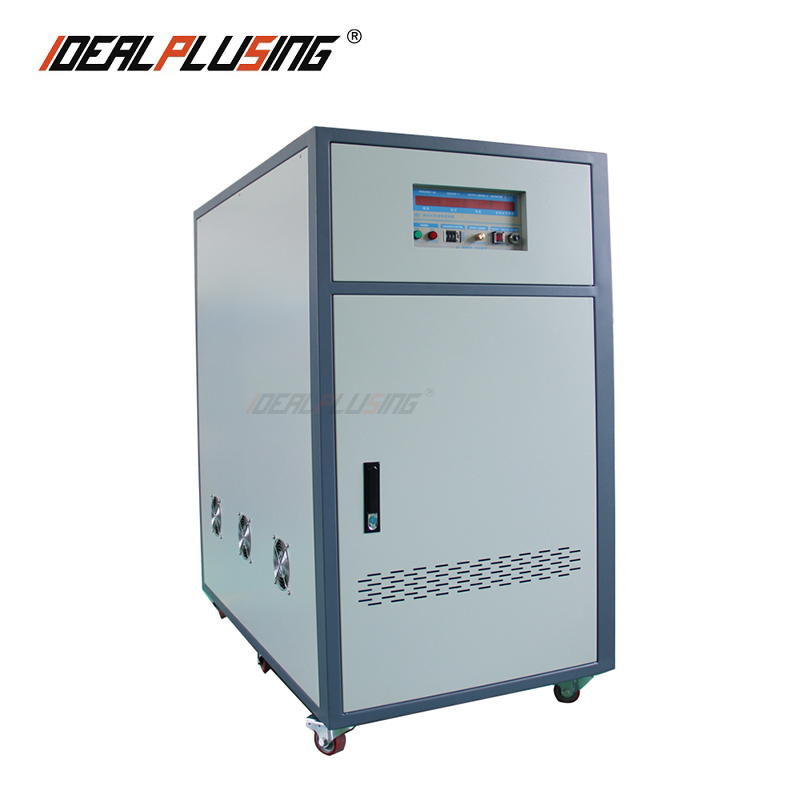

PRODUCT VISUALS
MODEL SELECTION LIST
Frequently Asked Questions
What is the primary use of a 400Hz frequency converter?
A 400Hz frequency converter is primarily used as an Aircraft Ground Power Unit (GPU) to provide stable electrical power to aircraft while they are on the ground for maintenance or pre-flight checks.
What are the benefits of using IGBT technology in this unit?
IGBT high-frequency static inverter technology allows the unit to be more efficient, significantly smaller in size, lighter in weight, and operate with much lower noise compared to traditional rotary converters.
Can the output voltage and frequency be adjusted?
Yes, both voltage and frequency can be adjusted online in real-time. The frequency range is typically adjustable between 40Hz and 499.9Hz via integrated software control.
What safety protections does the unit include?
The unit is equipped with multiple protection functions for abnormal conditions, including overvoltage, overcurrent, overload, overheating, and short-circuit protection with automatic jump and alarm devices.
Is the power unit compatible with inductive loads?
Yes, the unique double-loop control mode and SPWM technology allow the unit to adapt to various loads, including resistive, inductive, and rectifier loads.
Does the unit support three-phase power?
Yes, we offer models for both single-phase and three-phase input/output configurations to meet different industrial and aviation power requirements.
