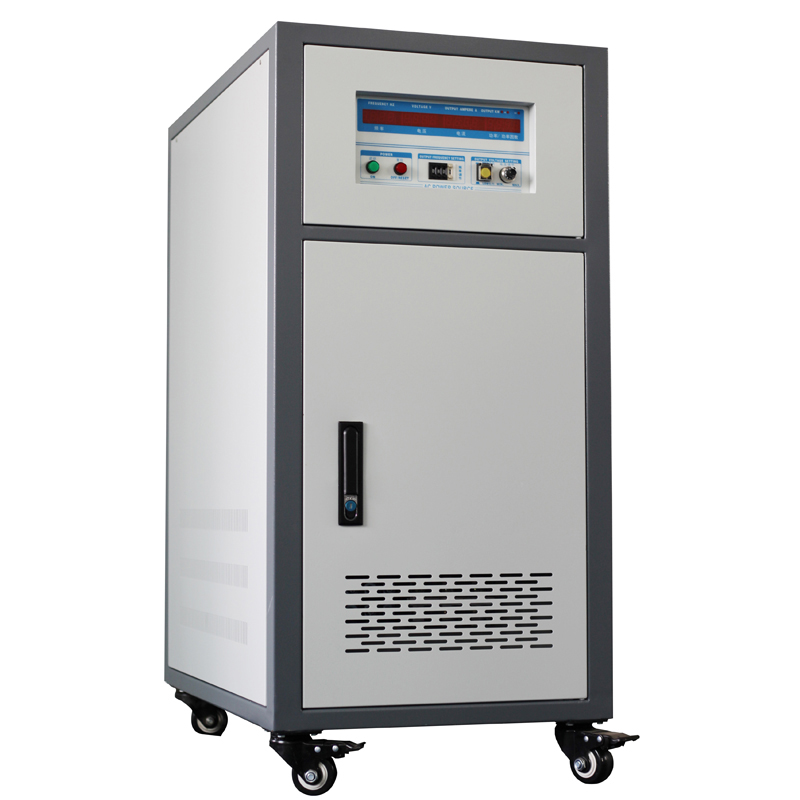

45kva Frequency Power Supply Input Voltage 230V/400V 3 Phase 50Hz Output Voltage 0-520V 3 Phase 60hz
Product Description
45kva Frequency Power Supply
Input 230V/400V 3 Phase 50Hz | Output 0-520V 3 Phase 60Hz
Input 230V/400V 3 Phase 50Hz | Output 0-520V 3 Phase 60Hz
🚀 PERFORMANCE CHARACTERISTICS
🛡️
Complete isolation of input and output technology, safe and reliable power supply.
⚡
SPWM sine wave pulse width modulation technology for fast response and stable output.
⚙️
IGBT high-frequency static inverter: small size, lightweight, low noise, and high efficiency.
🎯
Unique double-loop control mode of instantaneous and effective value for high precision.
💎
Highly integrated module drive circuit with strong overload capacity and low loss.
🔋
Suitable for resistive, inductive, rectifier, and various other loads.
⚠️
Multiple protection for overheating, overcurrent, and short circuit conditions.
💾
Parameter memory function with 10-groups shortcut key operation.
🔄
Real-time online adjustment of voltage and frequency.
🌍 APPLICATION FIELDS
Home appliances
Motors
Power tools
Switching power supplies
Power adapters
UPS
Information and communication
Photovoltaic
Lamps
Electronic transformers
Electronic components
Low-voltage distribution
Power Industry
📋 TECHNICAL SPECIFICATIONS
IPS-FC61: Single-Phase Input Single-Phase Output
| Model | 61005 | 6101 | 6102 | 6103 | 6105 | 6106 | 6110 | 6115 |
| Capacity (KVA) | 0.5 | 1 | 2 | 3 | 5 | 6 | 10 | 15 |
| Output (KW) | 0.4 | 0.8 | 1.6 | 2.4 | 4 | 4.8 | 8 | 12 |
| AC Input | Single-phase 220V / 50Hz or 60Hz | |||||||
| AC Output | 0~150V / 0~300V Adjustable | 40~499.9Hz Setting | |||||||
IPS-FC62: Single-Phase Input Tri-Phase Output
| Model | 6220 | 6230 | 6245 | 6260 | 62100 | 62120 | 62150 | 62200 |
| Capacity (KVA) | 20 | 30 | 45 | 60 | 100 | 120 | 150 | 200 |
| AC Input | Tri-phase 220V / 50Hz or 60Hz | |||||||
| Max Current (L) | 168A | 250A | 375A | 500A | 834A | 1000A | 1250A | 1667A |
IPS-FC63: 3-Phase Input Single-Phase Output
| Model | 6303 | 6306 | 6310 | 6320 | 6330 | 6345 | 6360 | 63100 |
| Rated (KVA) | 3 | 6 | 10 | 20 | 30 | 45 | 60 | 100 |
| Weight (Kg) | 30 | 35 | 45 | 78 | 140 | 170 | 280 | 650 |
📸 PRODUCT SHOWCASE
🔍 PRODUCT OVERVIEW & LIST
❓ FREQUENTLY ASKED QUESTIONS
What is the main function of this frequency power supply?
It converts input power (e.g., 50Hz) to a stable, adjustable output voltage and frequency (e.g., 60Hz), allowing equipment designed for different power grids to operate safely.
Can the output voltage and frequency be adjusted during operation?
Yes, the power supply supports real-time online adjustment of both voltage and frequency through the control interface.
What kind of loads can this unit handle?
It is highly versatile and suitable for resistive, inductive, rectifier, and other complex loads common in industrial and laboratory settings.
Does the device include safety protections?
Absolutely. It features integrated protection against overvoltage, overcurrent, overload, over-temperature, and short circuits, with an automatic alarm and trip system.
Is it suitable for international testing labs?
Yes, it is ideal for testing home appliances and electronic components that need to be verified under various global voltage and frequency standards.
How is the cooling handled for high-capacity models?
All models utilize a high-efficiency forced fan cooling system to maintain optimal operating temperatures even under heavy load.
