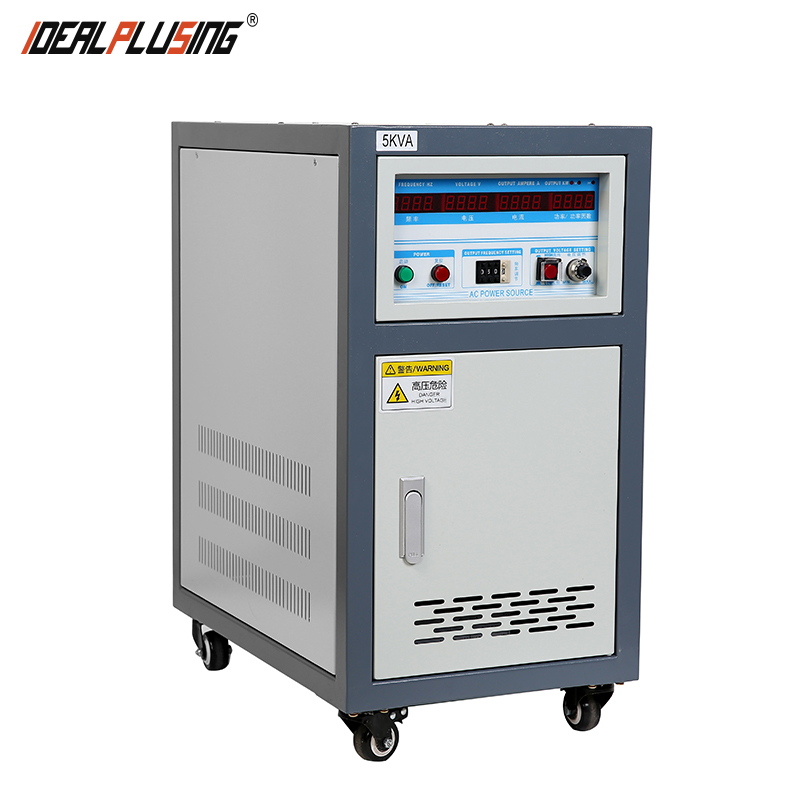

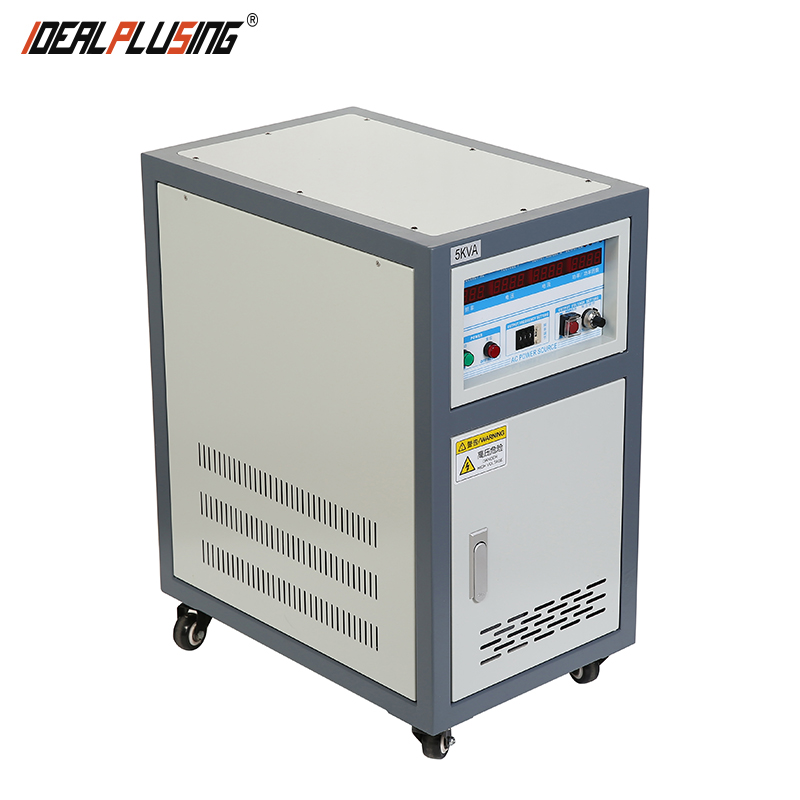

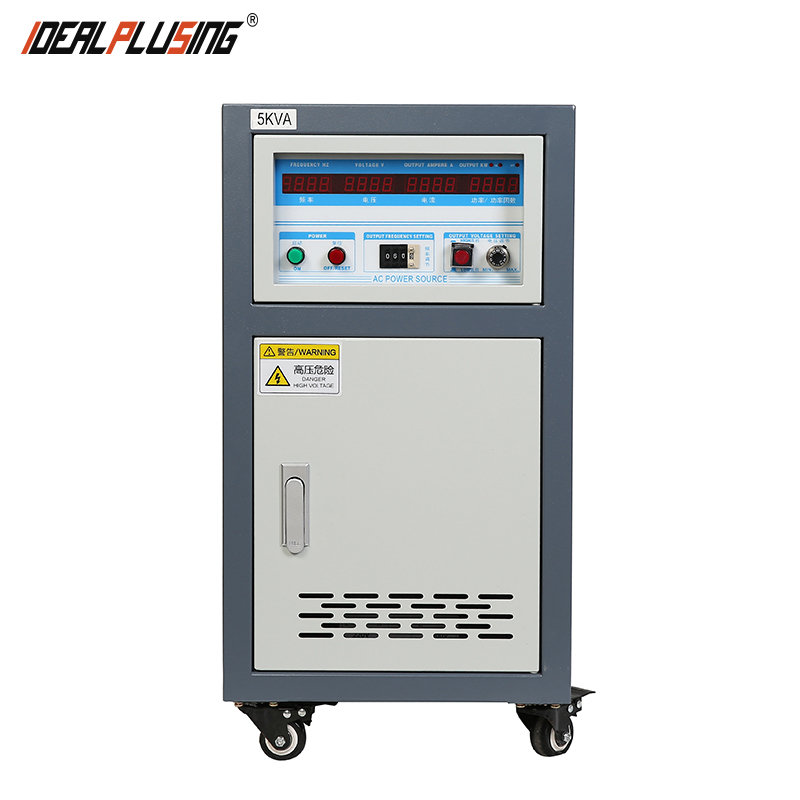

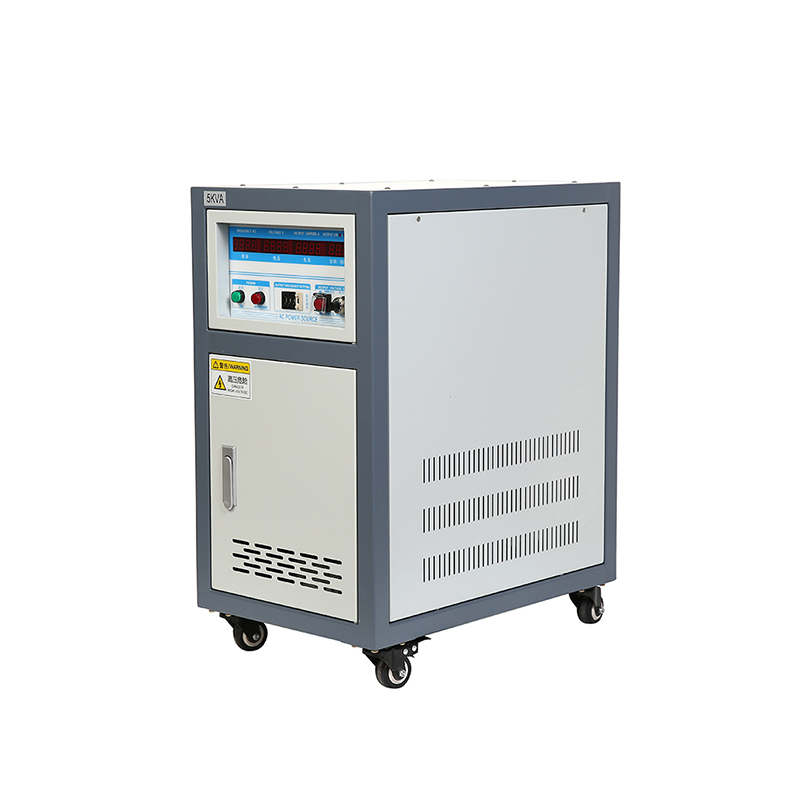

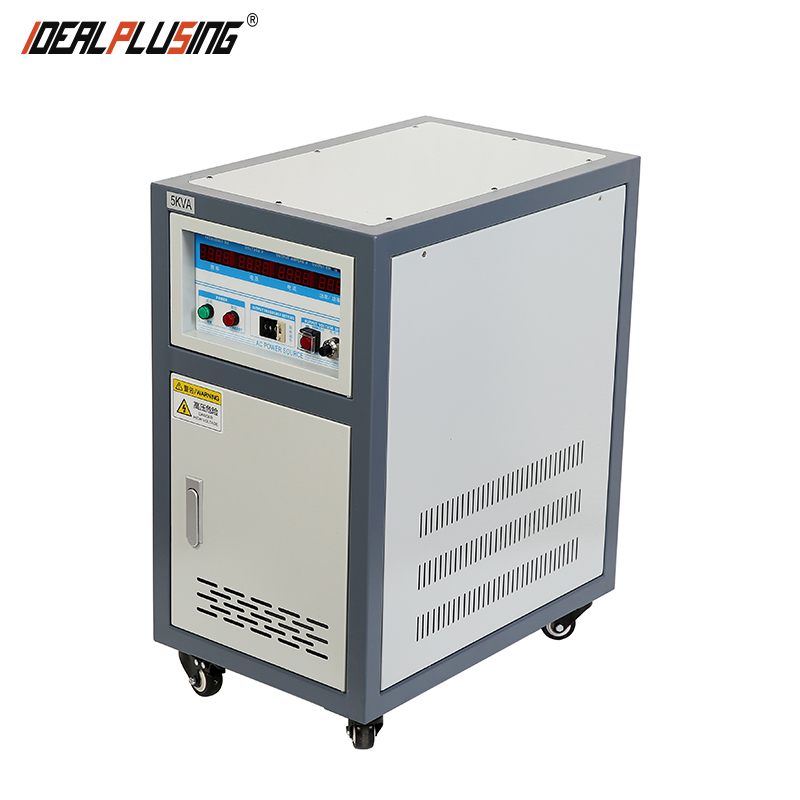

45kva Frequency Power Supply 380v/220v/115v 3 Phase 50Hz/60hz Variac Frequency and Voltage 0-520V
Product Description
⚡ 45kva Frequency Power Supply - 3 Phase 50Hz/60hz
High-performance Variac Frequency and Voltage stabilizer supporting 0-520V adjustment for global industrial power requirements.
PRODUCT DESCRIPTION
✅ PERFORMANCE CHARACTERISTICS
01 Complete isolation of input and output technology, safe and reliable power supply
02 SPWM sine wave pulse width modulation technology for fast response and stable output
03 IGBT high-frequency static inverter: small size, lightweight, low noise, high efficiency
04 Unique double-loop control mode for high precision and superior waveform quality
05 High power IGBT module with strong overload capacity and low loss
06 Suitable for resistive, inductive, rectifier, and other various loads
07 Multiple protection: overheating, overcurrent, short circuit protection
08 Parameter memory function with 10-groups shortcut key operation
09 Real-time online adjustment of power supply voltage and frequency
🚀 APPLICATIONS
| Home appliances | Motors | Power tools | Switching power supplies |
| Power adapters | UPS | Information and communication | Photovoltaic |
| Lamps | Electronic transformers | Electronic components | Low-voltage distribution |
SPECIFICATION (IPS-FC61) SINGLE-PHASE INPUT SINGLE-PHASE OUTPUT
| Model (IPS-FC61) | 61005 | 6101 | 6102 | 6103 | 6105 | 6106 | 6110 | 6115 |
| Output capacity (KVA) | 0.5 | 1 | 2 | 3 | 5 | 6 | 10 | 15 |
| AC Input | Single-phase 220V/50Hz or 60Hz | |||||||
| Voltage Range | Low: 0~150V | High: 0~300V Adjustable | |||||||
| Frequency | 40~499.9HZ (Software setting) | |||||||
| Protection | Overvoltage, Over current, Overload, Over temperature, Short-circuit | |||||||
SPECIFICATION (IPS-FC62) SINGLE-PHASE INPUT TRI-PHASE OUTPUT
| Model (IPS-FC62) | 6220 | 6230 | 6245 | 6260 | 62100 | 62120 | 62150 | 62200 |
| Output capacity (KVA) | 20 | 30 | 45 | 60 | 100 | 120 | 150 | 200 |
| AC Output Phase | 3-phases 380V | |||||||
| Max Current (Low-grade) | 168A | 250A | 375A | 500A | 834A | 1000A | 1250A | 1667A |
SPECIFICATION (IPS-FC63) 3-PHASE INPUT SINGLE-PHASE OUTPUT
| Model (IPS-FC63) | 6303 | 6306 | 6310 | 6315 | 6320 | 6330 | 6345 | 6360 |
| Rated Capacity (KVA) | 3 | 6 | 10 | 15 | 20 | 30 | 45 | 60 |
| AC Voltage Output | Phase: 0V~300V (Line: 0V~520V) | |||||||
SPECIFICATION (IPS-FC68) 3-PHASE INPUT 3-PHASE OUTPUT
| Model (IPS-FC68) | 6803 | 6805 | 6810 | 6815 | 6820 | 6830 | 6845 | 68100 |
| Rated Capacity (KVA) | 3 | 5 | 10 | 15 | 20 | 30 | 45 | 100 |
PRODUCT SHOW
PRODUCT OVERVIEW & MODEL LIST
❓ FREQUENTLY ASKED QUESTIONS
What is the output voltage range of this power supply?
The system provides adjustable output voltage from 0V up to 520V (line voltage) depending on the specific model configuration.
Does the unit support both 50Hz and 60Hz frequency conversion?
Yes, the power supply is designed to handle 50Hz and 60Hz input and can output a frequency range of 40Hz to 499.9Hz via software settings.
What kind of protection features are included?
It includes multiple protection mechanisms such as overvoltage, overcurrent, overload, over temperature, and short-circuit protection with automatic jump and alarm devices.
Is the input and output isolated?
Yes, the unit adopts complete isolation technology between input and output to ensure safety and reliable operation for sensitive electronic equipment.
Can it be used for inductive or motor loads?
Absolutely. Due to the high-power IGBT module and stable SPWM technology, it is highly suitable for resistive, inductive, and rectifier loads.
How many shortcut memory groups are available?
The device features 10 groups of shortcut key operations for quick access to frequently used parameter settings.
