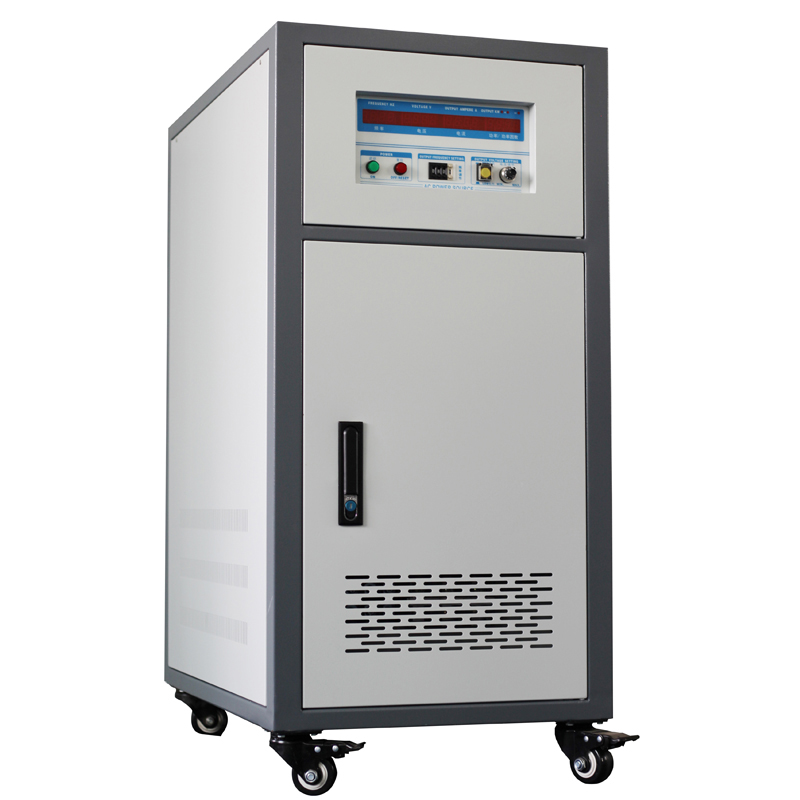

500KVA 3 Three Phase Variable Frequency Converter Voltage Power Supply 3 Phase to 3 Phase 40-499.9Hz
Product Description
500KVA 3-Phase Variable Frequency Converter
High Precision Voltage Power Supply | 3-Phase to 3-Phase | 40-499.9Hz
🛡️
Isolated Technology: Complete isolation of input and output, ensuring safe and reliable power supply.
🔄
SPWM Technology: Sine wave pulse width modulation for fast response and stable output.
💎
IGBT Inverter: High-frequency static inverter provides small size, lightweight, and low noise.
📈
Dual-Loop Control: Precise control of instantaneous and effective values for superior waveform quality.
⚙️
Strong Load Adaptation: Suitable for resistive, inductive, rectifier, and other complex loads.
🧠
Memory Function: Supports 10-groups of parameter memory with shortcut key operation.
Home Appliances
Motors
Power Tools
Switching Power Supplies
Photovoltaic
UPS Systems
Lamps
Electronic Transformers
Telecommunications
Low-voltage Distribution
IPS-FC61: Single-Phase Input / Single-Phase Output
| Model (IPS-FC61) | 61005 | 6101 | 6102 | 6103 | 6105 | 6110 | 6115 |
|---|---|---|---|---|---|---|---|
| Capacity (KVA) | 0.5 | 1 | 2 | 3 | 5 | 10 | 15 |
| Rated Power (KW) | 0.4 | 0.8 | 1.6 | 2.4 | 4 | 8 | 12 |
| AC Input | Single-phase 220V / 50Hz or 60Hz | ||||||
| Voltage Range | Low: 0~150V | High: 0~300V Adjustable | ||||||
| Frequency | 40~499.9Hz (Software Setting) | ||||||
IPS-FC62: Single-Phase Input / Tri-Phase Output
| Model (IPS-FC62) | 6220 | 6230 | 6245 | 6260 | 62100 | 62150 | 62200 |
|---|---|---|---|---|---|---|---|
| Capacity (KVA) | 20 | 30 | 45 | 60 | 100 | 150 | 200 |
| Rated Power (KW) | 16 | 24 | 36 | 48 | 80 | 120 | 160 |
| AC Output Phase | 3-Phase 380V | ||||||
IPS-FC68: 3-Phase Input / 3-Phase Output (Industrial Range)
| Model (IPS-FC68) | 6810 | 6820 | 6830 | 6845 | 6860 | 68100 |
|---|---|---|---|---|---|---|
| Rated Capacity (KVA) | 10 | 20 | 30 | 45 | 60 | 100 |
| Circuit Mode | IGBT / PWM | |||||
| Frequency Stability | ≤ ±0.1% | |||||
| Response Time | Max 2ms | |||||
Frequently Asked Questions
Q: What is the adjustable frequency range of this converter?
A: The output frequency can be set via software within a range of 40Hz to 499.9Hz, suitable for various international power standards.
Q: Can this power supply handle inductive loads like motors?
A: Yes, thanks to the IGBT high-frequency static inverter and SPWM technology, it is perfectly suitable for resistive, inductive, and rectifier loads.
Q: How does the device ensure safety during operation?
A: It features complete isolation between input and output and includes multiple protection functions for overheating, overcurrent, overload, and short-circuit conditions.
Q: Is it possible to save frequently used voltage and frequency settings?
A: Yes, the system includes a parameter memory function with 10 groups of shortcut keys for quick and easy operation.
Q: What cooling method is used for high-capacity models like the 500KVA?
A: All units utilize a forced fan cooling system to maintain optimal working temperatures (0℃~45℃) even under heavy load.
Q: What is the response time for load changes?
A: The device features a very high response speed, with a typical response time of ≤ 2ms, ensuring stable power during sudden load variations.
