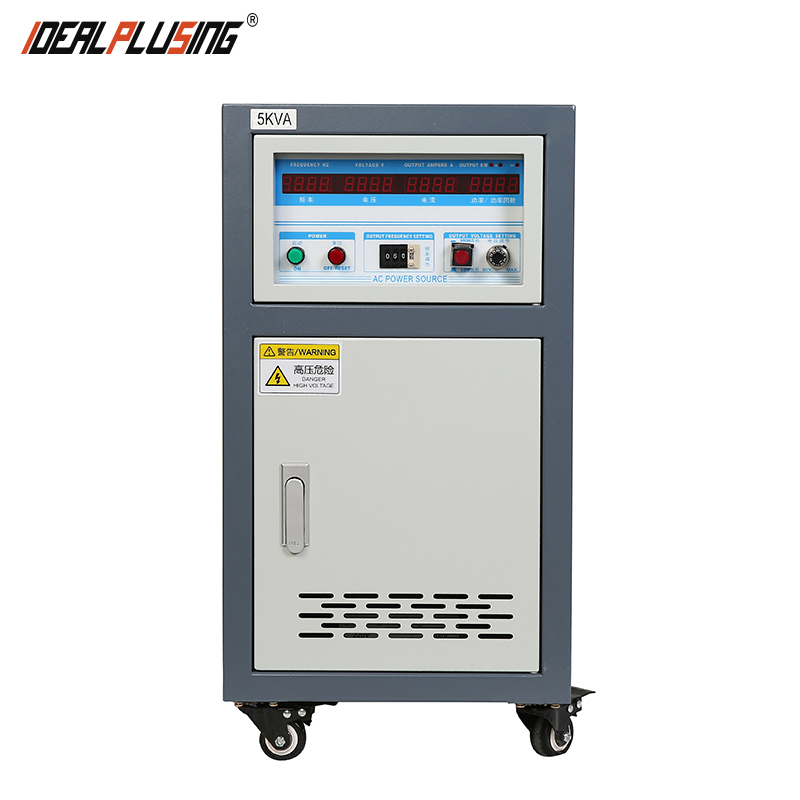

60kva Three Phase 480v/380v AC Varible Voltage and Frequency Power Supply 50hz Ac Power SupplyTo 60hz Philippines
Product Description
60kVA Three Phase 480V/380V AC Variable Voltage and Frequency Power Supply Frequency Converter (50Hz to 60Hz)
🚀 PERFORMANCE CHARACTERISTICS
01 Complete isolation of input and output technology, safe and reliable power supply.
02 SPWM sine wave pulse width modulation technology for fast response and stable output.
03 IGBT high-frequency static inverter: small size, lightweight, low noise, and high efficiency.
04 Unique double-loop control mode for high precision and excellent waveform quality for various loads.
05 Highly integrated module drive circuit with strong overload capacity and low loss.
06 Suitable for resistive, inductive, rectifier, and other types of loads.
07 Multiple protection functions: overheating, overcurrent, and short circuit protection.
08 Parameter memory function with 10 groups of shortcut key operations.
09 Online adjustable voltage and frequency with real-time frequency changes.
🎯 APPLICATION
Home Appliances
Motors
Power Tools
Switching Power Supplies
Power Adapters
UPS Systems
Communication
Photovoltaic
Lamps
Electronic Transformers
Electronic Components
Distribution Systems
Power Industry
Other Industries
📊 TECHNICAL SPECIFICATIONS (SINGLE PHASE)
| Model (IPS-FC61) | 61005 | 6101 | 6102 | 6103 | 6105 | 6110 | 6115 |
|---|---|---|---|---|---|---|---|
| Output Capacity (KVA) | 0.5 | 1 | 2 | 3 | 5 | 10 | 15 |
| Rated Power (KW) | 0.4 | 0.8 | 1.6 | 2.4 | 4.0 | 8.0 | 12.0 |
| Circuit Mode | IGBT/SPWM | ||||||
| AC Input | Single-phase 220V/50Hz or 60Hz | ||||||
| Output Frequency | 40~499.9Hz (Software adjustable) | ||||||
| Protection | Overvoltage, Overcurrent, Overload, Overtemperature, Short-circuit | ||||||
⚙️ THREE PHASE OUTPUT SPECIFICATIONS
| Model (IPS-FC62) | 6220 | 6230 | 6245 | 6260 | 62100 | 62150 | 62200 |
|---|---|---|---|---|---|---|---|
| Output Capacity (KVA) | 20 | 30 | 45 | 60 | 100 | 150 | 200 |
| Rated Power (KW) | 16 | 24 | 36 | 48 | 80 | 120 | 160 |
| Voltage Range | Low: 0-150V | High: 0-300V Adjustable | ||||||
| Response Time | ≤ 2ms | ||||||
| Cooling | Forced Fan Cooling | ||||||

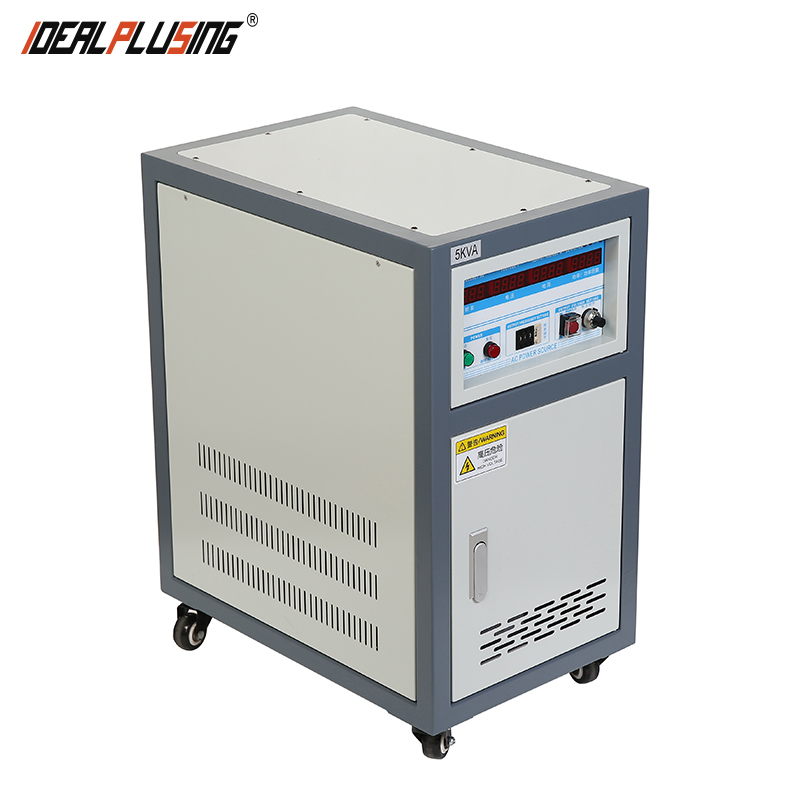

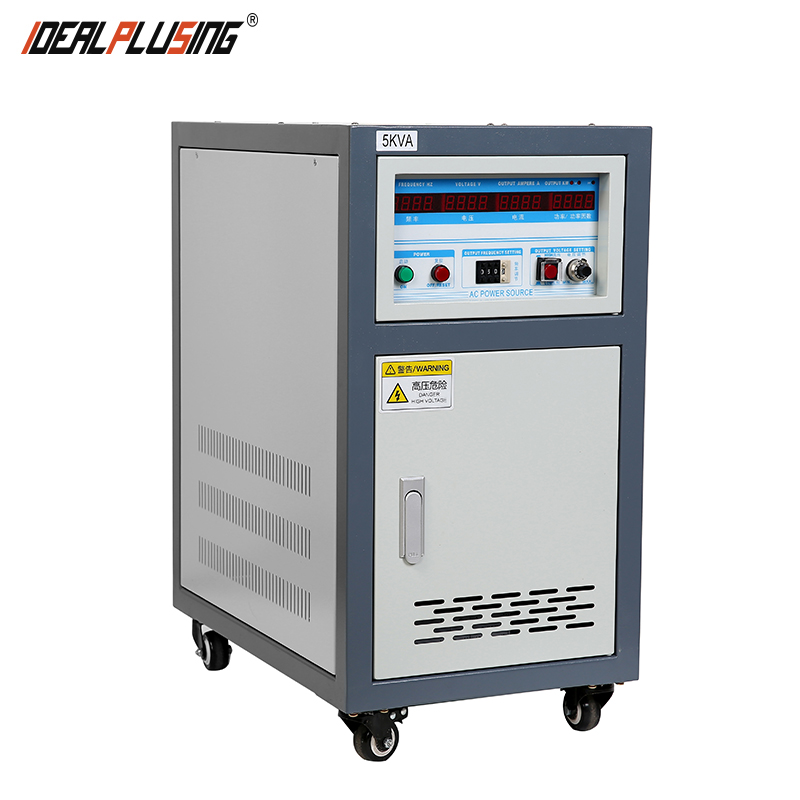

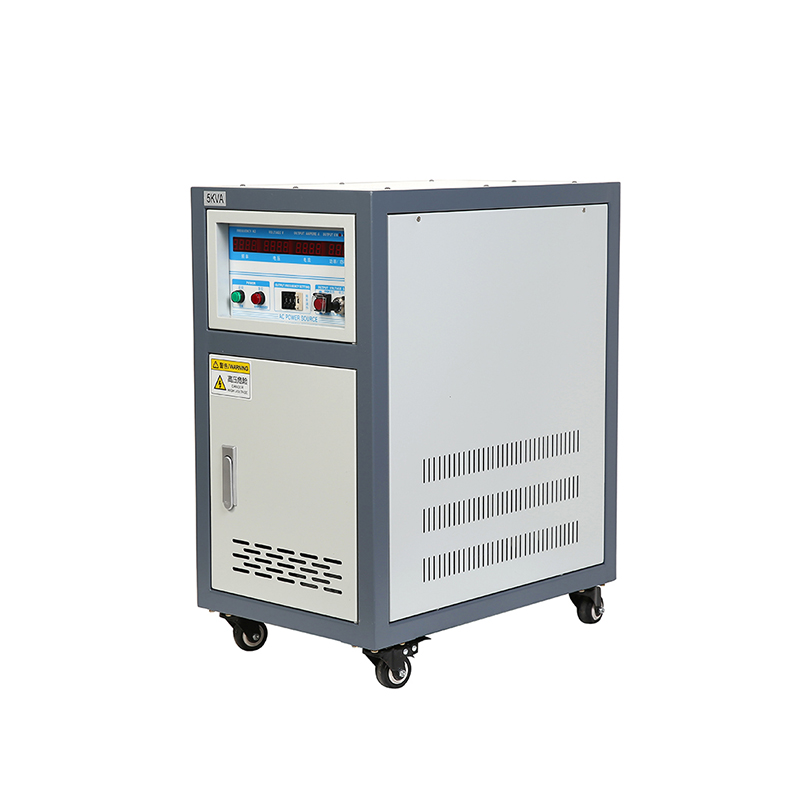

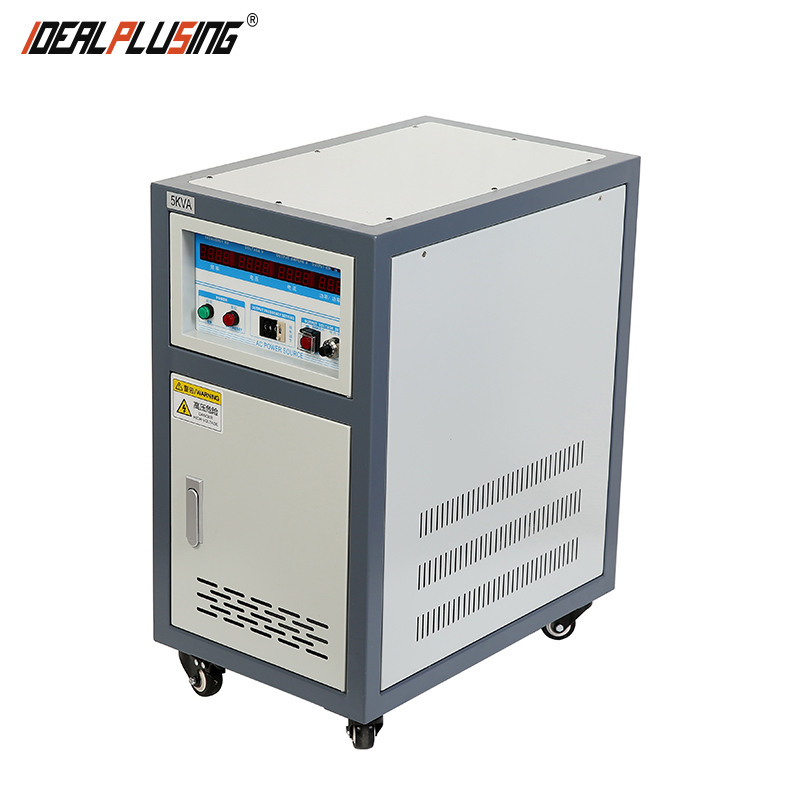

📷 PRODUCT SHOWCASE
🔍 PRODUCT OVERVIEW
📋 MODEL LIST
❓ FREQUENTLY ASKED QUESTIONS
Q1: What is the output frequency range of this converter?
A: The output frequency is highly adjustable, ranging from 40Hz to 499.9Hz, and can be easily set via the integrated software.
Q2: What types of protection does the device offer?
A: It includes comprehensive protection for overvoltage, overcurrent, overload, over-temperature, and short-circuit conditions, complete with an automatic jump protection and alarm system.
Q3: Is the input and output isolated?
A: Yes, it adopts complete isolation technology between input and output to ensure a safe and reliable power supply for sensitive equipment.
Q4: What is the response time of the power supply?
A: The system features a very fast response time of ≤ 2ms, ensuring stable performance even during sudden load changes.
Q5: Can it handle inductive and rectifier loads?
A: Absolutely. Thanks to the SPWM pulse width modulation and double-loop control, it is suitable for resistive, inductive, rectifier, and other complex loads.
Q6: How does the cooling system work?
A: The device utilizes a high-efficiency forced fan cooling system to maintain optimal operating temperatures between 0℃ and 45℃.
