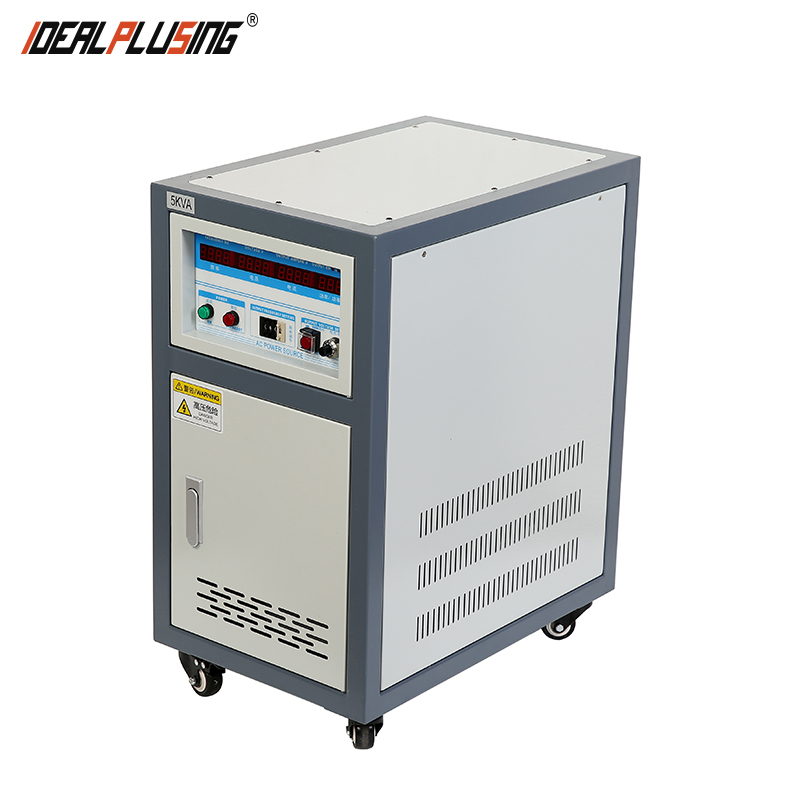

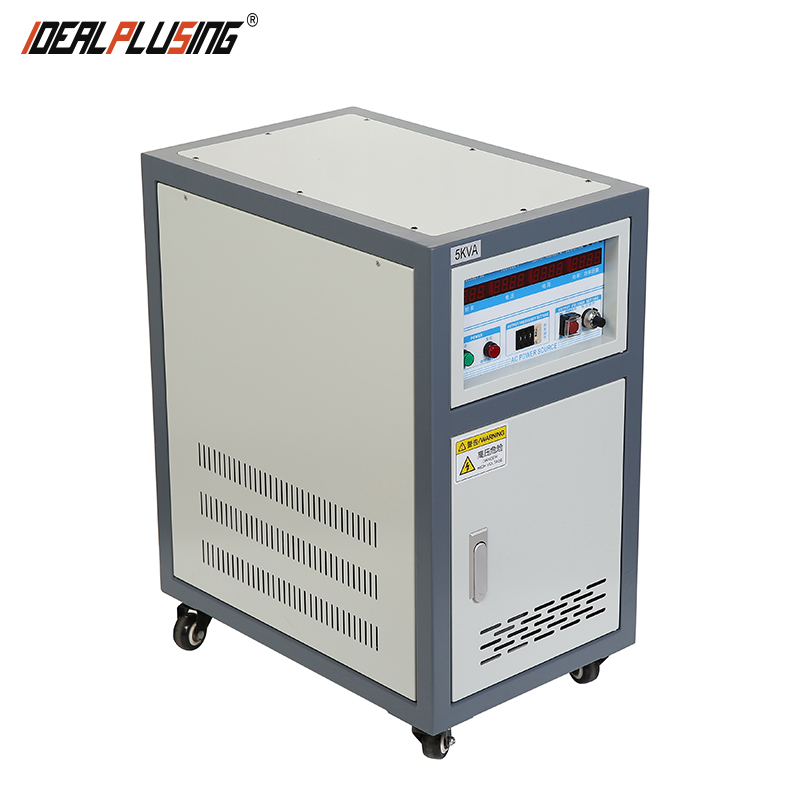

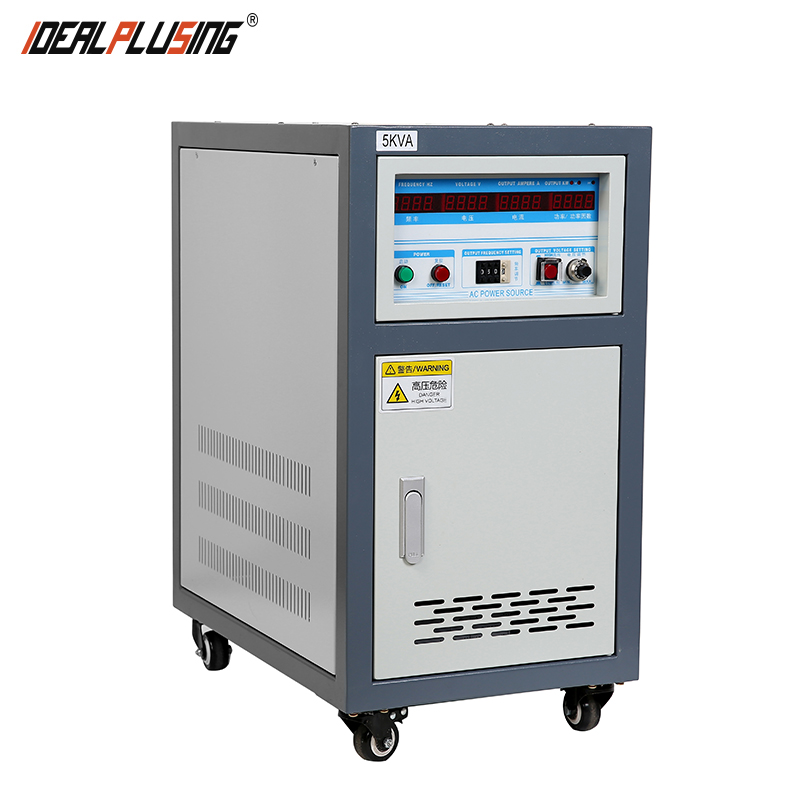

Ac Converter 220v 50hz 110v 60hz Frequency Converter Ac Power Source
Product Description
Ac Converter 220v 50hz 110v 60hz Frequency Converter AC Power Source
Product Description
PERFORMANCE CHARACTERISTICS
🛡️Complete isolation of input and output technology, safe and reliable power supply
⚡SPWM sine wave pulse width modulation technology is adopted, with fast response speed and stable output
💎IGBT high-frequency static inverter, small size, lightweight, low noise, and high efficiency
🔄Unique double-loop control mode for high control precision and excellent waveform quality
🚀High power IGBT module and integrated drive circuit for strong overload capacity
🔌Suitable for resistive, inductive, rectifier, and other complex loads
🌡️Multiple protection for overheating, overcurrent, and short circuits
💾Setting parameter memory function with 10-groups shortcut key operation
⚙️Online adjustable voltage and frequency for real-time operation
Applications
🏠 Home appliances
☀️ Photovoltaic
⚙️ Motors
💡 Lamps
🛠️ Power tools
📟 Electronic transformers
🔋 Switching power supplies
🔬 Electronic components
🔌 Power adapters
⚡ Low-voltage distribution
📶 UPS / Communication
🏭 Other industries
Technical Specifications
SINGLE-PHASE INPUT SINGLE-PHASE OUTPUT (IPS-FC61)
| Model (IPS-FC61) | 61005 | 6101 | 6102 | 6103 | 6105 | 6106 | 6110 | 6115 |
|---|---|---|---|---|---|---|---|---|
| Output capacity (KVA) | 0.5 | 1 | 2 | 3 | 5 | 6 | 10 | 15 |
| Rated power (KW) | 0.4 | 0.8 | 1.6 | 2.4 | 4 | 4.8 | 8 | 12 |
| AC input | Single-phase 220V/50Hz or 60Hz | |||||||
| Voltage Range | Low: 0~150V / High: 0~300V Adjustable | |||||||
| Frequency | 40~499.9HZ (Software setting) | |||||||
TRI-PHASE OUTPUT (IPS-FC62)
| Model (IPS-FC62) | 6220 | 6230 | 6245 | 6260 | 62100 | 62120 | 62150 | 62200 |
|---|---|---|---|---|---|---|---|---|
| Output capacity (KVA) | 20 | 30 | 45 | 60 | 100 | 120 | 150 | 200 |
| Rated power (KW) | 16 | 24 | 36 | 48 | 80 | 96 | 120 | 160 |
| AC output | 3-phases 380V (0~300V adjustable) | |||||||
3-PHASE INPUT SINGLE-PHASE OUTPUT (IPS-FC63)
| Model (IPS-FC63) | 6303 | 6306 | 6310 | 6315 | 6320 | 6330 | 6345 | 6360 | 63100 |
|---|---|---|---|---|---|---|---|---|---|
| Rated Capacity (KVA) | 3 | 6 | 10 | 15 | 20 | 30 | 45 | 60 | 100 |
| Max Current (0-150V) | 8.4A | 16.8A | 28A | 42A | 50A | 84A | 125A | 168A | 276A |
3-PHASE INPUT 3-PHASE OUTPUT (IPS-FC68)
| Model (IPS-FC68) | 6801 | 6805 | 6810 | 6820 | 6830 | 6845 | 6860 | 68100 |
|---|---|---|---|---|---|---|---|---|
| Rated Capacity (KVA) | 1 | 5 | 10 | 20 | 30 | 45 | 60 | 100 |
| Max Current (0-300V) | 4.2A | 21A | 42A | 84A | 125A | 188A | 250A | 417A |

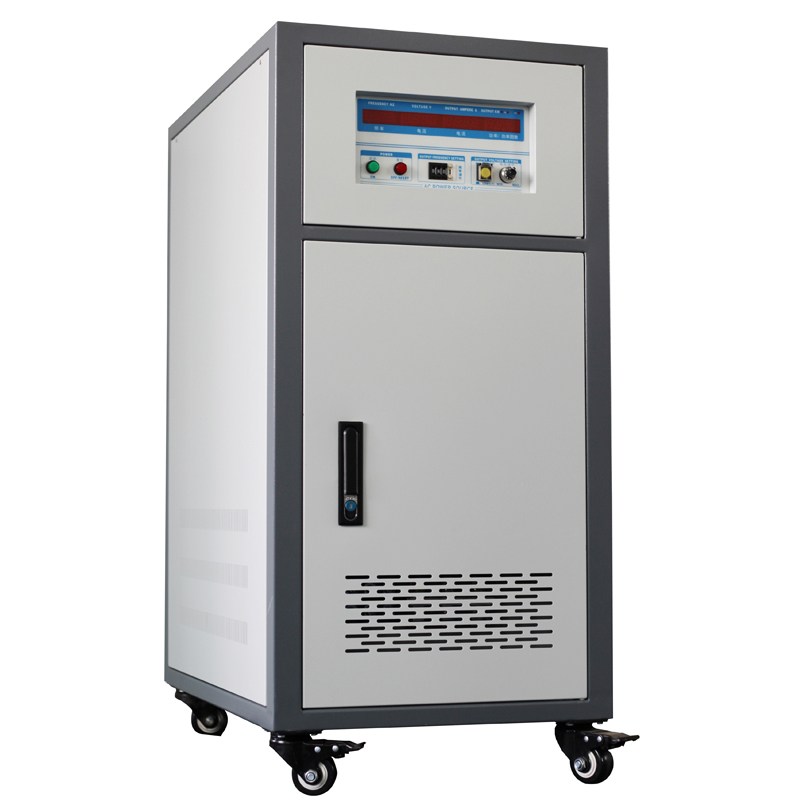

Product Show
Overview & Model List
Frequently Asked Questions
Can this converter change both voltage and frequency simultaneously?
Yes, this AC power source can convert both input voltage (e.g., 220V) and frequency (50Hz) to a different regulated output, such as 110V 60Hz.
Is the output frequency adjustable for testing international equipment?
Absolutely. The output frequency can be set between 40Hz and 499.9Hz via software, making it ideal for simulating international grid conditions.
What types of electrical protection does the device include?
The unit features advanced protection against overvoltage, overcurrent, overload, short circuits, and over-temperature, including an automatic alarm and jump protection system.
Can I use this converter with inductive loads like motors?
Yes, the IGBT/SPWM technology and pure sine wave output make it suitable for resistive, inductive, rectifier, and complex industrial loads.
Does the machine remember my settings after a restart?
Yes, it has a parameter memory function and supports 10 groups of shortcut key operations for quick access to your preferred settings.
Is the input electrically isolated from the output?
Yes, the converter uses complete isolation technology between input and output to ensure safe operation and high-quality power delivery.
