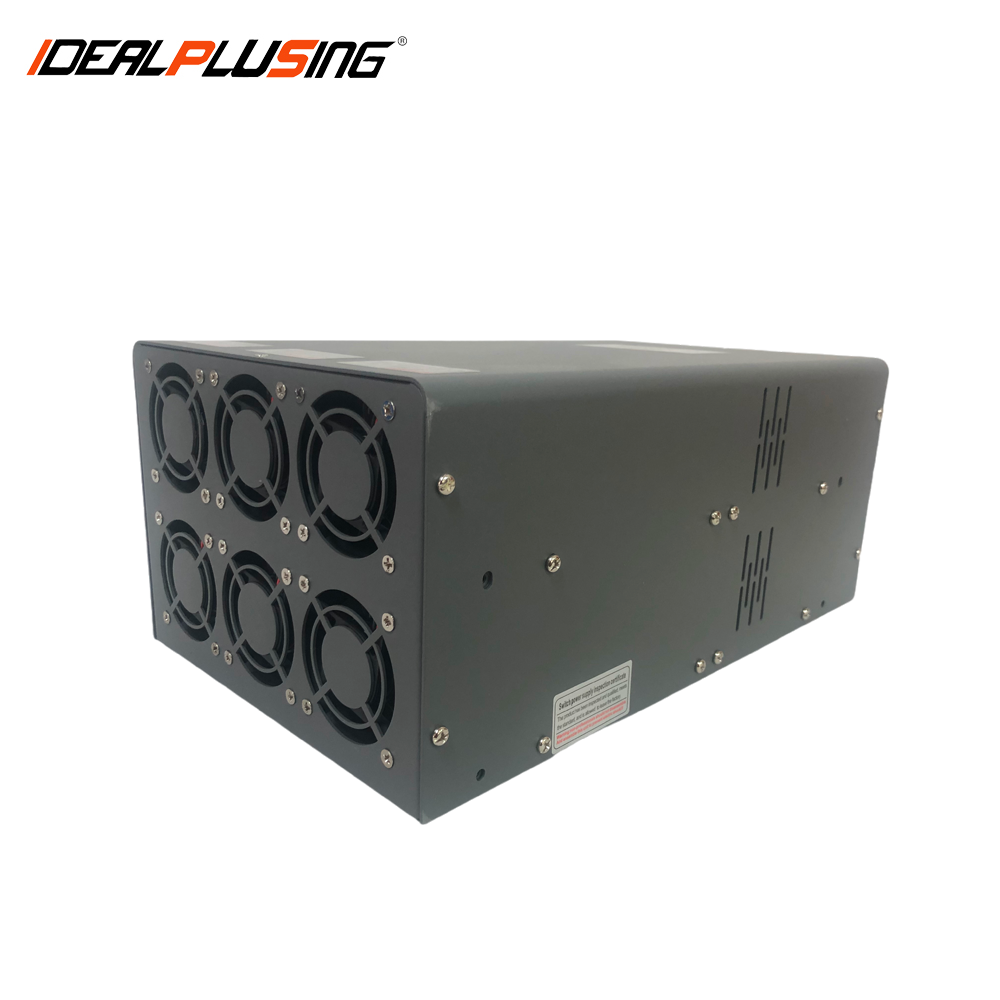

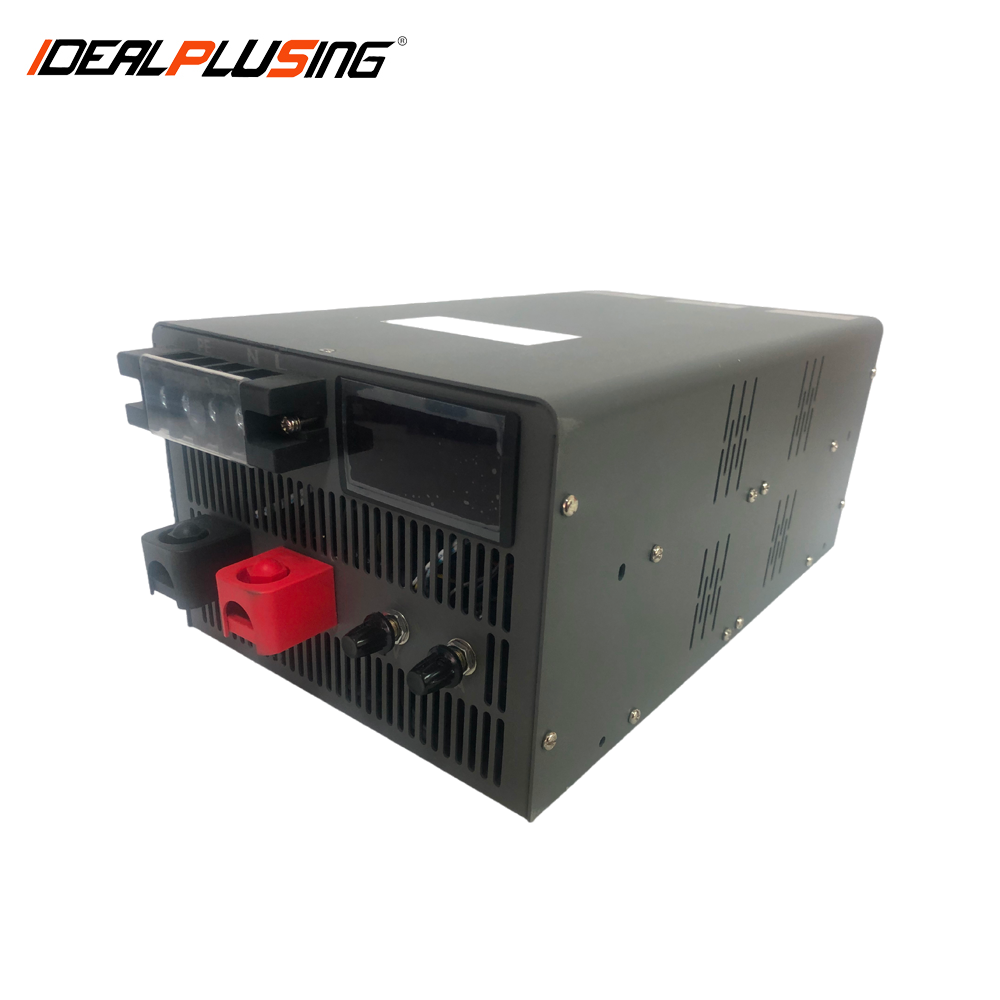

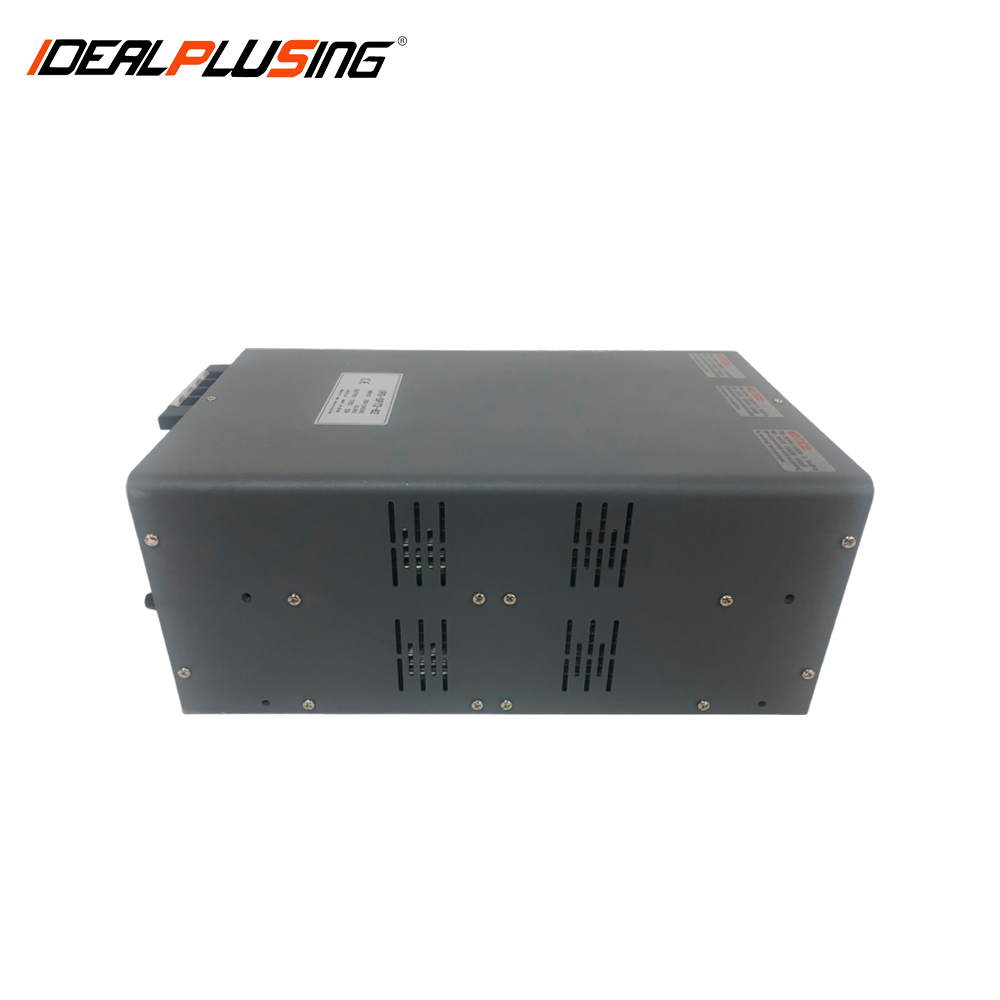

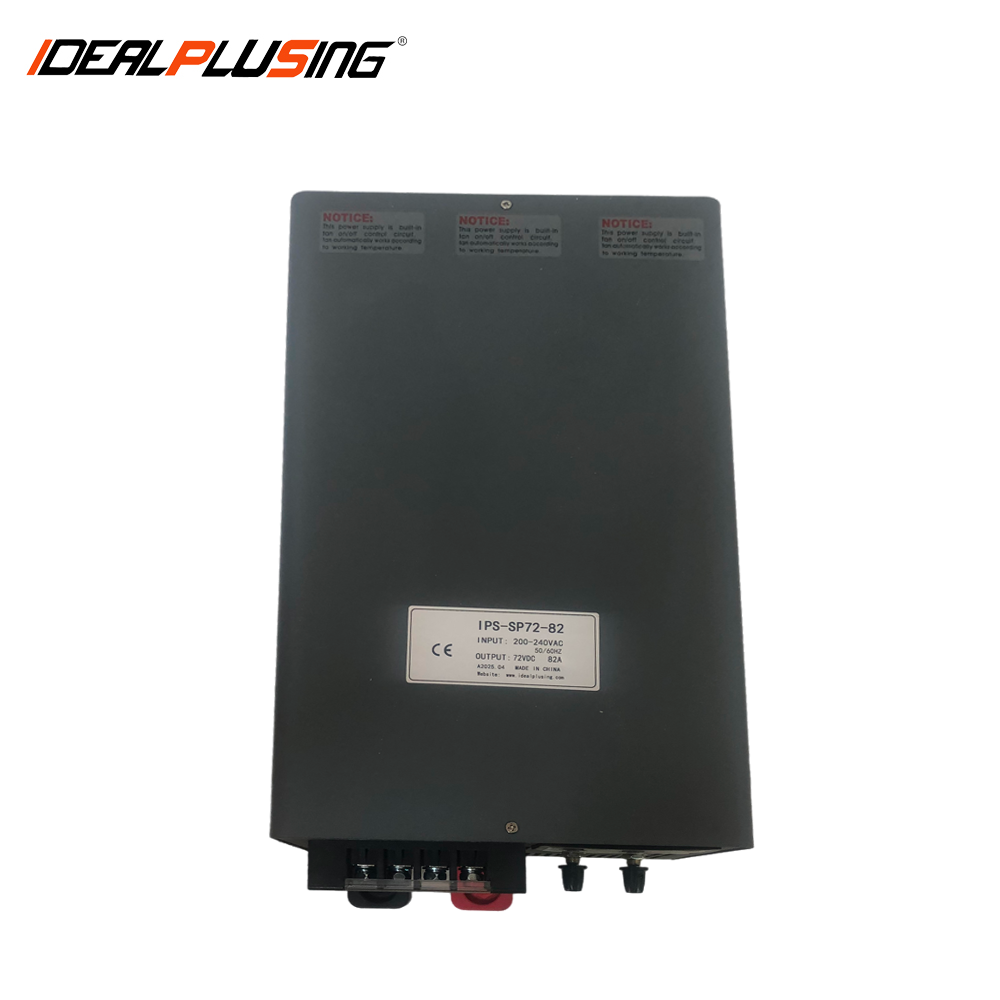

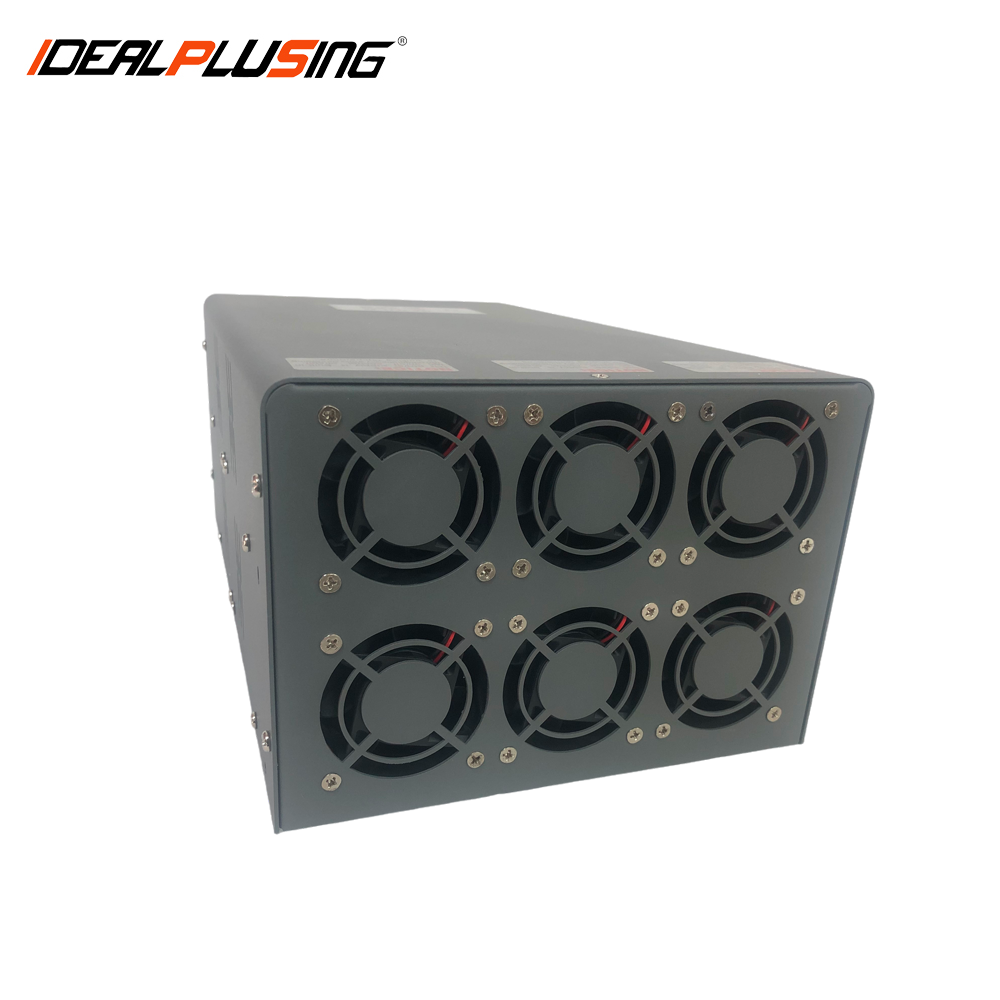

AC Switching Mode Power Supply Adapter 100-240V 50/60Hz, Universal SMPS Adapter, LED Driver, CCTV, 3D Printer, Industrial PSU
Product Description
AC Switching Mode Power Supply Adapter 100-240V 50/60Hz, Universal SMPS Adapter, LED Driver, CCTV, 3D Printer, Industrial PSU
Company Overview
We focus on the research and development, sales and service of DC to DC power supply module, AC to DC rectifier module, DC to AC inverter, AC power supply, DC power supply, LED power supply, charger, rectifier system and other fields, to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries.
We are not only selling products. What we want to give our customers is the right power supply solution, giving a better quotation solution with the right items.
Our Advantages：
We specialize in customizing switching Power Supply to meet your specific requirements. Please submit any inquiries to explore our capabilities further. If you cannot find the right specification to meet your requirement, contact us now!
It will not cost you anything to ask, but it may be a chance for both of us! Our dedicated team endeavors to respond within one hour.
Product Features
- Adjustable with Compact size, light weight
- AC input 200-240VAC 50/60HZ (110VAC/120VAC available upon request)
- 100% full load burn-in test
- Comprehensive Protection: Short circuit / Over load / Over voltage
- Fixed switching frequency at 25KHz
- High efficiency, reliability quality, competitive cost
- Optional 0-5Vdc / 0-10Vdc External control output
- Optional extra adjustable potentiometer
- Optional output voltage adjustable, output current be fixed
Technical Specifications (6000W Series)
| Parameter | Details |
|---|---|
| Type | Switching Mode Power Supply |
| Model | IPS-SP220-23 |
| Input Voltage | Single phase 200~240VAC |
| Input Frequency | 50/60Hz |
| DC Output Voltage | Based on model |
| Output Current | Based on model |
| Output Power | 6000W Max |
| Dimension | 351*188.8*148.2 (mm) |
| Net/Gross Weight | 9.1KG / 13.9KG |
Model Selection List (6000W)
| Model | Input Voltage (VAC) | Output Voltage (VDC) | Output Current (AMPS) |
|---|---|---|---|
| IPS-SP24-212 | 200-240VAC | 24VDC | 212A |
| IPS-SP36-141 | 200-240VAC | 36VDC | 141A |
| IPS-SP48-106 | 200-240VAC | 48VDC | 106A |
| IPS-SP60-85 | 200-240VAC | 60VDC | 85A |
| IPS-SP72-70 | 200-240VAC | 72VDC | 70A |
| IPS-SP96-53 | 200-240VAC | 96VDC | 53A |
| IPS-SP110-46 | 200-240VAC | 110VDC | 46A |
| IPS-SP150-40 | 200-240VAC | 150VDC | 40A |
| IPS-SP220-23 | 200-240VAC | 220VDC | 23A |
Hot Selling Models
IPS-PFC500-24 24VDC 500W
1. INPUT : 95-264VAC 50/60HZ
2. OUTPUT : 24VDC, 20.83A
IPS-PFC500-48 48VDC 500W
1. INPUT : 95-264VAC 50/60HZ
2. OUTPUT : 48VDC, 10.42A
IPS-PFC350-12 12VDC 350W
1. INPUT : 95-264VAC 50/60HZ
2. OUTPUT : 12VDC, 29.17A
High Power Solutions
Customization Services：
We specialize in customizing switching converters to meet your specific needs. Our products support customized input and output voltages and currents ranging from 1V to 1000V and 1A to 1000A. We provide one-to-one customization services.
Just tell us your needs and we will recommend the best solution for you. Our contact service is completely free. You will receive solutions from our professional sales engineers in a very short time.
Product Dimensions & Visuals
Application Scope
Factory Show
Frequently Asked Questions
Can the output voltage and current be customized?
Yes, we specialize in customization. We support input and output voltages from 1V to 1000V and currents from 1A to 1000A based on your specific application requirements.
What is the standard input voltage for these power supplies?
The standard input is single-phase 200-240VAC 50/60Hz. However, we can also provide 110VAC/120VAC versions if required. Please specify your needs when inquiring.
What safety protections are built into the units?
All our switching power supplies include built-in protection against short circuits, overloads, and over-voltage scenarios to ensure the safety of both the power supply and your equipment.
Do you perform quality testing before shipping?
Absolutely. Every unit undergoes a 100% full load burn-in test to guarantee reliability and performance quality before it leaves our facility.
What are the primary applications for these adapters?
These versatile power supplies are ideal for industrial control systems, LED lighting drivers, CCTV security systems, 3D printers, and various other industrial PSU requirements.
Is there a cost for technical consultation?
No, our technical consultation and solution recommendation service is completely free. Our professional sales engineers will provide you with a tailored solution in a very short time.
