For Battery Charging Isolated Dcdc Step up Step Down Converter 36v 48v to 12v 10a 120w Automatic Voltage Regulator/Stabilizer
Product Description

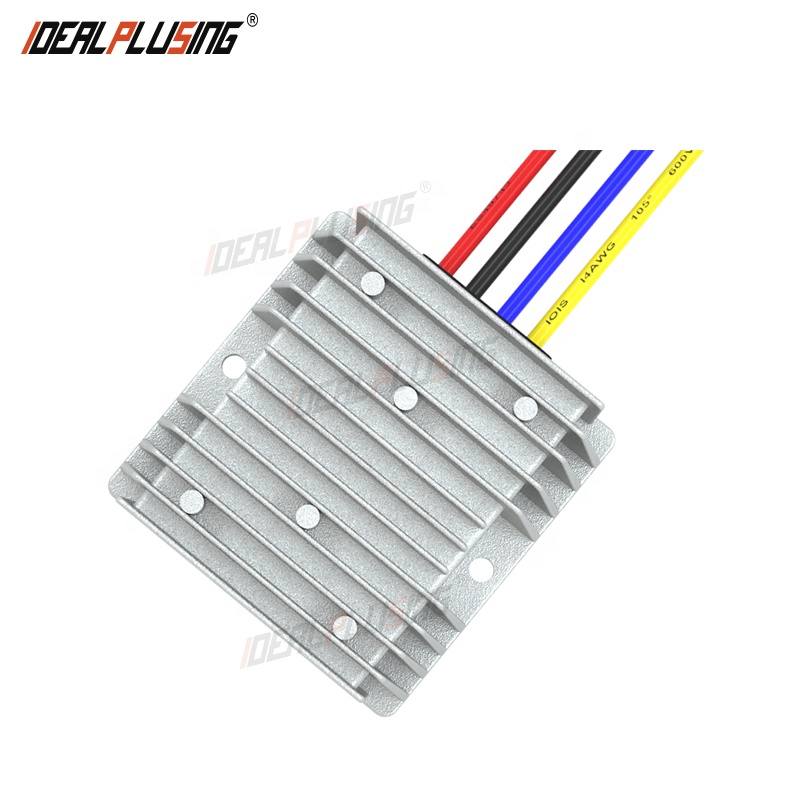

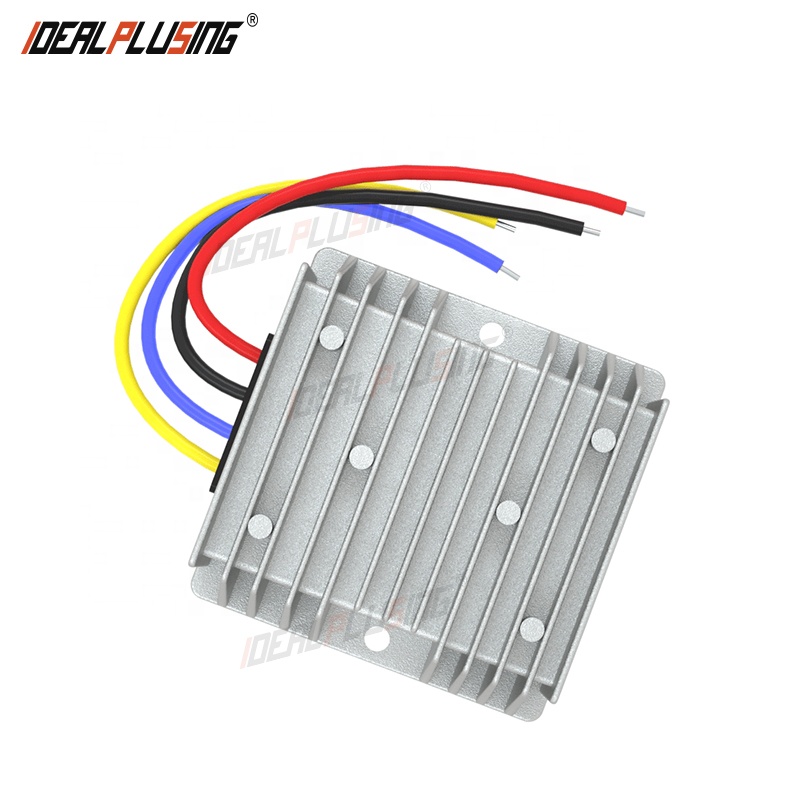

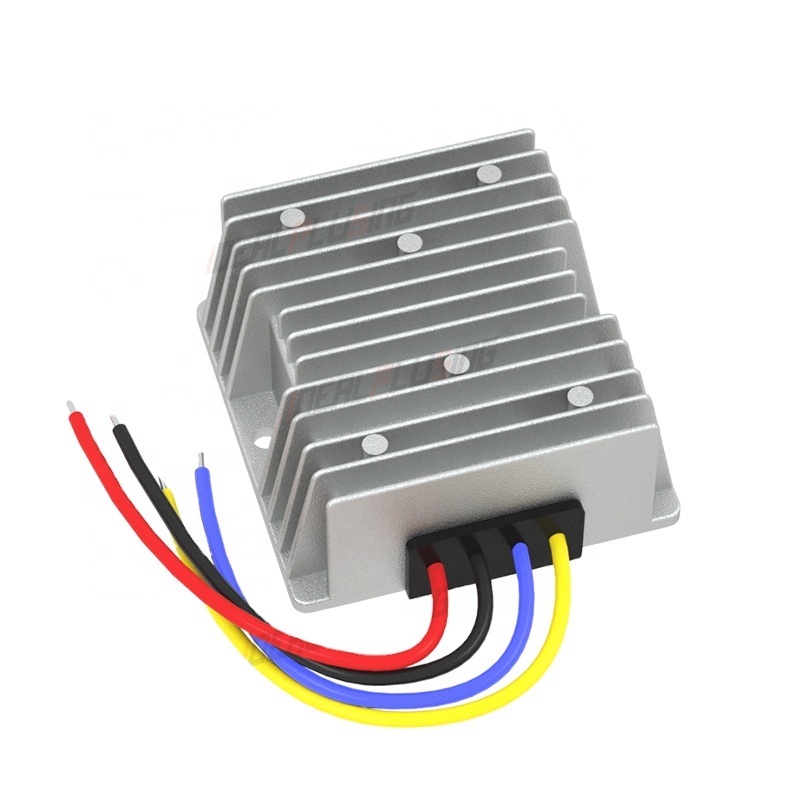

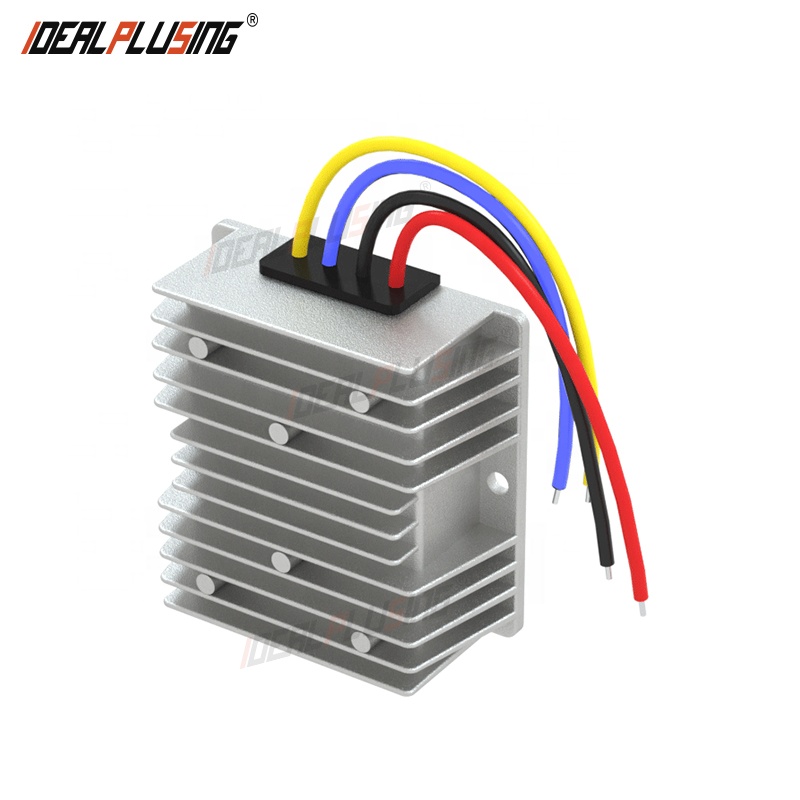

Isolated DC-DC Step Up Step Down Converter 36V 48V to 12V 10A 120W Automatic Voltage Regulator/Stabilizer
Key Features
- ✔ 100% full power & stable current output
- ✔ 100% Imported components
- ✔ Wide input voltage range
- ✔ 100% waterproof (IP67) & anti-shock protection
- ✔ Industry grade Isolated converter, efficiency up to 93%
- ✔ Certificates: CE/RoHS
- ✔ Aluminum shell, epoxy potting, Cooling by free air convection
- ✔ Protections: Over-current, Over-voltage, Over-temperature
- ✔ Over-load and Short-circuit Auto-recovery
- ✔ 1 year warranty, lifetime up to 100,000 hours
- ✔ Constant Voltage Design
Technical Specifications
| Parameter | Details |
|---|---|
| Type | Isolated |
| Model | IPS-DTDYI48S1210 |
| Input Rated Voltage | 36/48VDC |
| Input Voltage Range | 30~60VDC |
| Output Voltage | 12VDC |
| Output Current | 10 AMPS |
| Output Rated Power | 120 Watts |
| Converter Size | 74*74*32 (MM) |
| Net Weight | 300G |
| Shell Material | Aluminium |
| Working Temperature | -20~80℃ |
| Efficiency | 93% |
| Waterproof Level | IP67 |
Product Presentation
Customization Range
Wiring Instructions
Factory Display
Application & Recommendations
Frequently Asked Questions
Q1. Can I have a sample order?
A: Yes, sample order is acceptable to test and check quality for the first cooperation.
Q2. What about the lead time?
A: Most models are in stock; sample lead time is 1-3 working days after receiving payment.
Q3. Do you have any MOQ limit?
A: Low MOQ, 5 pieces for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Q5. Is it acceptable to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design based on our sample.
Q6. Do you offer a guarantee for the products?
A: Yes, we offer a 1-year warranty for all power supplies.
