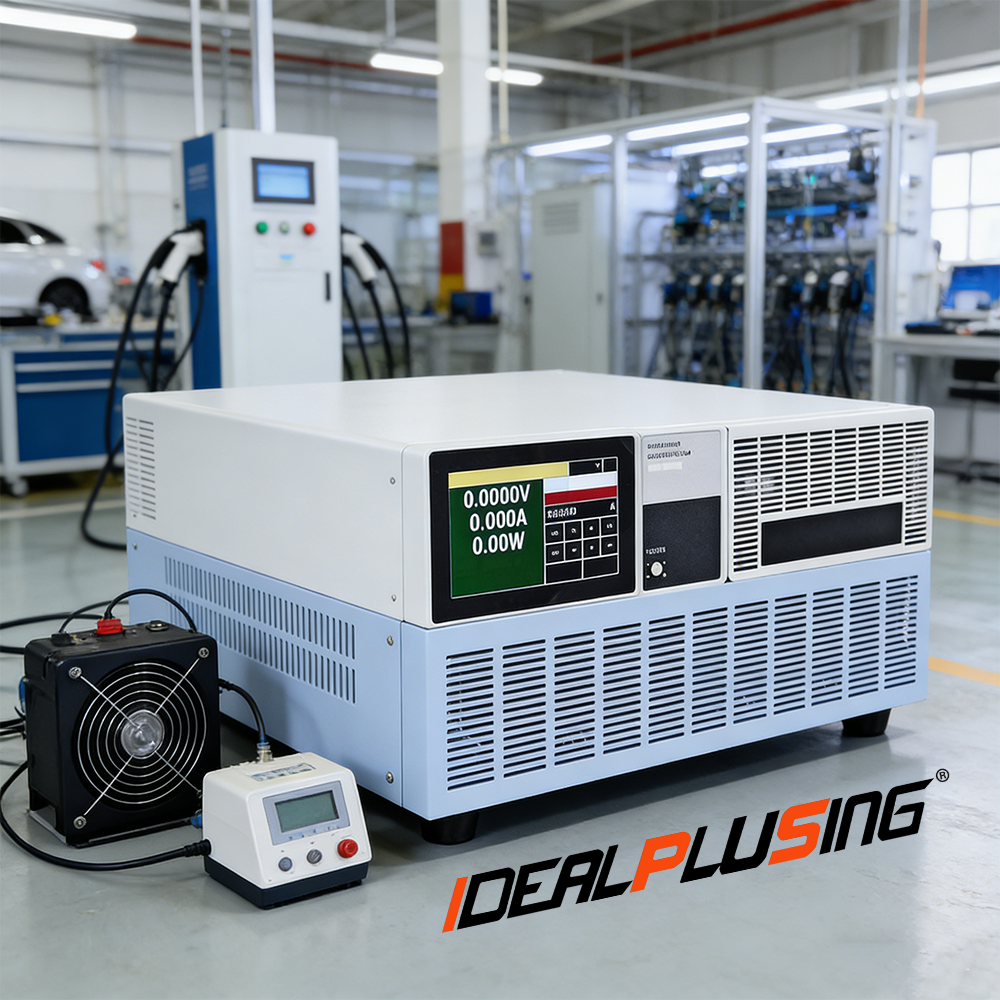

Battery Pack Lead Acid & &EV Charger&Power Supply Equip Single-channel 150~1200VDC 300A 3000-4800W DC Electronic Load Tester
Product Description
📌 Friendly Reminder
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment. We always adhere to the principle of integrity and avoid price misrepresentation. Thank you for your understanding and trust.
🚀 Product Introduction
The IPS-DH-83XX series electronic loads feature comprehensively enhanced transient testing capabilities and multi-faceted intelligent analysis, fully integrated into their automated testing functions. They are particularly well-suited for mass production and incoming material inspection in the power supply and related industries. Furthermore, their programmable current slew rates, high-speed dynamic loading capabilities, and programmable sequence functions are designed to meet the majority of R&D requirements. The unique synchronized master-slave parallel operation timing allows for the simultaneous loading of multi-output power supplies, as well as power expansion for single-output power supplies.
💎 Key Features
✅ Maximum Power: 1200W; Maximum Current: 240A; Maximum Voltage: 1200V.
✅ Measurement of Voltage/Current (Vpp/Ipp), Peak Values (Vp+/Ip+), and Valley Values (Vp-/Ip-).
✅ Four Basic Operating Modes: Constant Current (CC), Constant Voltage (CV), Constant Power (CP), and Constant Resistance (CR).
✅ Dynamic Load Mode (DYNA) up to 50 kHz, including measurement of Vp+/Vp- and Ip+/Ip-.
✅ Supports LED Simulation, Ripple Measurement (20 MHz), and OCP Testing.
✅ High-brightness 5-inch large touchscreen graphic dot-matrix display.
✅ Comprehensive Protection: Over-Voltage, Over-Current, Over-Power, and Over-Temperature.
✅ Standard SCPI protocol and RS232 interface support.
📊 Single-Channel Specifications
| Model | IPS-DH-8311 | IPS-DH-8321 | IPS-DH-8331 | IPS-DH-8341 |
|---|---|---|---|---|
| Rated Power | 150W | 300W | 600W | 1200W |
| Voltage | 0~150VDC | 0~150VDC | 0~150VDC | 0~150VDC |
| Current | 0~30A | 0~60A | 0~120A | 0~240A |
| CC Mode Accuracy | 0.05% + 0.05% FS | |||
| CV Mode Accuracy | 0.03% + 0.05% FS | |||
🔥 Hot Selling DC Power Supplies
IPS-ATDY2075
DC OUT: 0~20VDC, 0~75A
Max Power: 1500W
IPS-ATDY3050
DC OUT: 0~30VDC, 0~50A
Max Power: 1500W
IPS-ATDY4050
DC OUT: 0~40VDC, 0~50A
Max Power: 2000W
IPS-ATDY5060
DC OUT: 0~50VDC, 0~60A
Max Power: 3000W
IPS-ATDY12050
DC OUT: 0~120VDC, 0~50A
Max Power: 6000W
IPS-ATDY80150
DC OUT: 0~80VDC, 0~150A
Max Power: 12000W

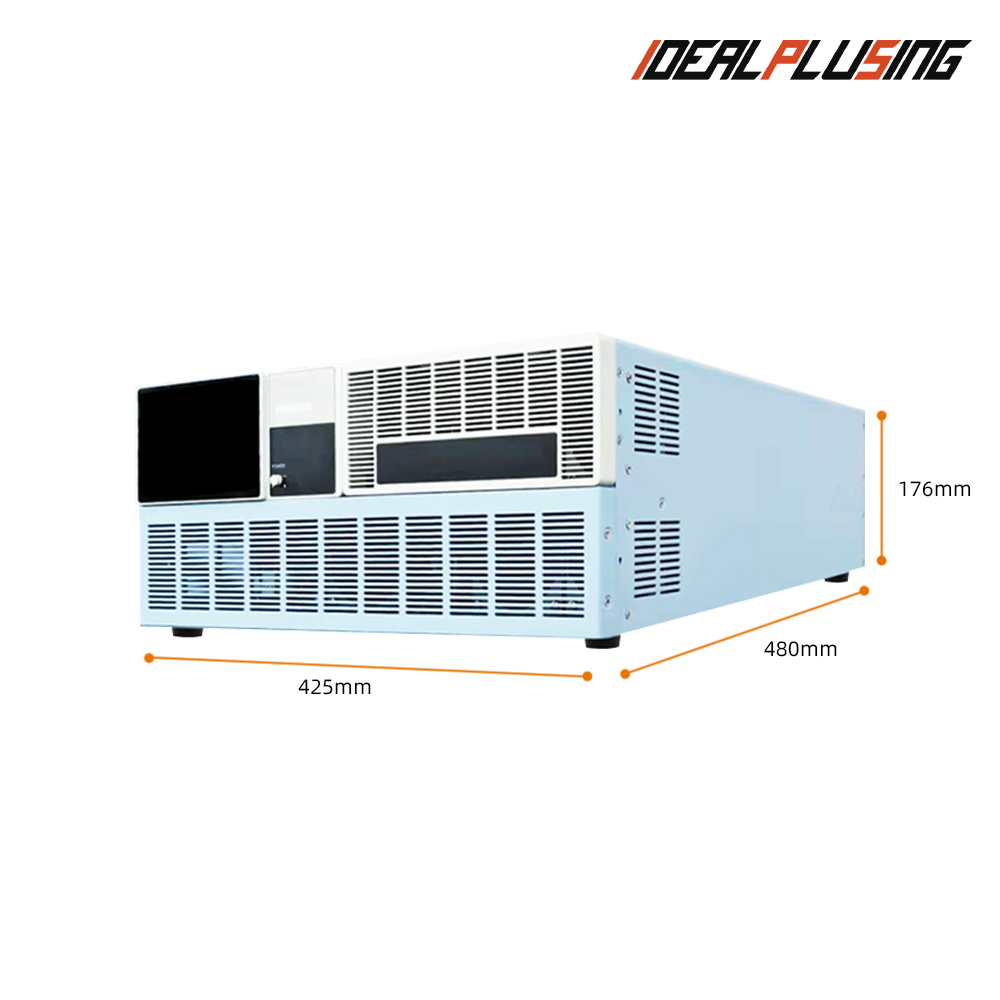

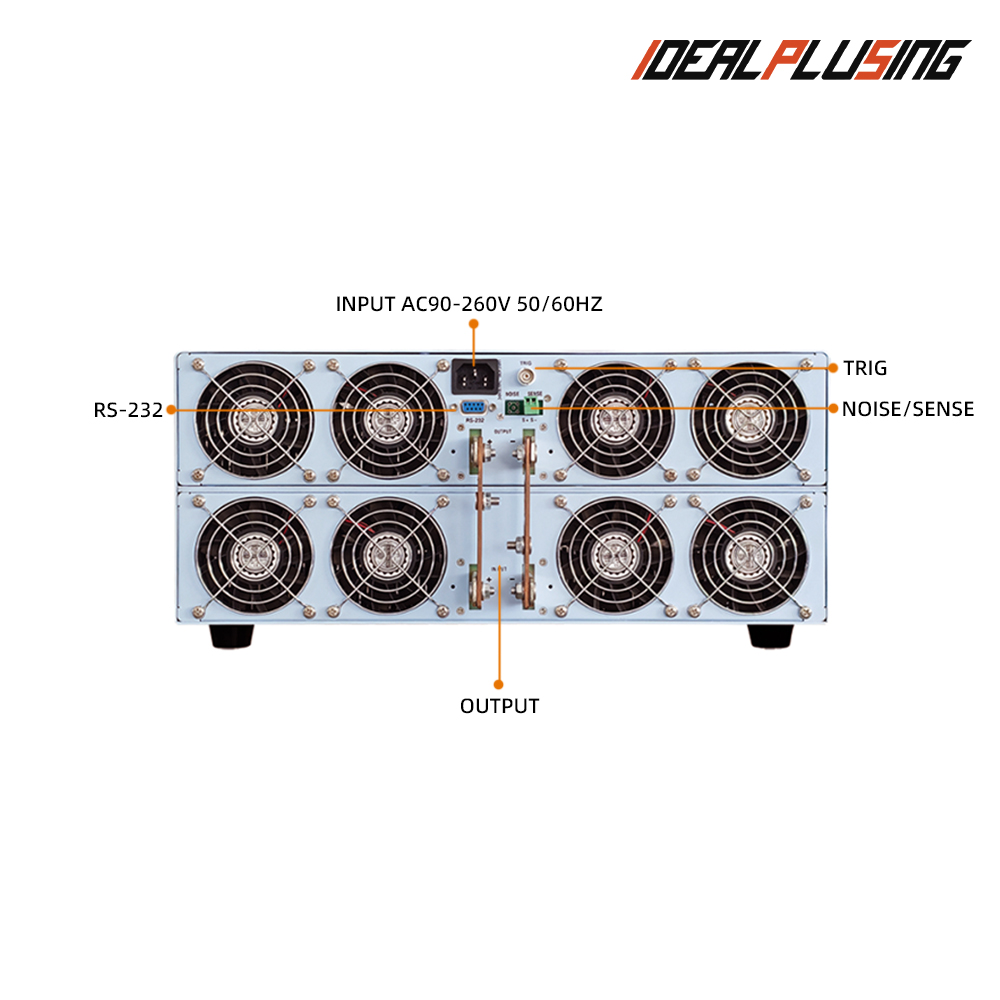

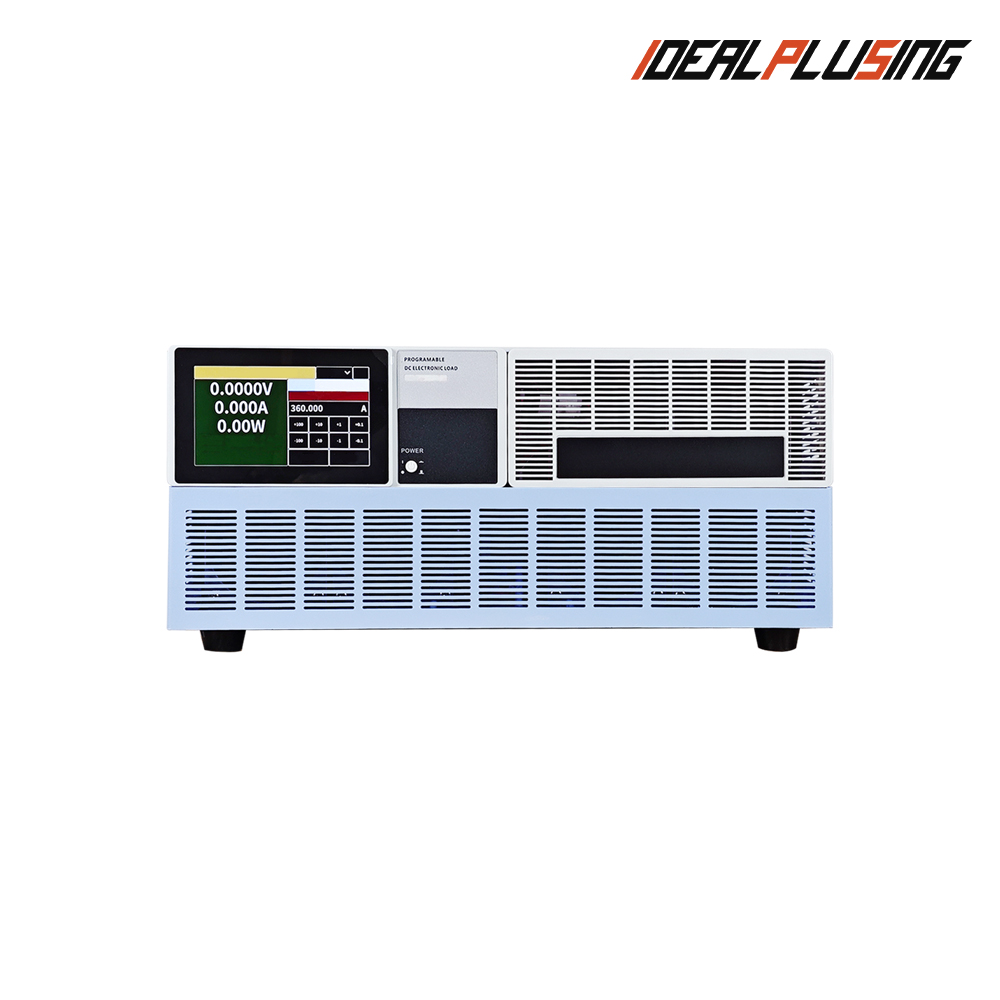

📸 Product Details
⚙️ Application Scope
🏢 Professional Solutions
We focus on the research and development, sales and service of DC to DC power supply module, AC to DC rectifier module, DC to AC inverter, AC power supply, DC power supply, LED power supply, charger, rectifier system and other fields. Our mission is to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries. We aim to provide customers with the right items and better quotation solutions tailored to specific needs.
❓ Frequently Asked Questions
Can I have a sample order?
Yes, sample order is acceptable to test and check quality for the first cooperation.
What about the lead time?
Most models are in stock. Sample lead time after receiving payment is typically 1-3 working days.
How do you ship the goods and how long does it take to arrive?
We often ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
How to proceed with an order?
Initially, let us know your requirements. We quote based on your needs. Once confirmed, place a deposit and we arrange production.
Do you offer a guarantee for the products?
Yes, we offer a 1-year warranty for all power supplies.
Is it possible to print my logo on the product?
Yes. Please inform us formally before our production and confirm the design based on our sample.
