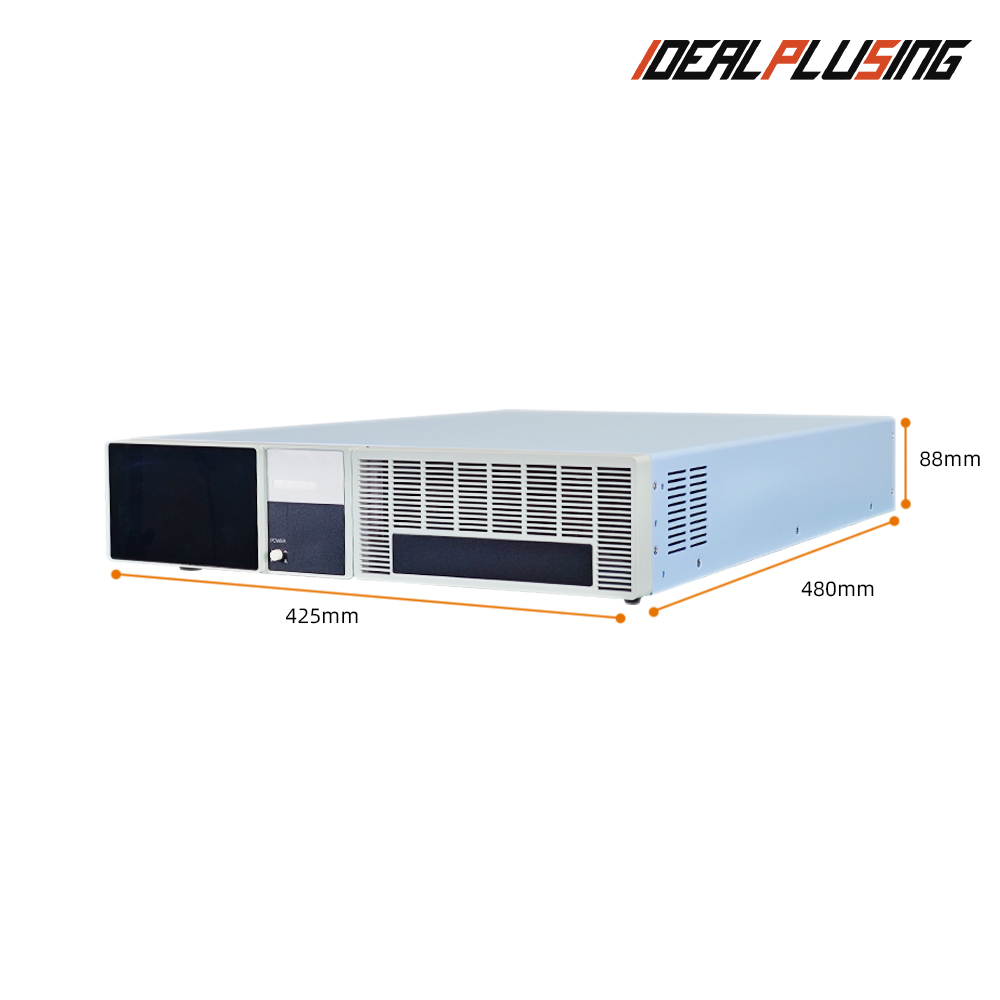

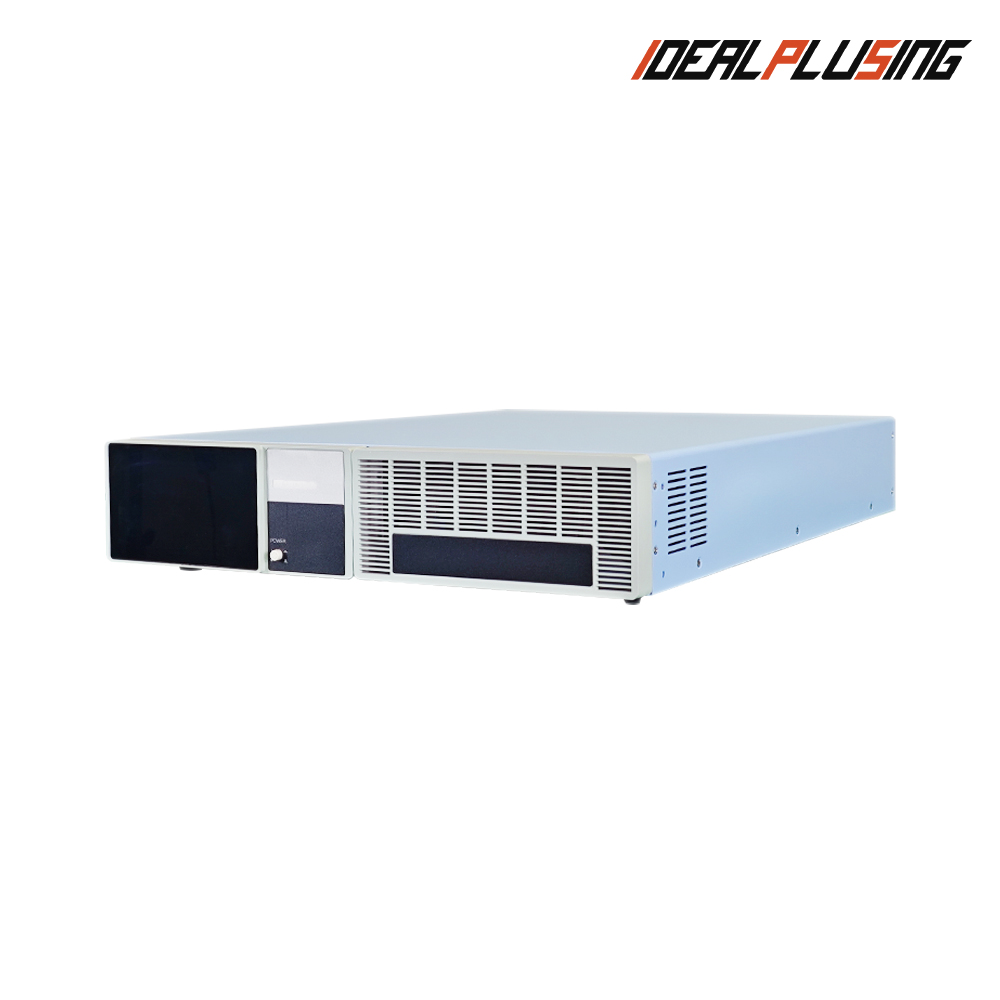

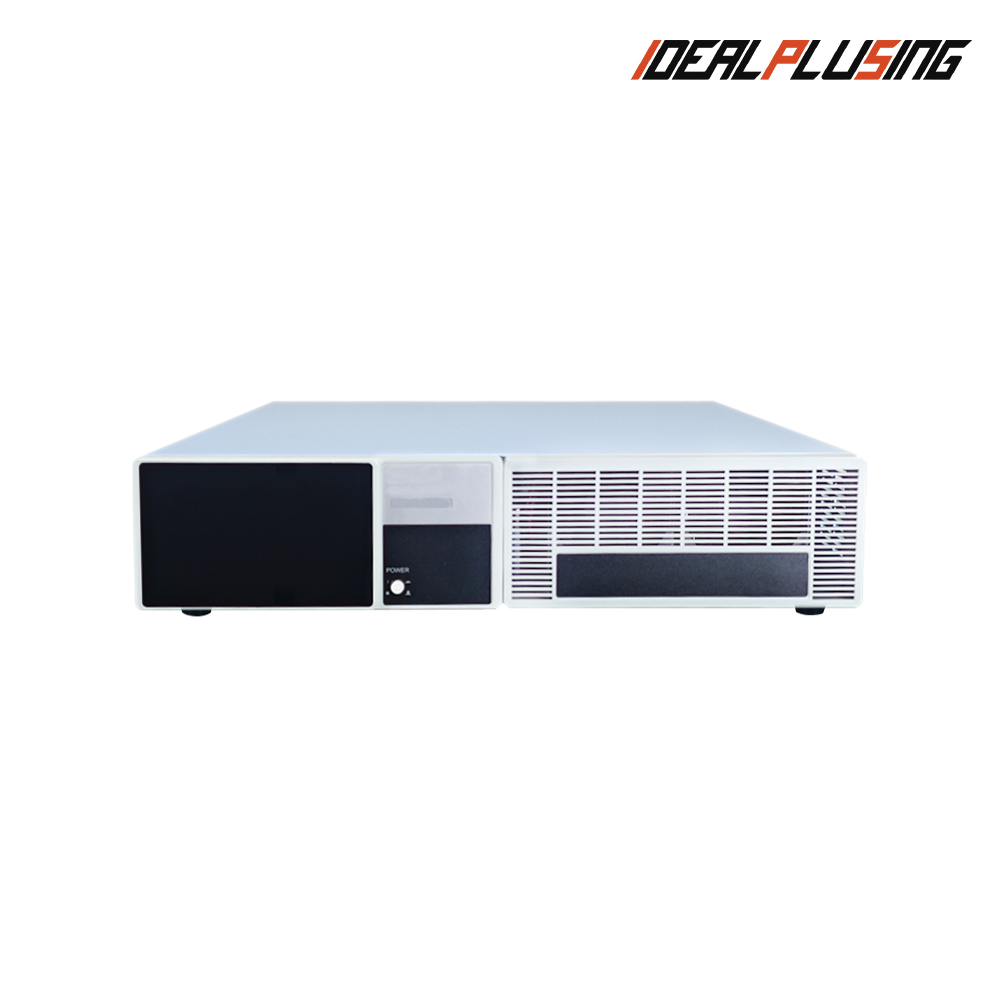

IDEALPLUSING ODM Programmable DC Electronic Load 150VDC 240A / 1200VDC 15A Intelligent Analysis for Research Laboratory Testing
Product Description
ODM Programmable DC Electronic Load 150VDC 240A / 1200VDC 15A
Intelligent Analysis for Research Laboratory Testing
💡 Friendly Reminder:
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment. We always adhere to the principle of integrity and avoid price misrepresentation. Thank you for your understanding and trust.
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment. We always adhere to the principle of integrity and avoid price misrepresentation. Thank you for your understanding and trust.
Product Introduction
The IPS-DH-83XX series electronic loads feature comprehensively enhanced transient testing capabilities and multi-faceted intelligent analysis, fully integrated into their automated testing functions. They are particularly well-suited for mass production and incoming material inspection in the power supply and related industries. Furthermore, their programmable current slew rates, high-speed dynamic loading capabilities, and programmable sequence functions are designed to meet the majority of R&D requirements. The unique synchronized master-slave parallel operation timing allows for the simultaneous loading of multi-output power supplies, as well as power expansion for single-output power supplies.
Product Description
⚡
Maximum Power: 1200W; Maximum Current: 240A; Maximum Voltage: 1200V.
📊
Measurement of Voltage/Current (Vpp/Ipp), Peak Values (Vp+/Ip+), and Valley Values (Vp-/Ip-).
⚙️
Four Basic Operating Modes: CC, CV, CP, and Constant Resistance (CR).
📈
Dynamic Load Mode (DYNA) up to 50 kHz, including measurement of Voltage and Current Peaks/Valleys.
🔍
Supports Ripple Measurement Function up to 20 MHz and Timing Measurement.
🛡️
Over-Voltage, Over-Current, Over-Power, and Over-Temperature Protection.
📱

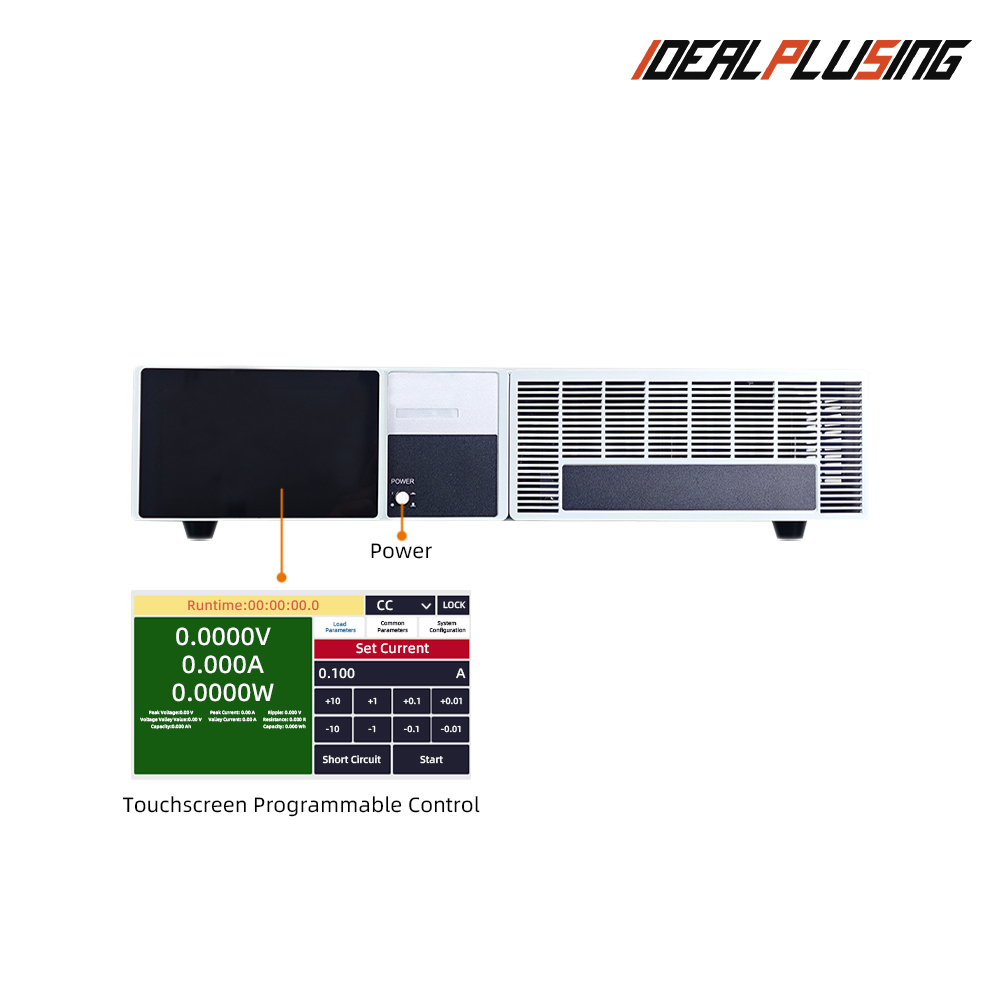

High-brightness 5-inch large touchscreen graphic dot-matrix display.
💻
Standard SCPI protocol support and isolated RS232 interface.
Single-Channel Product Specifications
| Model | IPS-DH-8311 | IPS-DH-8321 | IPS-DH-8331 | IPS-DH-8341 |
|---|---|---|---|---|
| Power | 150W | 300W | 600W | 1200W |
| Voltage | 0~150VDC | 0~150VDC | 0~150VDC | 0~150VDC |
| Current | 0~30A | 0~60A | 0~120A | 0~240A |
| Vmin | 1VDC@30A | 1VDC@60A | 1VDC@120A | 1VDC@240A |
| CC Accuracy | 0.05% + 0.05% FS | |||
| CV Accuracy | 0.03% + 0.05% FS | |||
Hot Selling Models
IPS-ATDY2075
0~20VDC, 0~75A, 1500W
IPS-ATDY3050
0~30VDC, 0~50A, 1500W
IPS-ATDY4050
0~40VDC, 0~50A, 2000W
IPS-ATDY5060
0~50VDC, 0~60A, 3000W
IPS-ATDY12050
0~120VDC, 0~50A, 6000W
IPS-ATDY80150
0~80VDC, 0~150A, 12000W
Details Images
Application Scope
About Our Solutions
We focus on the research and development, sales and service of DC to DC power supply module, AC to DC rectifier module, DC to AC inverter, AC power supply, DC power supply, LED power supply, charger, rectifier system and other fields, to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries. We want to give our customers the right power supply solution, giving a better quotation solution with the right items. Together, let's make it much better.
