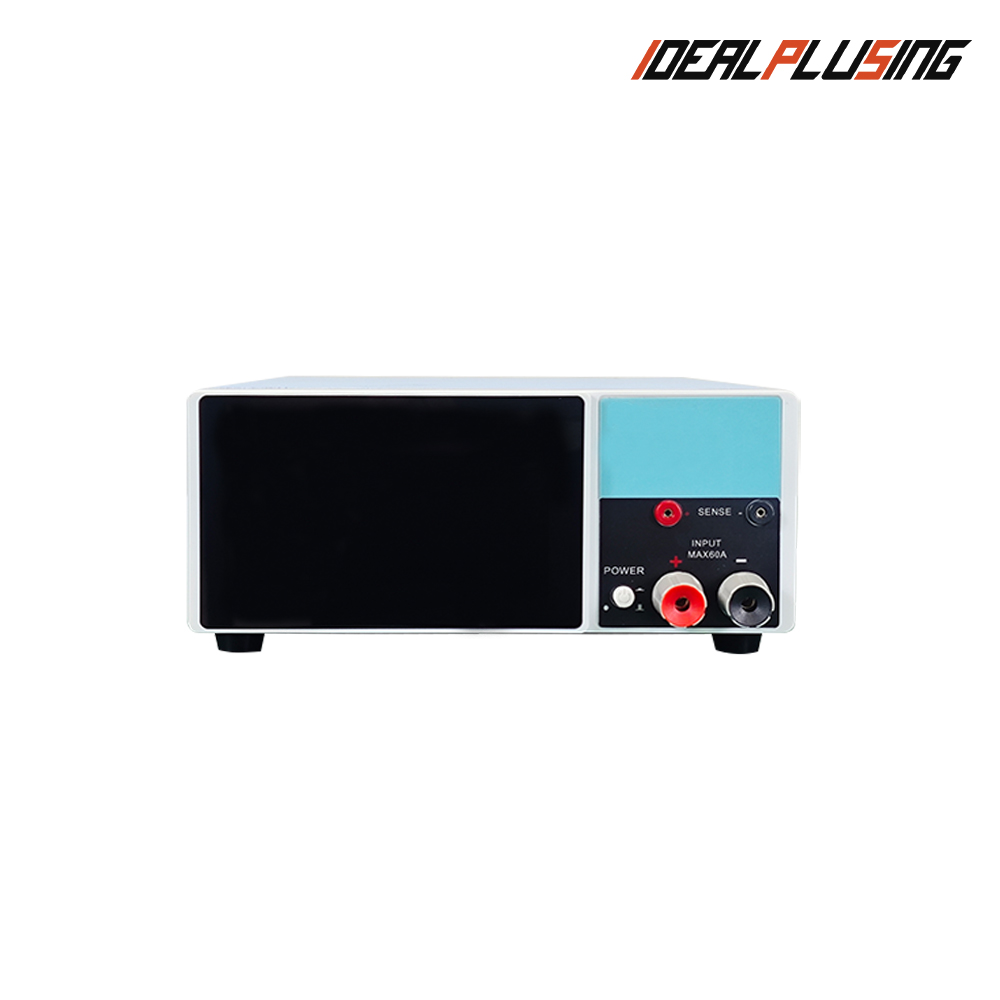

OEM Multi Channel Programmable DC Electronic Load 150VDC 600VDC 30A/1200VDC 15A High Power for Incoming Material Inspection
Product Description
OEM Multi Channel Programmable DC Electronic Load
150VDC / 600VDC / 1200VDC | 15A - 240A High Power | Material Inspection Grade
Friendly Reminder
The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted based on your actual needs, purchase quantity, and market conditions. Online prices are for preliminary budget reference only.
Product Introduction
The series electronic loads feature comprehensively enhanced transient testing capabilities and multi-faceted intelligent analysis, fully integrated into their automated testing functions. They are particularly well-suited for mass production and incoming material inspection in the power supply and related industries. Programmable current slew rates, high-speed dynamic loading, and sequence functions meet the majority of R&D requirements.
Key Features & Functions
⚡
Max Power: 1200W; Max Current: 240A; Max Voltage: 1200V.
📊
Four Basic Modes: Constant Current (CC), Constant Voltage (CV), Constant Power (CP), and Constant Resistance (CR).
📈
Dynamic Load Mode (DYNA) up to 50 kHz with Peak/Valley measurement.
💡
Supports LED Simulation and Ripple Measurement Function up to 20 MHz.
🛠️
Standalone Automatic Testing (A-Test) and programmable Current Sequence (200 steps).
🖥️

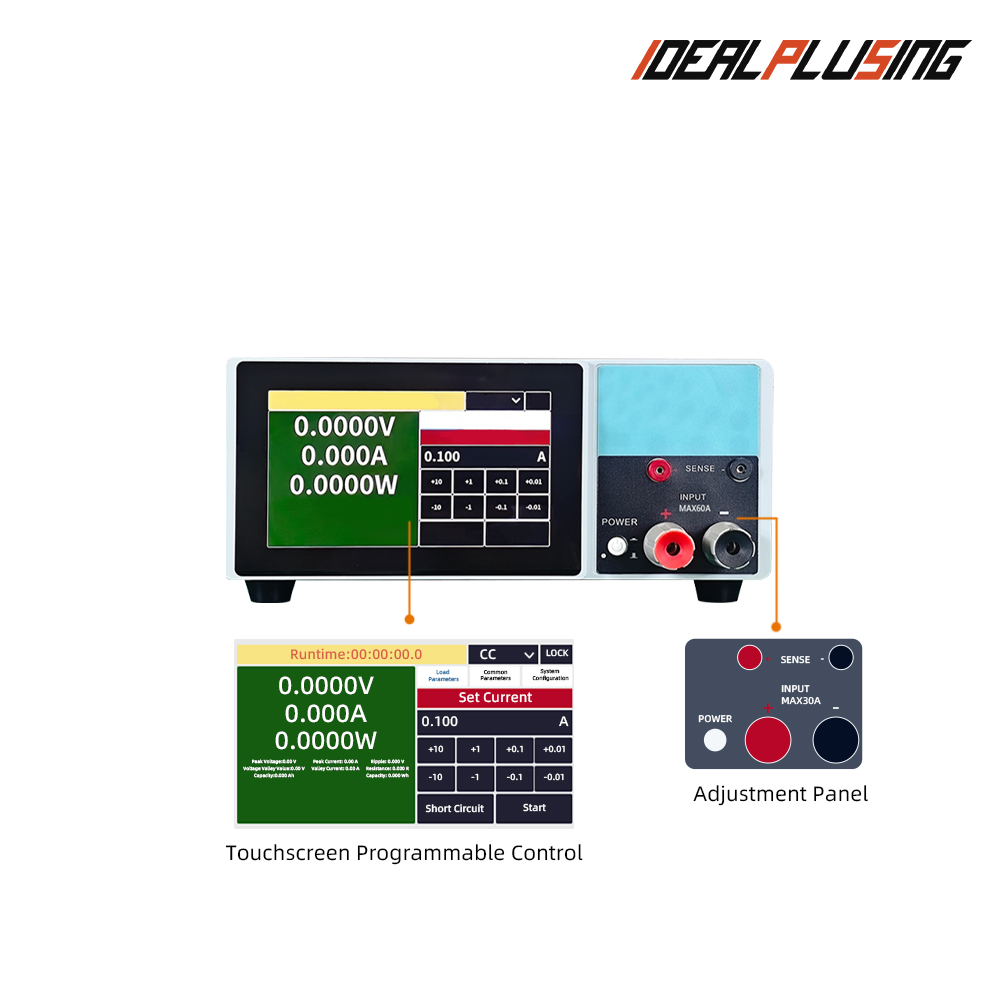

5-inch large touchscreen graphic dot-matrix display with wide viewing angles.
Technical Specifications
Single-Channel Model Parameters:
| Model | IPS-DH-8311 | IPS-DH-8321 | IPS-DH-8331 | IPS-DH-8341 |
|---|---|---|---|---|
| Rated Power | 150W | 300W | 600W | 1200W |
| Voltage Range | 0~150VDC | 0~150VDC | 0~150VDC | 0~150VDC |
| Current Range | 0~30A | 0~60A | 0~120A | 0~240A |
| CC Resolution | 1mA | 1mA | 10mA | 10mA |
| Slew Rate | 0.6A/mS~3A/uS | 1.2A/mS~3A/uS | ||
Hot Selling DC Power Supplies
IPS-ATDY2075
0~20VDC, 0~75A
Max Power: 1500W
IPS-ATDY3050
0~30VDC, 0~50A
Max Power: 1500W
IPS-ATDY4050
0~40VDC, 0~50A
Max Power: 2000W
IPS-ATDY5060
0~50VDC, 0~60A
Max Power: 3000W
IPS-ATDY12050
0~120VDC, 0~50A
Max Power: 6000W
IPS-ATDY80150
0~80VDC, 0~150A
Max Power: 12000W

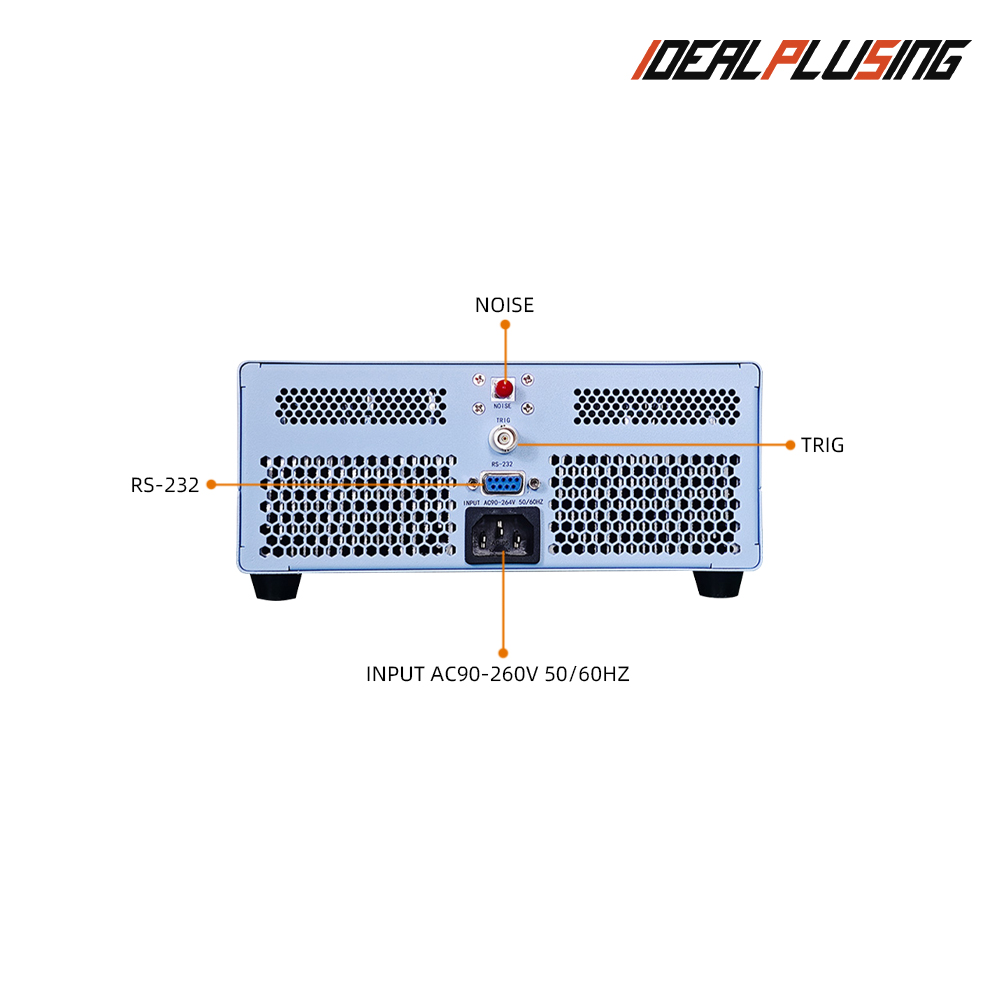

Detailed Product Images
Application Scope
Model List Reference
| Model | V & A Range | Power | Dimensions |
|---|---|---|---|

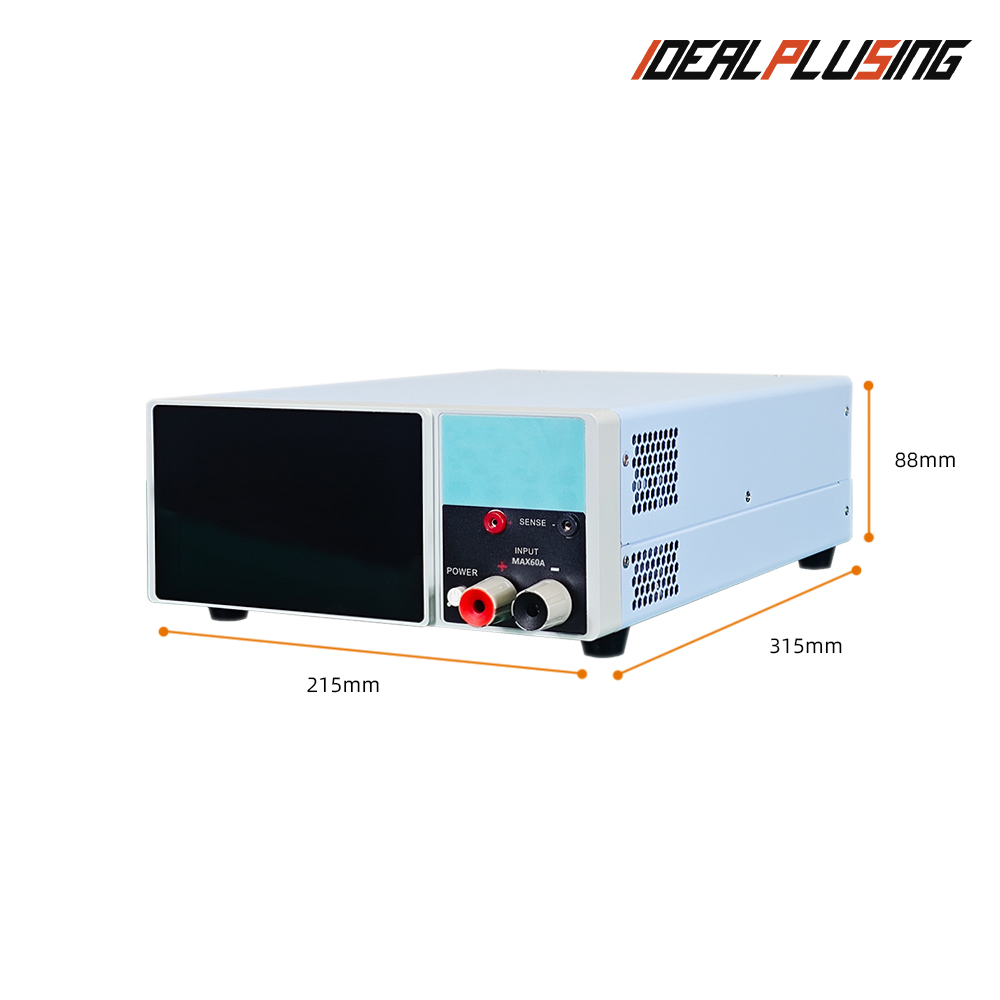

| IPS-DH-8311 | 150VDC 30A | 150W | W215×H88×L315 mm |
| IPS-DH-8321 | 150VDC 60A | 300W | W215×H88×L315 mm |
| IPS-DH-8331 | 150VDC 120A | 600W | W215×H88×L315 mm |
| IPS-DH-8341 | 150VDC 240A | 1200W | W425×H88×L315 mm |
| IPS-DH-8322 | 150VDC 60A | 2*300W | W215×H88×L315 mm |
| IPS-DH-8318 | 150VDC 30A | 8*150W | W425×H88×L365 mm |
Professional Power Solutions
We focus on the research, development, and service of DC to DC modules, AC to DC rectifiers, and programmable power supplies. Our goal is to provide personalized, efficient, and reliable power solutions for industrial material inspection, R&D, and mass production lines. We don't just sell equipment; we provide the right technical solution for your specific application requirements.
FAQ - Frequently Asked Questions
Q1. Can I order a sample for testing?
Yes, sample orders are acceptable to test and check quality for the first cooperation.
Q2. What is the typical lead time for an order?
Most models are in stock. Sample lead time after payment is usually 1-3 working days.
Q3. Is there a Minimum Order Quantity (MOQ)?
We maintain a low MOQ; even 1 piece for sample checking is available.
Q4. How are the products shipped and how long does it take?
We often ship via DHL, UPS, FedEx, or TNT, typically arriving in 3-5 days. Airline and sea shipping are also optional for bulk orders.
Q5. What is the warranty policy for the power supplies?
We offer a 1-year warranty for all our power supply products and electronic loads.
Q6. Can the products be customized with a buyer logo?
Yes, it is acceptable. Please inform us formally before production and confirm the design based on our sample.
