OEM/ODM Programmable DC Electronic Load 150VDC 300A/600VDC 150A/1200VDC 30A High Speed Dynamic Load for Production Line Testing
Product Description
ODM/OEM Programmable DC Electronic Load
150VDC 300A / 600VDC 150A / 1200VDC 30A High Speed Dynamic Load for Production Line Testing
Friendly Reminder
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions.
Product Introduction
The IPS-DH-83XX series electronic loads feature comprehensively enhanced transient testing capabilities and multi-faceted intelligent analysis, fully integrated into their automated testing functions. They are particularly well-suited for mass production and incoming material inspection in the power supply and related industries. Furthermore, their programmable current slew rates, high-speed dynamic loading capabilities, and programmable sequence functions are designed to meet the majority of R&D requirements. The unique synchronized master-slave parallel operation timing allows for the simultaneous loading of multi-output power supplies, as well as power expansion for single-output power supplies.
Product Description
⚡
Max Capacity: Maximum Power: 1200W; Maximum Current: 240A; Maximum Voltage: 1200V.
📊
Precise Measurement: Measurement of Voltage/Current (Vpp/Ipp), Peak Values (Vp+/Ip+), and Valley Values (Vp-/Ip-).
⚙️
Basic Modes: Four Basic Operating Modes: Constant Current (CC), Constant Voltage (CV), Constant Power (CP), and Constant Resistance (CR).
💡
LED & Dynamic: Supports LED Simulation and Dynamic Load Mode (DYNA) up to 50 kHz.
🔍
Testing Tools: Supports Over-Current Protection (OCP), Ripple Measurement (20 MHz), and Short-Circuit Simulation.
📱

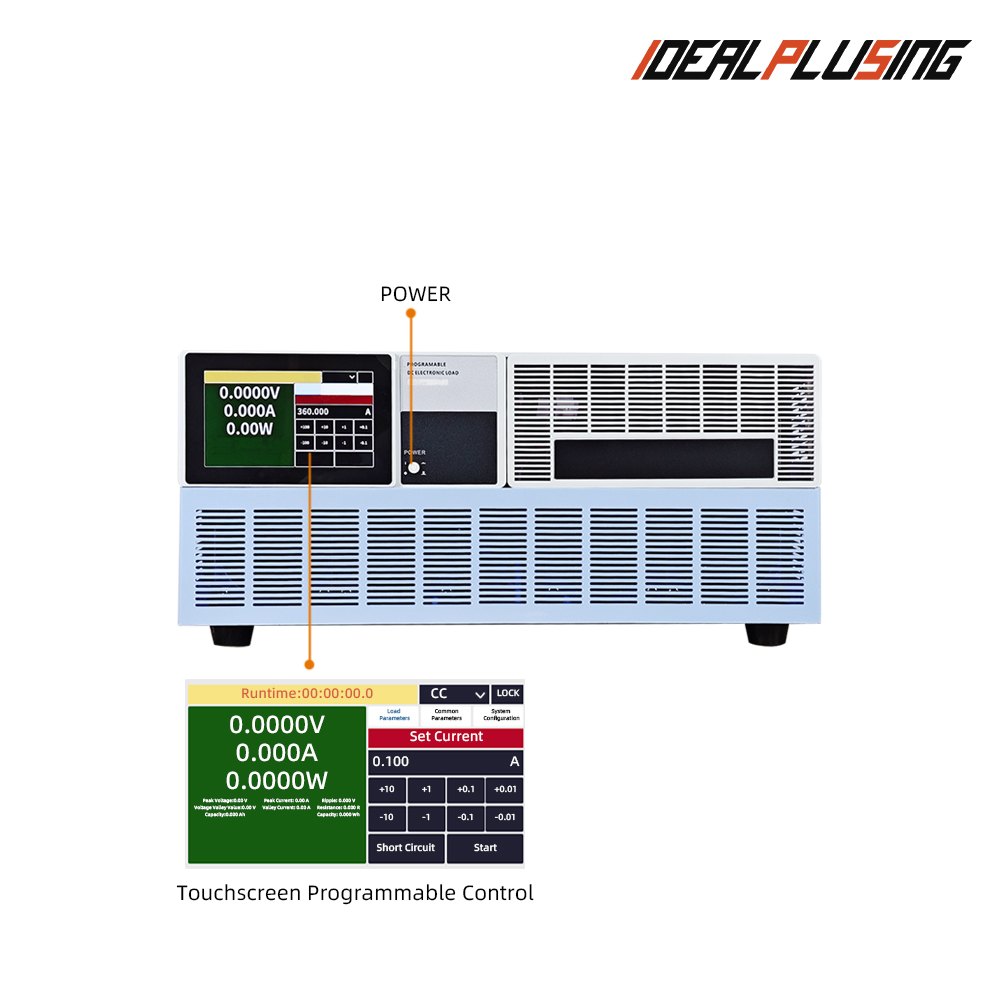

Control: 5-inch large touchscreen graphic display, Remote Sensing, and Standard SCPI protocol support.
Single-Channel Product Specifications
| Model | IPS-DH-8311 | IPS-DH-8321 | IPS-DH-8331 | IPS-DH-8341 |
|---|---|---|---|---|
| Power | 150W | 300W | 600W | 1200W |
| Voltage | 0~150VDC | 0~150VDC | 0~150VDC | 0~150VDC |
| Current | 0~30A | 0~60A | 0~120A | 0~240A |
| CC Mode Accuracy | 0.05% + 0.05% FS | |||
| CV Mode Accuracy | 0.03% + 0.05% FS | |||
Hot Selling Models
IPS-ATDY2075
0~20VDC, 0~75A | 1500W
IPS-ATDY3050
0~30VDC, 0~50A | 1500W
IPS-ATDY4050
0~40VDC, 0~50A | 2000W
IPS-ATDY5060
0~50VDC, 0~60A | 3000W
IPS-ATDY12050
0~120VDC, 0~50A | 6000W
IPS-ATDY80150
0~80VDC, 0~150A | 12000W

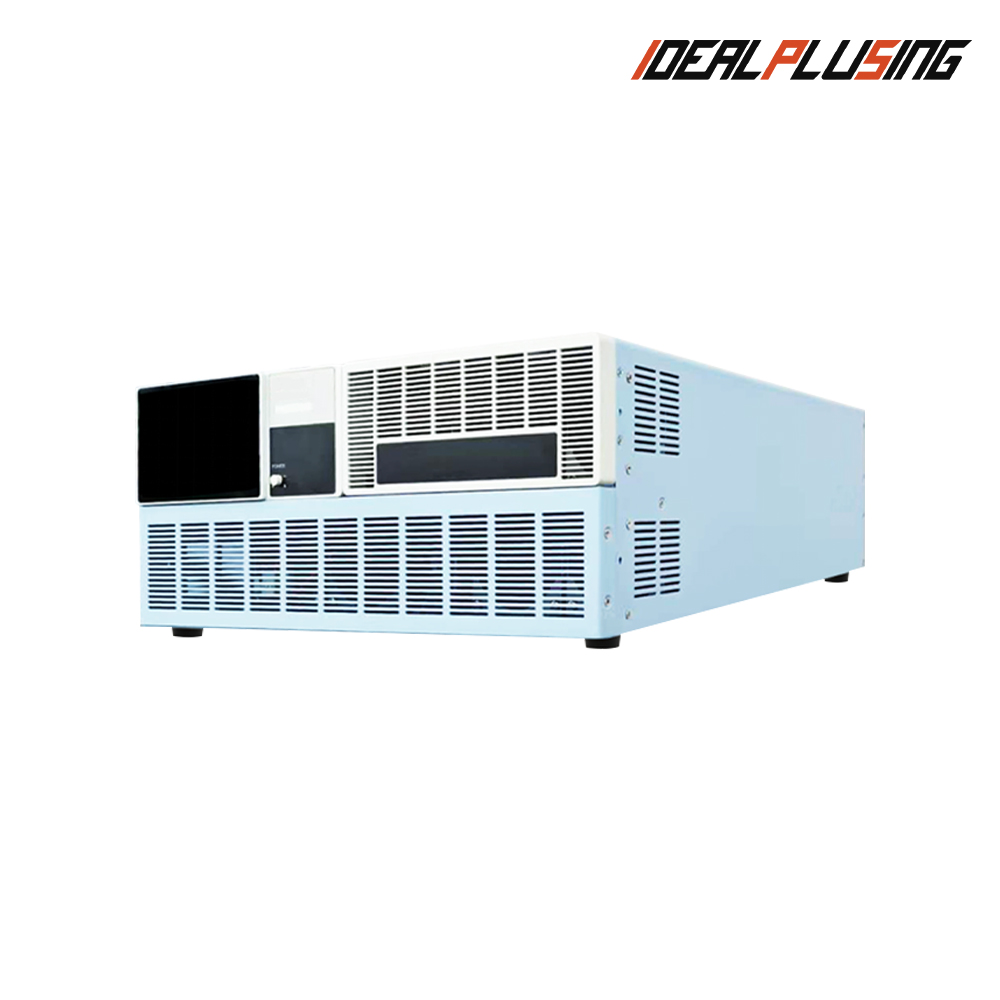

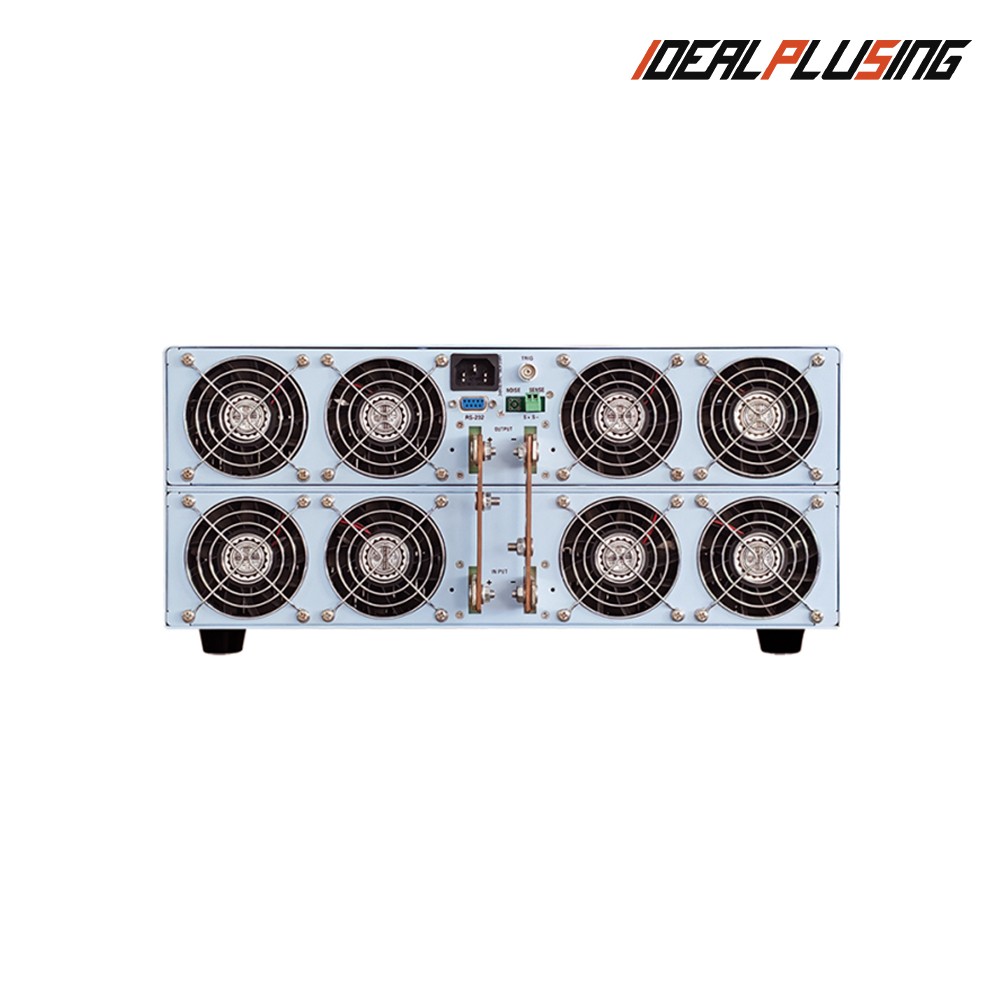

Details Images

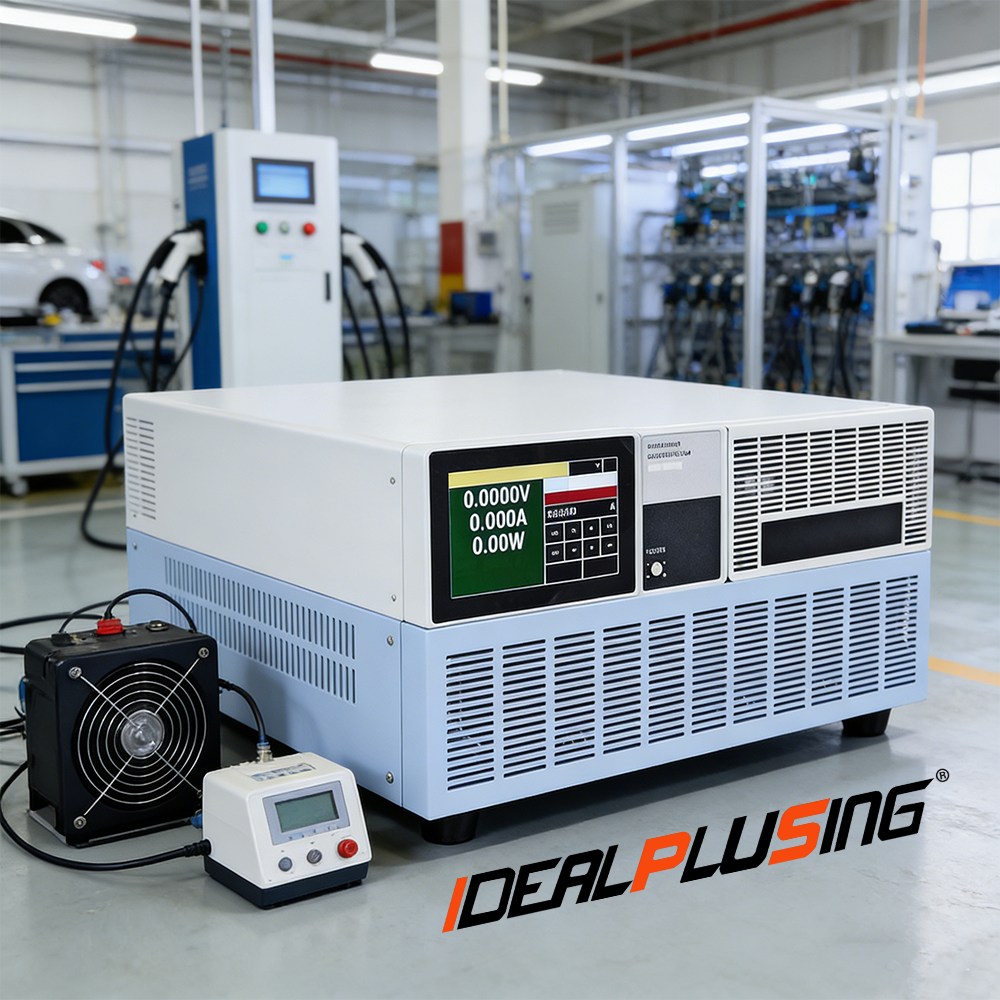

Application Scope
About Our Solutions
We focus on the research and development, sales and service of DC to DC power supply module, AC to DC rectifier module, DC to AC inverter, AC power supply, DC power supply, LED power supply, charger, rectifier system and other fields. Our goal is to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries. We don't just provide hardware; we deliver the right power supply configuration with professional technical support.
Frequently Asked Questions
Can I have a sample order?
Yes, sample order is acceptable to test and check quality for the first cooperation.
What about the lead time?
Most of the models are in stock. Sample lead time after receiving payment is typically 1-3 working days.
Do you have any MOQ limit?
Low MOQ, 1 piece for sample checking is available.
How do you ship the goods and how long does it take?
We often ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Do you offer a guarantee for the products?
Yes, we offer a 1-year warranty for all power supply units.
How to deal with technical flaws?
Our products are produced under a strict quality control system, and the pass rate is maintained over 99.8%.
