High Precision Pulse Wide Volt Input 150~1200VDC 150-600W Battery & New Energy Testing Electronic DC Load Tester Single-channel
Product Description
⚡ High Precision Pulse Wide Volt Input 150~1200VDC 30A 150W DC Load Tester
Friendly Reminder: The prices shown are for reference only. Final transaction prices will be quoted by sales staff based on your specific requirements and market conditions.
The IPS-DH-83XX series electronic loads feature comprehensively enhanced transient testing capabilities and multi-faceted intelligent analysis, fully integrated into their automated testing functions. They are particularly well-suited for mass production and incoming material inspection in power supply and related industries. The unique synchronized master-slave parallel operation timing allows for the simultaneous loading of multi-output power supplies.
🛠️ Main Features & Functions
✔High Range: Maximum Power 1200W, Current 240A, Voltage 1200V.
✔Basic Modes: Supports CC, CV, CP, and CR operating modes.
✔Dynamic Load: DYNA mode up to 50 kHz with Peak/Valley measurement.
✔LED Simulation: Built-in LED simulation function for driver testing.
✔Ripple Measurement: Supports up to 20 MHz ripple analysis.
✔Protection: Comprehensive OVP, OCP, OPP, and OTP protection.
✔Display: 5-inch large touchscreen graphic dot-matrix display.
✔Remote Control: Electrically isolated RS232 and SCPI protocol support.
📊 Technical Specifications (Single-Channel)
| Parameter | IPS-DH-8311 | IPS-DH-8321 | IPS-DH-8331 | IPS-DH-8341 |
|---|---|---|---|---|
| Power | 150W | 300W | 600W | 1200W |
| Voltage | 0~150VDC | 0~150VDC | 0~150VDC | 0~150VDC |
| Current | 0~30A | 0~60A | 0~120A | 0~240A |
| CC Accuracy | 0.05% + 0.05% FS | |||
| CV Accuracy | 0.03% + 0.05% FS | |||
| Slew Rate | 0.6A/mS~3A/uS | 0.6A/mS~3A/uS | 1.2A/mS~3A/uS | 1.2A/mS~3A/uS |
🔥 Hot Selling DC Power Supplies
IPS-ATDY2075
0~20VDC, 0~75A, 1500W
IPS-ATDY3050
0~30VDC, 0~50A, 1500W
IPS-ATDY4050
0~40VDC, 0~50A, 2000W
IPS-ATDY5060
0~50VDC, 0~60A, 3000W
IPS-ATDY12050
0~120VDC, 0~50A, 6000W
IPS-ATDY80150
0~80VDC, 0~150A, 12000W

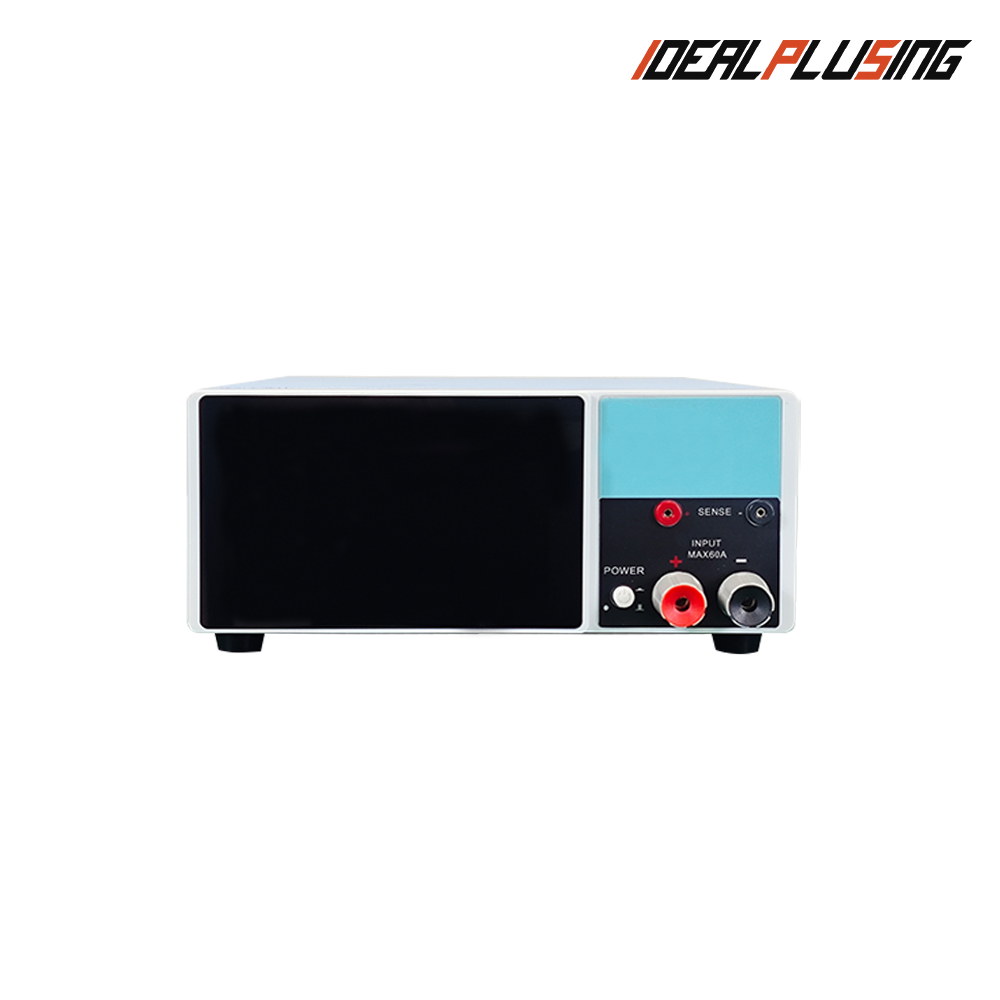

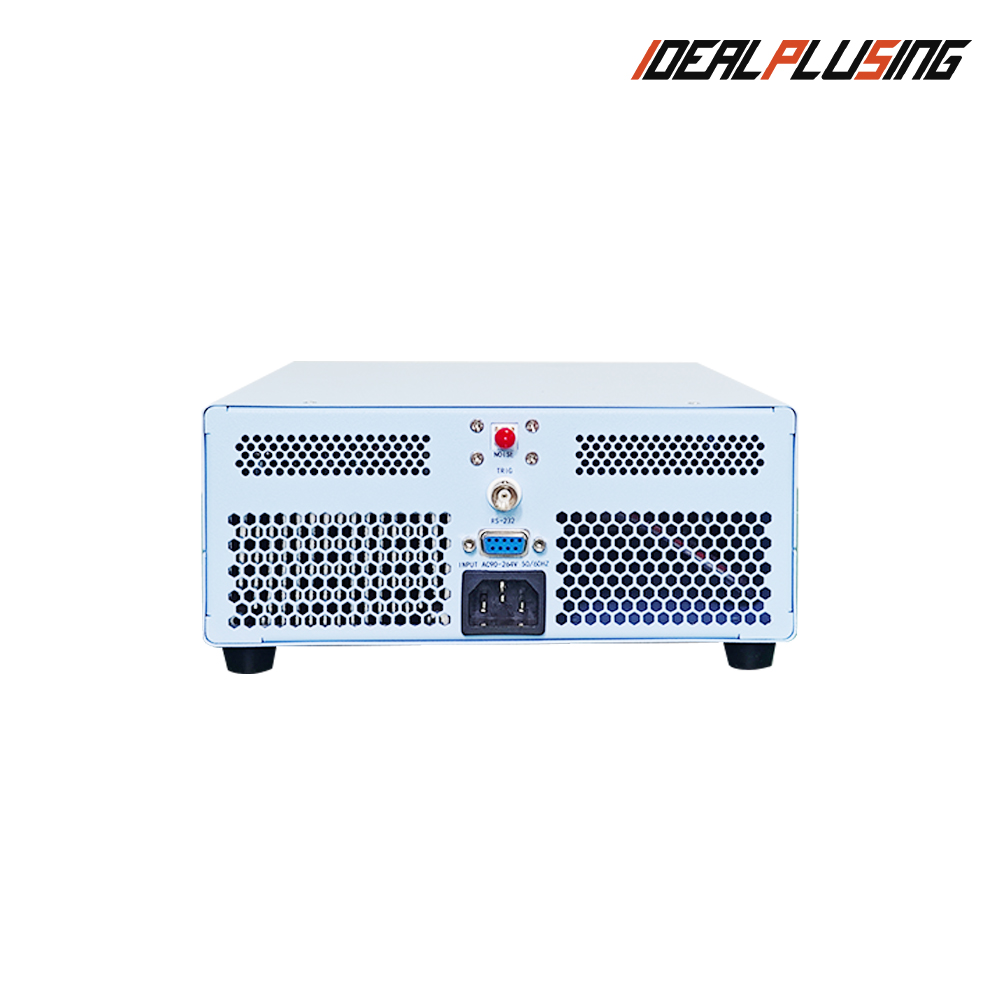

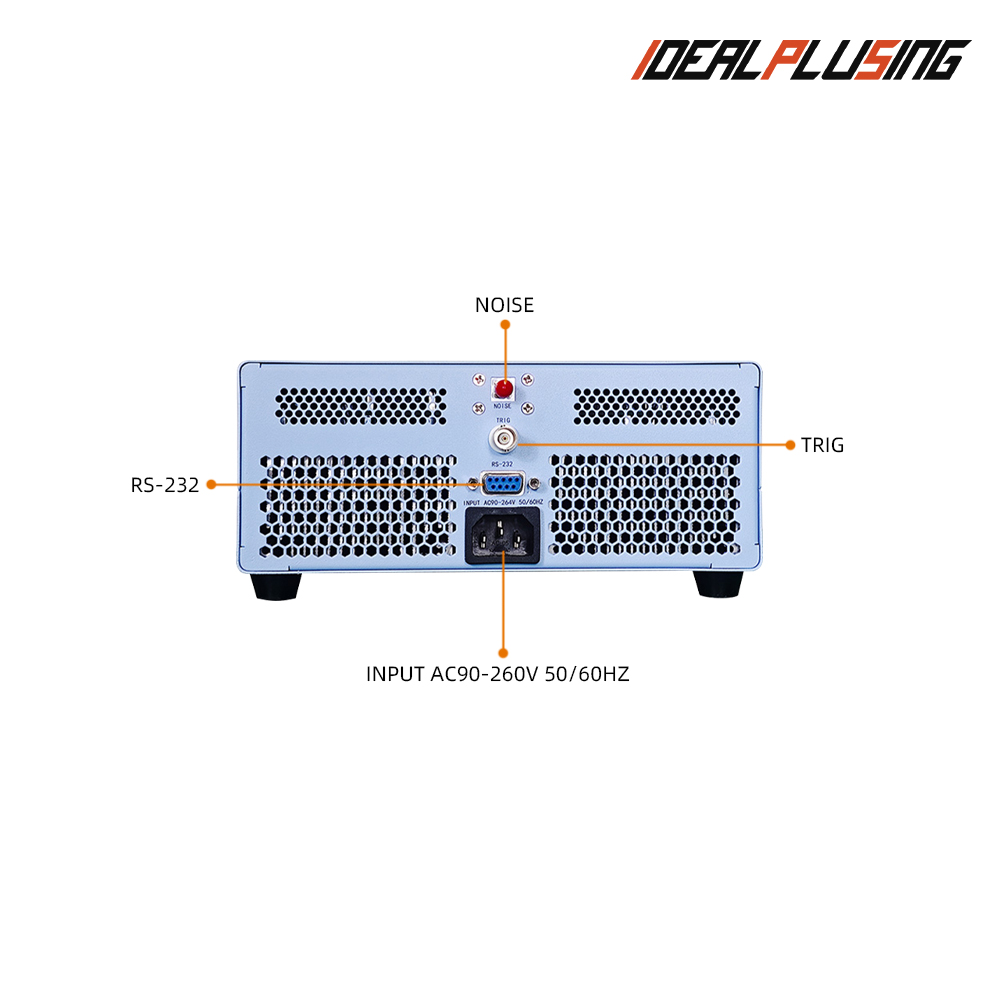

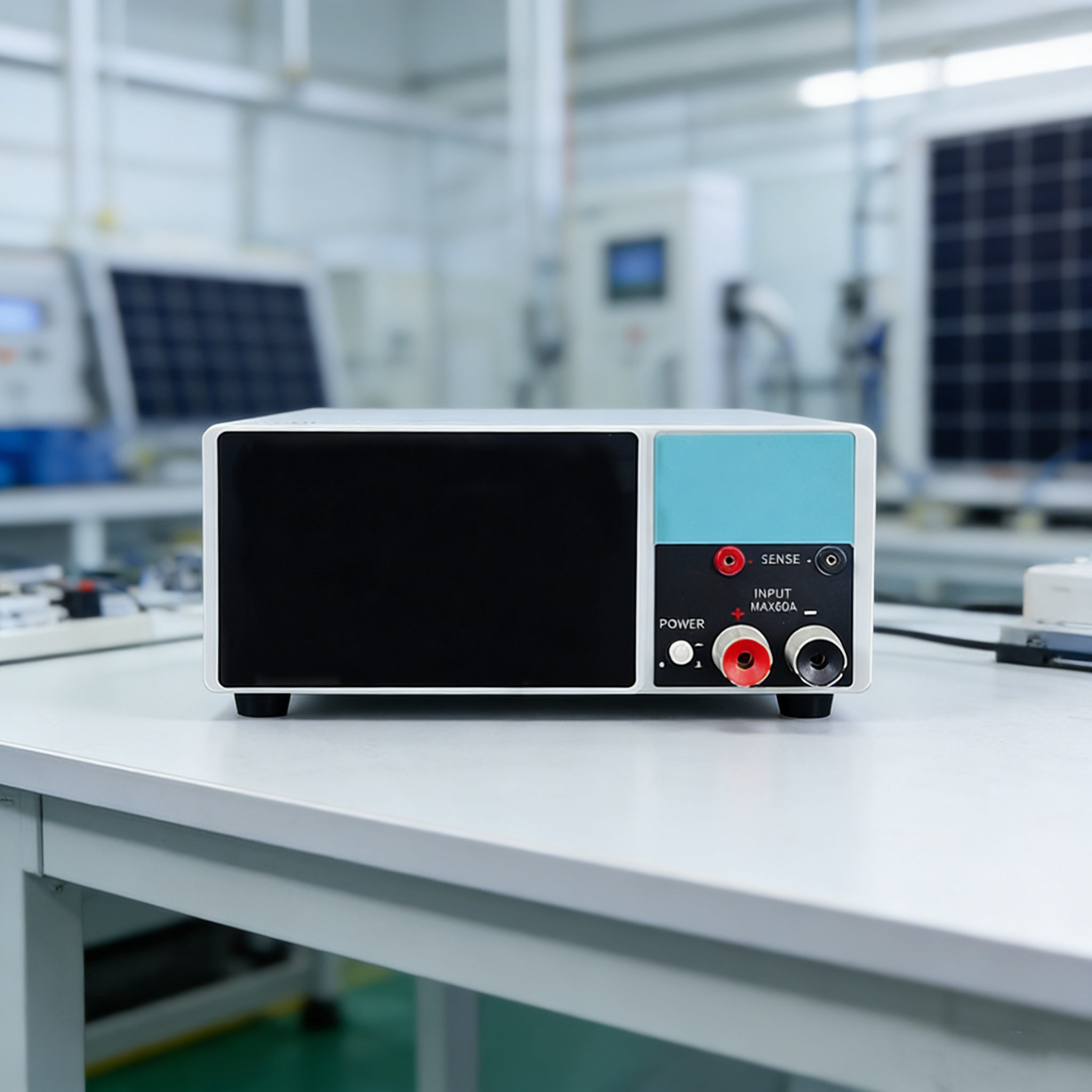

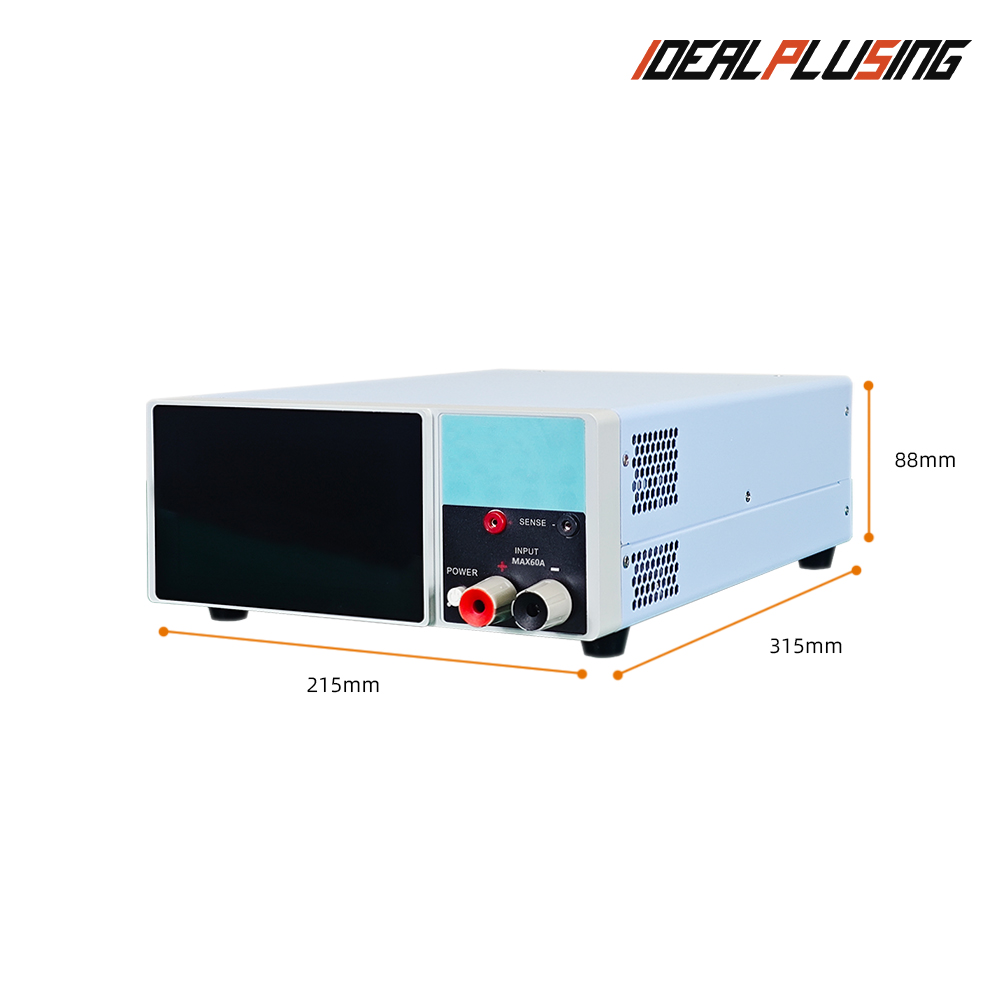

📷 Detailed Product Views
🌍 Application Scope
Personalized, efficient, reliable and cost-effective power supply solutions for all industries including new energy testing, battery testing, and mass production inspection.
❓ Frequently Asked Questions
Q1. Can I have a sample order?
A: Yes, sample order is acceptable to test and check quality for the first cooperation.
Q2. What about the lead time?
A: Most models are in stock. Sample lead time after receiving payment is typically 1-3 working days.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1 piece for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Q5. Do you offer a guarantee for the products?
A: Yes, we offer a 1-year warranty for all power supply products.
Q6. How to proceed with an order?
A: Initially, let us know your requirements. We provide a quote, you confirm samples and place a deposit, and then we arrange production.
