Production Line High Current 150~1200VDC 60~240A 1200W DC Electronic Load Tester Battery Generator EV Charger Single-channel

Product Description

Friendly Reminder
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment. Our company always adheres to the principle of integrity and avoids price misrepresentation. Thank you for your understanding and trust.
Product Introduction
The IPS-DH-83XX series electronic loads feature comprehensively enhanced transient testing capabilities and multi-faceted intelligent analysis, fully integrated into their automated testing functions. They are particularly well-suited for mass production and incoming material inspection in the power supply and related industries. Furthermore, their programmable current slew rates, high-speed dynamic loading capabilities, and programmable sequence functions are designed to meet the majority of R&D requirements. The unique synchronized master-slave parallel operation timing allows for the simultaneous loading of multi-output power supplies, as well as power expansion for single-output power supplies.
Product Description
  • Maximum Power: 1200W; Maximum Current: 240A; Maximum Voltage: 1200V.
  • Measurement of Voltage/Current (Vpp/Ipp), Peak Values (Vp+/Ip+), and Valley Values (Vp-/Ip-).
  • Programmable Current Rise/Fall Rates.
  • Four Basic Operating Modes: Constant Current (CC), Constant Voltage (CV), Constant Power (CP), and Constant Resistance (CR).
  • Supports LED Simulation Function.
  • Dynamic Load Mode (DYNA) up to 50 kHz, including measurement of Voltage Peaks/Valleys (Vp+/Vp-) and Current Peaks/Valleys (Ip+/Ip-).
  • Supports Ripple Measurement Function up to 20 MHz.
  • Supports Over-Current Protection (OCP) Testing.
  • Supports Timing Measurement.
  • Supports Short-Circuit Simulation Function.
  • Supports Standalone Automatic Testing (A-Test), compatible with all extended modes and all test items.
  • Supports Remote Sensing (Compensation).
  • Supports Von and Voff Functions.
  • Automatic Test Function supports the storage and recall of 8 files, with 50 steps of global data per file.
  • Current Sequence Function supports the storage and recall of 8 files, with 200 steps of global data per file.
  • High-brightness, wide-viewing-angle 5-inch large touchscreen graphic dot-matrix display.
  • Over-Voltage, Over-Current, Over-Power, and Over-Temperature Protection.
  • Intelligent Fan System.
  • Electrically isolated external trigger input.
  • Electrically isolated standard RS232 interface.
  • Standard SCPI protocol support.
Single-Channel Product Specifications
Model IPS-DH-8311 IPS-DH-8321 IPS-DH-8331 IPS-DH-8341
Rated Input Power 150W 300W 600W 1200W
Voltage 0~15VDC 0~150VDC 0~15VDC 0~150VDC 0~15VDC 0~150VDC 0~15VDC 0~150VDC
Current 0~3A 0~30A 0~6A 0~60A 0~12A 0~120A 0~24A 0~240A
Vmin 1VDC@30A 1VDC@60A 1VDC@120A 1VDC@240A
CC Mode Range 0~3A 0~30A 0~6A 0~60A 0~12A 0~120A 0~24A 0~240A
Resolution 0.5mA 1mA 0.5mA 1mA 1mA 10mA 1mA 10mA
Accuracy 0.05% + 0.05% FS
CV Mode Range 0~15VDC 0~150VDC 0~15VDC 0~150VDC 0~15VDC 0~150VDC 0~15VDC 0~150VDC
Resolution 0.5mV 3mV 0.8mV 8mV 1mV 10mV 1.3mV 13mV
Accuracy 0.03% + 0.05% FS
Multi-Channel Product Parameters
Model IPS-DH-8312 IPS-DH-8322 IPS-DH-8314
Rated Input Power 150W*2 300W*2 150W*4
Voltage 0~15VDC 0~150VDC 0~15VDC 0~150VDC 0~15VDC 0~150VDC
Current 0~3A 0~30A 0~6A 0~60A 0~3A 0~30A
Vmin 1VDC@30A 1.4VDC@60A 1VDC@30A
Hot Selling Models
DC Power Supply
IPS-ATDY2075 DC Power Supply
① AC IN: 1 phase 110/220VAC±15% 50/60HZ
② DC OUT: 0~20VDC, 0~75A
③ Max power: 1500W
DC Power Supply
IPS-ATDY3050 DC Power Supply
① AC IN: 1 phase 110/220VAC±15% 50/60HZ
② DC OUT: 0~30VDC, 0~50A
③ Max power: 1500W
DC Power Supply
IPS-ATDY4050 DC Power Supply
① AC IN: 1 phase 110/220VAC±15% 50/60HZ
② DC OUT: 0~40VDC, 0~50A
③ Max power: 2000W
DC Power Supply
IPS-ATDY5060 DC Power Supply
① AC IN: 1 phase 220VAC±15% 50/60HZ
② DC OUT: 0~50VDC, 0~60A
③ Max power: 3000W
DC Power Supply
IPS-ATDY12050 DC Power Supply
① AC IN: 3-phase 380VAC±15% 50/60HZ
② DC OUT: 0~120VDC, 0~50A
③ Max power: 6000W
DC Power Supply
IPS-ATDY80150 DC Power Supply
① AC IN: 3-phase 380VAC±15% 50/60HZ
② DC OUT: 0~80VDC, 0~150A
③ Max power: 12000W
Details Images

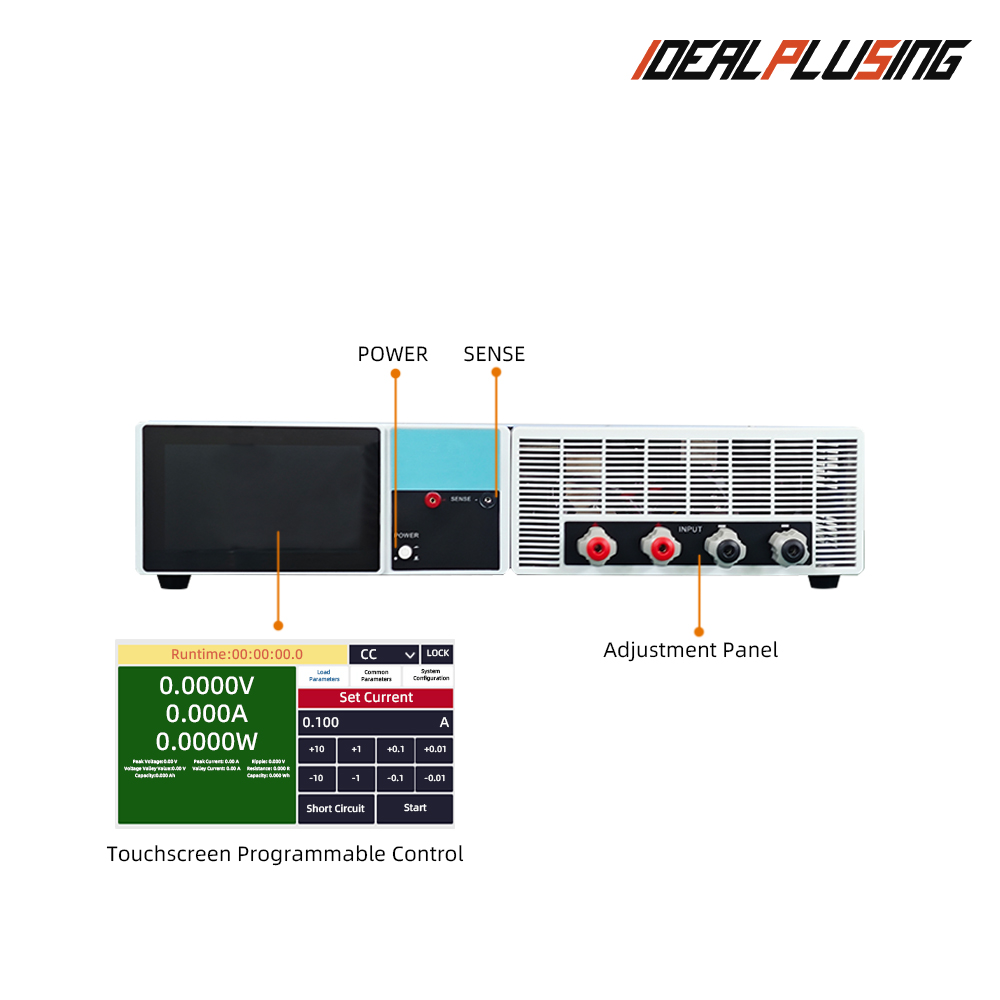

Detail Image 1

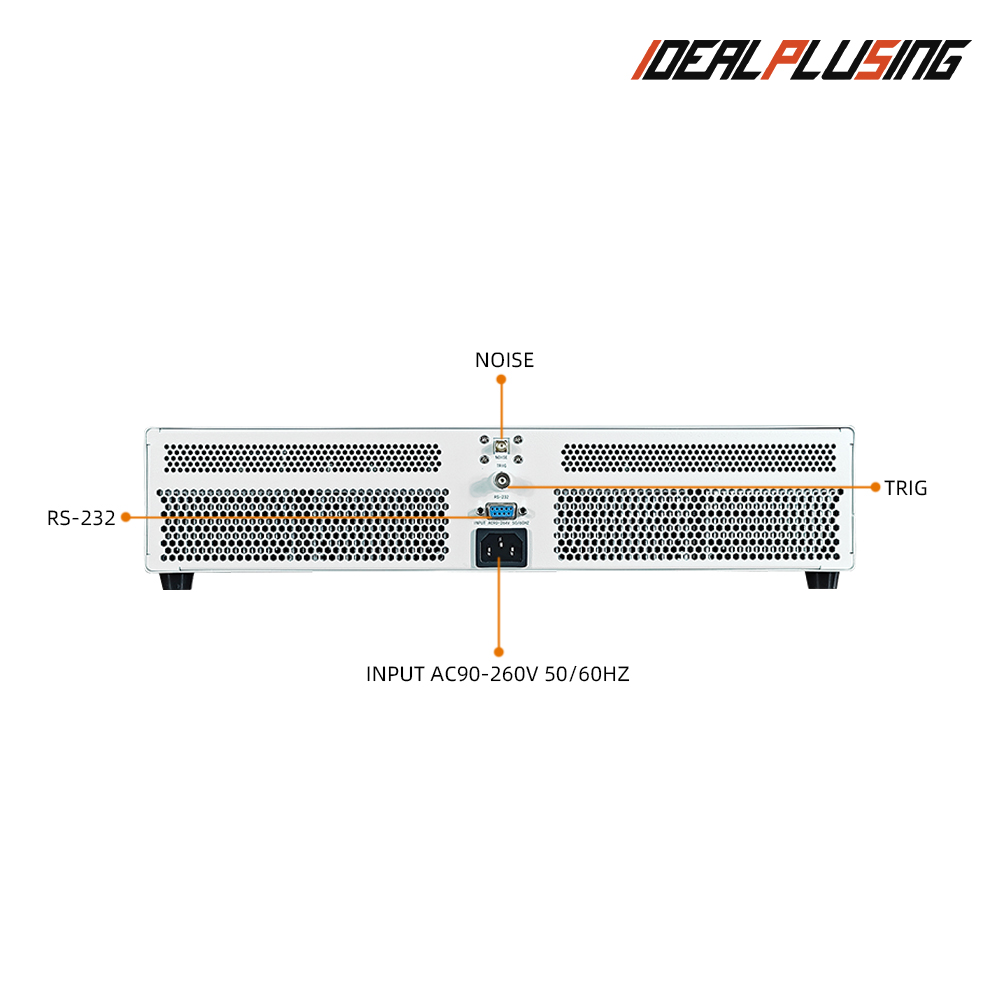

Detail Image 2

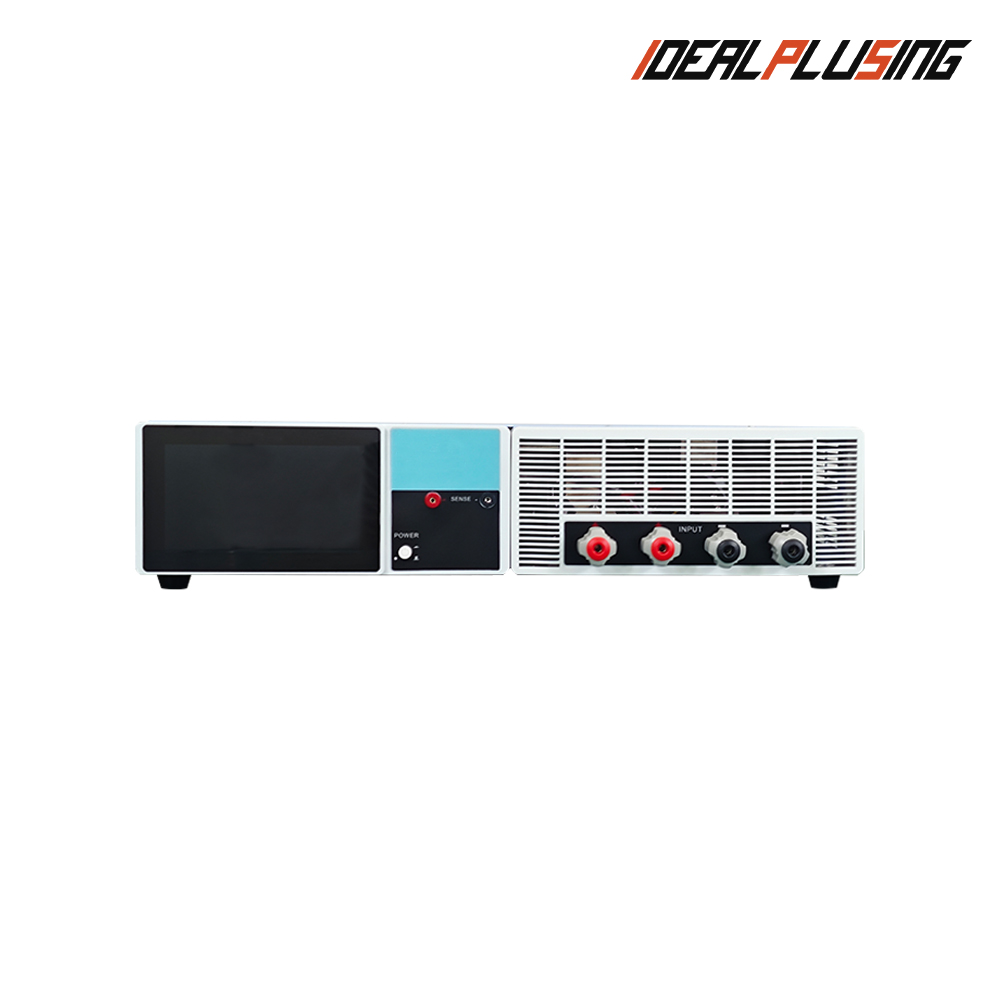

Detail Image 3
Application Scope
Application Scope
Company Profile
We focus on the research and development, sales and service of DC to DC power supply module, AC to DC rectifier module, DC to AC inverter, AC power supply, DC power supply, LED power supply, charger, rectifier system and other fields, to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries. We are not only selling products. What we want to give our customers the right power supply solution, giving a better quotation solution with the right items. Together, let's make it much better.
Company Showcase 1
Company Showcase 2
Frequently Asked Questions
Can I have a sample order?
Yes, sample order is acceptable to test and check quality for the first cooperation.
What about the lead time?
Most of the models are in stock. The sample lead time after receiving payment is 1-3 working days.
Do you have any MOQ limit?
We offer a low MOQ; 1 piece for sample checking is available.
How do you ship the goods and how long does it take to arrive?
We often ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Do you offer a guarantee for the products?
Yes, we offer a 1-year warranty for all power supplies.
