Lab & Industrial Load Tester Ultra High Voltage Precision High Stability 150~1200VDC 6~60A 2*150W DC Electronic Multi-channel
Product Description
Lab & Industrial Load Tester
Ultra High Voltage Precision & Multi-channel DC Electronic Load
⚡ Friendly Reminder
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated by our sales staff based on your actual needs, purchase quantity, and market conditions. We adhere to the principle of integrity and avoid price misrepresentation. Thank you for your trust.
📋 Product Introduction
The series electronic loads feature comprehensively enhanced transient testing capabilities and multi-faceted intelligent analysis, fully integrated into their automated testing functions. They are particularly well-suited for mass production and incoming material inspection in the power supply and related industries. The unique synchronized master-slave parallel operation timing allows for the simultaneous loading of multi-output power supplies.
⚙️ Key Product Features
✔
Max Power: 1200W; Max Current: 240A; Max Voltage: 1200V.
✔
Four Basic Modes: CC, CV, CP, and CR.
✔
Dynamic Load Mode (DYNA) up to 50 kHz.
✔
Supports LED Simulation & OCP Testing.
✔

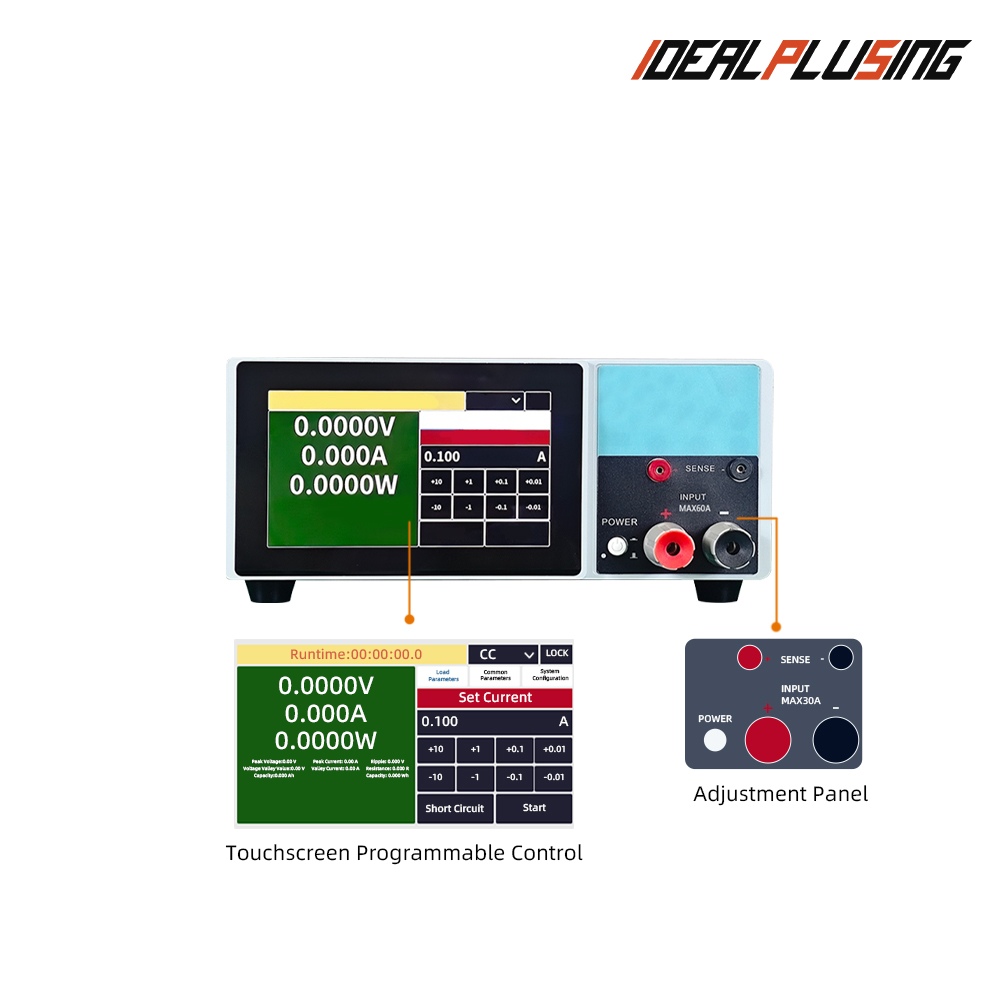

5-inch large touchscreen graphic dot-matrix display.
✔

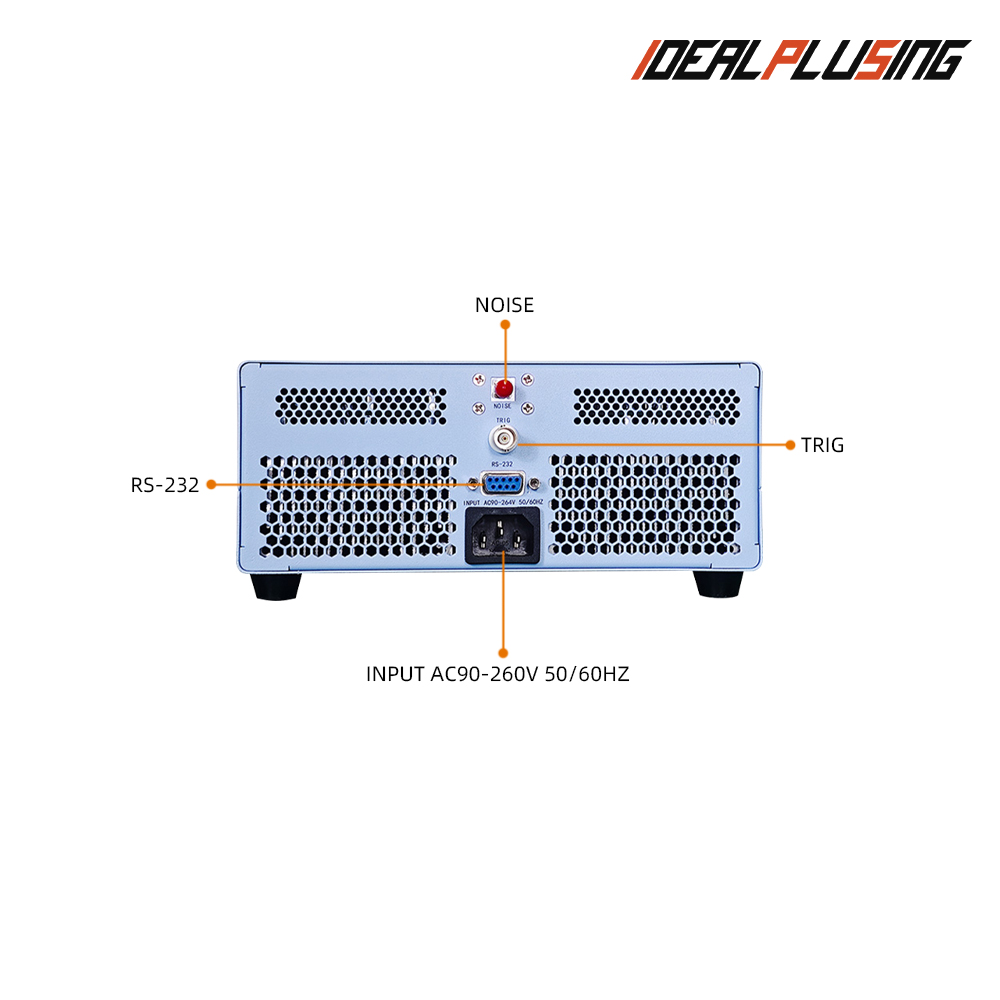

Standard SCPI protocol & RS232 interface.
📊 Technical Specifications
| Model | IPS-DH-8311 | IPS-DH-8321 | IPS-DH-8331 | IPS-DH-8341 |
|---|---|---|---|---|
| Rated Power | 150W | 300W | 600W | 1200W |
| Voltage Range | 0~150VDC | 0~150VDC | 0~150VDC | 0~150VDC |
| Current Range | 0~30A | 0~60A | 0~120A | 0~240A |
| CC Accuracy | 0.05% + 0.05% FS | |||
🔥 Hot Selling DC Power Supplies
IPS-ATDY2075
0~20VDC, 0~75A, 1500W
IPS-ATDY3050
0~30VDC, 0~50A, 1500W
IPS-ATDY4050
0~40VDC, 0~50A, 2000W
IPS-ATDY5060
0~50VDC, 0~60A, 3000W
IPS-ATDY12050
0~120VDC, 0~50A, 6000W
🔍 Product Detail Images
🌍 Application Scope
📑 Complete Model List

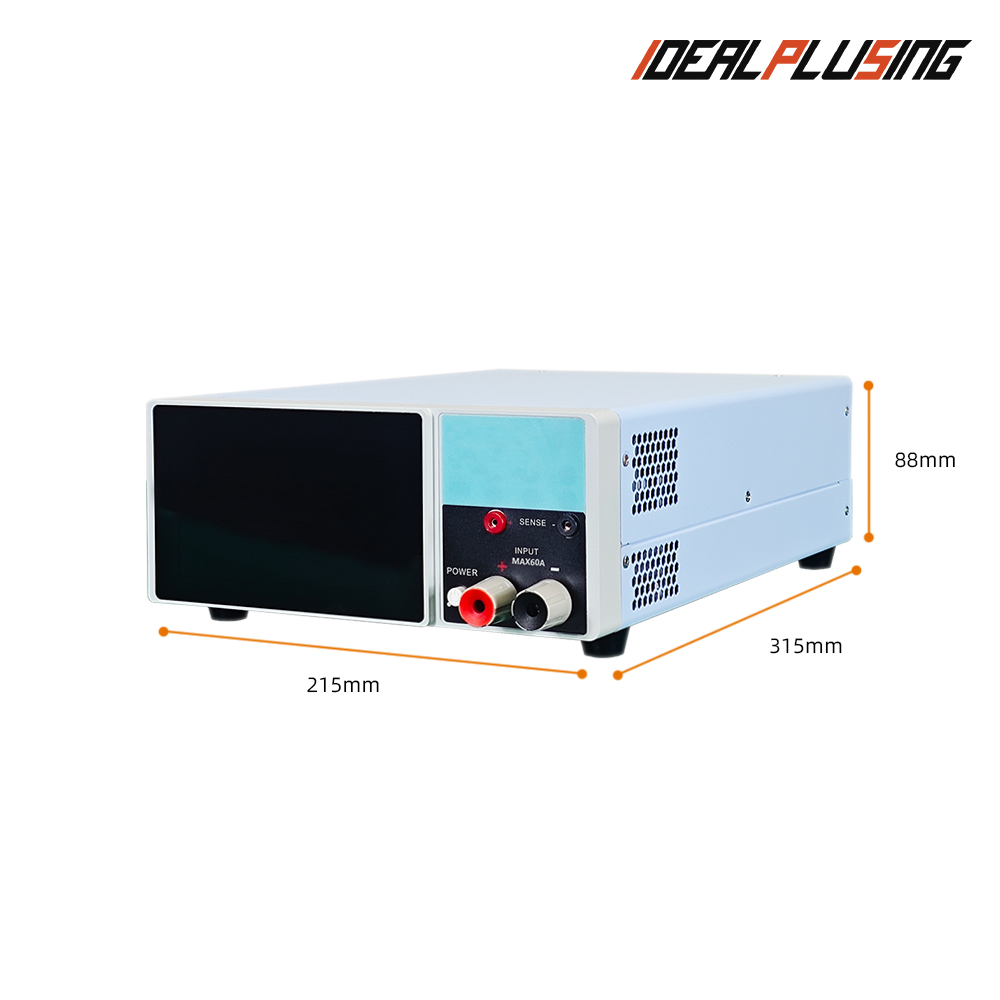

| Model | V & A Range | Power | Dimension (mm) |
|---|---|---|---|
| IPS-DH-8311 | 150VDC/30A | 150W | W215×H88×L315 |
| IPS-DH-8321 | 150VDC/60A | 300W | W215×H88×L315 |
| IPS-DH-8331 | 150VDC/120A | 600W | W215×H88×L315 |
| IPS-DH-8341 | 150VDC/240A | 1200W | W425×H88×L315 |
| IPS-DH-8311M | 600VDC/15A | 150W | W215×H88×L315 |
| IPS-DH-8341H | 1200VDC/60A | 1200W | W425×H88×L315 |
🏢 Professional Power Solutions
We focus on the research, development, and service of DC to DC power supply modules, AC to DC rectifier modules, DC to AC inverters, and high-precision DC power supplies. We provide personalized, efficient, reliable, and cost-effective power supply solutions for all industries. Our goal is to provide the right power supply solution with optimized technical specifications to meet your specific requirements.
