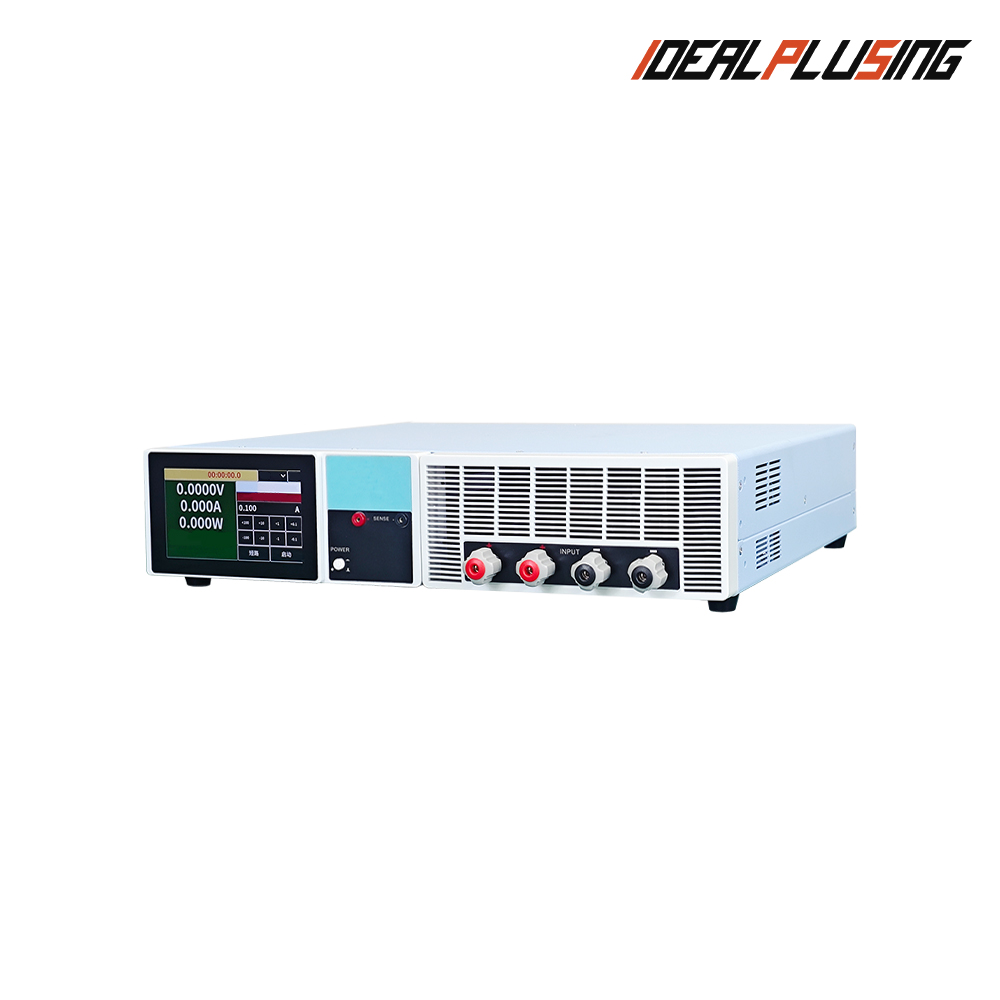

OEM/ODM Programmable DC Electronic Load 150V 240A/600V 120A/200VDC 60A Single Channel High Stability for Electronic R&D Testing
Product Description
OEM/ODM Programmable DC Electronic Load 150V 240A/600V 120A/200VDC 60A Single Channel High Stability for Electronic R&D Testing
The IPS-DH-83XX series electronic loads feature comprehensively enhanced transient testing capabilities and multi-faceted intelligent analysis, fully integrated into their automated testing functions. They are particularly well-suited for mass production and incoming material inspection in the power supply and related industries.
⚠️ Friendly Reminder:
The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final commitment.
⚡ Product Description
✅
Maximum Power: 1200W; Maximum Current: 240A; Maximum Voltage: 1200V.
✅
Four Basic Operating Modes: Constant Current (CC), Constant Voltage (CV), Constant Power (CP), and Constant Resistance (CR).
✅
Measurement of Voltage/Current (Vpp/Ipp), Peak Values (Vp+/Ip+), and Valley Values (Vp-/Ip-).
✅
Dynamic Load Mode (DYNA) up to 50 kHz, including measurement of Voltage Peaks/Valleys and Current Peaks/Valleys.
✅
Supports LED Simulation, Ripple Measurement (up to 20 MHz), and Over-Current Protection (OCP) Testing.
✅

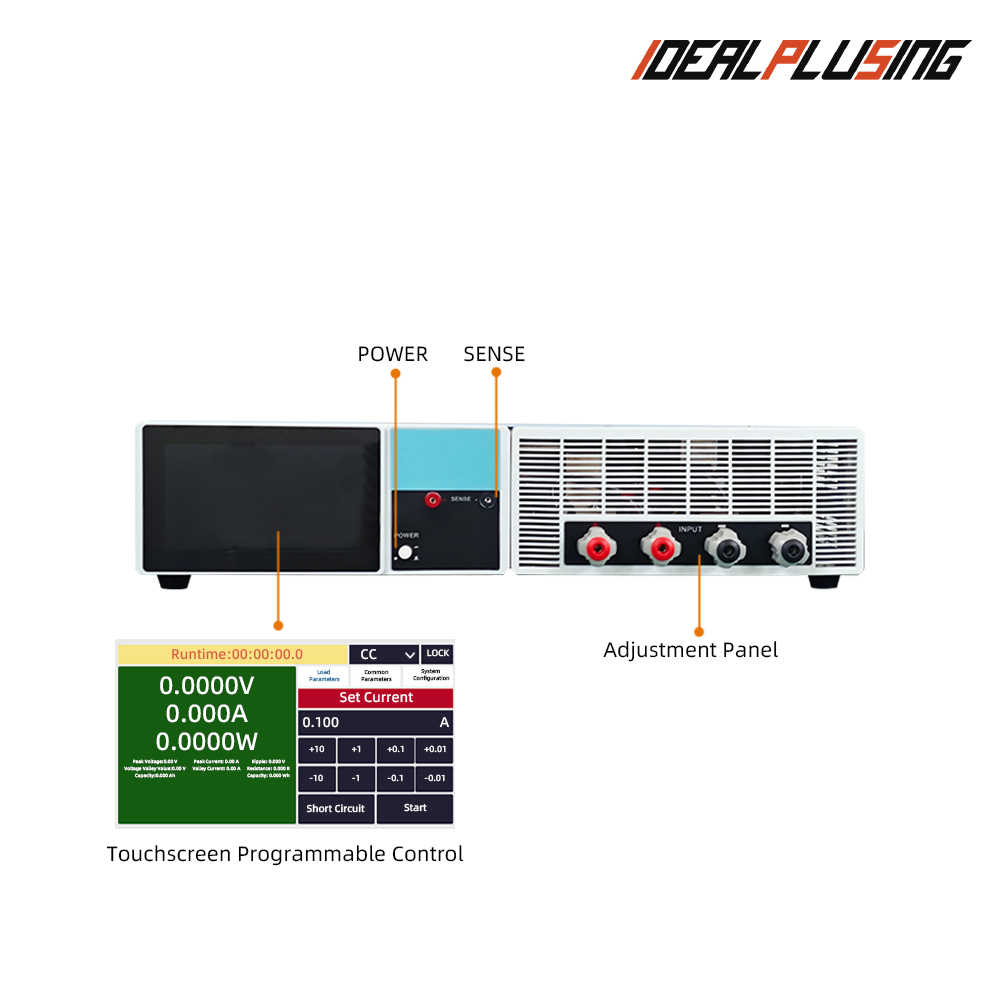

High-brightness, wide-viewing-angle 5-inch large touchscreen graphic dot-matrix display.
✅

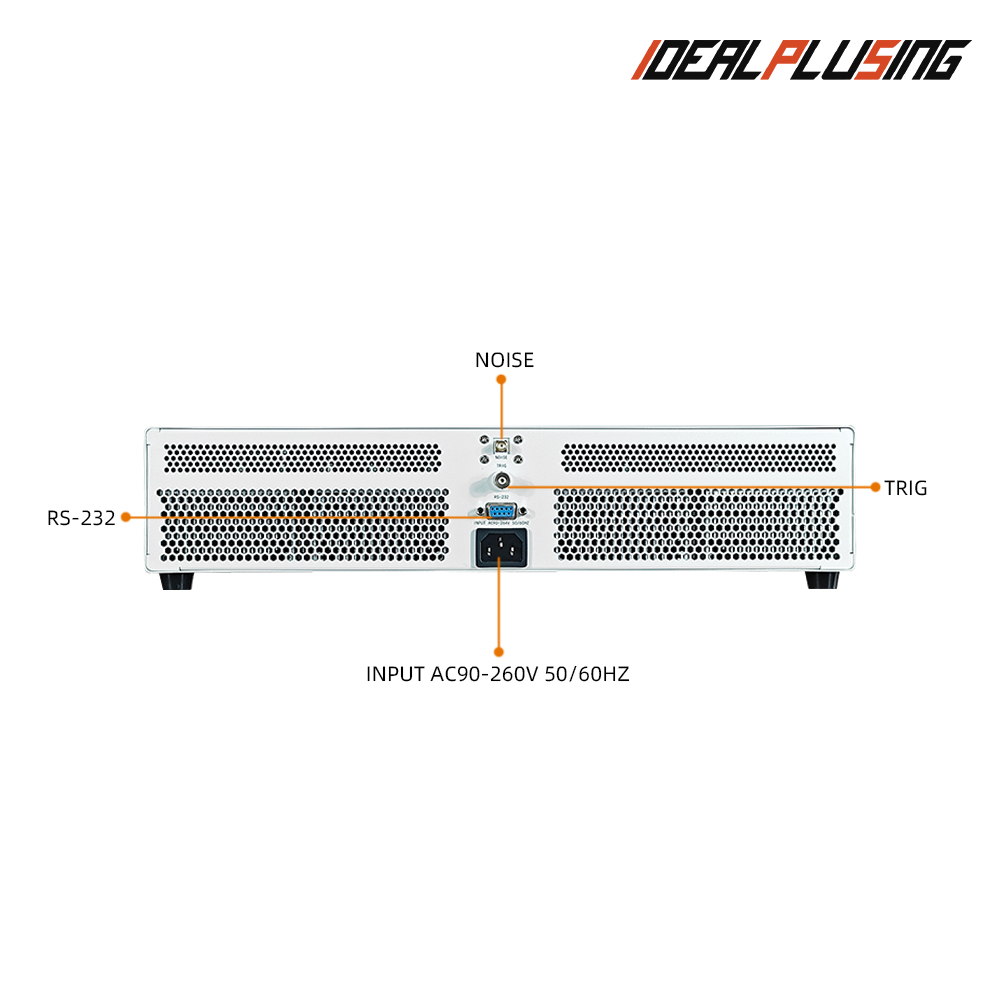

Standard SCPI protocol support and isolated standard RS232 interface.
✅
Intelligent Fan System with Over-Voltage, Over-Current, Over-Power, and Over-Temperature Protection.
📊 Single-Channel Product Specifications
| Model | Rated Power | Voltage Range | Current Range | Vmin | CC Mode Resolution | CV Mode Resolution |
|---|---|---|---|---|---|---|
| IPS-DH-8311 | 150W | 0~150VDC | 0~30A | 1VDC@30A | 1mA | 3mV |
| IPS-DH-8321 | 300W | 0~150VDC | 0~60A | 1VDC@60A | 1mA | 8mV |
| IPS-DH-8331 | 600W | 0~150VDC | 0~120A | 1VDC@120A | 10mA | 10mV |
| IPS-DH-8341 | 1200W | 0~150VDC | 0~240A | 1VDC@240A | 10mA | 13mV |
🔥 Hot Selling DC Power Supplies
IPS-ATDY2075
DC OUT: 0~20VDC, 0~75A
Max Power: 1500W
Max Power: 1500W
IPS-ATDY3050
DC OUT: 0~30VDC, 0~50A
Max Power: 1500W
Max Power: 1500W
IPS-ATDY4050
DC OUT: 0~40VDC, 0~50A
Max Power: 2000W
Max Power: 2000W
🖼️ Details Images

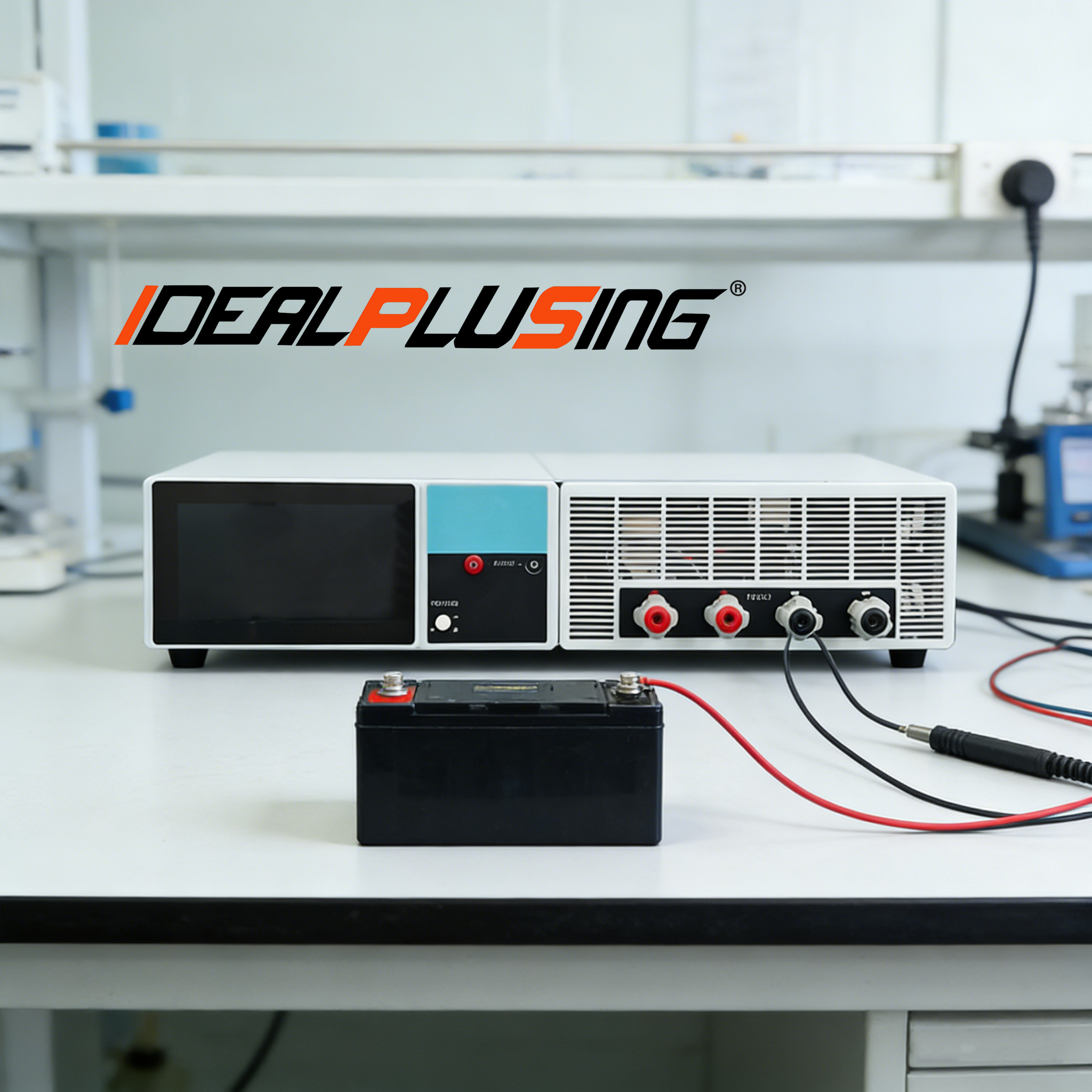

🎯 Application Scope
