IDEALPLUSING ODM/OEM Programmable DC Electronic Load 150VDC/600VDC 60A Single Channel High Precision for Power Supply Testing
Product Description
Programmable DC Electronic Load
150VDC/600VDC 60A Single Channel High Precision for Power Supply Testing
💡
Friendly Reminder:
The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment. We always adhere to the principle of integrity and avoid price misrepresentation. Thank you for your understanding and trust.
Product Introduction
The IPS-DH-83XX series electronic loads feature comprehensively enhanced transient testing capabilities and multi-faceted intelligent analysis, fully integrated into their automated testing functions. They are particularly well-suited for mass production and incoming material inspection in the power supply and related industries. Furthermore, their programmable current slew rates, high-speed dynamic loading capabilities, and programmable sequence functions are designed to meet the majority of R&D requirements. The unique synchronized master-slave parallel operation timing allows for the simultaneous loading of multi-output power supplies, as well as power expansion for single-output power supplies.
Key Features
⚡Maximum Power: 1200W; Maximum Current: 240A; Maximum Voltage: 1200V.
📊Measurement of Voltage/Current (Vpp/Ipp), Peak Values (Vp+/Ip+), and Valley Values (Vp-/Ip-).
📈Programmable Current Rise/Fall Rates.
⚙️Four Basic Operating Modes: CC, CV, CP, and CR.
🔹Supports LED Simulation Function and Dynamic Load Mode (DYNA) up to 50 kHz.
🔍Supports Ripple Measurement Function up to 20 MHz and OCP Testing.

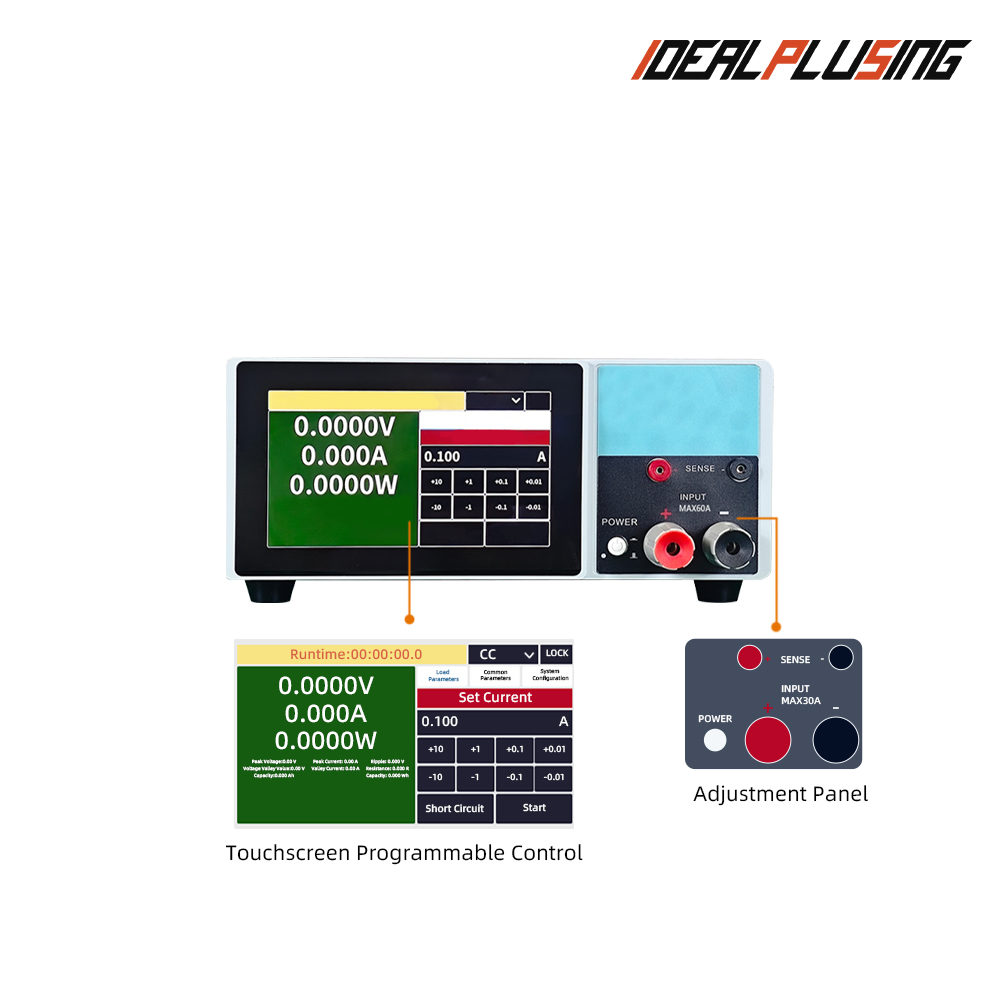

🖥️High-brightness 5-inch large touchscreen graphic dot-matrix display.
🛡️Over-Voltage, Over-Current, Over-Power, and Over-Temperature Protection.
Single-Channel Specifications
| Model | IPS-DH-8311 | IPS-DH-8321 | IPS-DH-8331 | IPS-DH-8341 |
|---|---|---|---|---|
| Rated Power | 150W | 300W | 600W | 1200W |
| Voltage | 0~150VDC | 0~150VDC | 0~150VDC | 0~150VDC |
| Current | 0~30A | 0~60A | 0~120A | 0~240A |
| CC Resolution | 1mA | 1mA | 10mA | 10mA |
| CV Accuracy | 0.03% + 0.05% FS | |||
Multi-Channel Product Parameters
| Model | IPS-DH-8312 | IPS-DH-8322 | IPS-DH-8314 |
|---|---|---|---|
| Power | 150W*2 | 300W*2 | 150W*4 |
| Voltage Range | 0~150VDC | 0~150VDC | 0~150VDC |
| Current Range | 0~30A | 0~60A | 0~30A |
Hot Selling Models
IPS-ATDY2075 (0-20V, 75A)
IPS-ATDY3050 (0-30V, 50A)
IPS-ATDY4050 (0-40V, 50A)
IPS-ATDY5060 (3000W)
IPS-ATDY12050 (6000W)
IPS-ATDY80150 (12000W)

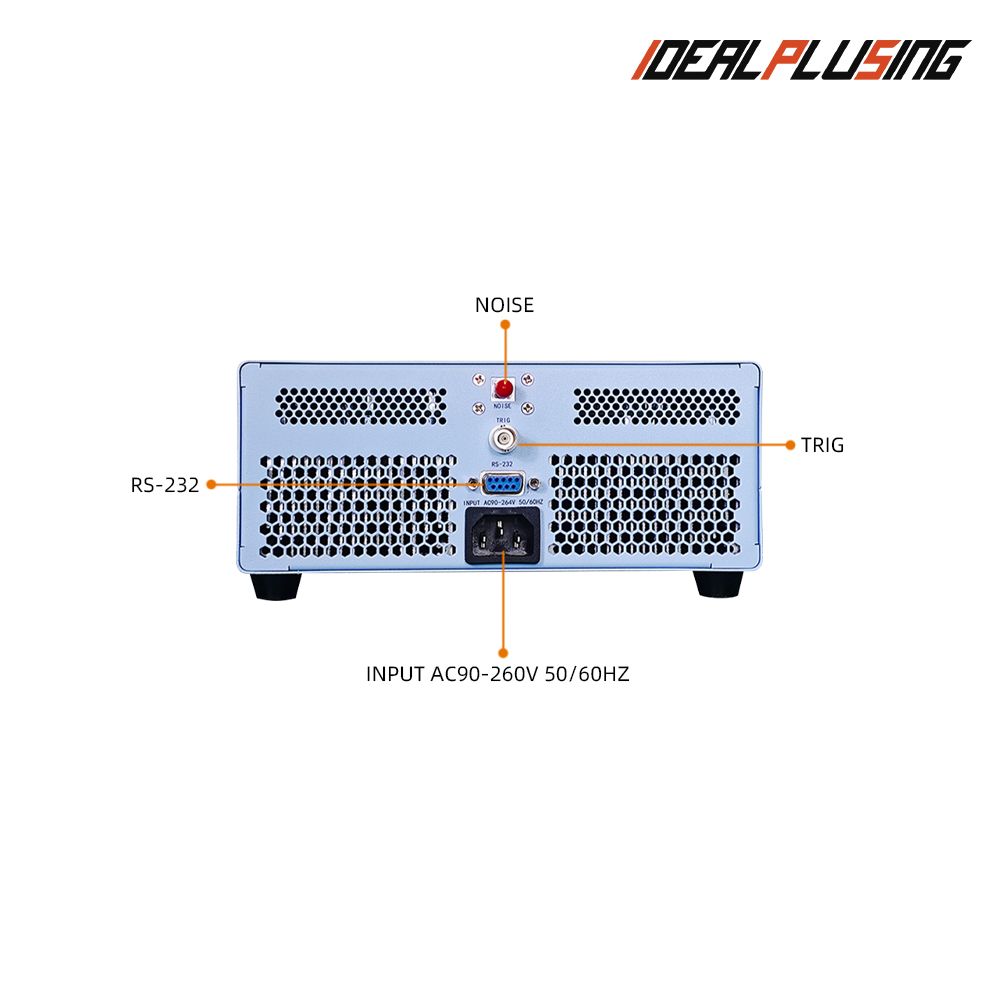

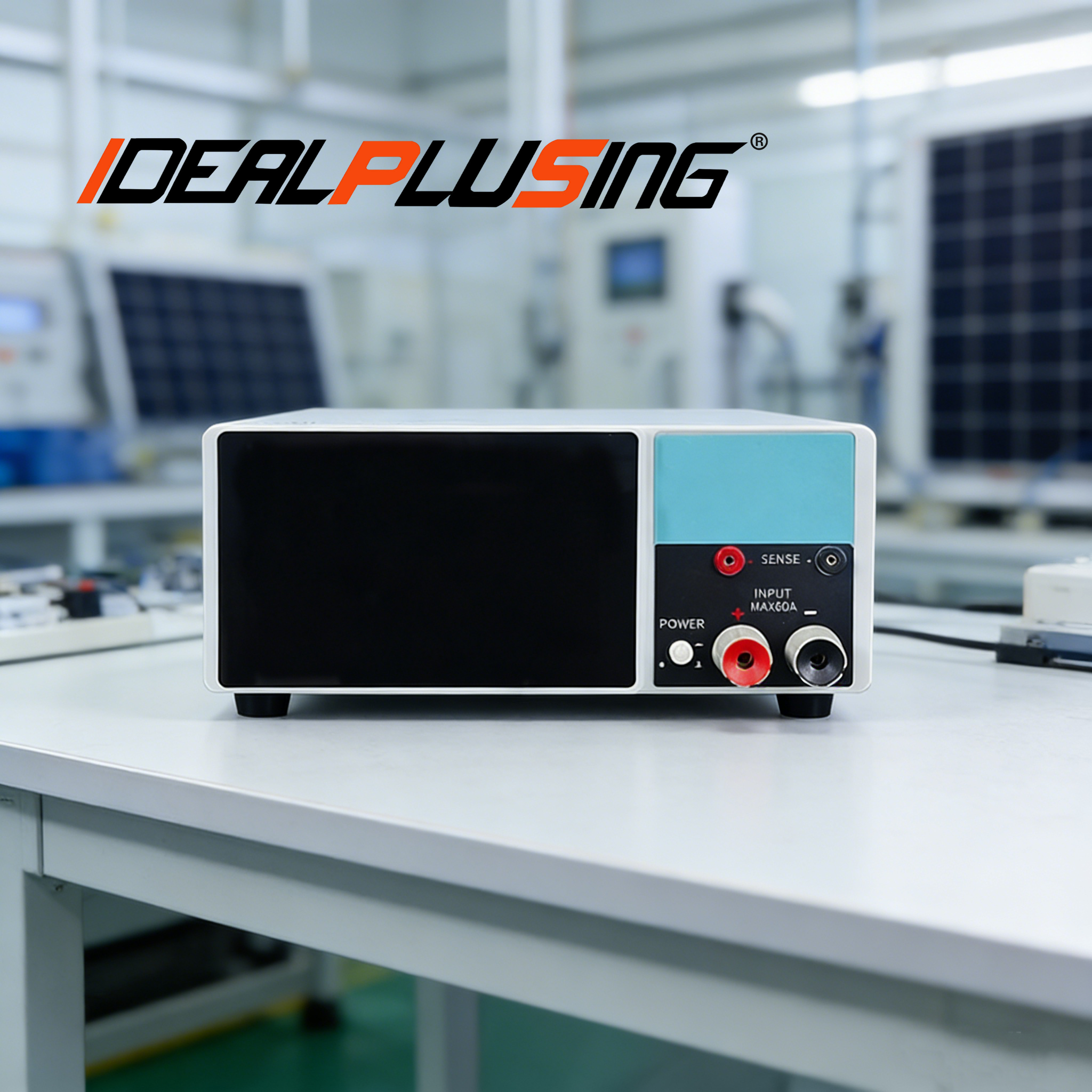

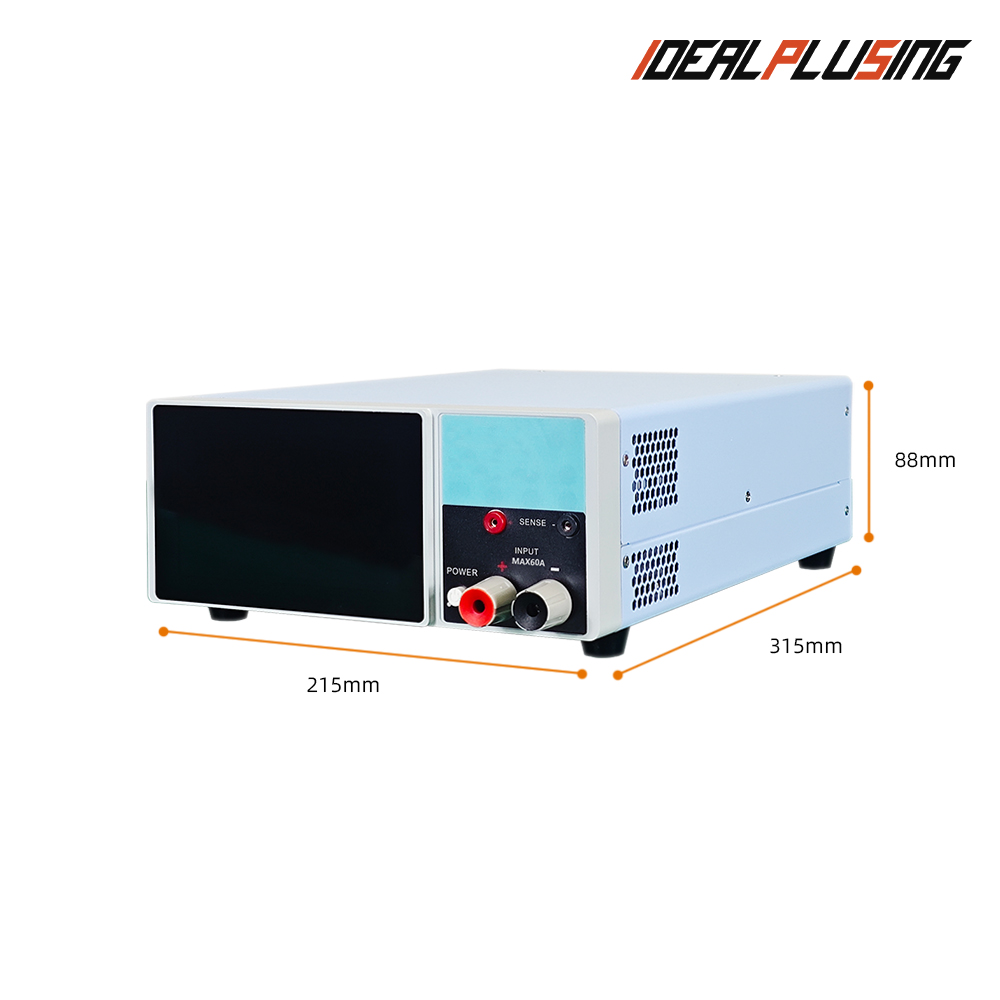

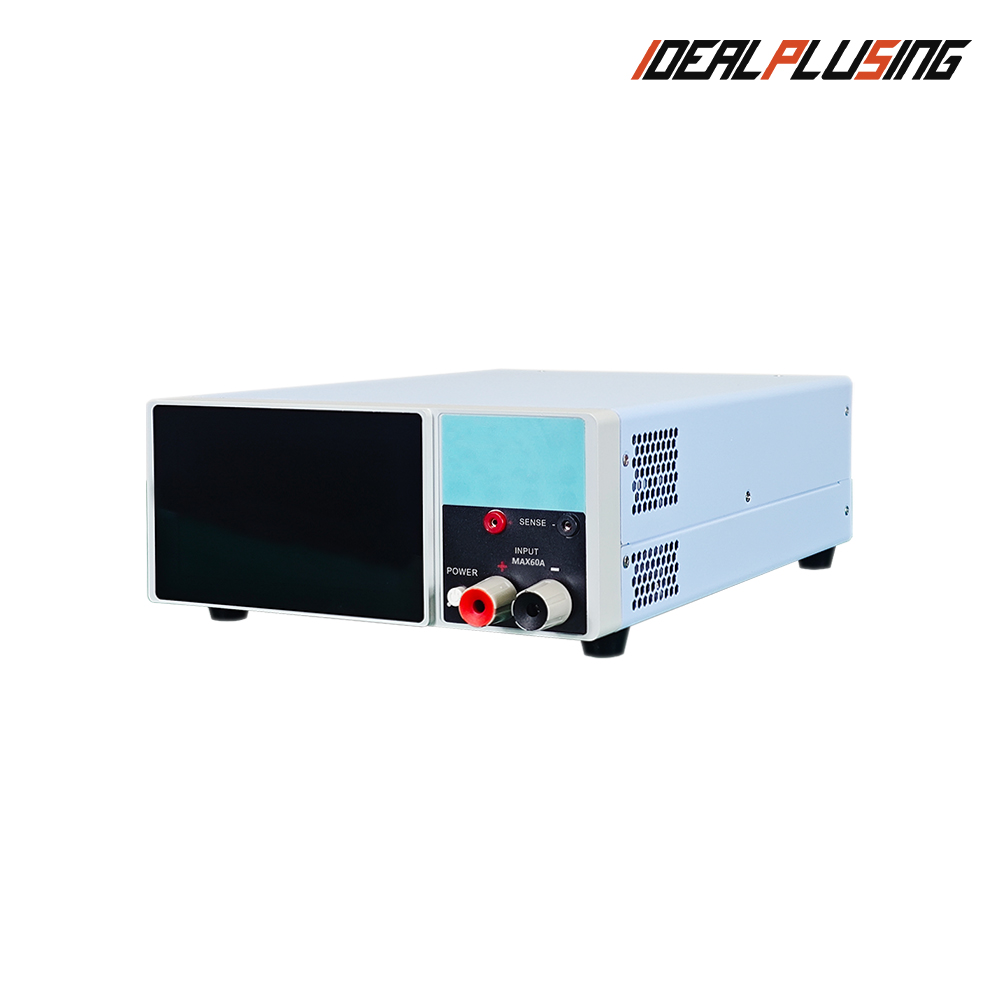

Detailed Product Images
Application Scope
