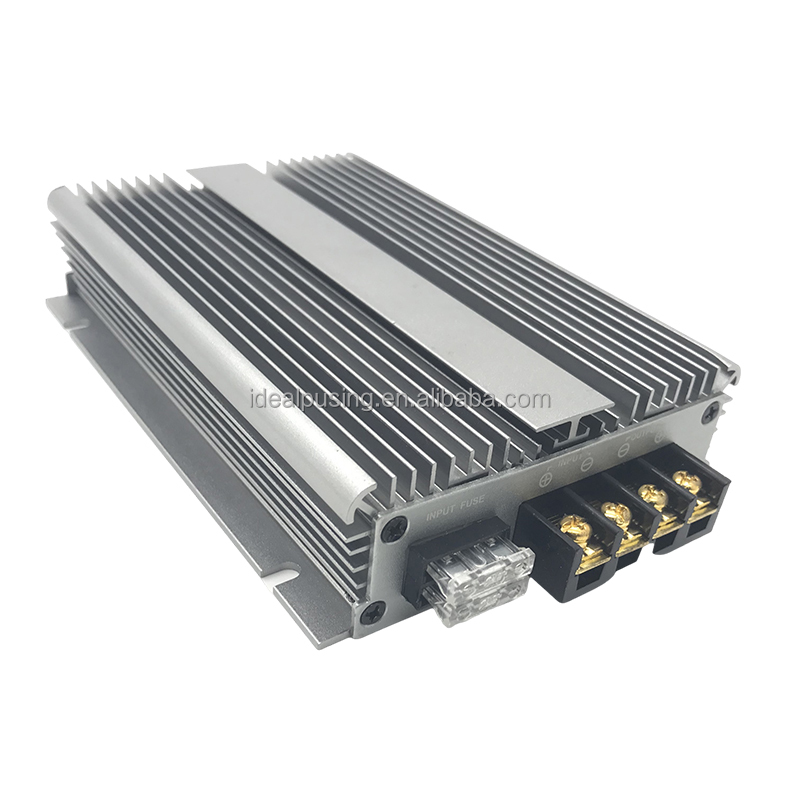

BUCK BOOST 12/24V DC DC CONVERTER POWER CONVERTER STEP DOWN up 8-40V to 12V 40A 480W WATERPROOF IP67 TRANSFORMER
Product Description
⚡ BUCK BOOST 12/24V DC DC CONVERTER
Features: DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. These converters are divided into three categories: Boost type, Boost & Buck type, and Buck type.
PWM control type offers high efficiency with low output voltage ripple and noise. PFM control provides low power consumption during long-term use, especially under small loads. Currently, DC-DC converters are widely used in mobile devices, digital cameras, portable media players, and industrial applications.
🛠️ Professional Power Solutions
We provide specialized power conversion solutions widely used in electric vehicles, automobiles, RVs, marine environments, and communication industries. With over 5000+ power supply solutions developed, our range covers 1 watt to 200 kilowatts with input voltages up to 2000 volts.
Customization Options: We specialize in customizing DC-DC converters to meet specific requirements, ranging from 1V to 1000V DC and 1A to 1000A. Both isolated and non-isolated designs are available.
📋 Technical Specifications
| Parameter | Detail |
|---|---|
| Type | Non-isolate |
| Model | IPS-DTD1224S1240 |
| Input Voltage | 8-40VDC or Customized |
| Output Voltage | 12VDC or Customized |
| Output Current | 40Amps or Customized |
| Output Power | 480Watts or Customized |
| Material of Shell | Aluminum |
| Waterproof Level | IP67 |
| Size | 160*113*35MM |
📂 Model List & Series
| Type | Model/Series | Input to Output | Output Current Options |
|---|---|---|---|
| DC-DC Boost | IPS-DTD12S24** | 12V to 24V | 1A - 50A |
| DC-DC Buck | IPS-DTD24S12** | 24V to 12V | 1A - 100A |
| Boost & Buck | IPS-DTD8~40S12* | 8~40V to 12V | 1A - 25A |
| Battery Charger | IPS-DTDYC* | Lithium/LifePO4/Lead Acid | 1A - 20A |
⚙️ Technical Application Guidelines
1
Standard protection includes output overcurrent, short-circuit, input undervoltage, and chip overheating protection.
2
For inductive loads (motors, coils, speakers), use a power supply 3-5 times the rated power of the load.
3
Isolated products are recommended when carrying precious loads to prevent high input voltage from damaging the output end.
4
The negative pole (ground) of isolated products cannot be shared between input and output.
5
Aluminum casing provides high-temperature resistance, ideal for outdoor and high-demand environments.

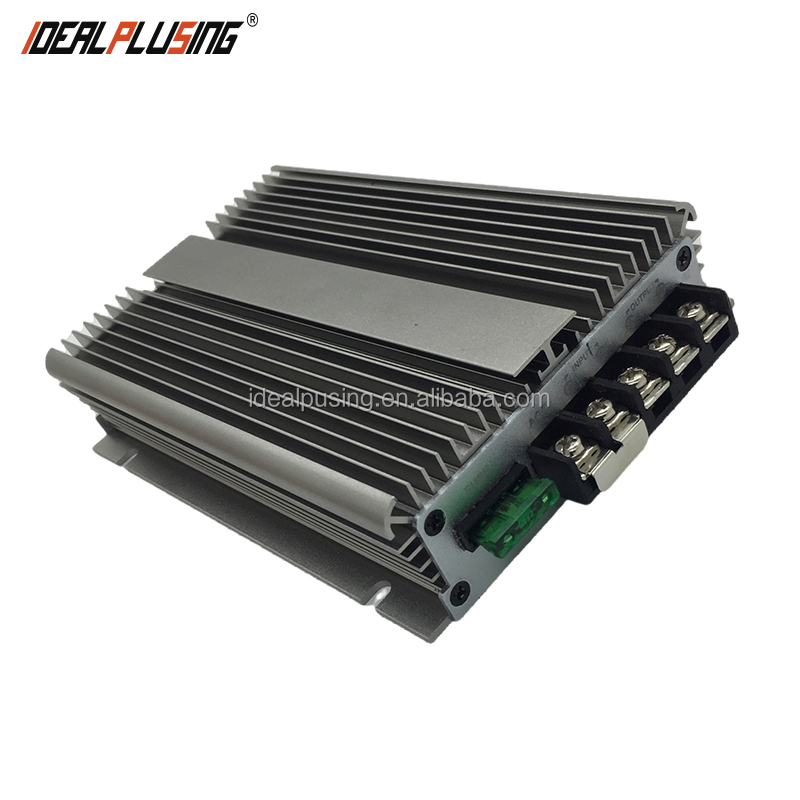

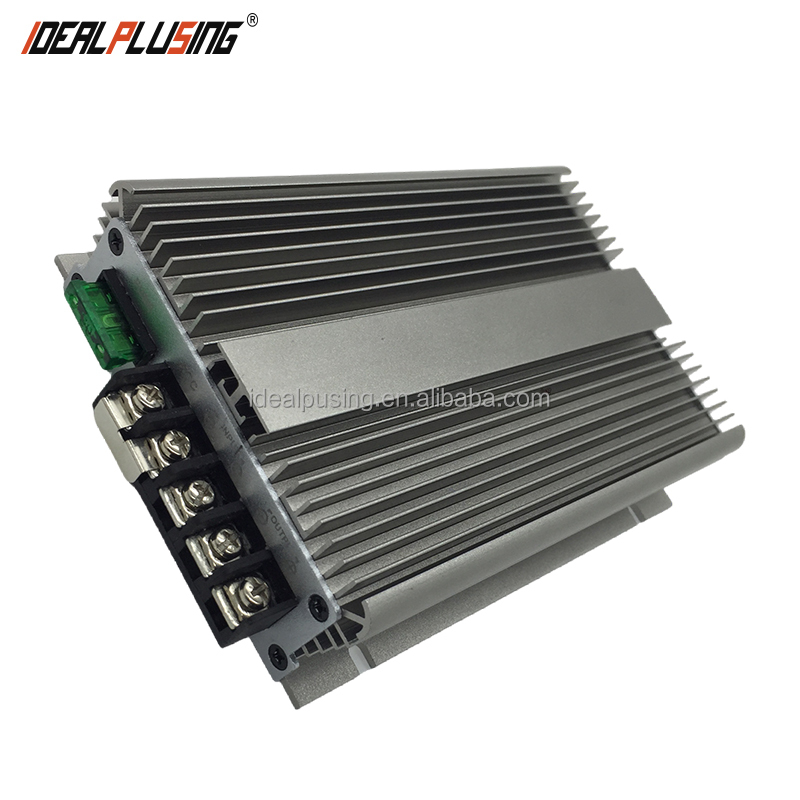

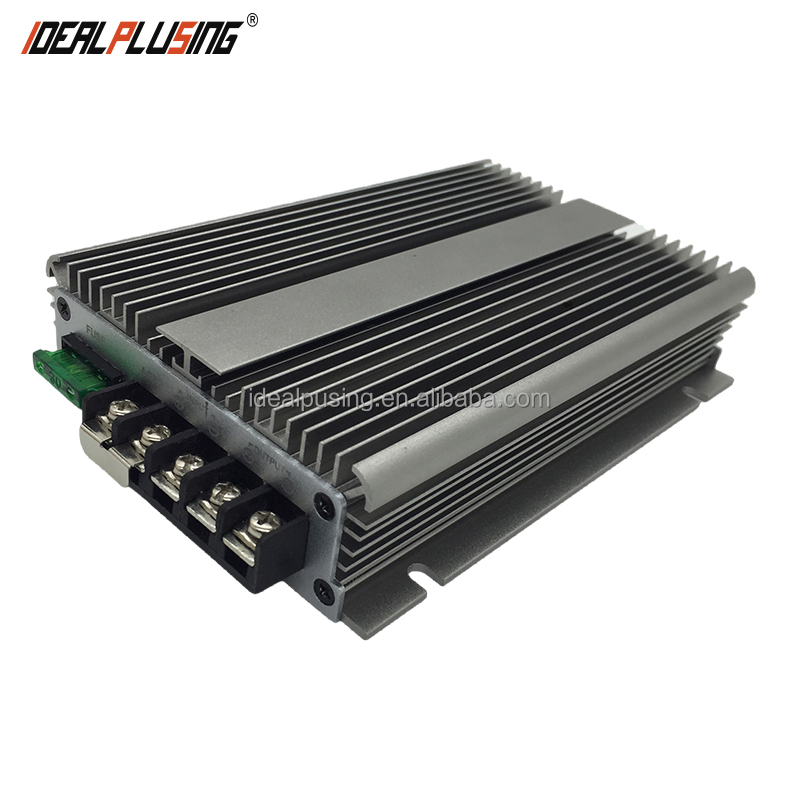

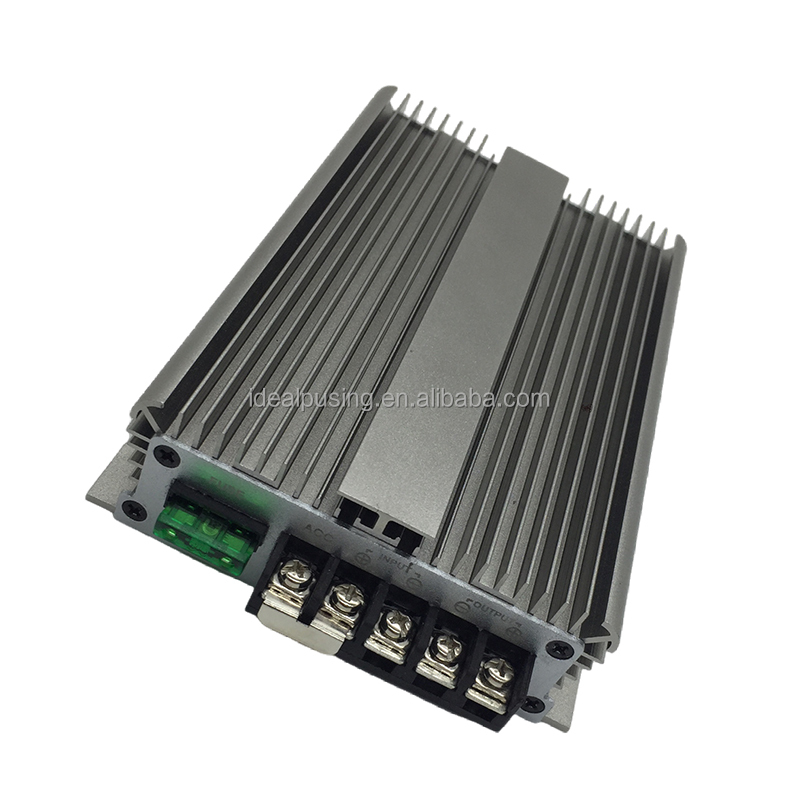

📸 Product Gallery
Frequently Asked Questions
What is the difference between PWM and PFM control?
PWM control offers high efficiency and low noise for standard loads, while PFM control is designed for low power consumption during long-term use under small load conditions.
Can these converters be used in marine environments?
Yes, many of our models feature IP67 waterproof ratings and aluminum shells, making them highly suitable for marine, RV, and outdoor applications.
Why should I choose an isolated DC-DC converter?
Isolated converters provide the highest level of safety. They prevent high input voltage from passing directly to the output end in case of failure, protecting expensive equipment.
How do I select a power supply for a motor load?
For inductive loads like motors, it is recommended to choose a power supply with a rated power 3 to 5 times greater than the motor's rated power to handle startup surges.
Do your products include short-circuit protection?
Yes, buck-boost and step-down models include standard output short-circuit, overcurrent, and undervoltage protection. Step-up models require an external fuse for safety.
Are custom voltage and current specifications available?
Yes, we provide customization for input/output voltages (1V-1000V) and currents (1A-1000A) to meet specific project needs.
