Factory Customizable 72V 69A Switching Power Supply Transformer 5000W AC to DC Switching Power Supply for Led Light
Product Description

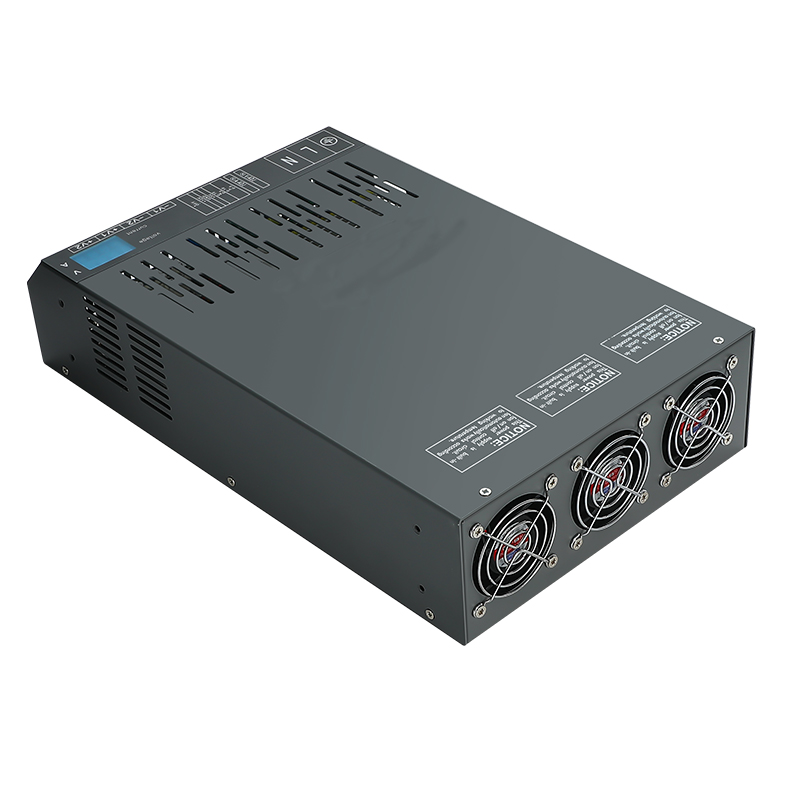

Factory Customizable 72V 69A Switching Power Supply Transformer 5000W AC to DC for LED Light
Company Overview
We focus on the research and development, sales and service of DC to DC power supply module, AC to DC rectifier module, DC to AC inverter, AC power supply, DC power supply, LED power supply, charger, rectifier system and other fields, to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries.
We are not only selling products. What we want to give our customers is the right power supply solution, offering a better quotation solution with the items that fit your specific requirements.
Our Advantages: We specialize in customizing switching Power Supplies to meet your specific requirements. If you cannot find the right specification to meet your requirement, let us know!
Product Features
⚖️
Adjustable with Compact size, light weight
🔌
AC input 200-240VAC 50/60HZ (110VAC/120VAC options available)
🔥
100% full load burn-in test
🛡️
Protection: Short circuit / Over load / Over voltage
⏱️
Fixed switching frequency at 25KHz
💎
High efficiency, reliability quality, competitive cost
⚙️
0-5Vdc / 0-10Vdc External control output (Optional)
🎮
Extra adjustable potentiometer (Optional)
Technical Specifications
| Parameter | Detail |
|---|---|
| Type | Switching Mode Power Supply |
| Model | IPS-SP72-69 |
| Input voltage | Single phase 200~240VAC |
| Input frequency | 50/60hz |
| DC Output Voltage | Based on model |
| Output Current | Based on model |
| Output Power | 5000W Max |
| Dimension | 356*216*80(mm) |
| Net / Gross Weight | 6.5KG/6.7KG |
5000W Series Model List
| Model | Input Voltage (VAC) | Output Voltage (VDC) | Output Current (AMPS) |
|---|---|---|---|
| IPS-SP12-300 | 200-240VAC | 12VDC | 300A |
| IPS-SP24-208 | 200-240VAC | 24VDC | 208A |
| IPS-SP36-138.8 | 200-240VAC | 36VDC | 138.8A |
| IPS-SP48-104 | 200-240VAC | 48VDC | 104A |
| IPS-SP60-83.3 | 200-240VAC | 60VDC | 83.3A |
| IPS-SP72-69 | 200-240VAC | 72VDC | 69A |
| IPS-SP150-33 | 200-240VAC | 150VDC | 33A |
| IPS-SP220-22.7 | 200-240VAC | 220VDC | 22.7A |
Hot Selling Models Overview
High Capacity Solutions
Customization Capabilities
We specialize in customizing switching converters to meet your specific needs. Our products support customized input and output voltages and currents ranging from 1V to 1000V and 1A to 1000A.
Just tell us your requirements and we will recommend the best solution for you. We are experienced in various usage scenarios and load information to ensure the most suitable products.
Application Scope
Factory Show
Frequently Asked Questions
What is the standard input voltage for these power supplies?
The standard input is single-phase 200~240VAC 50/60Hz. However, we can also customize units for 110VAC or 120VAC input upon request.
What range of customization do you offer?
We can customize output voltages from 1V to 1000V and output currents from 1A to 1000A. We also offer optional features like external 0-5V/0-10V DC control and adjustable potentiometers.
What safety protections are built into the units?
All our switching power supplies include integrated protection against short circuits, overloads, and overvoltage to ensure long-term reliability.
Are the products tested before shipping?
Yes, 100% of our units undergo a full-load burn-in test to guarantee quality and stability before they leave the factory.
Are these power supplies suitable for industrial use?
Absolutely. They are designed for high efficiency and reliability, making them ideal for industrial control, UV curing equipment, LED lighting, and many other professional applications.
How can I get a recommendation for my specific load?
Our team of sales engineers provides free consultation. Simply share your usage scenario and load information, and we will recommend the most suitable parameters.
