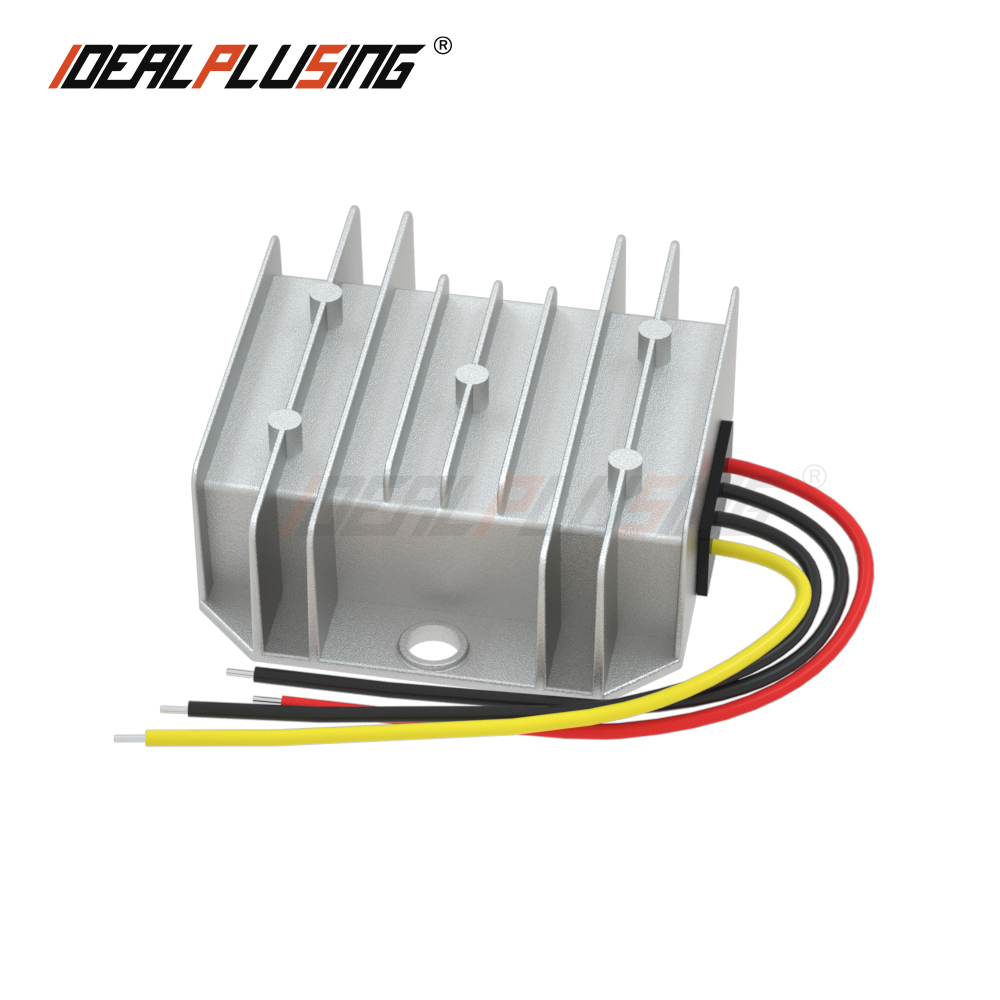

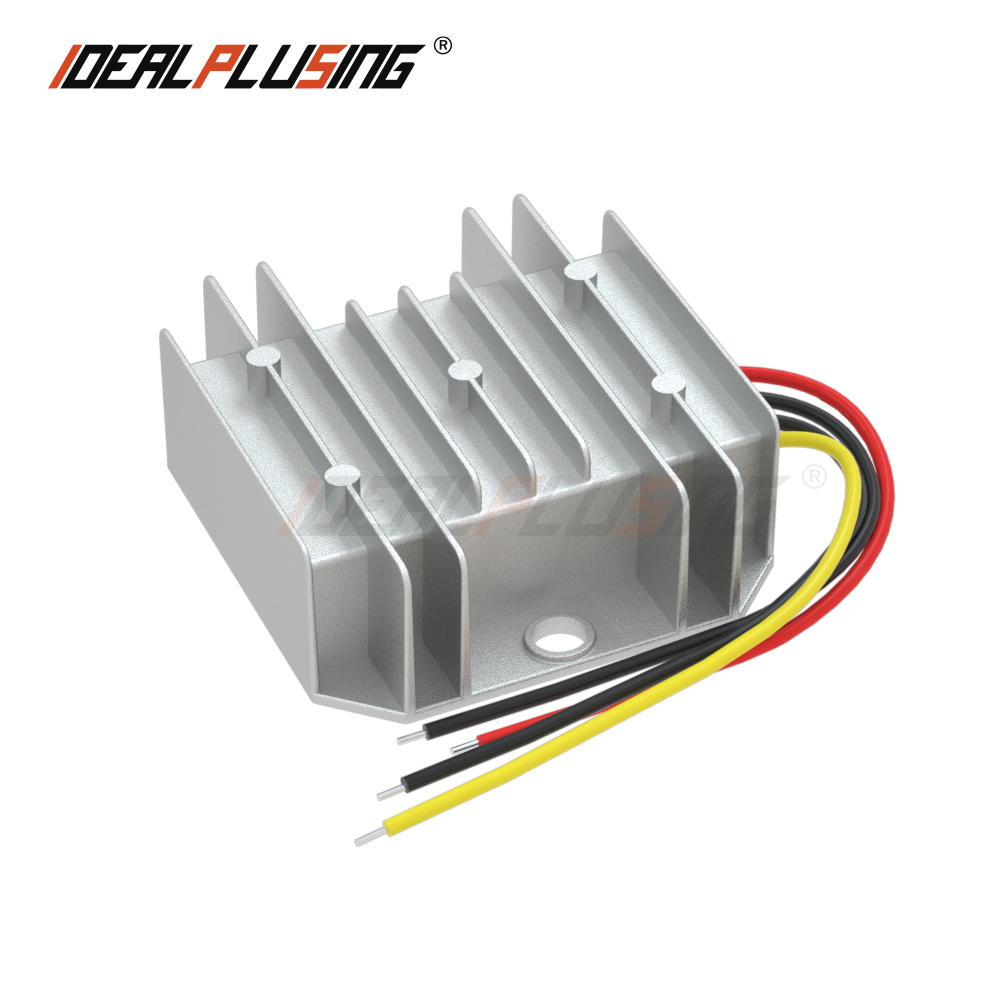

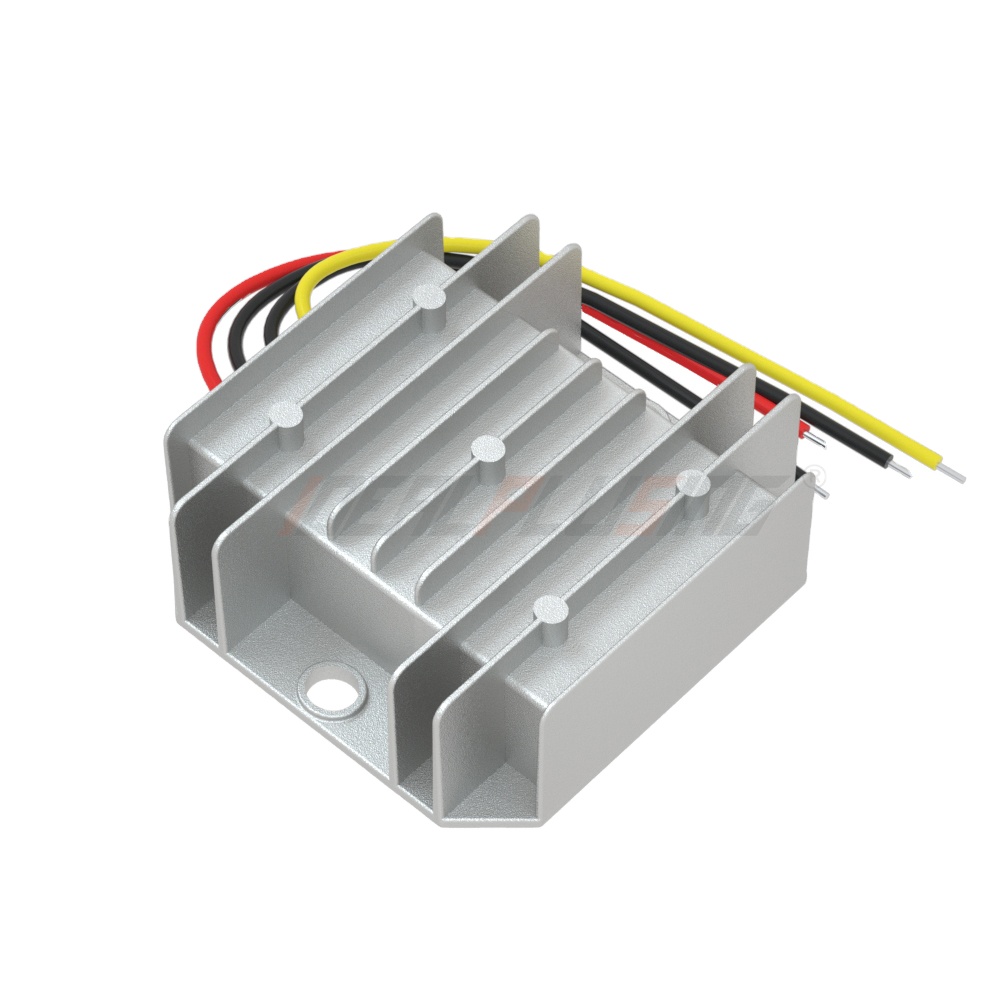

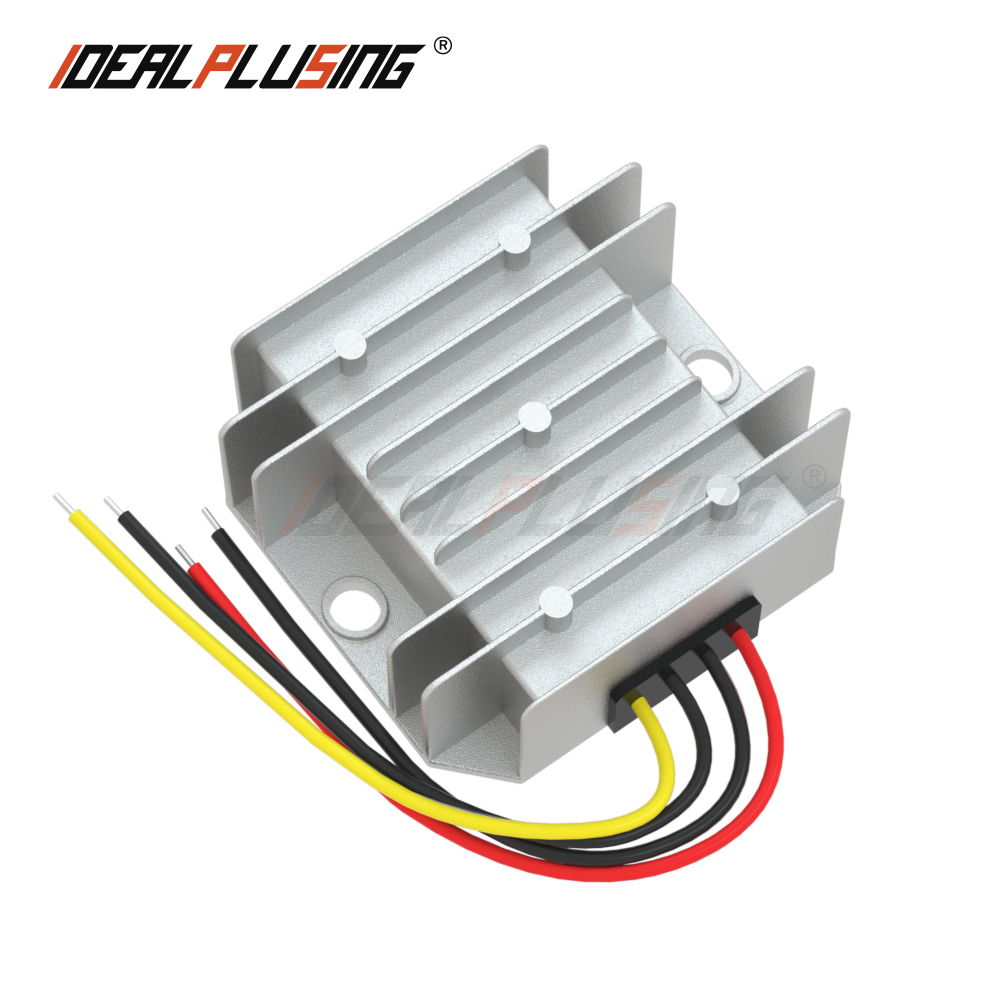

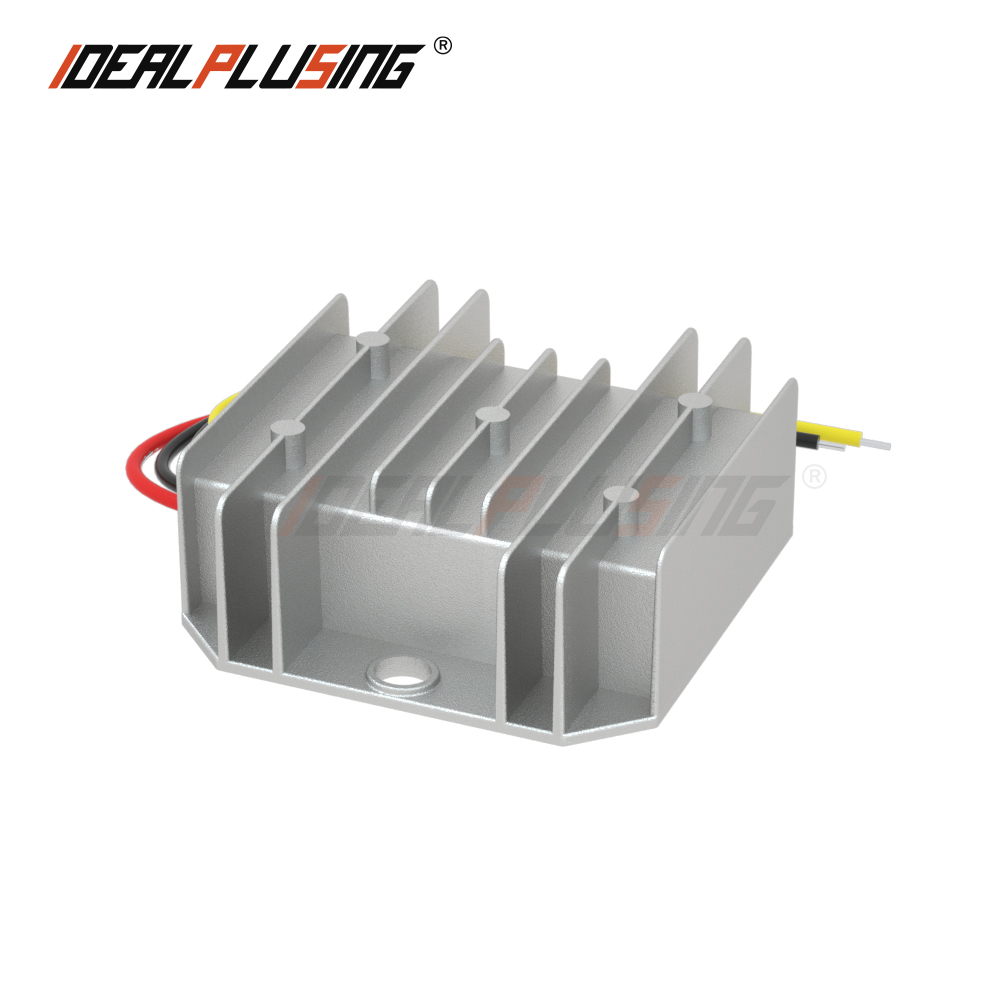

Factory Customizable 9-40V to 12/24V IP68 Waterproof Buck and Boost 3A DC to DC Converter Inverters & Converters
Product Description
Factory Customizable 9-40V to 12/24V IP68 Waterproof Buck and Boost DC to DC Converter
DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. These are categorized into Boost type, boost & buck type, and buck type. PWM control offers high efficiency with low ripple, while PFM control provides low power consumption for long-term small load use. These converters are essential for mobile devices, digital cameras, and portable media players.
Specializing in power conversion solutions since 2001, our team provides robust products for electric vehicles, marine, communication, and industrial applications. With over 5000+ power supply solutions developed, we cover a power range from 1 watt to 200 kilowatts with input voltages up to 2000 volts.
Customization Services
We specialize in customizing DC-DC converters to meet specific requirements:
- Input/Output: 1V to 1000V DC
- Current Range: 1A to 1000A
- Design Options: Isolated and Non-isolated solutions
- High Reliability: Design life of 15 to 20 years
| Parameter | Specification Details |
|---|---|
| Type | Non-isolate |
| Model | Customizable Series |
| Input Voltage | 6~20VDC or Customizable |
| Output Voltage | 12VDC or Customizable |
| Output Current | 3Amps or Customizable |
| Output Power | 36Watts or Customizable |
| Shell Material | Aluminum |
| Waterproof Level | IP67 |
| Type | Input to Output | Output Current Options |
|---|---|---|
| DC-DC Boost | 5~11V to 12V | 1/2/3/4/5/8/10A |
| DC-DC Boost | 12V to 24V | 1A to 50A |
| DC-DC Buck | 24V to 12V | 1A to 100A |
| Boost & Buck | 8~40V to 12V | 1/2/3/6/10/15/20/25A |
1
All buck-boost products include overcurrent, short-circuit, undervoltage, and overheating protection.
2
Step-up series do not have inherent short-circuit protection; external fuses are recommended.
3
Inductive loads (motors, valves) require a power supply 3-5 times the rated load power.
4
Isolated products provide the highest safety, preventing high input voltage from reaching the output.
5
Negative poles (ground) of isolated products must be used separately to maintain isolation.
Frequently Asked Questions
What is the main difference between isolated and non-isolated converters?
Isolated converters provide a physical electrical barrier between input and output, protecting the load from high voltage surges. Non-isolated converters share a common ground and are more compact and efficient but offer less protection for sensitive equipment.
Are these DC-DC converters waterproof?
Yes, many of our models are rated up to IP67 or IP68, featuring hard gel encapsulation or aluminum shells, making them suitable for marine and outdoor industrial environments.
Can I request a custom input/output voltage?
Absolutely. We specialize in customization with input/output ranges from 1V to 1000V and current capacities up to 1000A.
Why do I need a higher power rating for motor applications?
Inductive loads like motors have high startup surge currents. We recommend a power supply 3 to 5 times the rated power of the motor to ensure stability and longevity.
What protections are standard in your converters?
Most models include overcurrent, short-circuit, undervoltage, and over-temperature protection as standard features to ensure high reliability.
What is the typical design life of these products?
Our products are engineered for industrial durability, with a design life typically ranging from 15 to 20 years under proper operating conditions.
