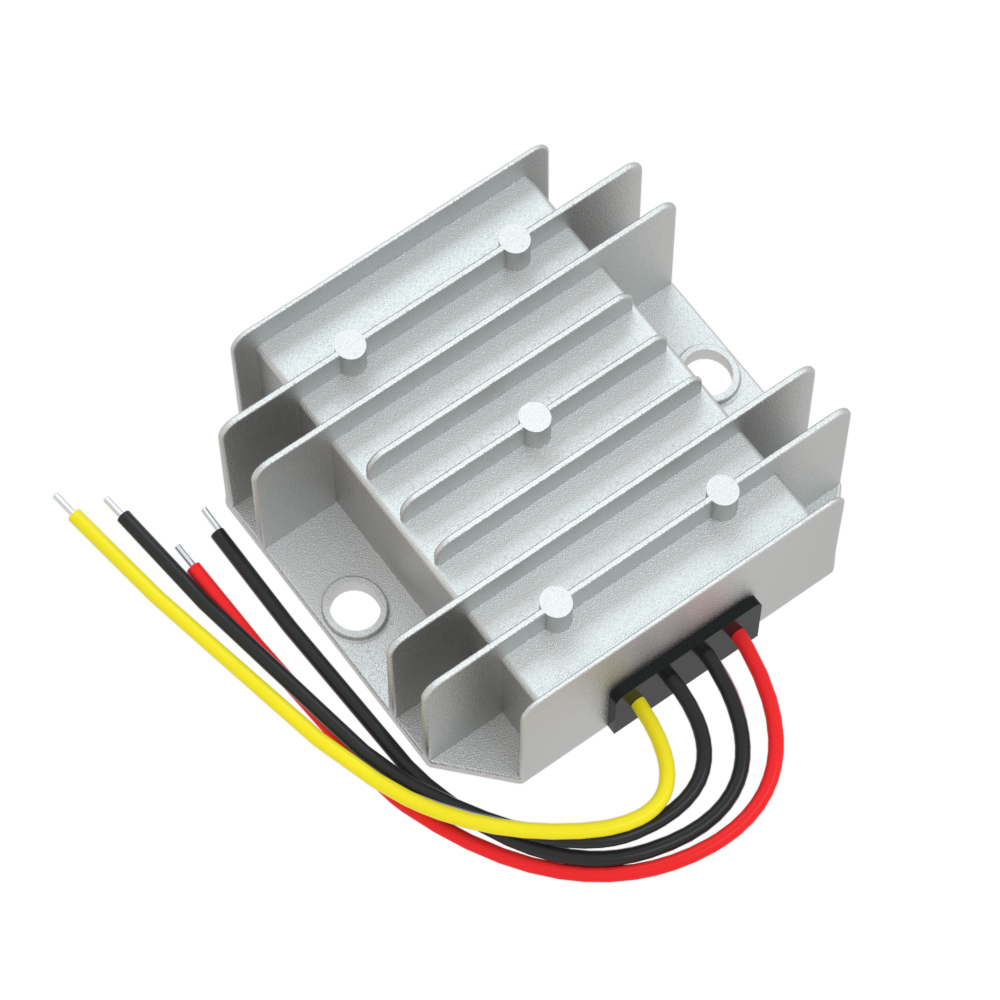

Customization Voltage Stabilizer 1a 2a 3a Dc to Dc 6-20v to 12v Converter for Hotel Service Robot
Product Description
⚡
Our team specializes in professional power conversion solutions. Our products are widely utilized in electric vehicles, automobiles, RVs, marine applications, and communication industries worldwide.
Since 2001, our team has been providing high-performance power solutions. In 2008, we established our production facilities to start manufacturing specialized power supplies. By 2019, we expanded our operations with additional factory capacity.
⚙️
We have developed over 5000+ power supply solutions. Our power range extends from 1 watt to 200 kilowatts, with input voltages reaching up to 2000 volts.
Our R&D team brings more than 24 years of expertise, supported by over 16 years of production management experience. We utilize advanced test equipment and strict management processes to ensure high product reliability. Our products feature a design life of 15 to 20 years and are engineered to excel in complex working environments.
Customization Services
1. We excel at customizing products based on specific usage scenarios and actual load requirements.
2. Our professional sales engineers are available to create tailored plans for your unique needs.
3. Consultations regarding your power requirements are provided as part of our professional service commitment.
| Technical Specifications | |
|---|---|
| Type | NON-Isolated |
| Model | IPS-DTD6-20S12* |
| DC Voltage Input | |
| Input Voltage Rate | 12VDC |
| Input Voltage Range | 6~20VDC |
| Output Performance | |
| Output Voltage Rate | 12VDC |
| Output Current | 1A, 2A, 3A |
| Output Rate Power | 12W, 24W, 36W |
| Efficiency | 93% |
| Mechanical & Protection | |

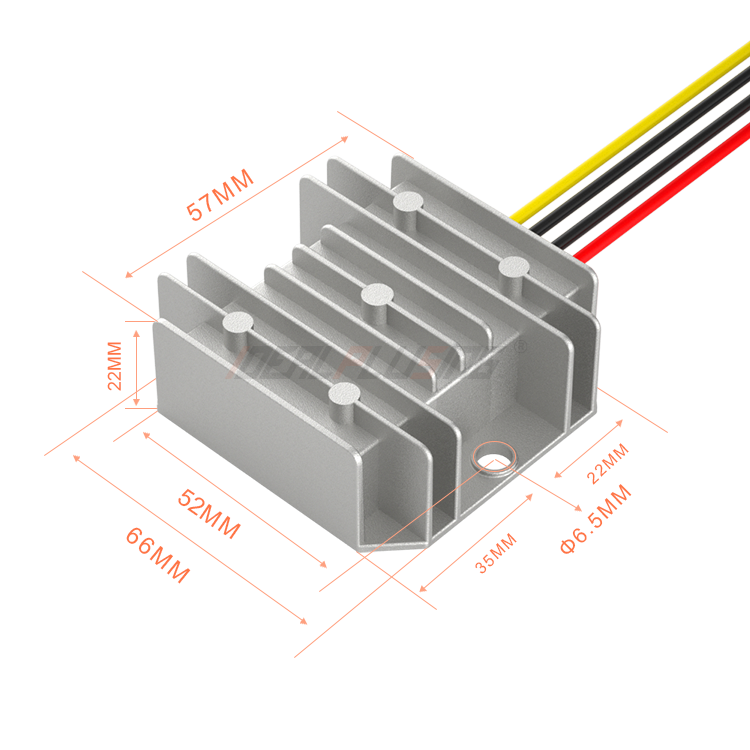

| Converter Size | 66*57*22(MM) |
| Material of Shell | Aluminum case |
| Waterproof Level | IP68 |

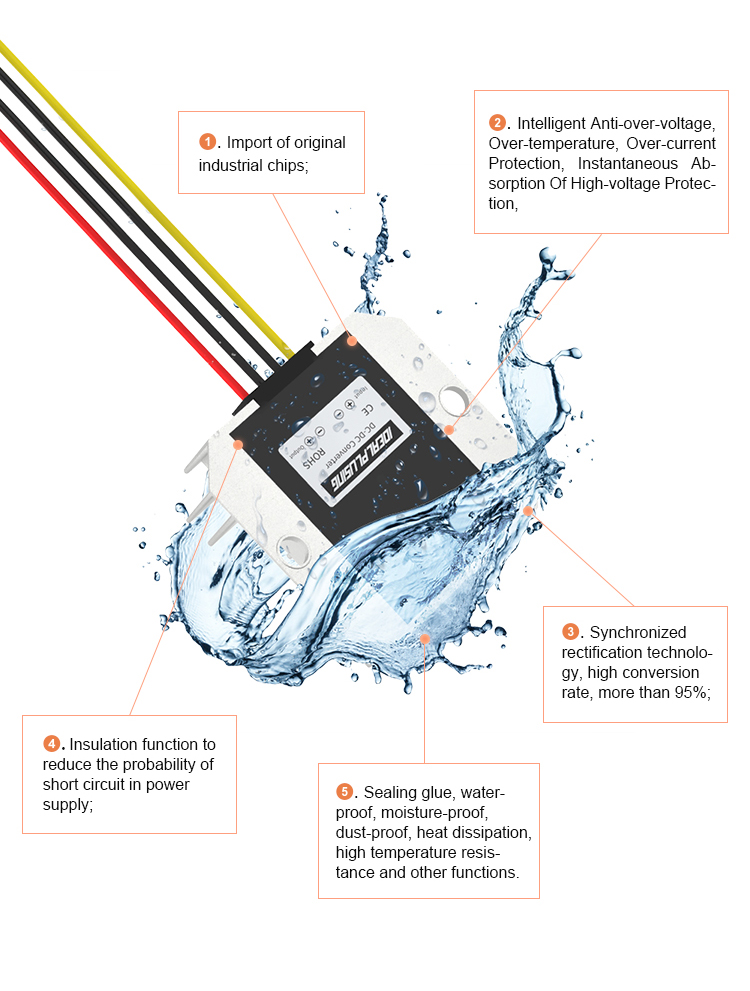

| Protection Functions | Input instant over-voltage, Output over current, Chip over-heat protection |
| Working Temp | -20~80℃ |
Frequently Asked Questions
What is the input voltage range for this DC converter?
The converter accepts a wide input voltage range from 6V to 20V DC, making it ideal for various battery-powered applications.
Is the device waterproof for outdoor use?
Yes, the converter features an IP68 waterproof rating and an aluminum shell, ensuring it can operate in harsh and wet environments.
What current outputs are available for the 12V model?
This specific model supports output currents of 1A, 2A, and 3A, providing power ratings of 12W, 24W, or 36W respectively.
What safety protections are built into the converter?
The unit includes integrated protection against input instant over-voltage, output over-current, and chip over-heating to ensure long-term stability.
Can I customize the specifications for different scenarios?
Yes, customization is a core service. We can adjust current ratings from 1-30A and modify designs to fit your specific load requirements and usage scenarios.
What is the expected lifespan of these power supplies?
Our products are designed for high reliability with a design life of 15 to 20 years under normal operating conditions.
