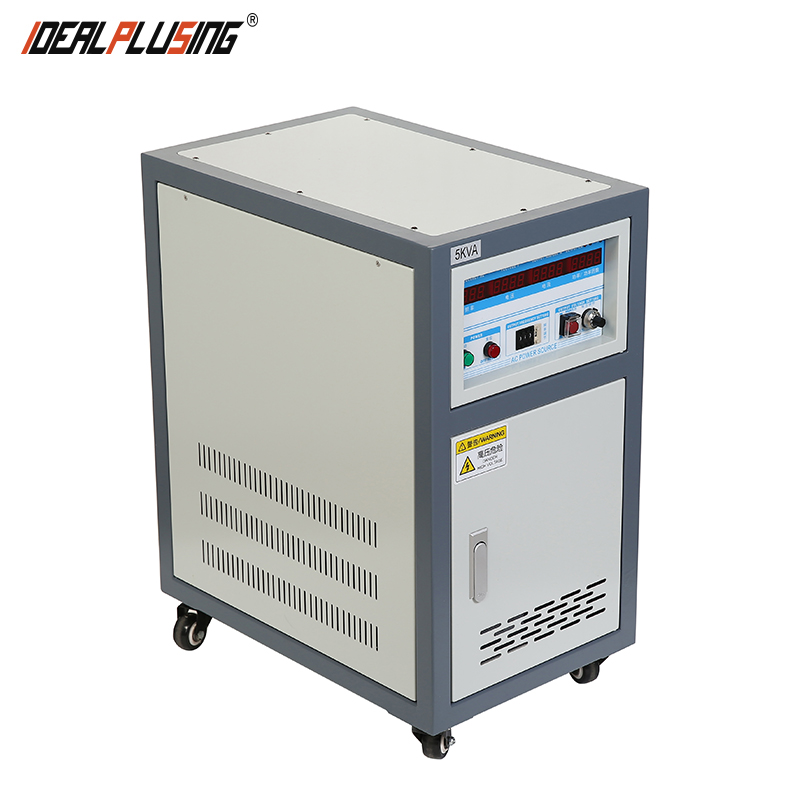

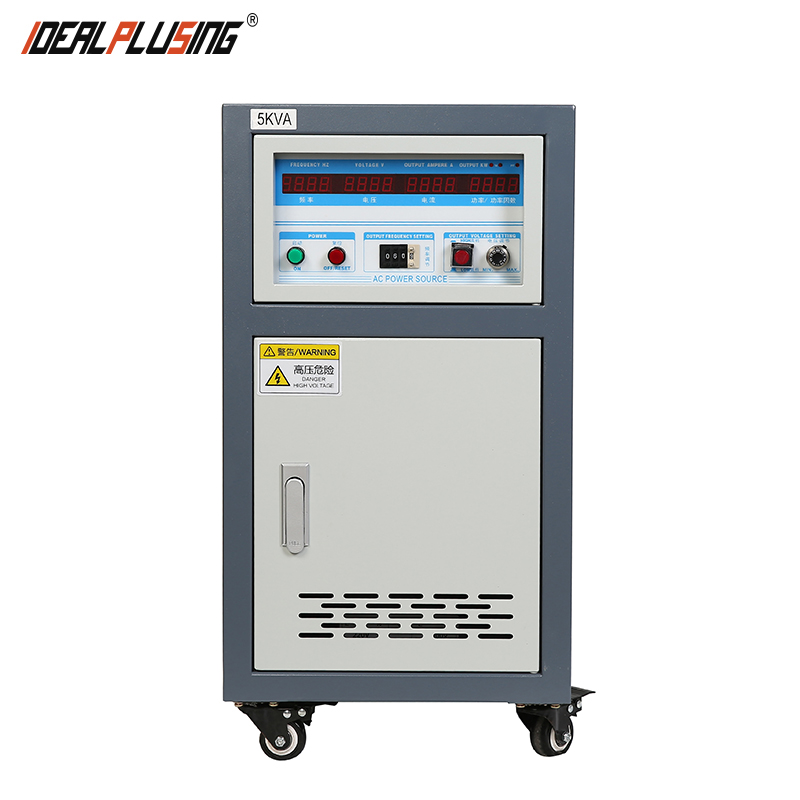

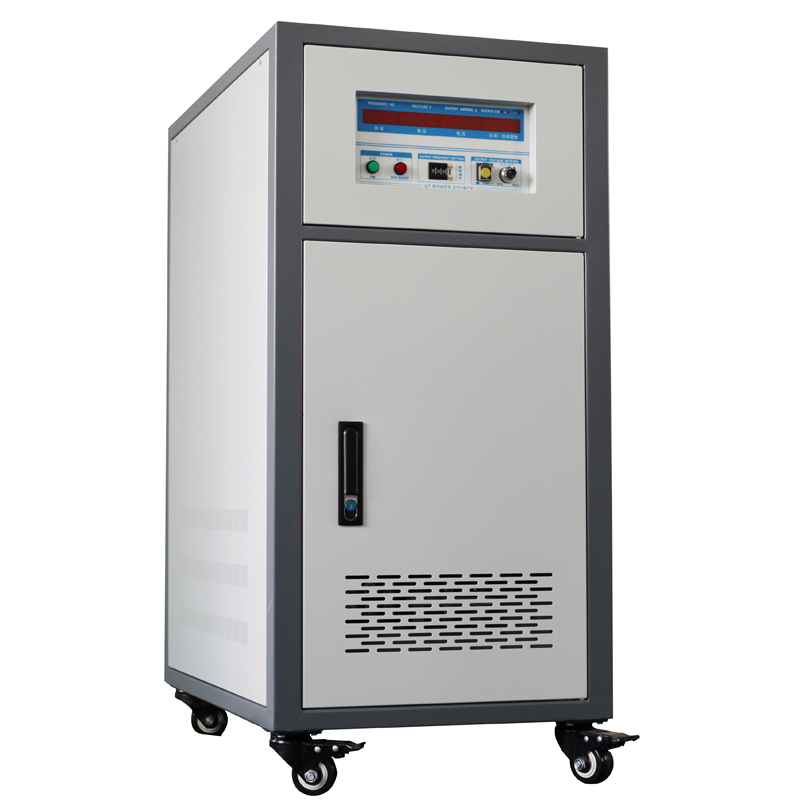

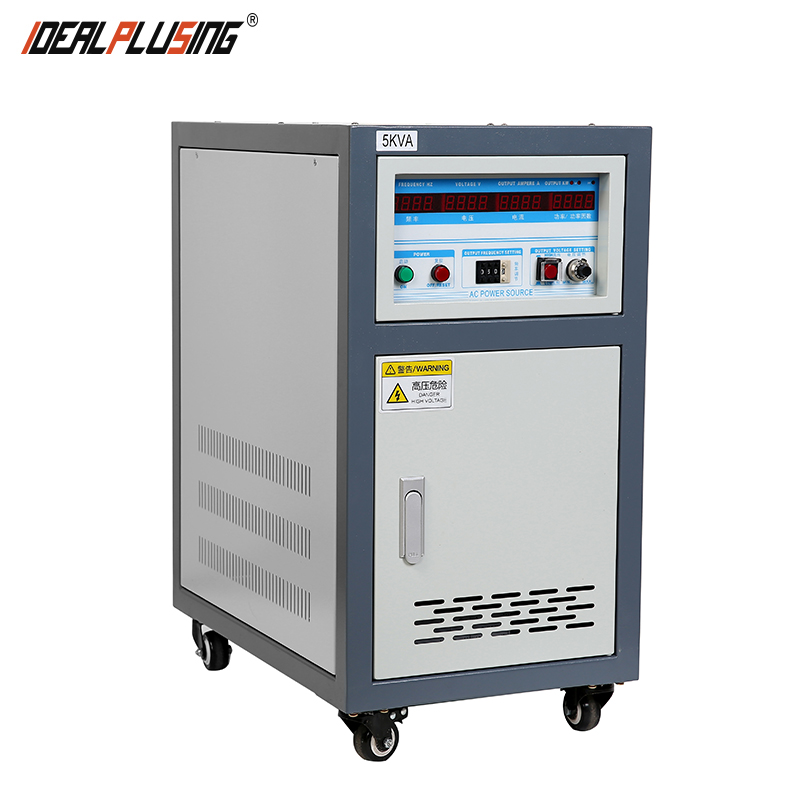

Factory Customized Three Phase 380v 50hz to 60hz 440 Ac Frequency Converter
Product Description
Factory Customized Three Phase 380V 50Hz to 60Hz 440V AC Frequency Converter
★ Product Description
PERFORMANCE CHARACTERISTICS
1
Complete isolation of input and output technology, safe and reliable power supply2
SPWM sine wave pulse width modulation technology is adopted, with fast response speed and stable output3
IGBT high-frequency static inverter, small size, lightweight, low noise, and high efficiency4
Unique double-loop control mode of instantaneous value and effective value with high control precision5
High power IGBT module and highly integrated module drive circuit for reliable operation6
Suitable for resistive, inductive, rectifier, and other loads7
Multiple protection functions for overheating, overcurrent, and short circuit conditions8
Parameter memory function with 10-groups shortcut key operation9
Power supply voltage and frequency can be adjusted online in real-time
APPLICATION FIELDS
Home appliances
Photovoltaic
Motors
Lamps
Power tools
Electronic transformers
Switching power supplies
Electronic components
Power adapters
Low-voltage distribution
UPS
Power
Information & Communication
Other industries
⚙ Technical Specifications
IPS-FC61: SINGLE-PHASE INPUT SINGLE-PHASE OUTPUT
| Model (IPS-FC61) | 61005 | 6101 | 6102 | 6103 | 6105 | 6106 | 6110 | 6115 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Output capacity (KVA) | 0.5 | 1 | 2 | 3 | 5 | 6 | 10 | 15 | ||
| Rated power output (KW) | 0.4 | 0.8 | 1.6 | 2.4 | 4 | 4.8 | 8 | 12 | ||
| Circuit mode | IGBT/SPWM | |||||||||
| AC input | Single-phase 220V/50Hz or 60Hz | |||||||||
| AC output Frequency | 40~499.9HZ (Software setting) | |||||||||
| Voltage Range | Low: 0~150V / High: 0~300V Adjustable | |||||||||
| Model (IPS-FC62) | 6220 | 6230 | 6245 | 6260 | 62100 | 62120 | 62150 | 62200 | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Output capacity (KVA) | 20 | 30 | 45 | 60 | 100 | 120 | 150 | 200 | ||
| AC Input | Tri-phase 220V/50Hz or 60Hz | |||||||||
| AC Output | 3-phase 380V | |||||||||
| Model | 6303 | 6306 | 6310 | 6315 | 6320 | 6330 | 6345 | 6360 | 63100 |
|---|---|---|---|---|---|---|---|---|---|
| KVA | 3 | 6 | 10 | 15 | 20 | 30 | 45 | 60 | 100 |
| AC Input | Single phase 220V | Tri phase 380V | |||||||
| Model | 68005 | 6801 | 6802 | 6805 | 6810 | 6820 | 6845 | 68100 | |
|---|---|---|---|---|---|---|---|---|---|
| Capacity (KVA) | 0.5 | 1 | 2 | 5 | 10 | 20 | 45 | 100 | |
| Input | 1P 220V | 3P 380V | |||||||
📷 Product Show
👁 Product Overview
☰ Model List Reference
Frequently Asked Questions
What is the primary use of this frequency converter?
It is designed to convert power frequencies (e.g., 50Hz to 60Hz) and adjust voltages, making it ideal for testing imported equipment or running machinery on different grid standards.
Can it handle inductive loads like motors?
Yes, the converter is compatible with resistive, inductive, and rectifier loads, featuring a strong overload capacity thanks to its IGBT module technology.
How stable is the output frequency?
The output is highly stable with a frequency stability rate of ≤±0.1%, ensuring precise operation for sensitive electronic components.
What safety protections are built into the device?
It includes comprehensive protection against overvoltage, overcurrent, overload, overheating, and short circuits, complete with automatic jump protection and alarms.
Is the output voltage adjustable?
Yes, it features dual-range adjustable output: Low range (0~150V) and High range (0~300V), which can be set according to your specific requirements.
What cooling method does the converter use?
The unit utilizes forced fan cooling to maintain optimal working temperatures between 0℃ and 45℃.
