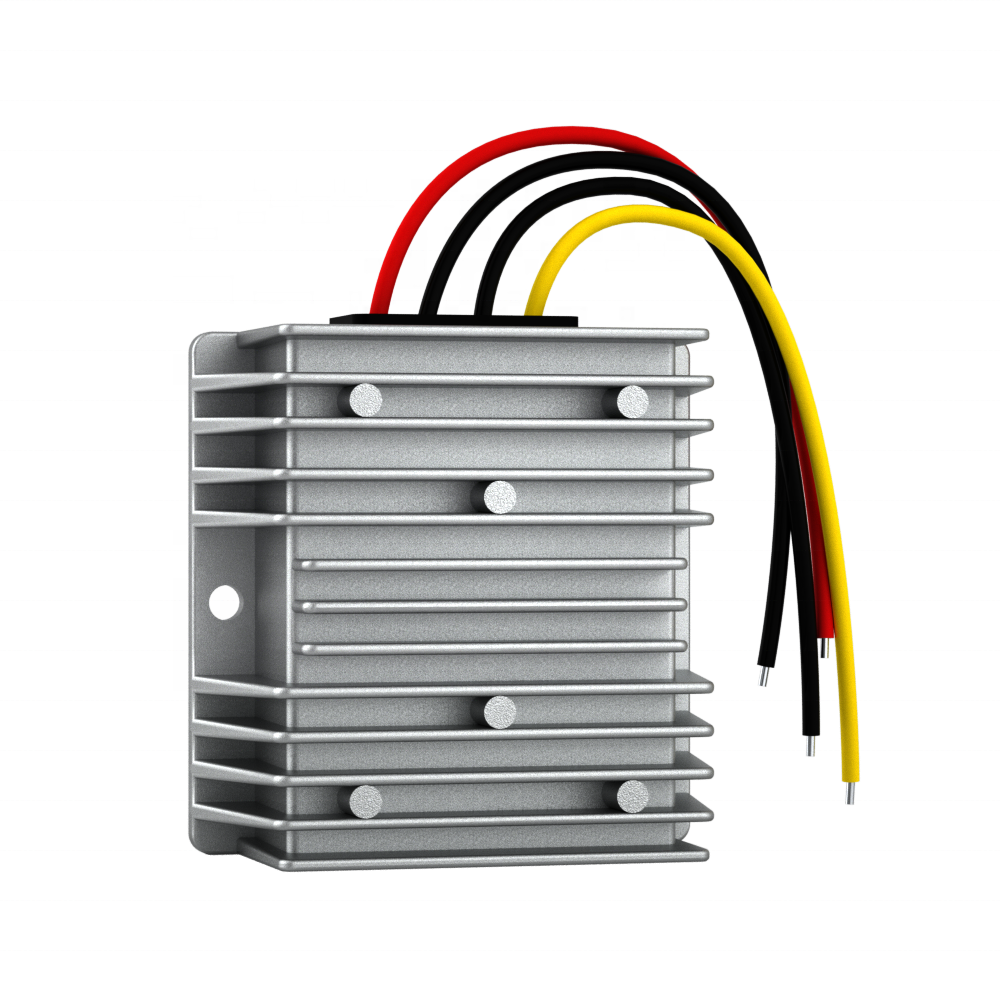

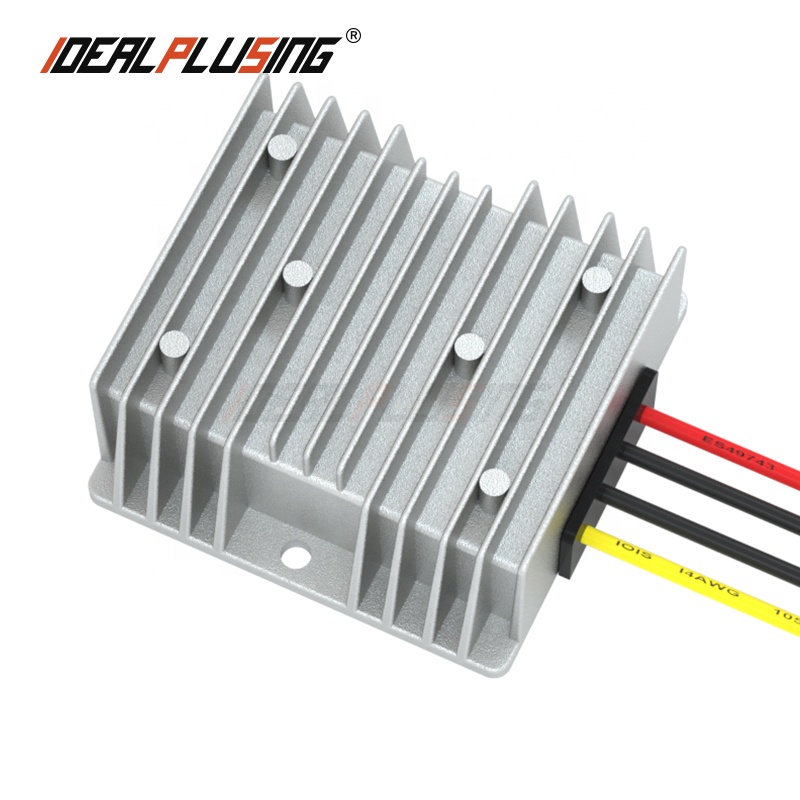

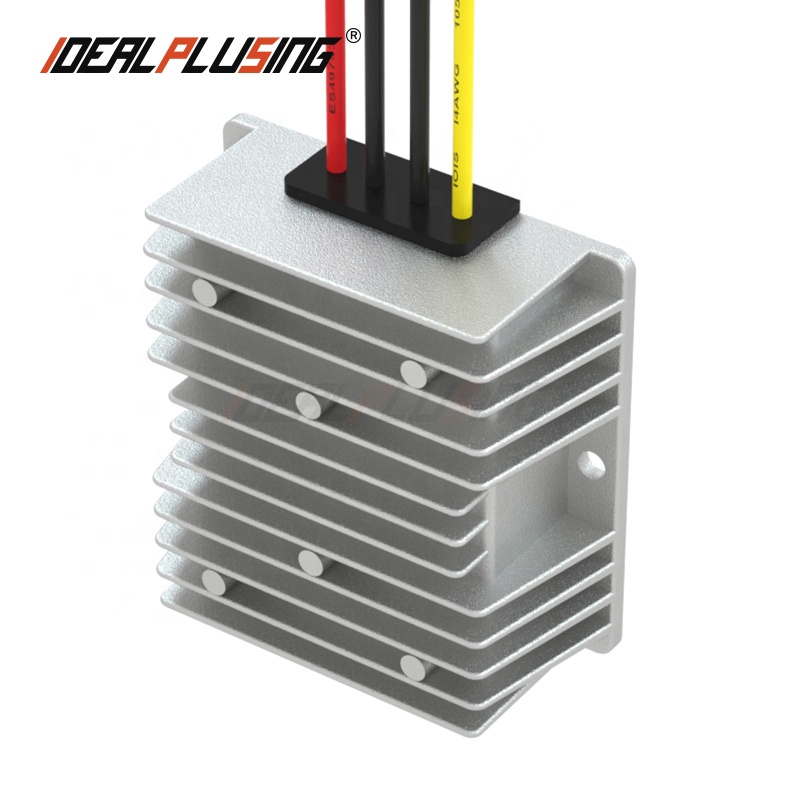

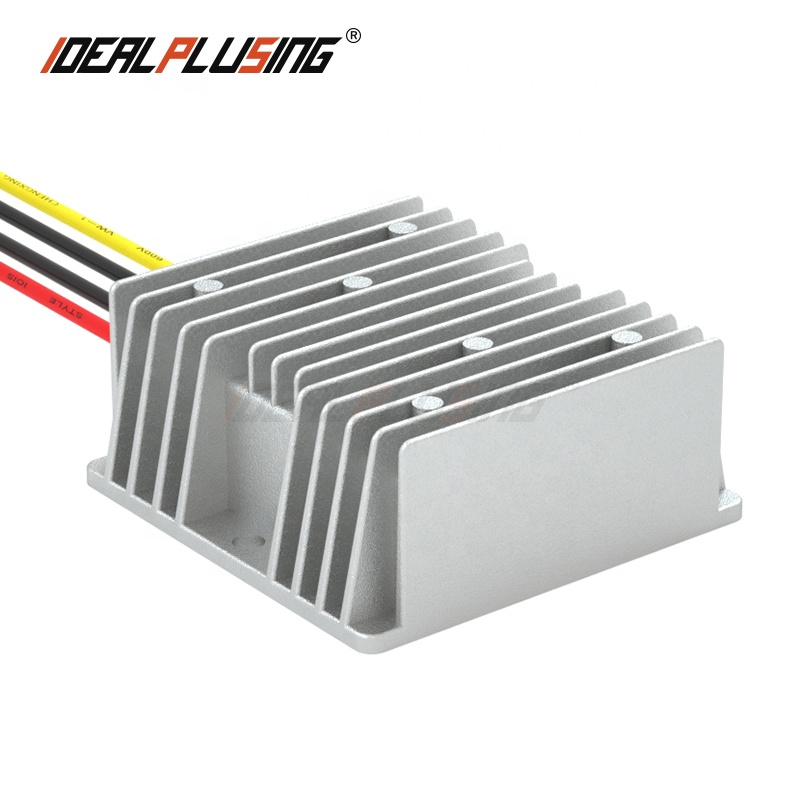

For Truck Bus Motor Dc 12v to 12v Converter 8A 96W Dc Dc 12v 24v to 12v Step Down up Converter
Product Description
For truck bus motor dc 12v to 12v converter 8A 96W dc dc 12v 24v to 12v step down up converter
Part 1: Features
1
Design meeting RoHS / CE
2
High efficiency: 93%
3
Non-isolated between input and output
4
Internal capacitor: NCC & NICHICON (high reliability)
5
100% full load burn-in test
6
Over load, Over temperature and Over voltage protections
7
Waterproof level IP68
8
12 Months warranty
Part 2: Application
Trucks
Forklifts
Buses
Logging Vehicles
Electromotor
Telecommunications
Boat & Yacht
LED Marketplaces etc.
Part 3: Specification
| Parameters | Details |
|---|---|
| Type | NON-Isolated |
| Model | IPS-DTD12S128 |
| DC voltage INPUT | |
| Input Voltage rate | 8-40VDC |
| Input Voltage range | 12VDC |
| DC voltage & Current output | |
| Output Voltage rate | 12VDC |
| Output Current | 8AMPS |
| Output Rate Power | 96Watts |

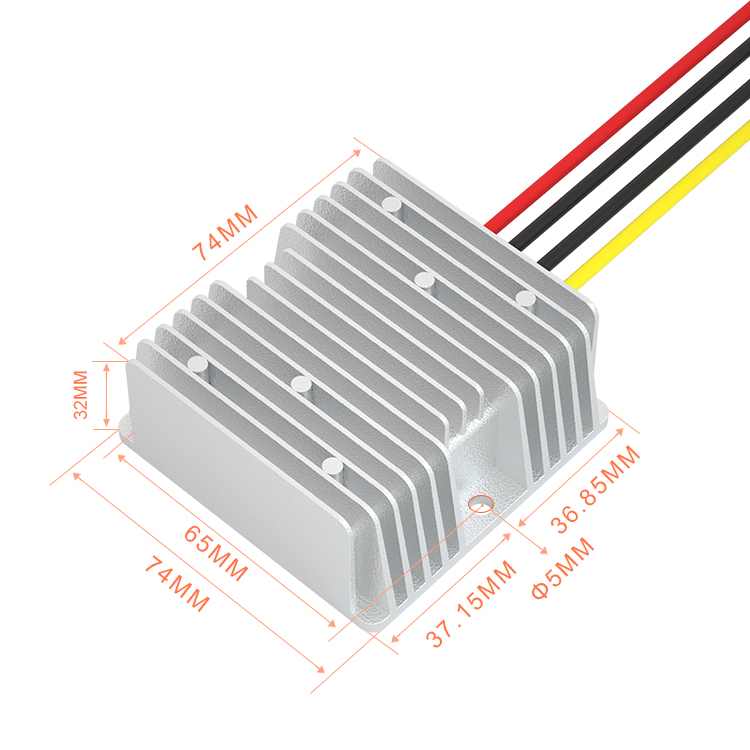

| Converter Size | 74*74*32(MM) |
| NW | 250G |
| Others | |
| Customize | Allow |
| Material of shell | Aluminum |
| Working temp | -20~80℃ |
| Efficiency | 93% |
| Waterproof Level | IP68 |
| Protection function | Input instant over-voltage Output over current Chip over-heat protection |
| Customize Range | From 1-150A Size and weight different if current different |
Customize Range
| Type | Model/ Series | Voltage convert (Input to output) | Output Current (Be option) |
|---|---|---|---|
| Boost DC-DC Converter | IPS-DTD5S12** | 5v to 12v | 1/2/3/5/8/10A |
| IPS-DTD12S13.8** | 12v to 13.8v | 1/2/3/5/8/10/18A | |
| IPS-DTD12S15** | 12v to 15v | 1/2/3/5/8/10/15A | |
| IPS-DTD12S19** | 12v to 19v | 5/8/10/15/20A | |
| IPS-DTD12S24** | 12v to 24v | 1/2/3/5/8/10/15/20/25/30/40A | |
| IPS-DTD12S28 | 12v to 28v | 3/5/8/10/15/20/25/30/40A | |
| IPS-DTD12S32/36** | 12v to 32v/36v | 1/2/3/5/6/10/12/15/20/30A | |
| IPS-DTD12S48** | 12v to 48v | 1/2/3/4/5/8/10/15/20A | |
| IPS-DTD24S48** | 24v to 48v | 3/5/10/20/32/42A | |
| Buck DC-DC Converter | IPS-DTD1224S3.3-9** | 12v/24v to 3.3-9v | 1/2/3/5/10/15/20/30/50/60A |
| IPS-DTD24S12** | 24v to 12v | 1/2/3/5/8/10/15/20/30/40/50/60/85A | |
| IPS-DTD3648S5** | 36v/48v to 5v | 3/5/6/8/10/12/15/20/25A | |
| IPS-DTD3648S12** | 36v/48v to 12v | 5/10/15/20/25A | |
| IPS-DTD3648S24** | 36v/48v to 24v | 5/8/10/12/15/18/20A | |
| IPS-DTD48S36** | 48v to 36v | 5/10A | |
| IPS-DTD60S5** | 60v to 5v | 5/10/15/20A | |
| IPS-DTD60S12** | 60v to 12v | 5/8/10/12/15/20A | |
| IPS-DTD60S24** | 60v to 24v | 5/10/15A | |
| IPS-DTD60S36 | 60v to 36v | 5/8A | |
| Auto Buck and Boost DC-DC Converter | IPS-DTD12S12 | 12v to 12v | 1/2/3/4/6/8/10/12A |
| IPS-DTD12S13.8 | 12v to 13.8v | 3/5/10A | |
| IPS-DTD24S24 | 24v to 24v | 1/2/3/5/8/10A |

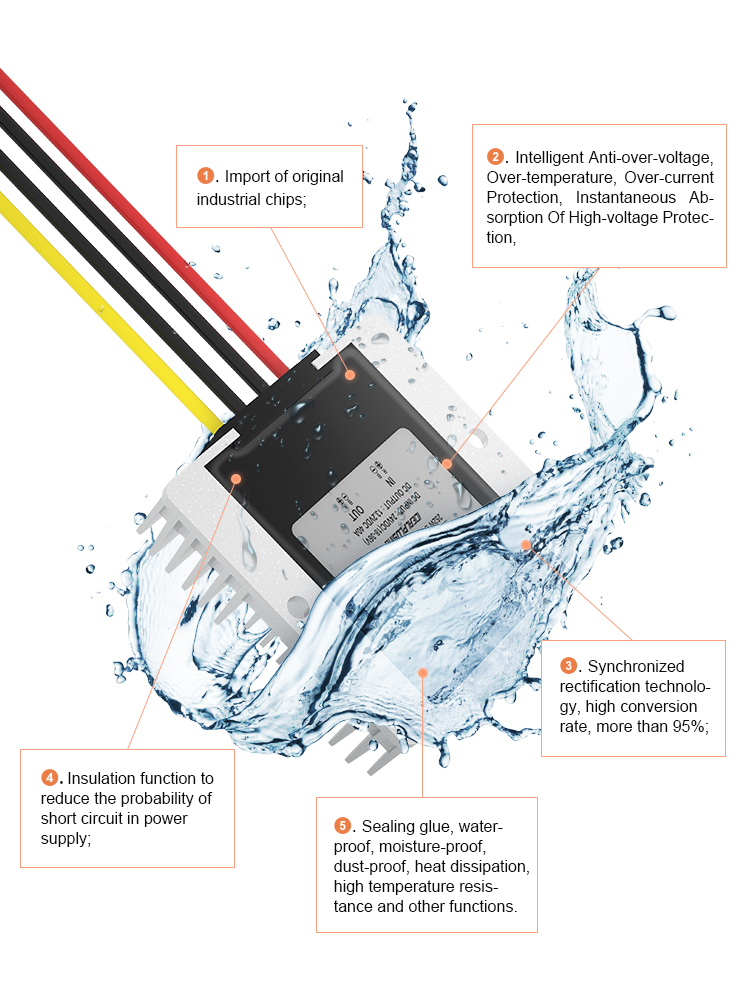

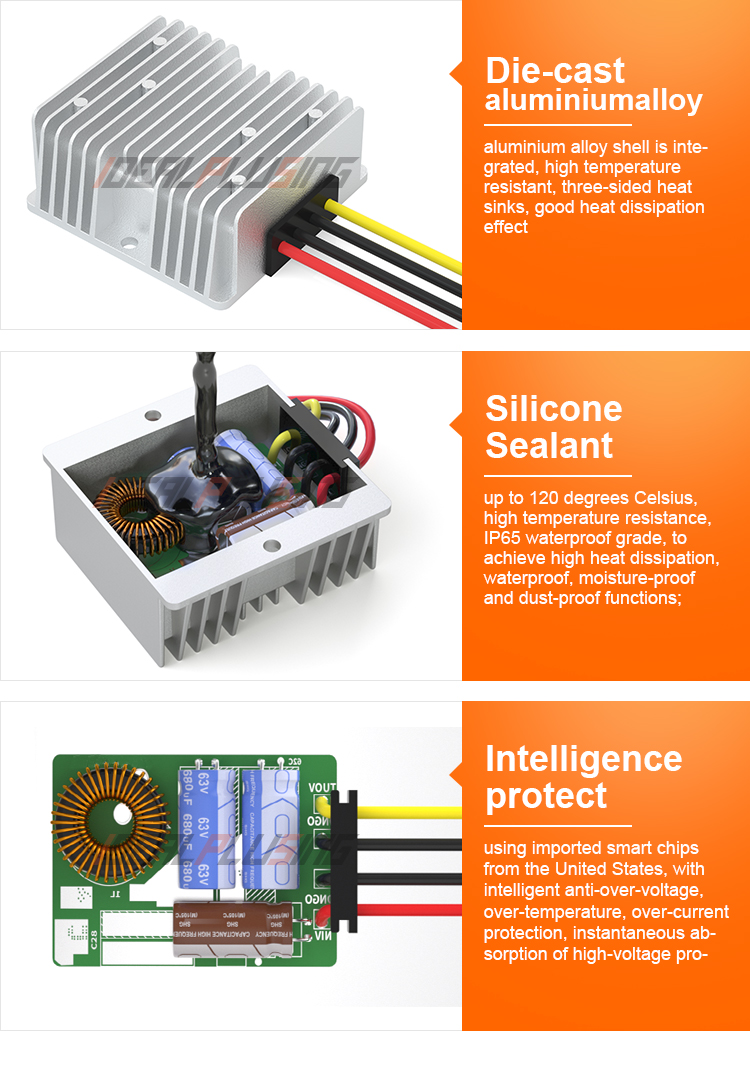

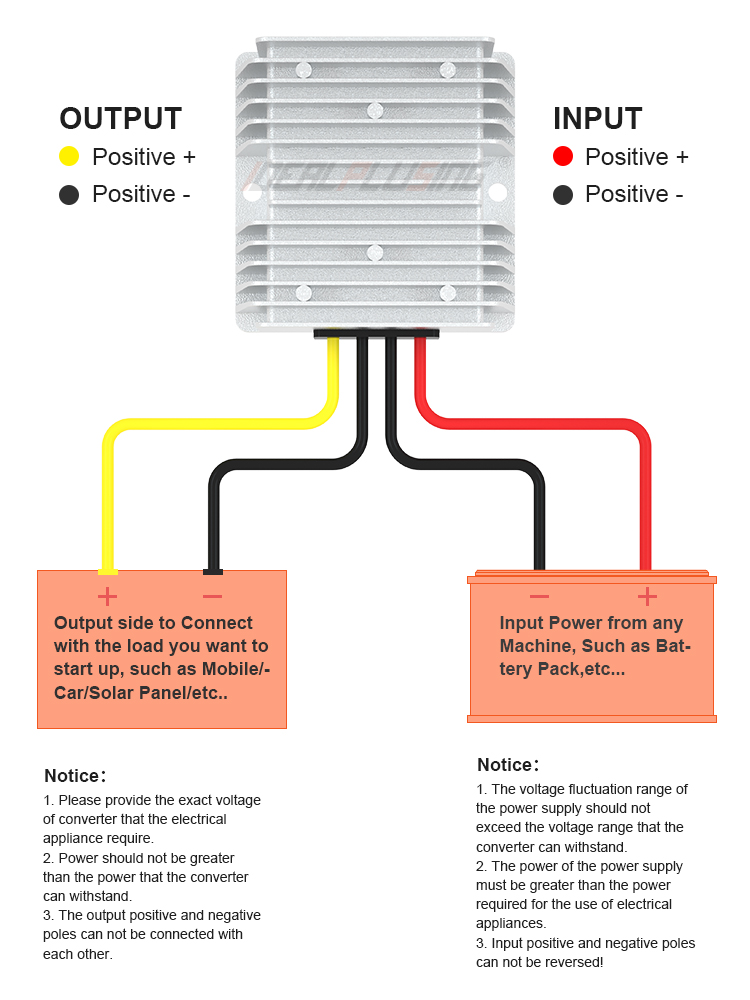

Product Show
Factory Display
Recommended DC DC Converters & Products
Frequently Asked Questions
Q1
Can I have a sample order?
Yes, sample order is acceptable to test and check quality for the first cooperation.
Q2
What about the lead time?
Most of the models are in stock, and the sample lead time is 1-3 working days after receiving payment.
Q3
Do you have any MOQ limit?
We support a low MOQ. 5 pieces for sample checking is available.
Q4
How do you ship the goods and how long does it take to arrive?
We often ship by DHL, UPS, FedEx, or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping are also optional.
Q5
How to deal with the flaw?
Our products are produced in a strict quality control system, and the pass rate is consistently maintained above 99.8%.
Q6
Do you offer a guarantee for the products?
Yes, we offer a 1-year warranty for all power supplies.
