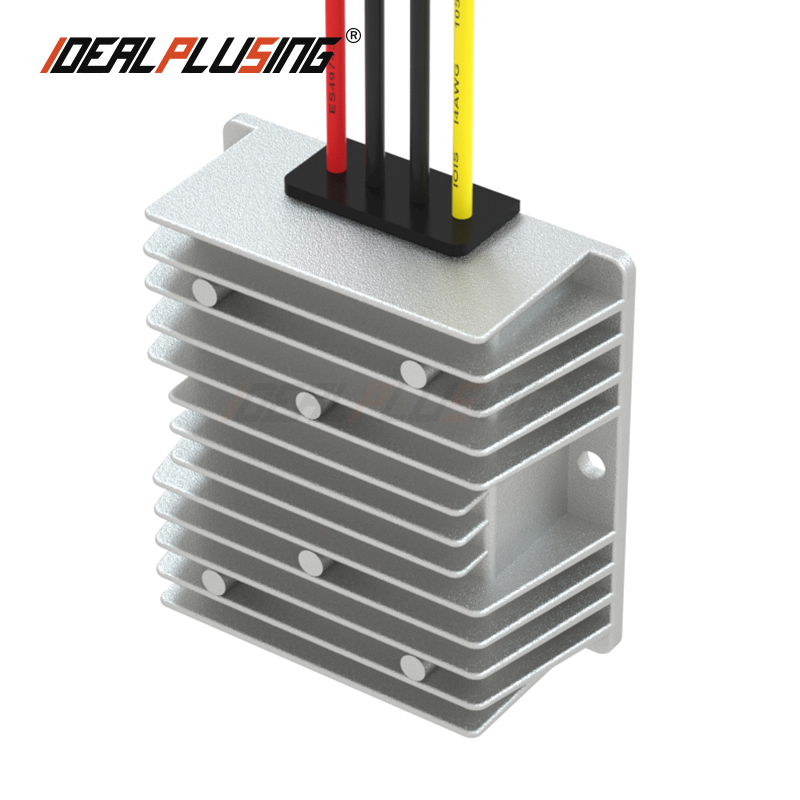

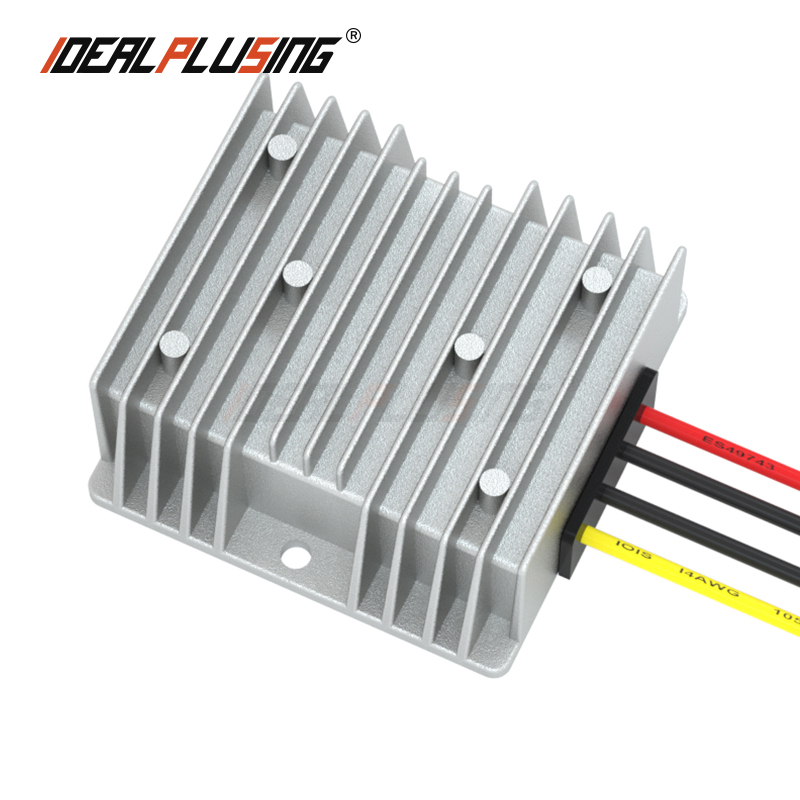

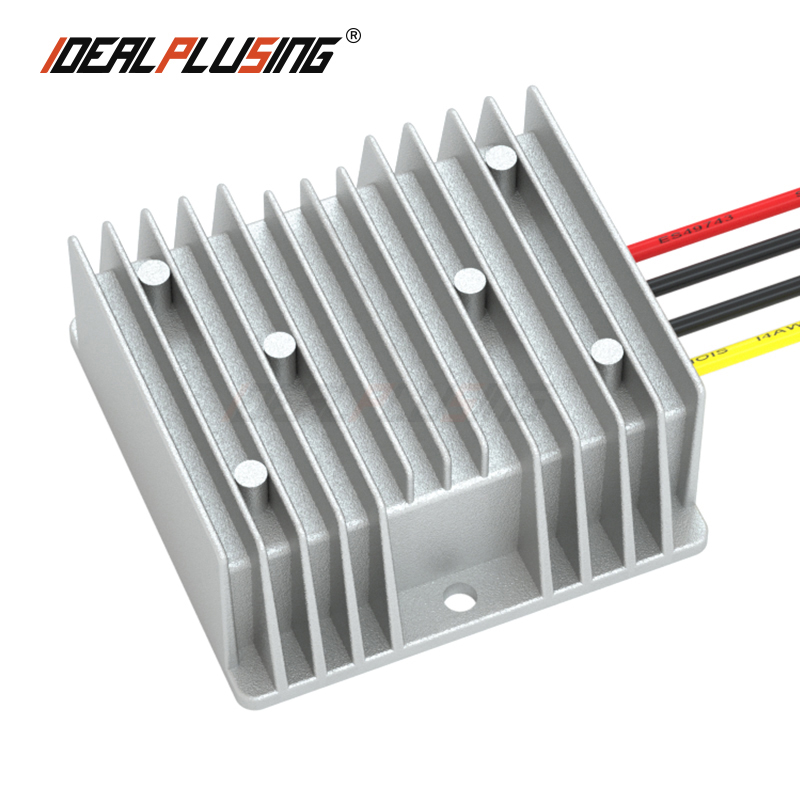

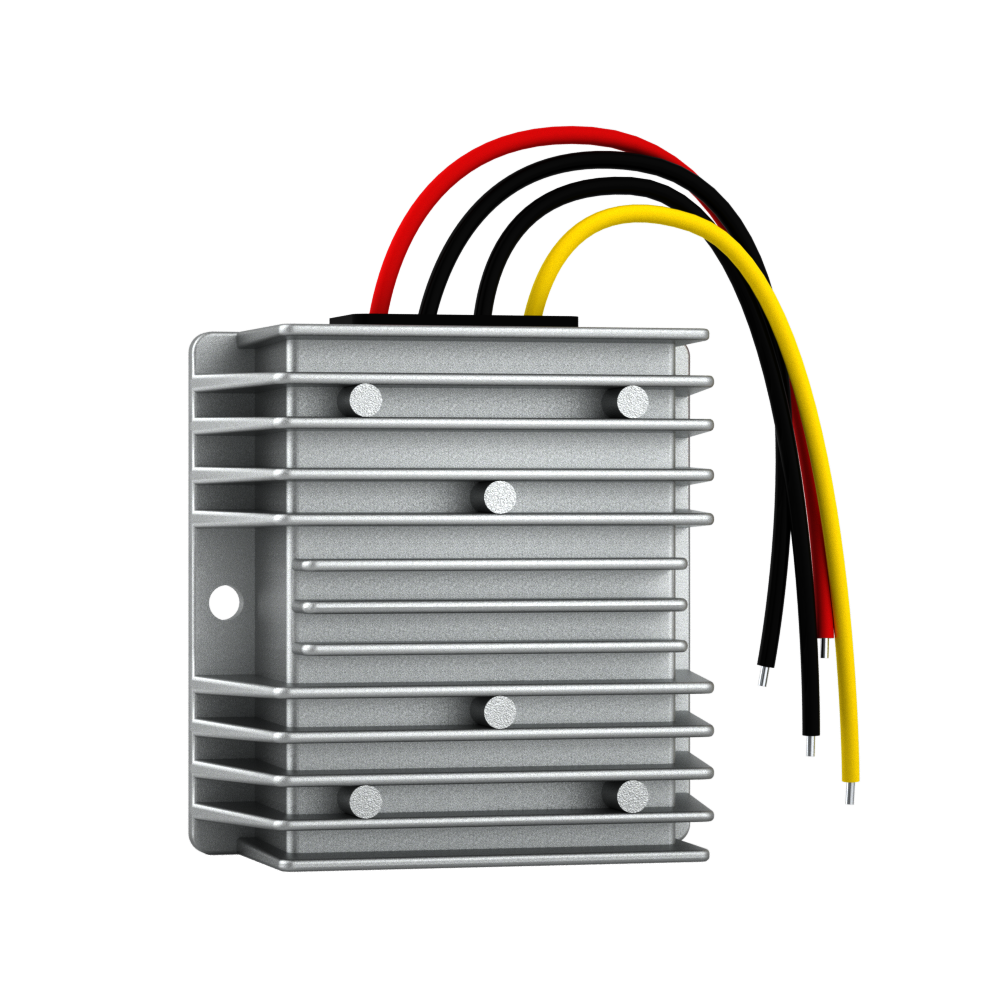

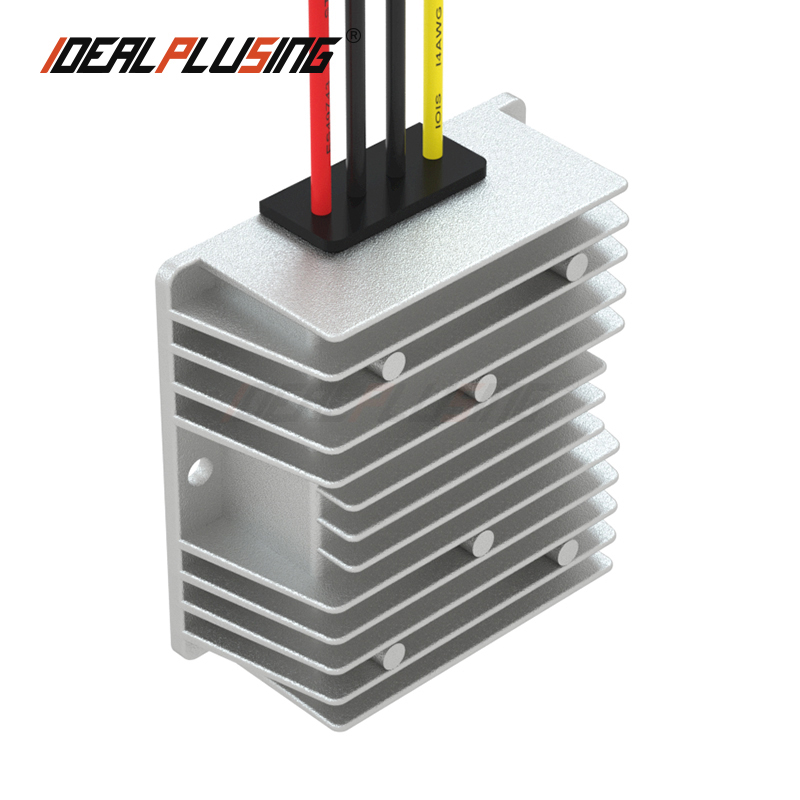

DC 8V 12V 24V 36V 40V to 12V 20A 240W Step Down up Boost Buck Dc Dc Converter Non-isolated 8-40V Wide Input Range Converter
Product Description
DC DC CONVERTER SOLUTIONS
We are a company specializing in power conversion solutions. Our products are widely used in electric vehicles, automobiles, RVs, and other vehicles, in the marine, communication, and industrial sectors.
Since 2001, our team has been providing expert power solutions. With production facilities established in 2008 and 2019, we have developed more than 5000+ power supply solutions. The power range spans from 1 watt to 200 kilowatts, with input voltages reaching up to 2000 volts.
⚙️High Reliability & Longevity: Our R&D team brings over 24 years of experience, supported by 16 years of production management. We utilize advanced test equipment and rigorous management processes to ensure high reliability. The design life of our products is 15 to 20 years, meeting high standards for complex working environments globally.
1. We excel at customizing products according to different usage scenarios and actual usage loads. If the specific product required is not shown, our professional sales engineers can develop a dedicated plan for you.
2. Please do not hesitate to share your requirements.
3. Consultation provides a valuable opportunity for technical collaboration and solution discovery.
| Parameter | Specification |
| Type | NON-Isolated |
| Model | IPS-DTD1224S1220 |
| DC Voltage Input | |
| Input Voltage Rate | 12/24VDC |
| Input Voltage Range | 8~40VDC |
| DC Voltage & Current Output | |
| Output Voltage Rate | 12VDC |
| Output Current | 20AMPS |
| Output Rate Power | 240Watts |
| Converter Size | 100*80*39(MM) |
| Net Weight | 480G |
| Physical & Environmental | |
| Material of Shell | Aluminium |
| Working Temp | -20~80℃ |
| Efficiency | 93% |
| Waterproof Level | IP67 |
| Protection Functions | Input instant over-voltage, Output over current, Chip over-heat protection |
| Customization | Available from 1-30A |
Frequently Asked Questions
Q1: What is the input voltage range for this DC converter?
A: This converter features a wide input range of 8V to 40V DC, making it compatible with both 12V and 24V battery systems.
Q2: Is this converter suitable for outdoor or marine environments?
A: Yes, it has an IP67 waterproof rating and an aluminum shell, making it ideal for marine, RV, and harsh industrial environments.
Q3: What safety protections are built into the device?
A: The unit includes integrated protection against input instant over-voltage, output over-current, and chip over-heating.
Q4: Can I request a customized output current?
A: Absolutely. We offer customization for output currents ranging from 1A to 30A to suit your specific application needs.
Q5: What is the expected lifespan of these power supplies?
A: Our products are designed with a service life of 15 to 20 years, ensuring long-term reliability for critical systems.
Q6: What is the conversion efficiency of this model?
A: This non-isolated DC-DC converter achieves a high efficiency of approximately 93%, minimizing heat generation.
