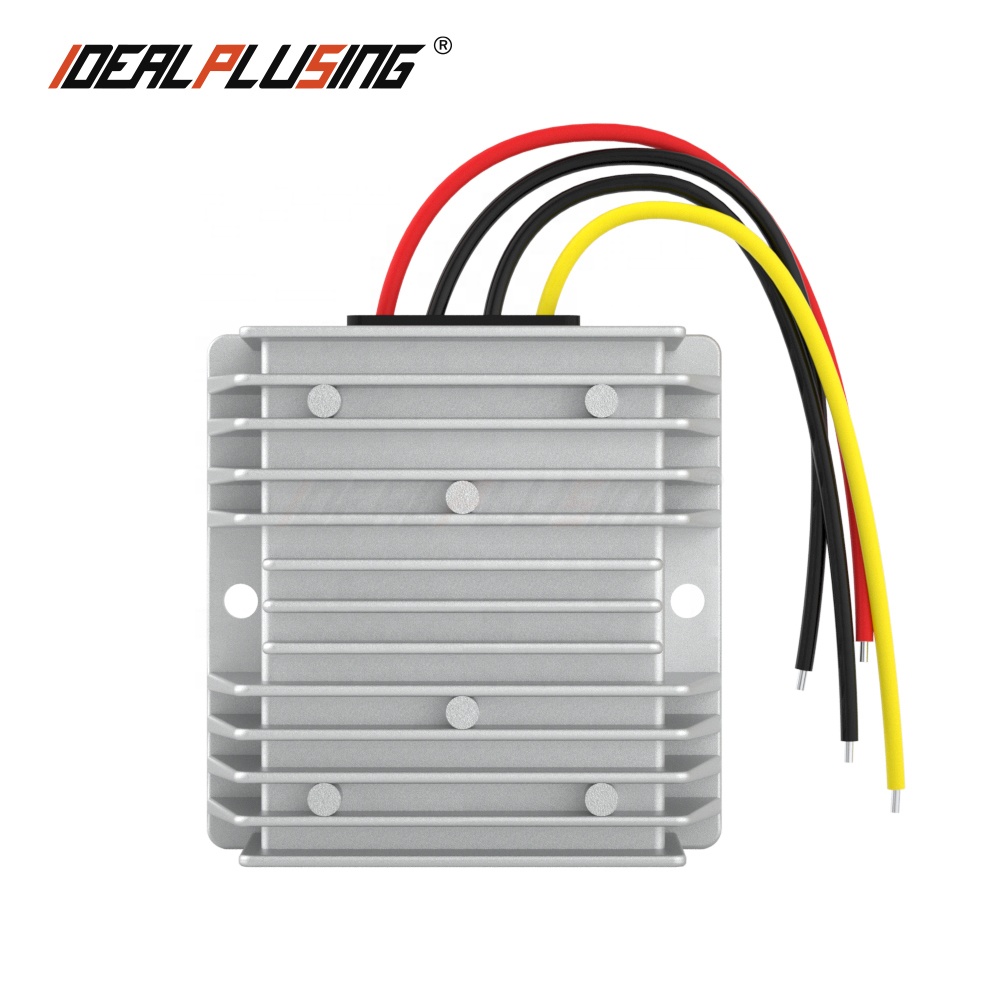

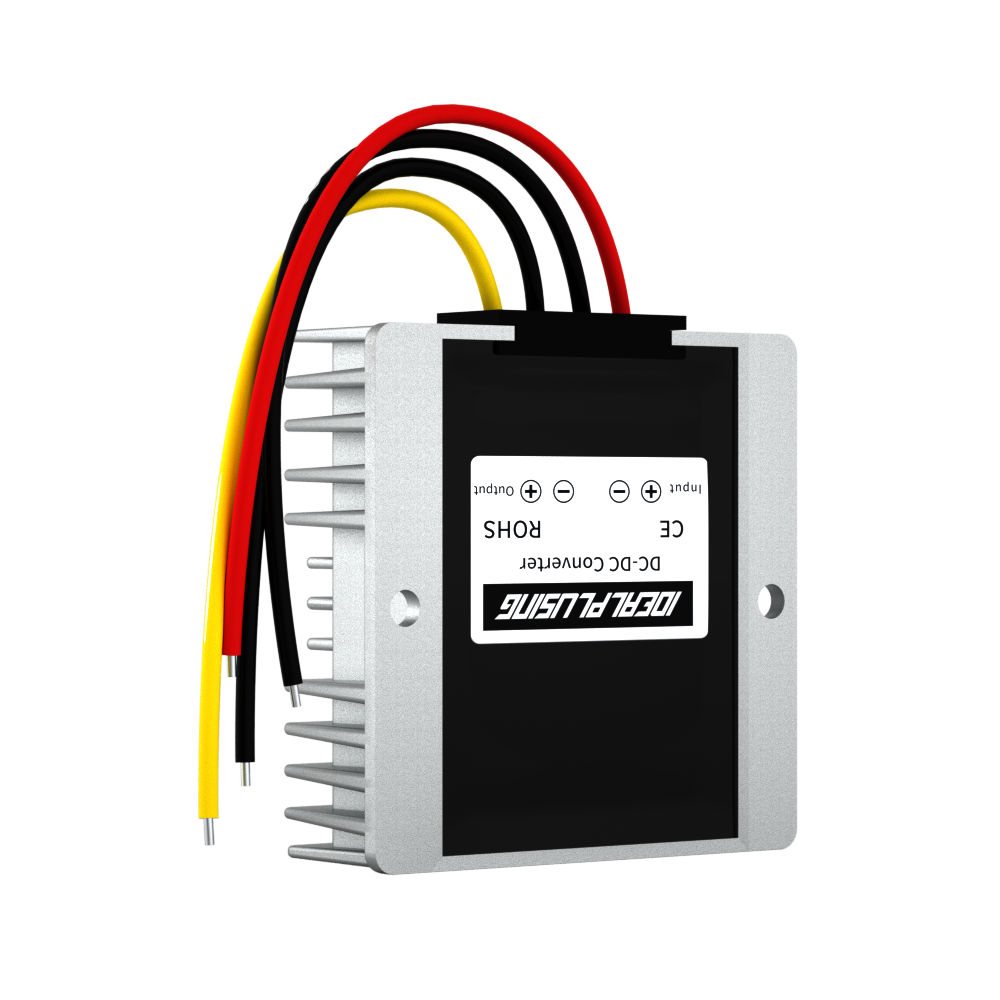

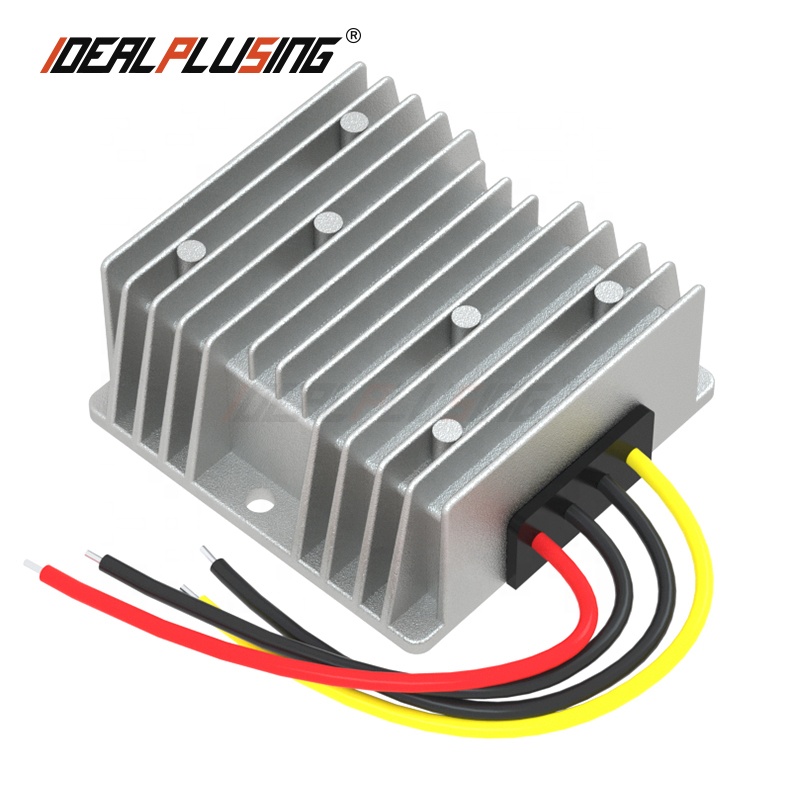

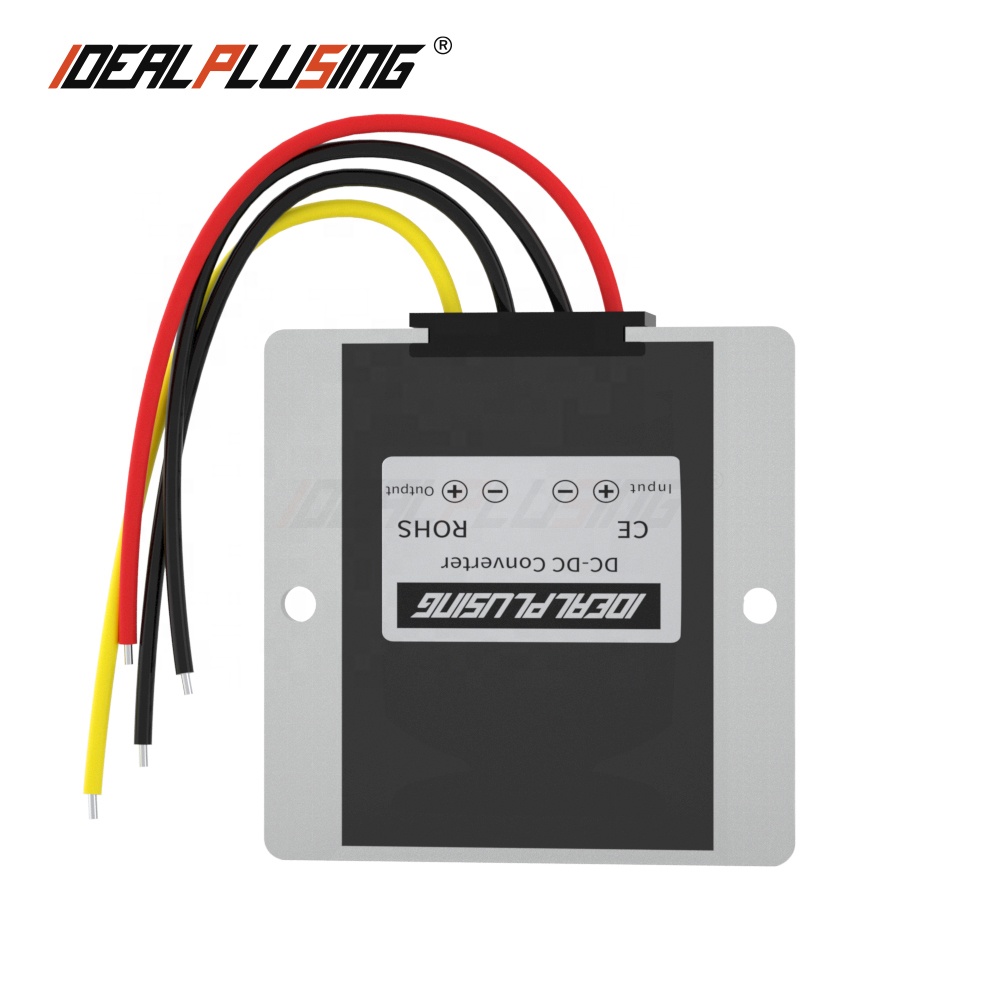

Step Up/down Dc Dc Converter 8~40v Wide Input Range to 12v 8a 96w Voltage Regulator
Product Description
🔥 Step Down DC/DC (HOT)
| Hot selling (Step Down DC/DC Converter) | |||
| NO | DC Input Range to DC Output | NO | DC Input Range to DC Output |
| #1 | 30~120VDC to 12VDC 20A 240W | #7 | 50~90VDC to 48VDC 30A 1440W |
| #2 | 20~60VDC to 12VDC 5A 60W | #8 | 30~60VDC to 24VDC 30A 720W |
| #3 | 30~60VDC to 24VDC 20A 480W | #9 | 15~32VDC to 19VDC 10A 190W |
| #4 | 30~60VDC to 13.8VDC 10A 138W | #10 | 30~60VDC to 12VDC 30A 360W |
| #5 | 30~60VDC to 12VDC 10A 120W | #11 | 30~90VDC to 24VDC 20A 480W |
| #6 | 30~60VDC to 12VDC 50A 600W | #12 | 30~60VDC to 13.8VDC 60A 828W |
📏 Dimension & Attribute
| Parameter of voltage regulator 12v | |
| Product Name | voltage regulator 12v |
| Type | Non-Isolate |
| Model | IPS-DTD8-40S128 |
| INPUT | |
| Input rated voltage | 8-40VDC |
| Input voltage range | 8~40VDC |
| OUTPUT | |
| Conversion Efficiency | 96% |
| Output voltage | 12VDC |
| Output current | 8A |
| Output rated power | 96W |
| Output peak power | 125% |
| OTHERS | |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Ripple (full load test) | < 50mV |
| No-load current | < 20mA |
| Working Temperature | -40°c ~ +80°c |
| Waterproof rating | IP65 |
| Protections | Over-load, Over-current, Over-temperature, Short-circuit, Over-voltage optional |
| Machine size | 74*74*32(MM) |
| NW | 0.3KG |
| Cooling way | Free air convection |
| Certifications | CE, RoHS |
| Customize | Support |
| Sample order | Support |
| OEM & ODM | Support |
| Package | White & colorful package optional |

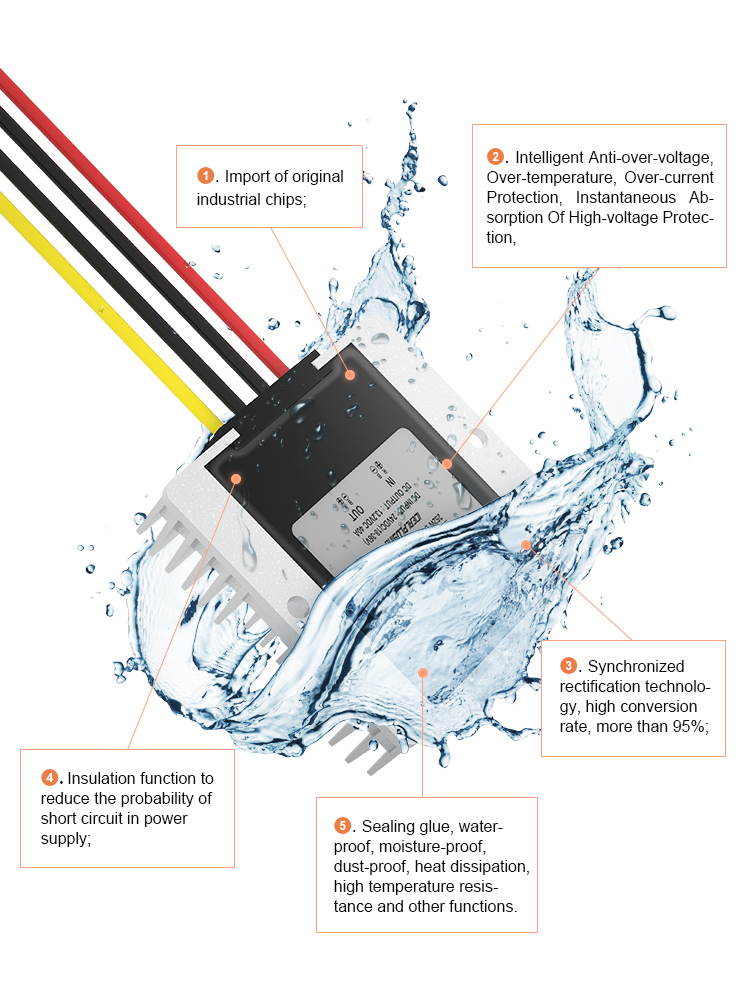

💎 Key Features
✔100% full power & stable current output.
✔100% Imported components.
✔Wide input voltage from 8~40 Vdc.
✔100% waterproof & anti-shock protection, Ultra-compact size.
✔Industry grade voltage regulator, efficiency up to 96%.
✔Certificates: CE/RoHS, Waterproof level: IP68.

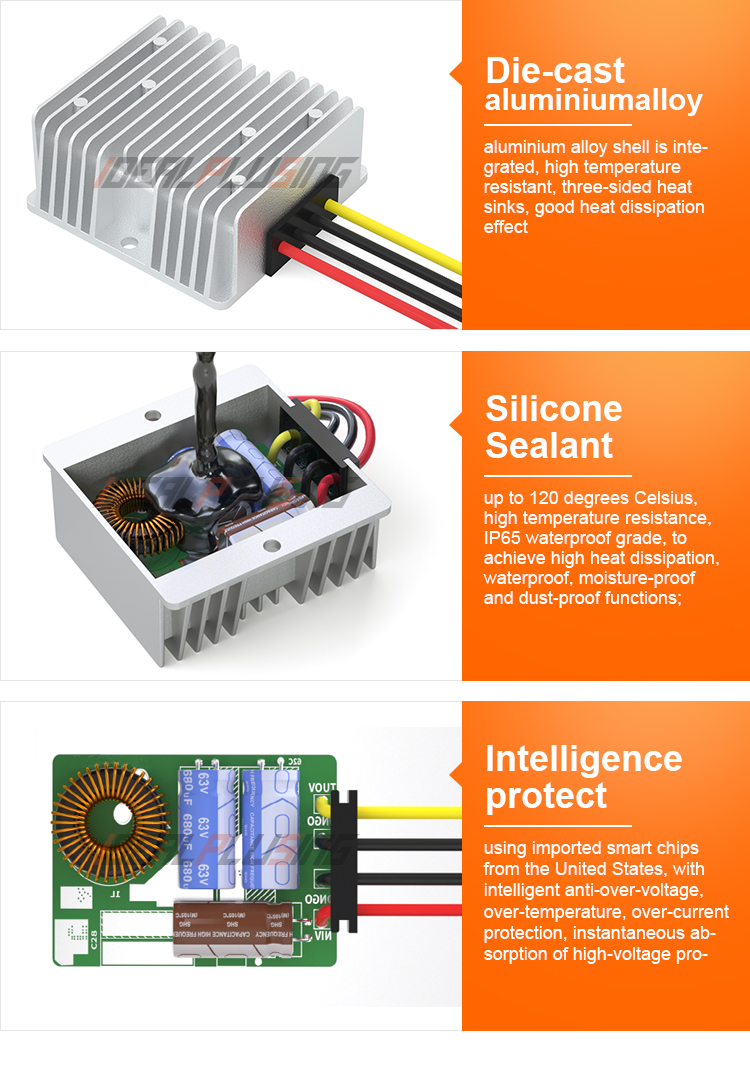

✔Plastic shell, epoxy potting, Cooling by free air convection.
✔Full Protections: Over-current, Over-voltage, Over-temperature.
✔Auto-recovery when the device is back to normal operating.
✔Non-Isolated Module with 1-year warranty.
📷 Product Overviews

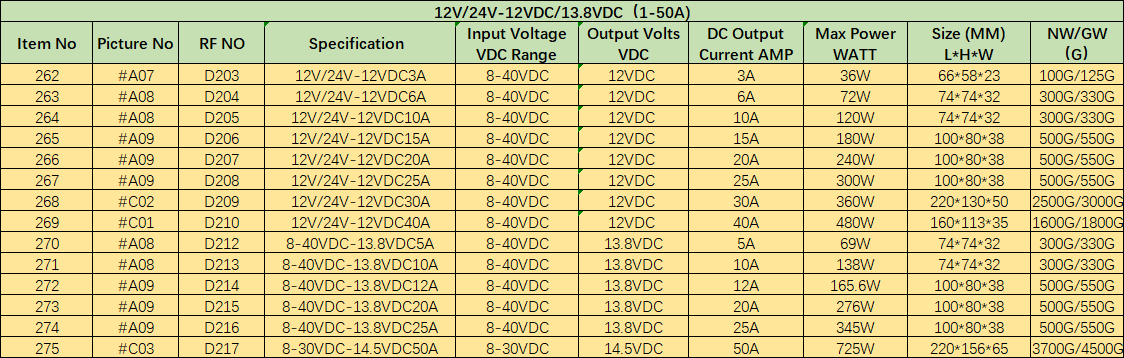

⚙️ Customize Range
🛠️ Customize Others
👍 Recommended Products
📘 Instructions & Details
❓ FAQ
Q: What is the conversion efficiency of this 12V voltage regulator?
A: The module offers high conversion efficiency of up to 96%, ensuring minimal power loss and stable performance.
Q: Is this DC/DC converter waterproof?
A: Yes, it features an IP68/IP65 waterproof rating with epoxy potting, making it suitable for harsh environments and anti-shock protection.
Q: What kind of protections does the device include?
A: It includes multiple protection layers: over-current, over-voltage, over-temperature, short-circuit, and over-load protection with auto-recovery.
Q: What is the input voltage range for the 12V 8A model?
A: The wide input voltage range for this specific model is 8VDC to 40VDC.
Q: Can I request a customized voltage or current range?
A: Yes, we support OEM and ODM services to customize the input/output ranges according to your specific requirements.
Q: What is the cooling method for these modules?
A: These modules use free air convection for cooling, aided by their efficient design and high-quality heat-dissipating components.
