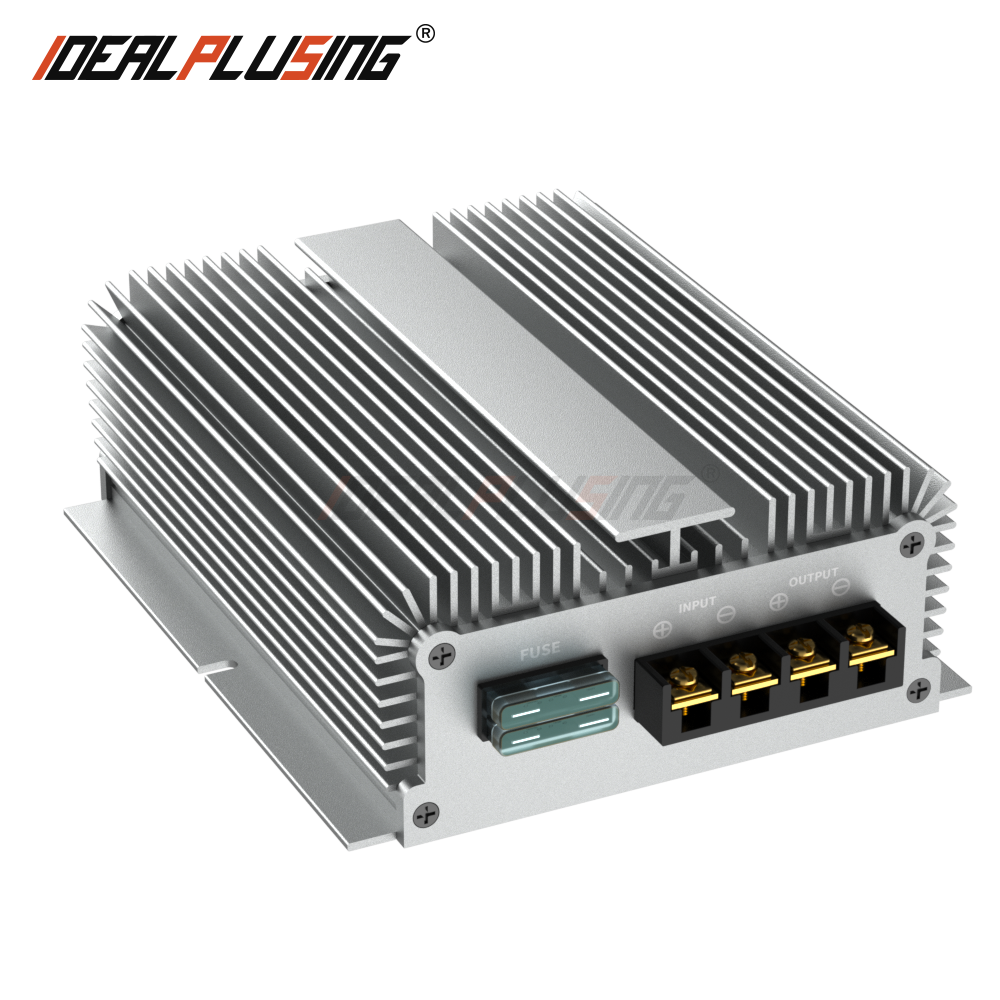

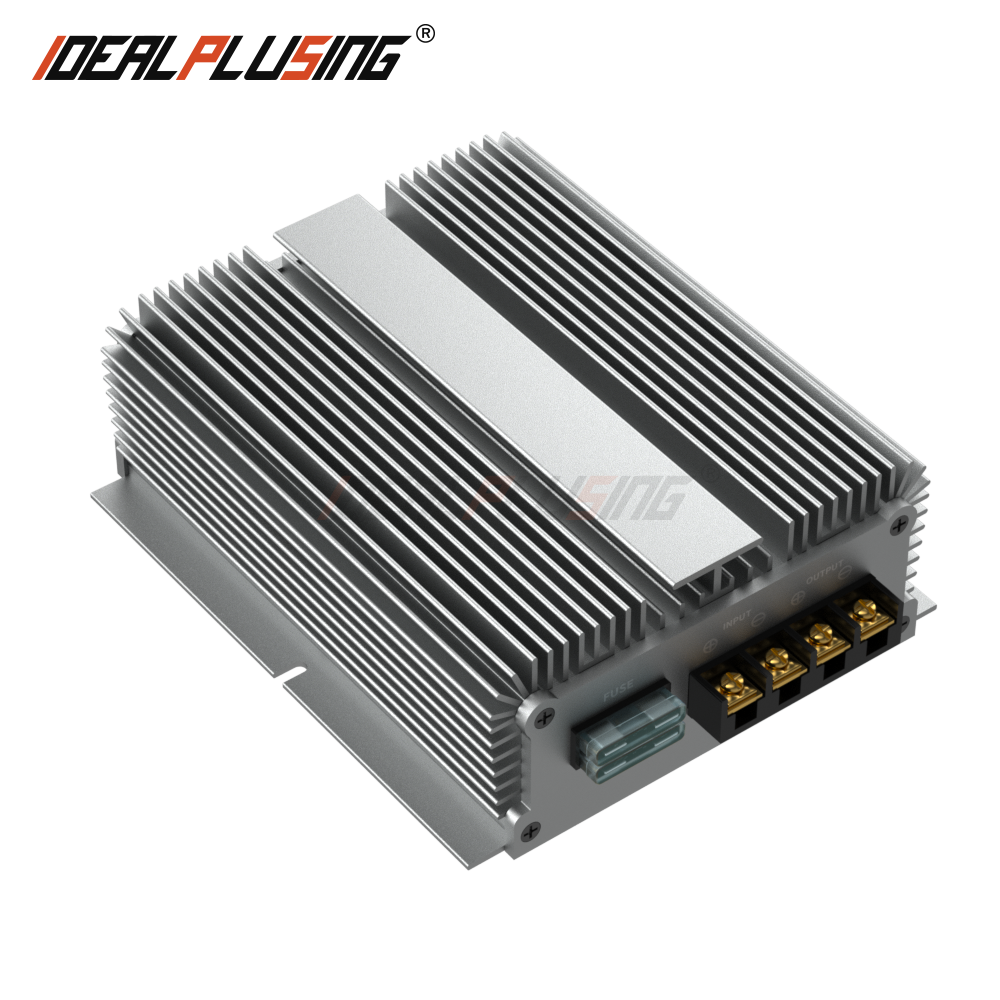

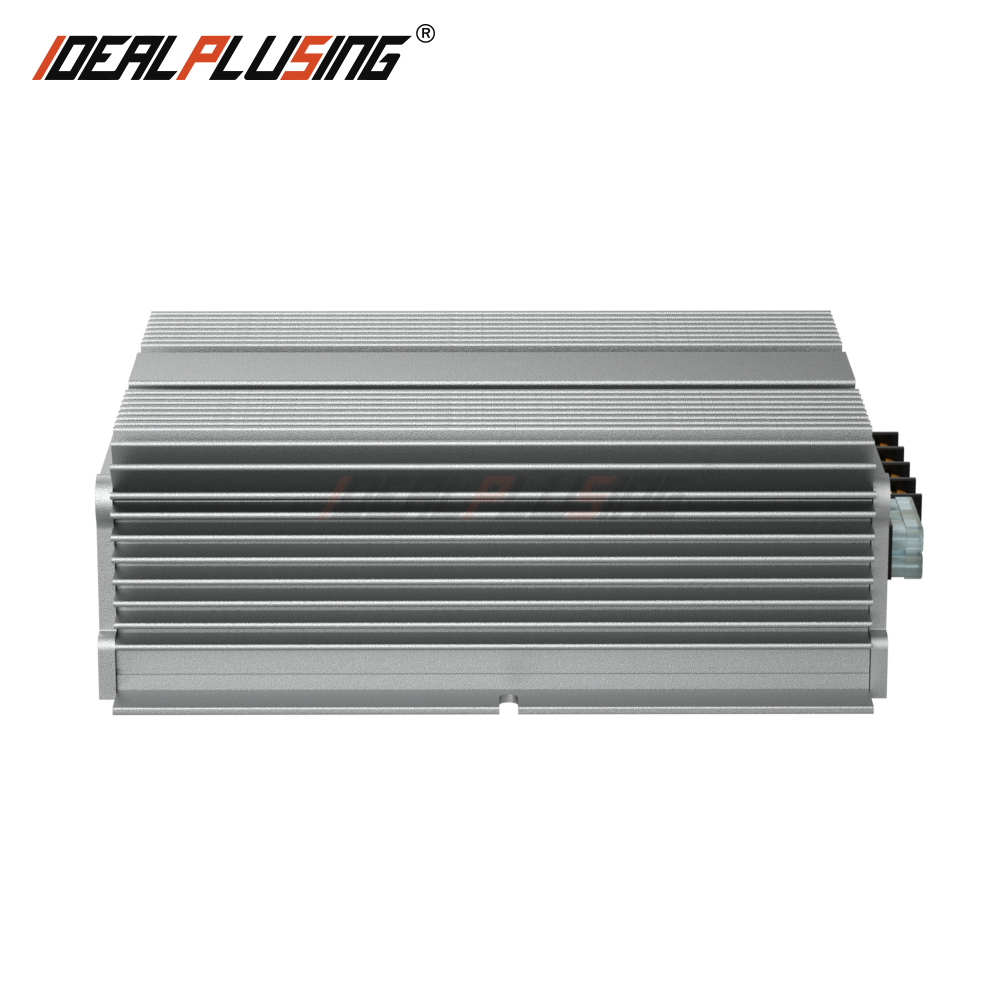

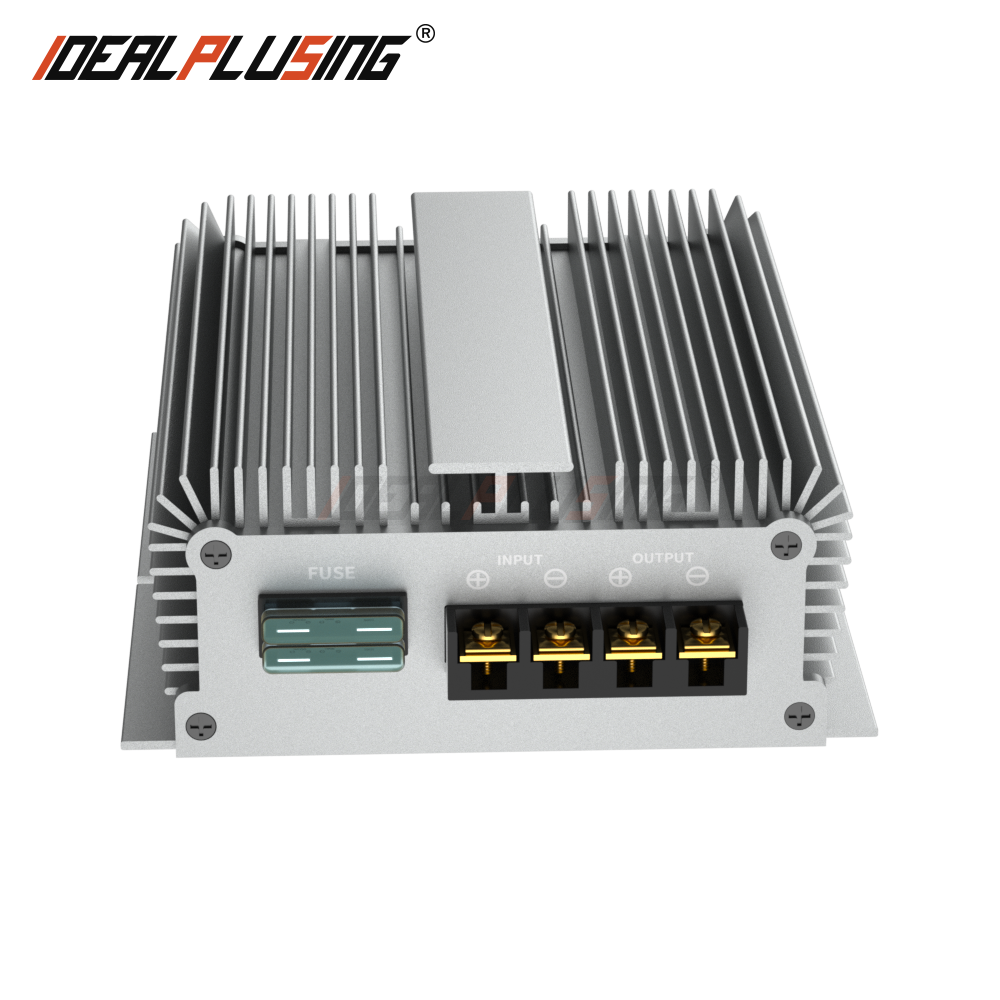

8-40V 12/24V 12V DC DC Step Down/Up 360W 30A Power Transformer Module Boost Buck Converter 12V Converter Inverters Converters
Product Description
8-40V to 12/24V DC-DC Power Transformer Module
High-Efficiency Boost Buck Converter 360W 30A Solution
Core Features
Versatile Conversion: Effectively outputs fixed voltage after converting input voltage. Categories include Boost, Buck, and Boost-Buck types.
Advanced Control: PWM control for high efficiency and low noise; PFM control for low power consumption during long-term or small load use.
Wide Application: Widely used in mobile phones, digital cameras, portable media players, electric vehicles, RVs, and marine industries.
Customized Power Solutions
We specialize in customizing DC-DC converters to meet specific industrial requirements. Our engineering team provides high-reliability designs for complex working environments.
- Customized Input/Output: 1V to 1000V DC
- Current Range: 1A to 1000A
- Design Options: Isolated and Non-isolated available
- Design Life: 15 to 20 years
Technical Specifications
| Parameter | Details |
|---|---|
| Brand | OEM / Standard |
| Type | Non-isolated |
| Input Voltage | 8~40VDC (Customizable) |
| Output Voltage | 12VDC (Customizable) |
| Output Current | 30 Amps (Customizable) |
| Output Power | 360 Watts (Customizable) |
| Shell Material | Aluminum |
| Protection Level | IP67 Waterproof |
Available Model Ranges
| Type | Input Range | Output Volts | Current Range |
|---|---|---|---|
| Boost Series | 5V-24V | 12V-56V | 1A - 50A |
| Buck Series | 12V-96V | 5V-36V | 1A - 100A |
| Boost & Buck | 8V-40V | 12V-24V | 1A - 25A |
| Battery Chargers | 10V-36V | 12.6V-56V | 1A - 60A |
| High Power (CAN) | 40V-900V | 14V-360V | Up to 284A |
Hot Selling Models
Technical Application Notes
- Standard protection includes: Output overcurrent, short-circuit, input undervoltage, and chip overheating.
- For inductive loads (coils, motors, speakers), recommend using a power supply with 3-5 times the rated load power.
- Isolated products provide the highest safety, preventing high input voltage from passing to the output end.
- Aluminum casings with hard gel encapsulation are designed for high reliability in outdoor applications.
- Isolated power supplies support negative voltage input and can output either positive or negative voltage.
Frequently Asked Questions
● What protections are included in these converters?
All buck-boost modules come standard with output overcurrent, short-circuit, input undervoltage, and overheating protection. High-power units include additional casing over-temperature protection set at approximately 90°C.
● Can I use these modules for motor applications?
Yes. For inductive loads like motors, magnetic valves, or speakers, it is highly recommended to select a converter with a rated power 3-5 times higher than the load's rated power to handle startup surges.
● What is the benefit of choosing an isolated converter?
Isolated converters are the safest option as they prevent high input voltage from passing to the output end in case of a fault. This protects precious load equipment from potential damage.
● Are these power supplies waterproof?
Most of our modules feature aluminum shells with IP67-rated waterproof and dustproof capabilities, making them suitable for outdoor and marine environments.
● Do you support negative voltage input?
Yes, our isolated power supply series can support negative voltage input. In such cases, the 0V line connects to the red wire, and the negative voltage line connects to the black wire.
● Can these modules be used for battery charging?
We offer specific DC-DC battery charger series optimized for Lithium (LifePO4) and Lead-Acid batteries with specialized charging voltage curves.
