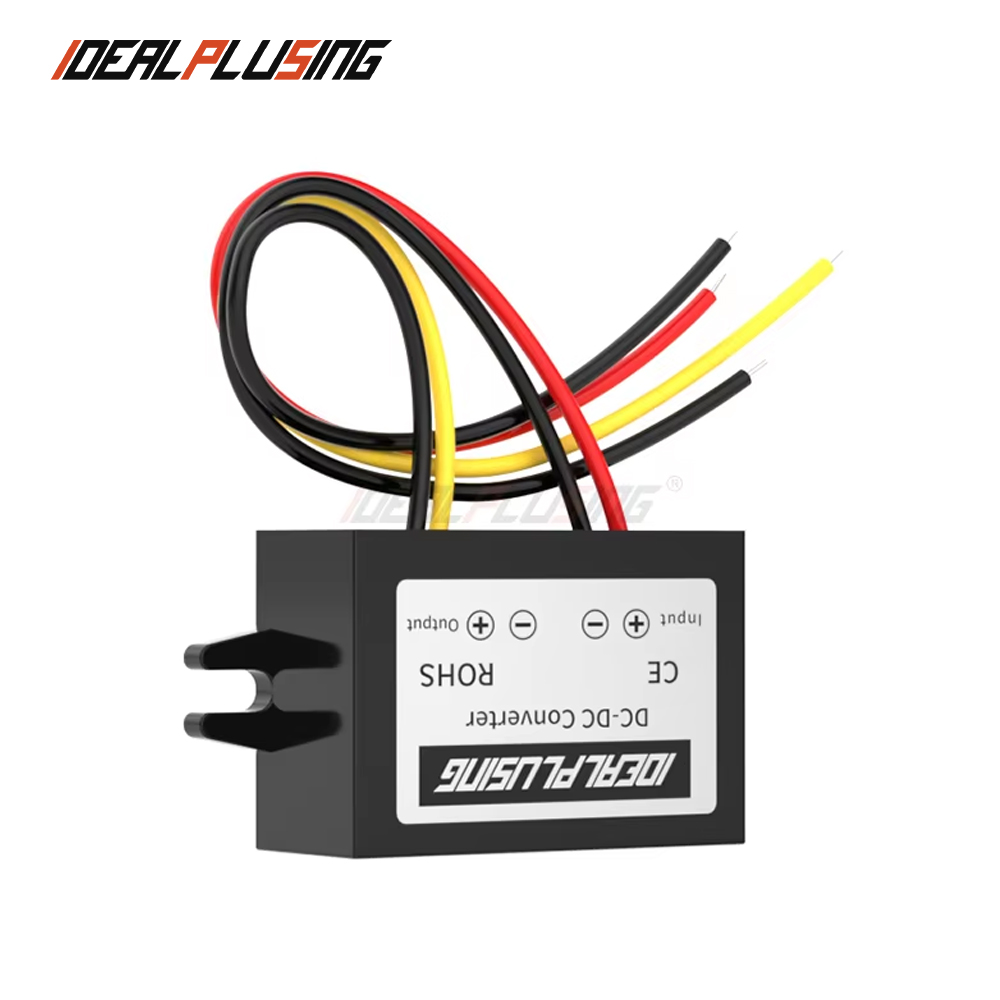

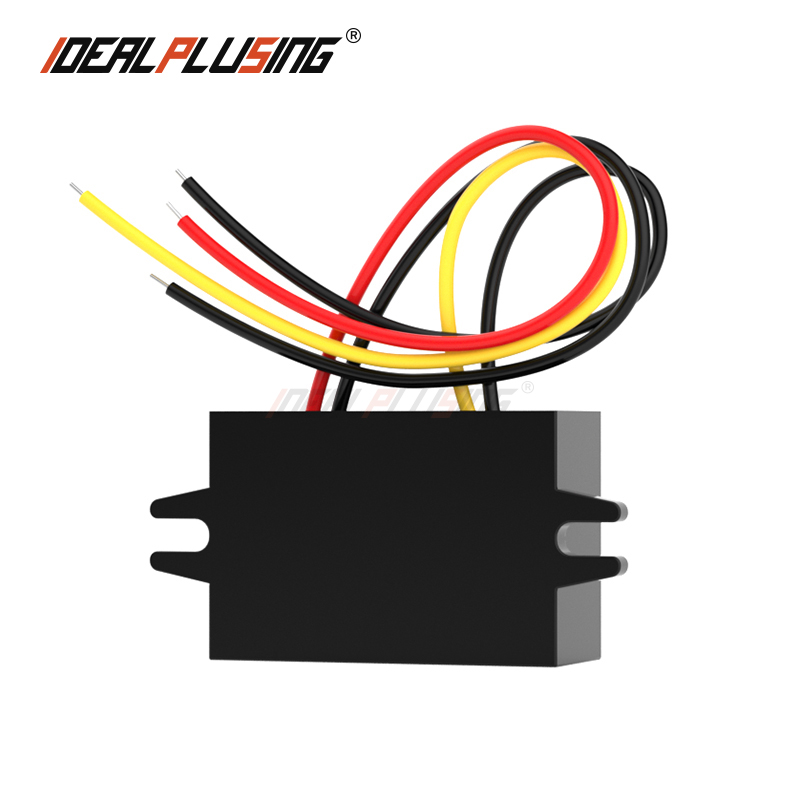

9-36V to 24V 3A 72W Stable Output Voltage Regulator DC to DC Converter for Short Circuit Protection
Product Description
9-36V to 24V 3A 72W Stable Output Voltage Regulator
This DC/DC converter is a high-efficiency voltage regulator designed to provide a fixed 24V output from a wide input range (9-36V). These converters are essential components in modern electronics, effectively managing power distribution through Boost, Buck, and Boost-Buck technologies.
🔹 PWM Control
High efficiency with excellent output voltage ripple and noise control, ideal for precision equipment.
🔹 PFM Control
Low power consumption even during long-term use, especially advantageous under small load conditions.
🔹 Wide Application
Widely used in mobile phones, digital cameras, portable media players, and industrial chopper circuits.
Specializing in customized DC-DC converters to meet specific industrial requirements. Our capabilities include:
- Customized input/output voltages from 1V to 1000V DC.
- Adjustable current ranges from 1A to 1000A.
- Both Isolated and Non-isolated design options available.
- Personalized, efficient, and cost-effective solutions for all industries.
| Parameter | Details |
|---|---|
| Type | Non-isolated |
| Model | IPS-DTD9-36S243 |
| Input Voltage | 9-36V DC |
| Output Voltage | 24V DC |
| Output Current | 3A |
| Output Power | 72W |
| Shell Material | Industrial Plastic |

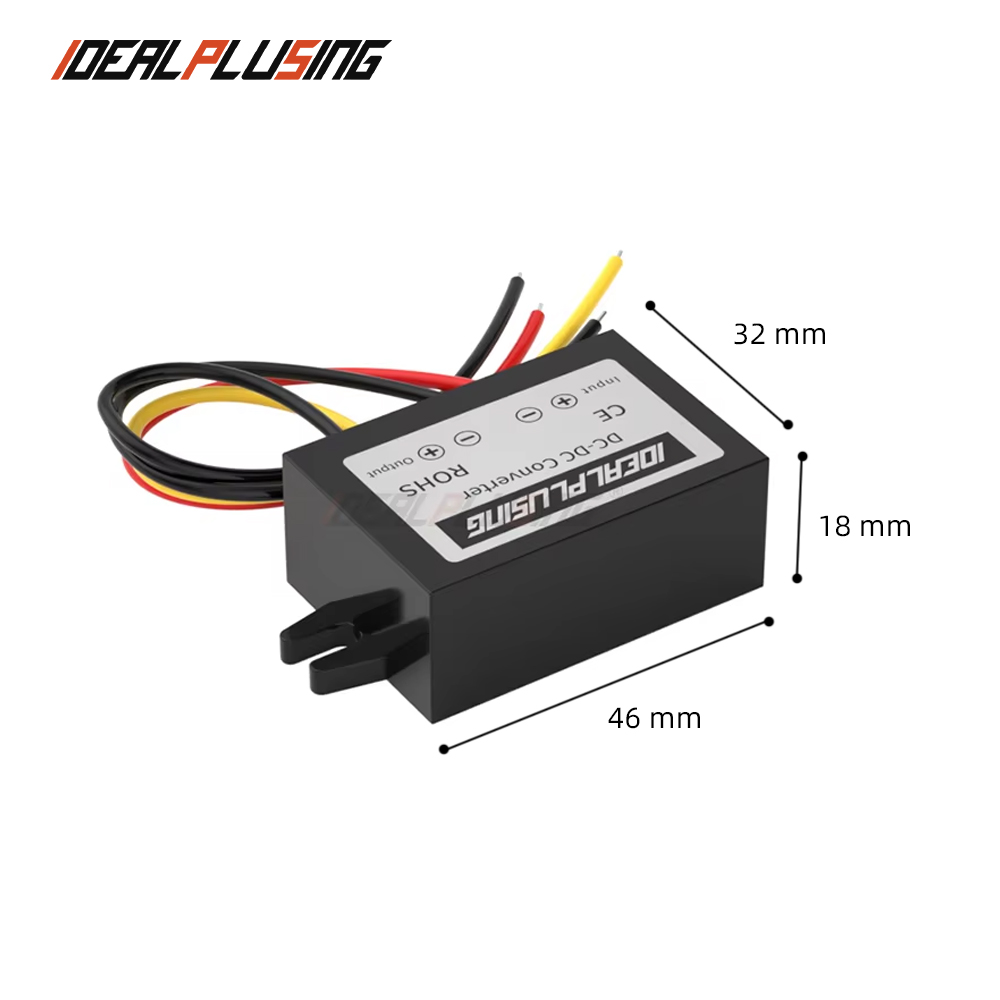

| Size | 46*32*18MM |
| Net Weight | 47G |
| Waterproof Level | IP67 |
IPS-DTD30-60S1210
IPS-DTD20-100S122
IPS-DTD15-40S1210
- Full Protection: Standard buck-boost products include overcurrent, short-circuit, undervoltage, and overheating protection.
- Boost Series Note: Step-up products generally do not have output short-circuit protection; adding input fuses is recommended.
- Inductive Loads: For motors, coils, and magnetic valves, recommend a power supply 3-5 times the rated load power.
- Safety: For non-isolated buck supplies, a failure could pass high input voltage to the output. Isolated products are recommended for precious loads.
- Isolation: The negative poles (ground) of isolated products must not be shared to maintain protection.
- Reliability: More than 90% of global power supplies (including mobile chargers) use isolated designs for maximum safety.
What is the difference between Isolated and Non-isolated converters?
Isolated converters provide a physical barrier between input and output circuits, preventing high input voltage from damaging the load. Non-isolated converters share a common ground and are typically smaller and more efficient but offer less protection against catastrophic input failure.
Does this unit have short-circuit protection?
Yes, most buck-boost models come standard with output short-circuit, overcurrent, and overheating protection. However, pure boost (step-up) models may require an external fuse for short-circuit safety.
Can I use this converter to power a motor?
Yes. For inductive loads like motors or magnetic valves, it is recommended to select a converter with 3-5 times the rated power of the motor to handle high start-up currents.
Is the output voltage adjustable?
This specific model provides a stable fixed 24V output. However, we offer customization services for various input and output requirements ranging from 1V to 1000V.
What is the advantage of PWM vs PFM control?
PWM (Pulse Width Modulation) provides high efficiency and stable ripple control for heavy loads. PFM (Pulse Frequency Modulation) is automatically used for small loads to ensure low power consumption.
Is the device waterproof for outdoor use?
Many of our models, including the IPS-DTD9-36S243, feature an IP67 rating, making them highly resistant to dust and water immersion, suitable for outdoor and high-demand applications.
