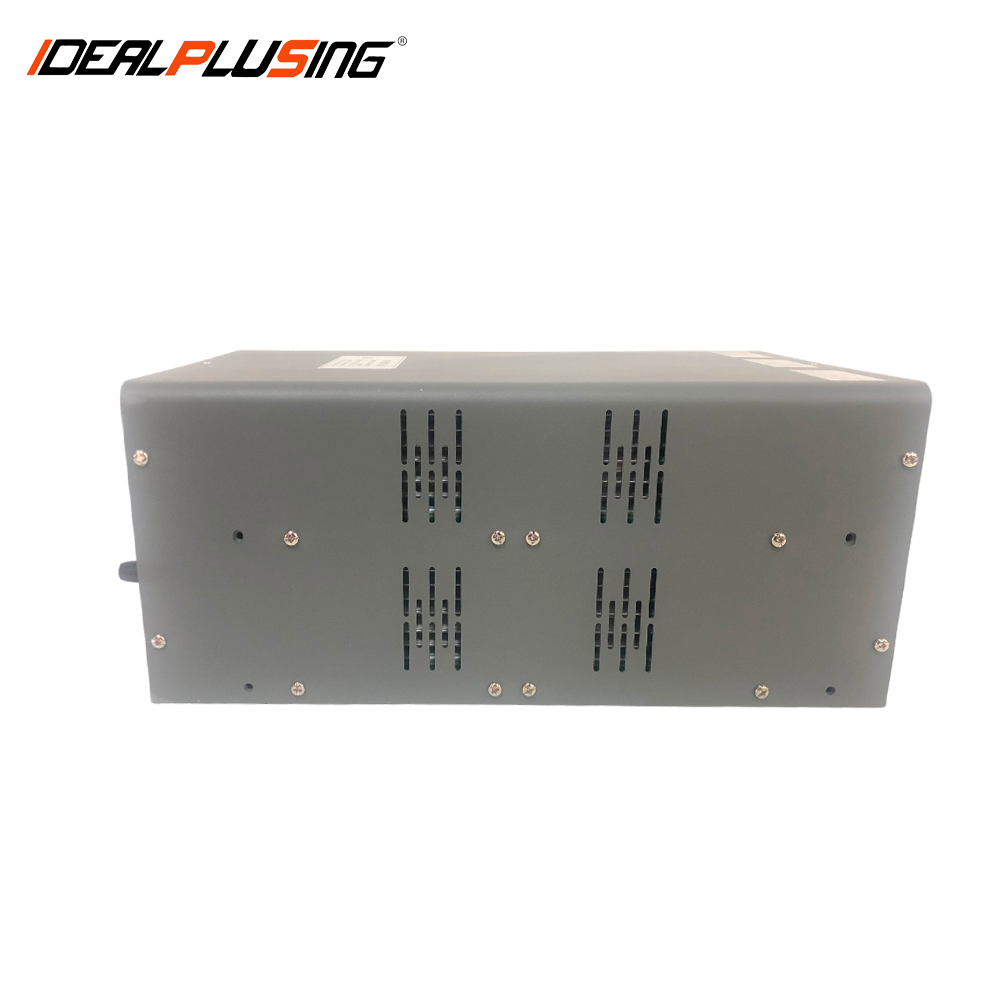

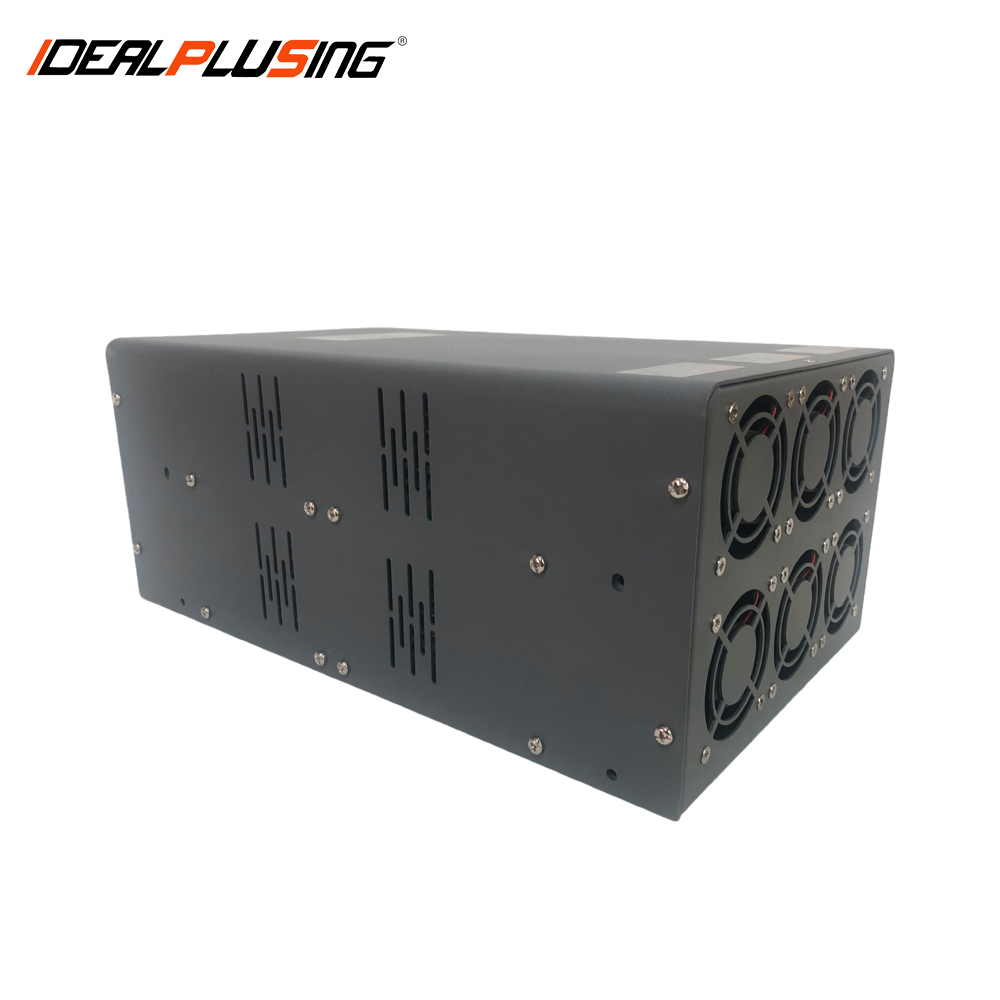

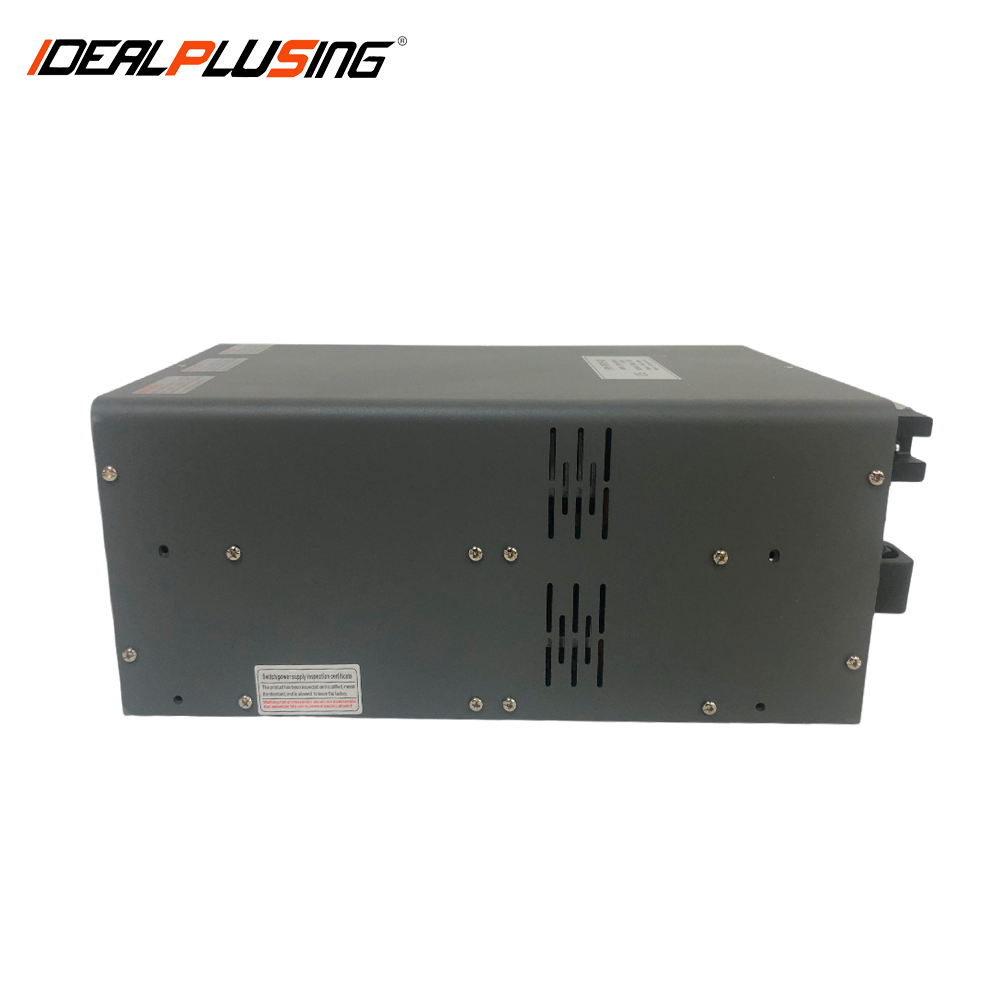

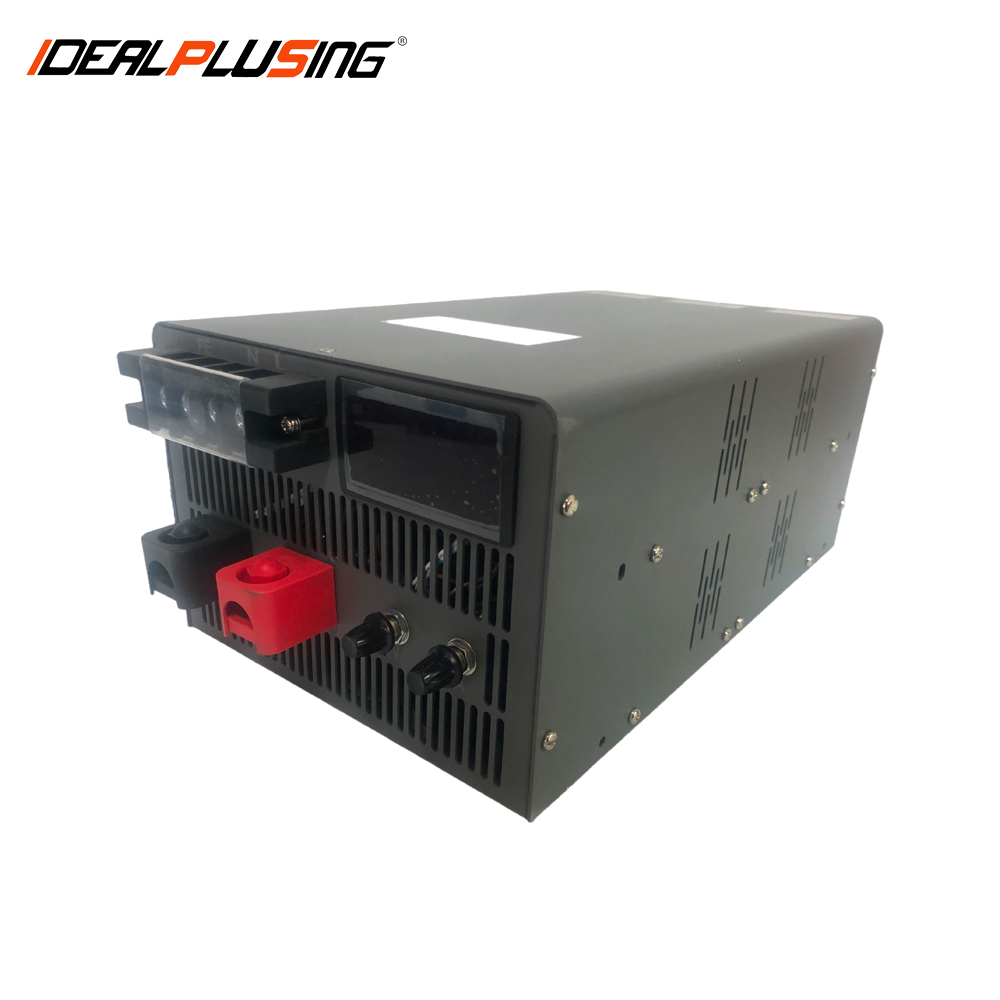

High Precision 24V 48V 60V 72V 82A Smps Power Supply 3000W 4000W 5000W 6000W 7000W Industrial AC to DC Switching Power Supply
Product Description
High Precision 24V 48V 60V 72v 70A Smps Power Supply 3000W 4000W 5000W 6000W 7000W Industrial AC to DC Switching Power Supply
We focus on the research and development, sales and service of DC to DC power supply module, AC to DC rectifier module, DC to AC inverter, AC power supply, DC power supply, LED power supply, charger, rectifier system and other fields, to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries.
What we want to give our customers is the right power supply solution, providing a better quotation solution with the right items. We specialize in customizing switching Power Supply to meet your specific requirements.
- Adjustable with Compact size, light weight
- AC input 200-240VAC 50/60HZ (110VAC/120VAC support available upon request)
- 100% full load burn-in test
- Comprehensive Protection: Short circuit / Over load / Over voltage
- Fixed switching frequency at 25KHz
- High efficiency, reliable quality, competitive cost
- Optional: 0-5Vdc / 0-10Vdc External control output
- Optional: Extra adjustable potentiometer
| Parameter | Value |
|---|---|
| Type | Switching Mode Power Supply |

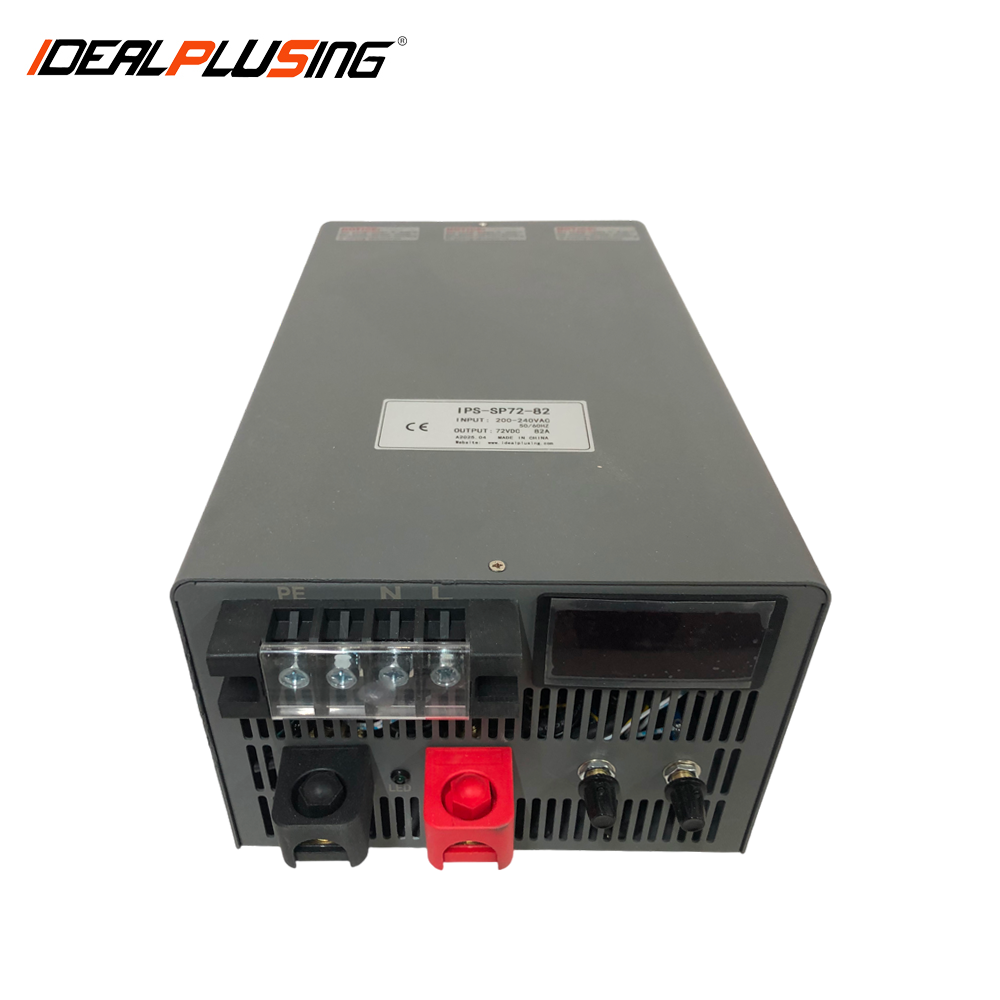

| Model | IPS-SP72-82 |
| Input voltage | Single phase 200~240VAC |
| Input frequency | 50/60hz |
| DC Output Voltage | Based on model |
| Output Power | 7000W Max |
| Dimension | 351*210.8*148.5(mm) |
| Net Weight | 9.8KG |
| Model | Input Voltage (VAC) | Output Voltage (VDC) | Output Current (AMPS) |
|---|---|---|---|
| IPS-SP24-247 | 200-240VAC | 24VDC | 247A |
| IPS-SP36-165 | 200-240VAC | 36VDC | 165A |
| IPS-SP48-123 | 200-240VAC | 48VDC | 123A |
| IPS-SP60-99 | 200-240VAC | 60VDC | 99A |
| IPS-SP72-82 | 200-240VAC | 72VDC | 82A |
| IPS-SP150-39 | 200-240VAC | 150VDC | 39A |
24VDC 500W SMPS
Input: 95-264VAC
Output: 24VDC, 20.83A
48VDC 500W SMPS
Input: 95-264VAC
Output: 48VDC, 10.42A
12VDC 350W SMPS
Input: 95-264VAC
Output: 12VDC, 29.17A
We specialize in customizing switching converters. Our products support customized input and output voltages/currents ranging from 1V to 1000V and 1A to 1000A.
| Power Rating | Standard Models | Output Range |
|---|---|---|
| 400W Series | IPS-SP12-33.3 to IPS-SP330-1.21 | 12V to 330VDC |
| 1000W Series | IPS-SP12-83.3 to IPS-SP1000-1 | 12V to 1000VDC |
| 2000W Series | IPS-SP24-83.3 to IPS-SP1000-2 | 24V to 1000VDC |
| 5000W Series | IPS-SP24-208 to IPS-SP220-22.7 | 24V to 220VDC |
| 10000W Series | IPS-SP24-354 to IPS-SP220-38 | 24V to 220VDC |
Can the output voltage and current be customized?
Yes, we specialize in customization. We can support output voltages and currents ranging from 1V to 1000V and 1A to 1000A based on your specific load information.
What input voltages are supported?
Standard models support 200-240VAC. However, we can also provide models that support 110VAC/120VAC switchable inputs upon request.
What protection features are included?
All our switching power supplies come with built-in protection against short circuits, overloads, and over-voltage scenarios to ensure industrial safety.
Is external control available for these power supplies?
Yes, we offer optional external control features such as 0-5Vdc or 0-10Vdc signals to adjust the output remotely.
Do you perform quality testing before shipping?
Absolutely. Every unit undergoes a 100% full load burn-in test to ensure reliability and high performance before it leaves our factory.
How quickly can I get a customized solution?
Our professional sales engineers typically provide initial technical solutions within a very short time after receiving your specific requirements and load details.
