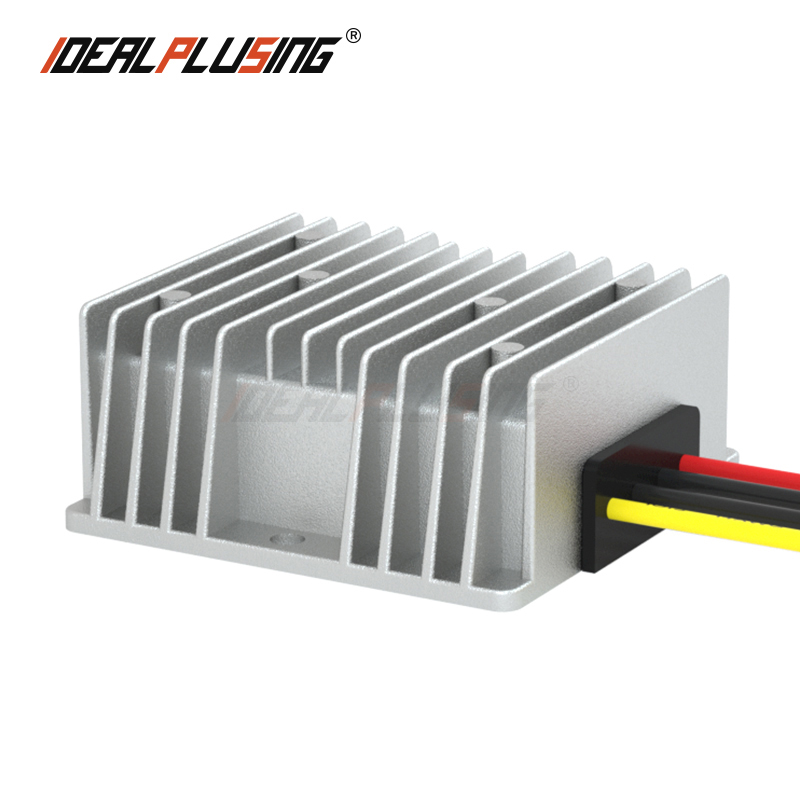

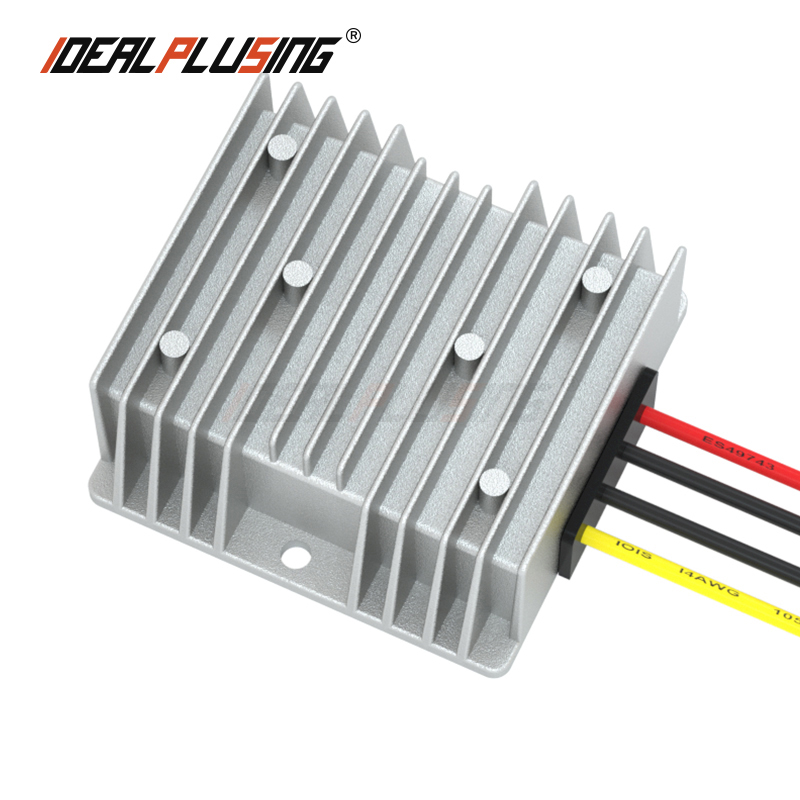

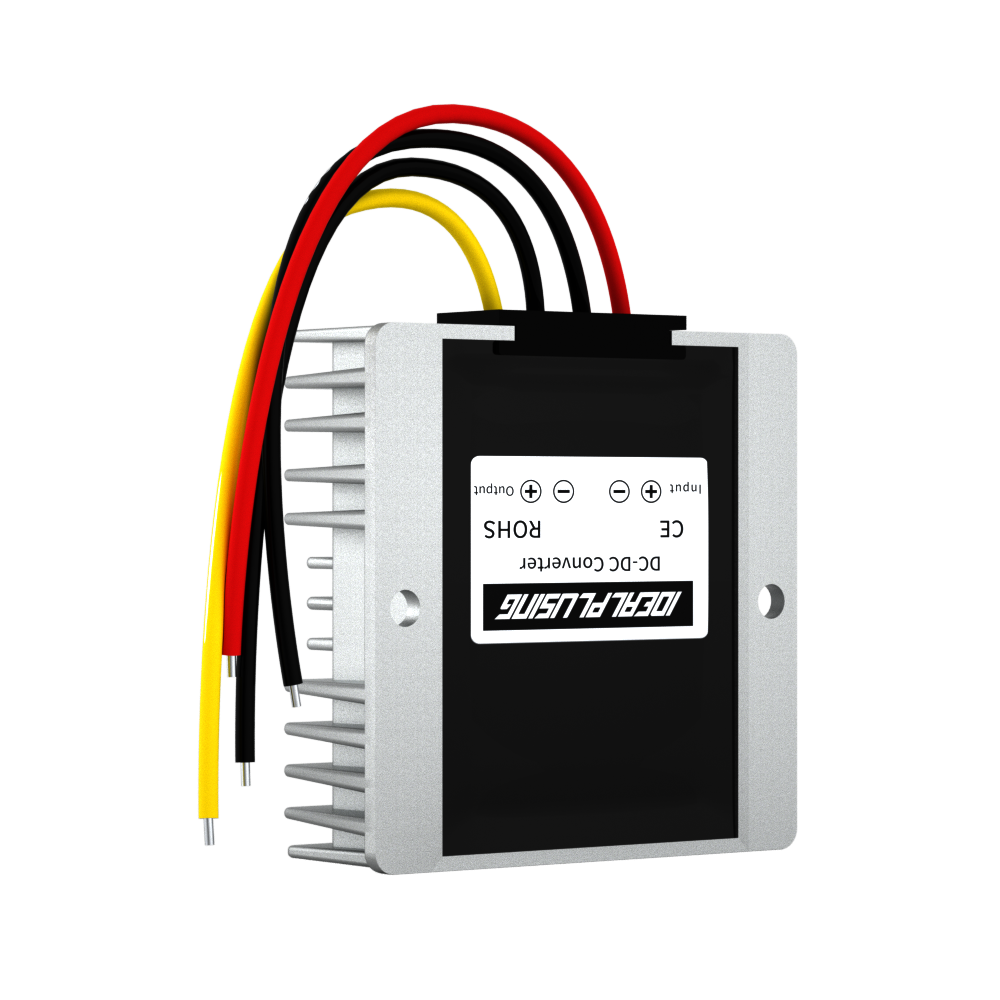

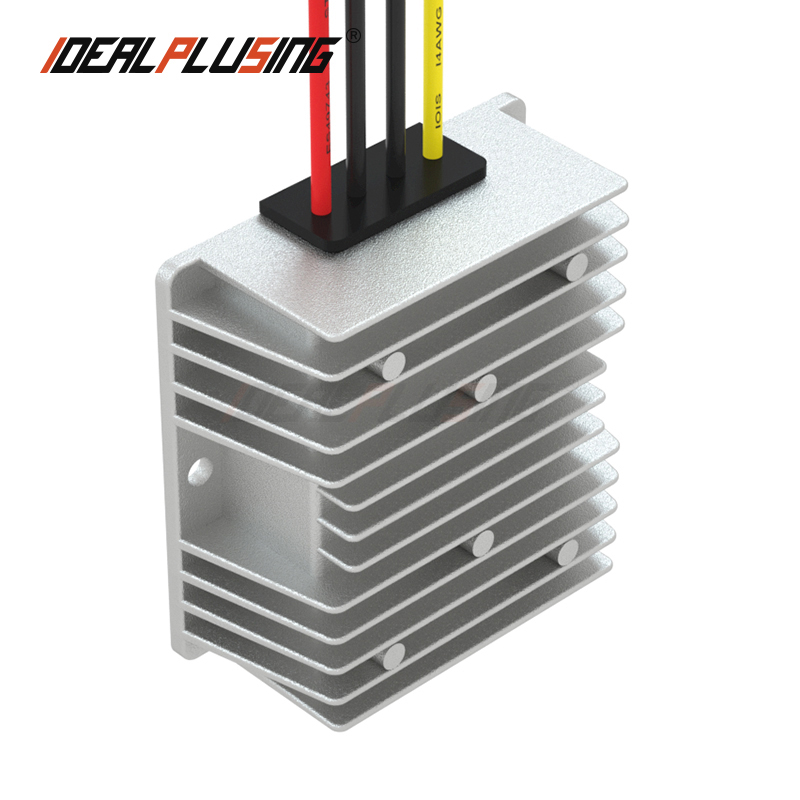

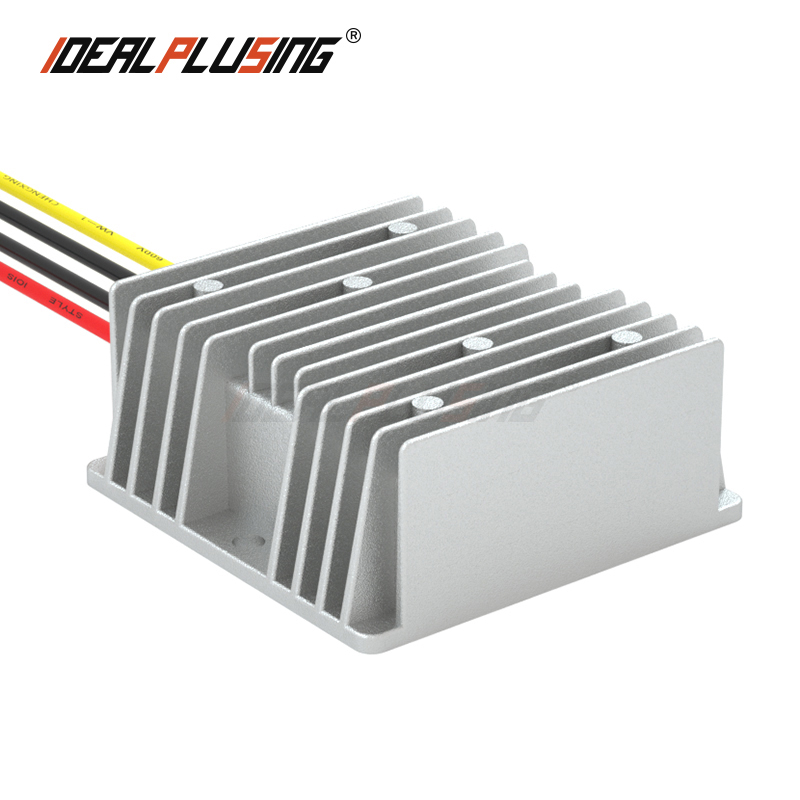

High Precision Dc to Dc Boost and Buck 12V to 12V Converter Transformer 10A 300W Step up Converter for Car
Product Description
High Precision DC to DC Boost and Buck 12V to 12V Converter Transformer 20A 300W
Advanced power conversion solutions for automotive, marine, and industrial applications.
🚀Key Features & Technology
DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. Our converters are divided into three categories: Boost type, boost & buck type, and buck type.
Two primary control types are utilized: PWM control offers high efficiency with excellent output voltage ripple and noise control. PFM control provides the advantage of low power consumption during long-term use, especially under small loads. The system automatically converts to PWM control when heavy loads occur, making it ideal for mobile phones, digital cameras, and portable media players.
Two primary control types are utilized: PWM control offers high efficiency with excellent output voltage ripple and noise control. PFM control provides the advantage of low power consumption during long-term use, especially under small loads. The system automatically converts to PWM control when heavy loads occur, making it ideal for mobile phones, digital cameras, and portable media players.
🛠️Custom Power Solutions
We specialize in customizing DC-DC converters to meet your specific requirements. With customized input and output voltage and current, our offerings range from 1V to 1000V DC and 1A to 1000A. We provide both isolated and non-isolated converter design options.
Our R&D team has more than 24 years of experience, with production management expertise exceeding 16 years. We utilize perfect test equipment and management processes to ensure high reliability. The design life of the products is 15 to 20 years, suitable for complex working environments worldwide.
📊Technical Specifications
| Parameter | Details |
|---|---|
| Type | Non-isolated |
| Model | IPS-DTD12S1210 |
| Input Voltage | 6-20VDC |
| Output Voltage | 12VDC |
| Output Current | 10Amps |
| Output Power | 120Watts |
| Shell Material | Aluminum |
| Dimensions | 74*74*32MM |
| Net Weight | 0.3KG |
| Waterproof Level | IP67 |
🔥Hot Selling Models
IPS-DTD30-60S1210
Non-Isolated DC DC Converter
IPS-DTD20-100S122
Non-Isolated DC DC Converter
IPS-DTD15-40S1210
Non-Isolated DC DC Converter
🖼️Product Display
💡Technical Application Guidelines
- Standard protection includes output overcurrent, short-circuit, input undervoltage, and chip overheating protection.
- For inductive loads (motors, magnetic valves, etc.), it is recommended to use a power supply 3-5 times the rated power of the load.
- Isolated products are highly recommended for precious loads to prevent high input voltage from directly passing to the output.
- The negative pole (ground) of isolated products cannot be shared; input and output must be used separately.
- Isolated power supplies support negative voltage input and can output both positive or negative voltages.
- Hard gel encapsulated products offer high reliability and IP67 waterproof ratings for outdoor applications.
❓Frequently Asked Questions
1. What is the difference between PWM and PFM control?
PWM control is efficient with low noise for standard loads, while PFM control is optimized for low power consumption during long periods of small load usage. Our systems switch between them automatically based on the load requirements.
2. Why should I choose an isolated converter over a non-isolated one?
Isolated converters provide a safety barrier that prevents high input voltage from reaching your load in case of a failure. They are essential for protecting expensive or sensitive equipment.
3. Can these converters handle motor or inductive loads?
Yes, but because motors have high startup currents, we recommend selecting a converter with a rated power 3 to 5 times higher than the motor's nominal power.
4. Are the converters waterproof for outdoor use?
Many of our models, especially those with aluminum shells and hard gel encapsulation, feature IP67 waterproof ratings, making them highly resistant to dust and water immersion.
5. What customization options are available?
We can customize voltage and current specifications ranging from 1V to 1000V and 1A to 1000A, covering isolated, non-isolated, boost, buck, and battery charging configurations.
6. How is the product durability ensured?
Our products are designed for a 15-20 year service life and undergo rigorous testing with high-specification components to ensure reliability in complex working environments.
