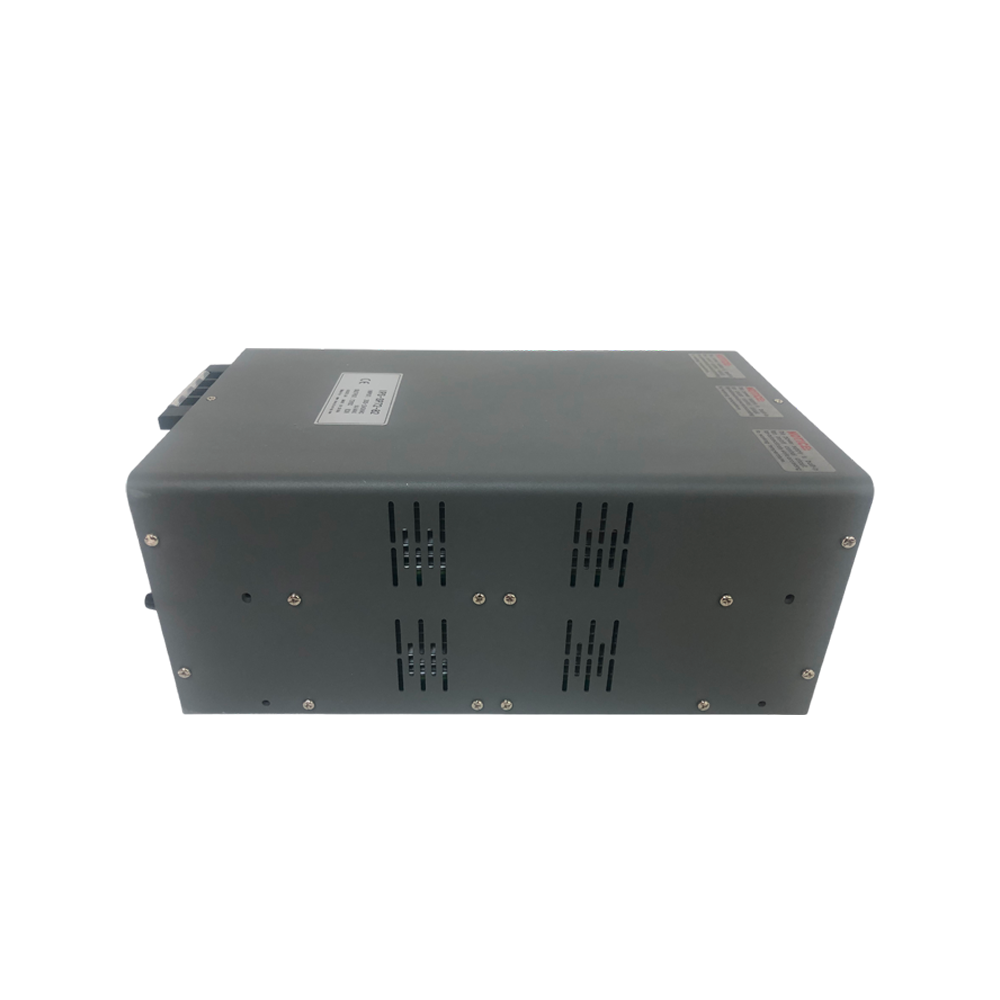

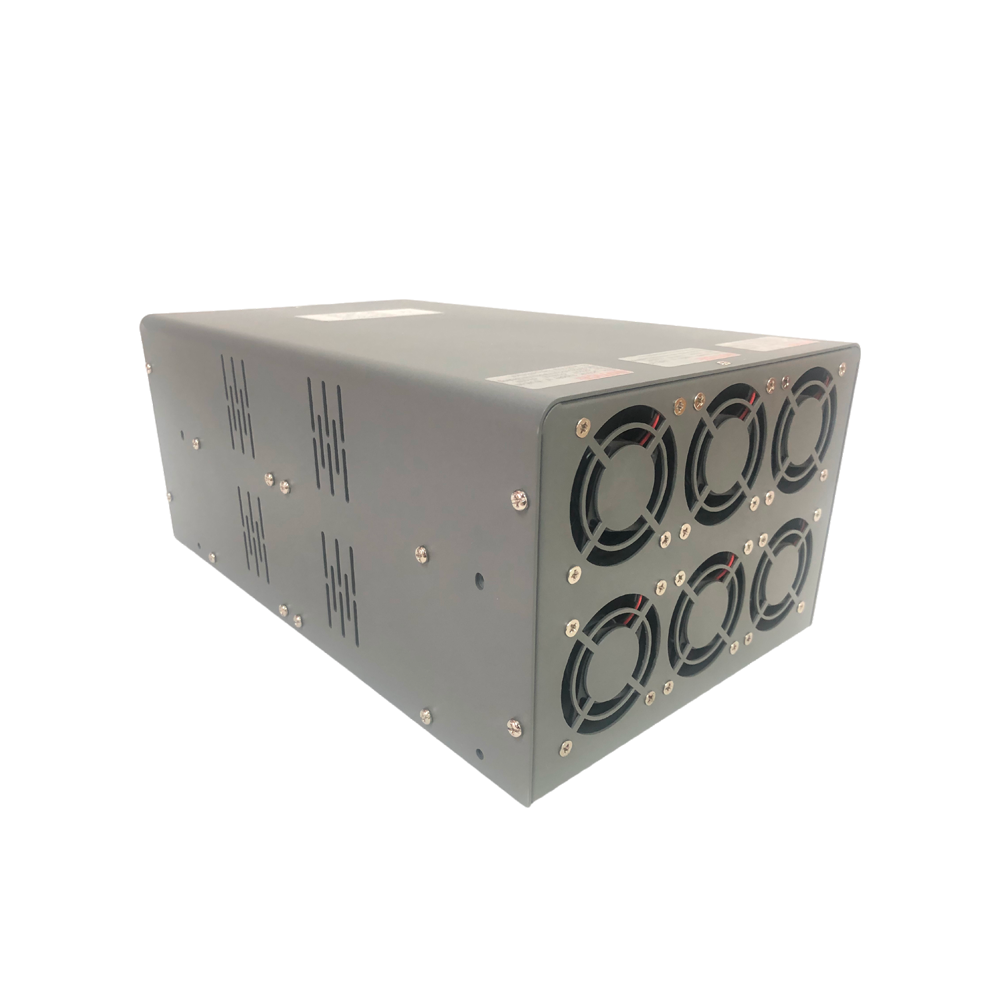

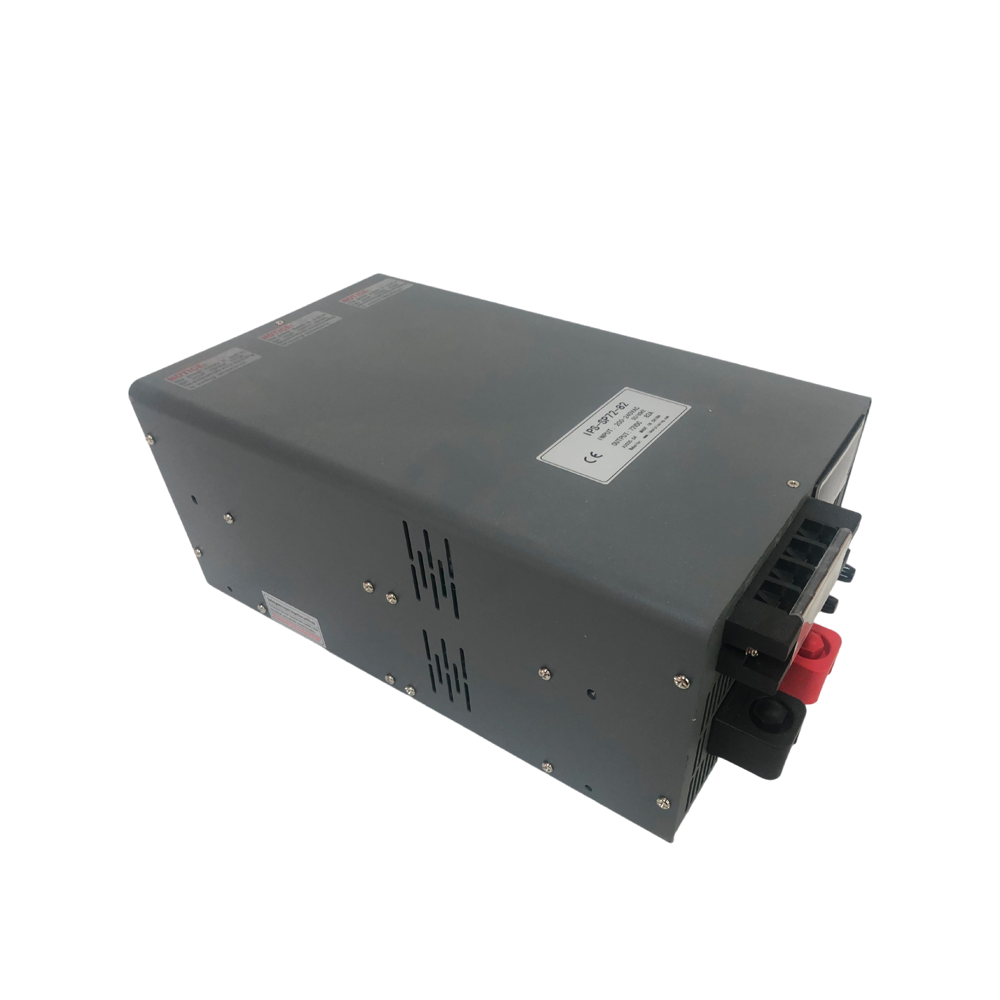

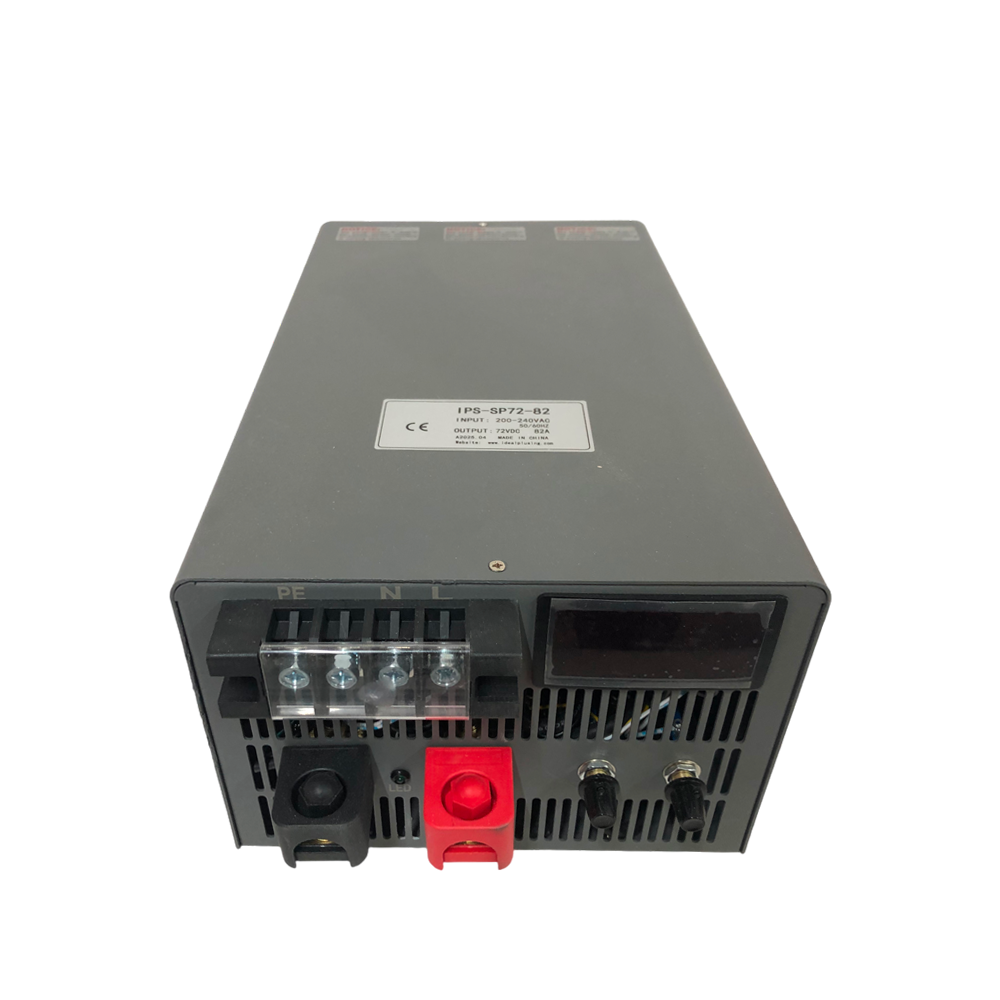

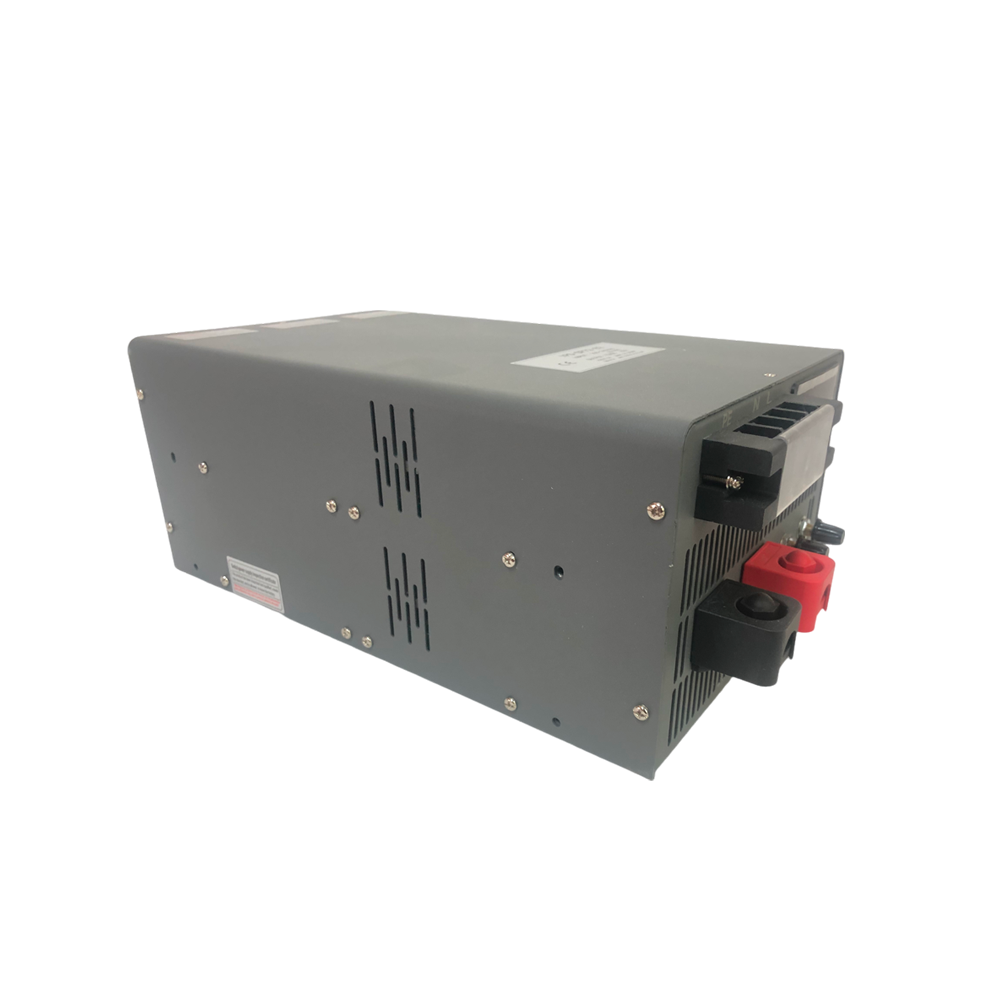

10000w High Voltage 24 Volt 100 Amp 400v Output Switch Power Supply 150v for Mppt
Product Description
10000w High Voltage 24 Volt 100 Amp 400v Output Switch Power Supply 150v for Mppt
Product Profile
We focus on the research and development, sales and service of DC to DC power supply modules, AC to DC rectifier modules, DC to AC inverters, AC power supplies, DC power supplies, LED power supplies, chargers, and rectifier systems. Our goal is to provide personalized, efficient, reliable, and cost-effective power supply solutions for all industries.
Our Mission: We provide our customers with the right power supply solutions, offering optimized quotations for specific requirements.
Our Advantages
- Specialized Customization: We specialize in customizing switching power supplies to meet your specific requirements.
- Free Technical Support: Submit your inquiries and receive expert consultation on the right items for your project.
- Rapid Response: Our dedicated team endeavors to respond within one hour to all specification inquiries.
- Global Standards: Providing solutions across all major industries with high efficiency and reliability.
Product Features
| No. | Feature Description |
|---|---|
| 1 | Adjustable with Compact size, light weight |
| 2 | AC input 200-240VAC 50/60HZ (110VAC/120VAC available via customization) |
| 3 | 100% full load burn-in test |
| 4 | Protection: Short circuit / Over load / Over voltage |
| 5 | Fixed switching frequency at 25KHz |
| 6 | High efficiency, reliability quality, competitive cost |
| 7 | 0-5Vdc / 0-10Vdc External control output (Optional) |
| 8 | Extra adjustable potentiometer (Optional) |
| 9 | Output voltage adjustable, output current be fixed (Optional) |
Technical Specifications
| Type | Switching Mode Power Supply |
| Model | IPS-SP48-177 |
| Input voltage | Single phase 200~240VAC |
| Input frequency | 50/60hz |
| DC Output Voltage | Based on model |
| Output Current | Based on model |
| Output Power | 10000W Max |
| Dimension | 415*222.8*172.2(mm) |
| Net Weight / Gross Weight | 14.6KG / 19.4KG |
Model List (8000W Series)
| Model | Input Voltage (VAC) | Output Voltage (VDC) | Output Current (AMPS) |
|---|---|---|---|
| IPS-SP24-354 | 200-240VAC / 380VAC | 24VDC | 354A |
| IPS-SP36-236 | 200-240VAC / 380VAC | 36VDC | 236A |
| IPS-SP48-177 | 200-240VAC / 380VAC | 48VDC | 177A |
| IPS-SP60-141 | 200-240VAC / 380VAC | 60VDC | 141A |
| IPS-SP72-118 | 200-240VAC / 380VAC | 72VDC | 118A |
| IPS-SP96-88 | 200-240VAC / 380VAC | 96VDC | 88A |
| IPS-SP110-77 | 200-240VAC / 380VAC | 110VDC | 77A |
| IPS-SP150-56 | 200-240VAC / 380VAC | 150VDC | 56A |
| IPS-SP220-38 | 200-240VAC / 380VAC | 220VDC | 38A |
Hot Selling Models
PFC SERIES
IPS-PFC500-24
Output: 24VDC, 20.83A
PFC SERIES
IPS-PFC500-48
Output: 48VDC, 10.42A
PFC SERIES
IPS-PFC350-12
Output: 12VDC, 29.17A
High Capacity Solutions (1000W - 3000W)
Industrial Grade Switching Power Supplies
One-to-One Customization Service
We specialize in customizing switching converters to meet your specific needs. Our products support customized input and output voltages and currents ranging from 1V to 1000V and 1A to 1000A.
Tell us your needs and we will recommend the best solution for you. We provide professional sales engineering consultations to ensure the most suitable product for your usage scenarios and load information.
Dimensions & Detail Displays
Product Application & Factory
Frequently Asked Questions (FAQ)
Q: Can I customize the input and output parameters?
A: Yes, we provide full customization. We support input and output voltages from 1V up to 1000V and current from 1A up to 1000A based on your specific requirements.
Q: What safety protections are included in these power supplies?
A: All units are equipped with standard protection features including Short Circuit Protection, Overload Protection, and Overvoltage Protection to ensure system safety.
Q: Are the products tested before shipping?
A: Absolutely. Every unit undergoes a 100% full load burn-in test to guarantee reliability and performance quality before it leaves the factory.
Q: Do you support 110VAC/120VAC input for your power supplies?
A: While standard input is 200-240VAC, we can customize units to support 110VAC or 120VAC. Please specify this requirement during the consultation.
Q: How can I determine the right model for my application?
A: You can share your usage scenario and load information with our engineers. We provide a free consultation service to recommend the most suitable parameters for your project.
Q: What industries are these power supplies suitable for?
A: Our solutions are widely used in UV curing equipment, MPPT systems, industrial automation, CCTV camera systems, and telecommunications.
