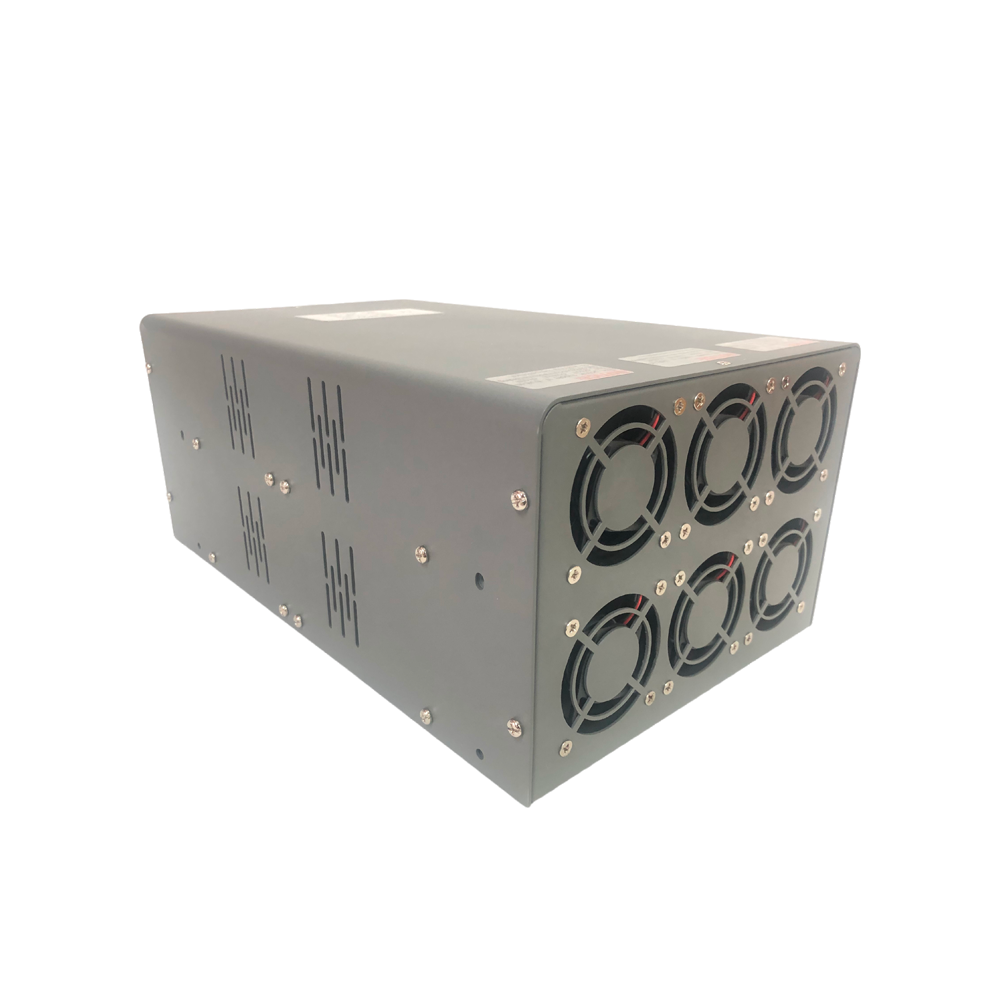

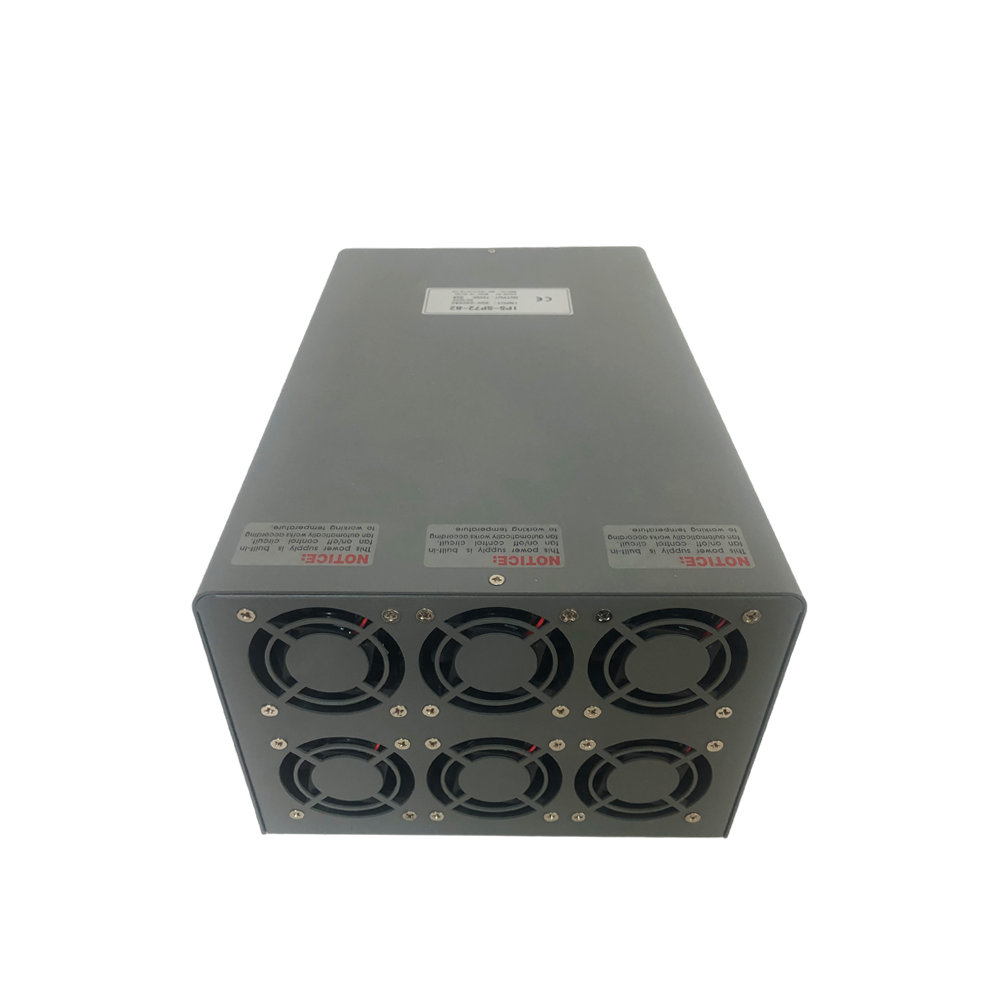

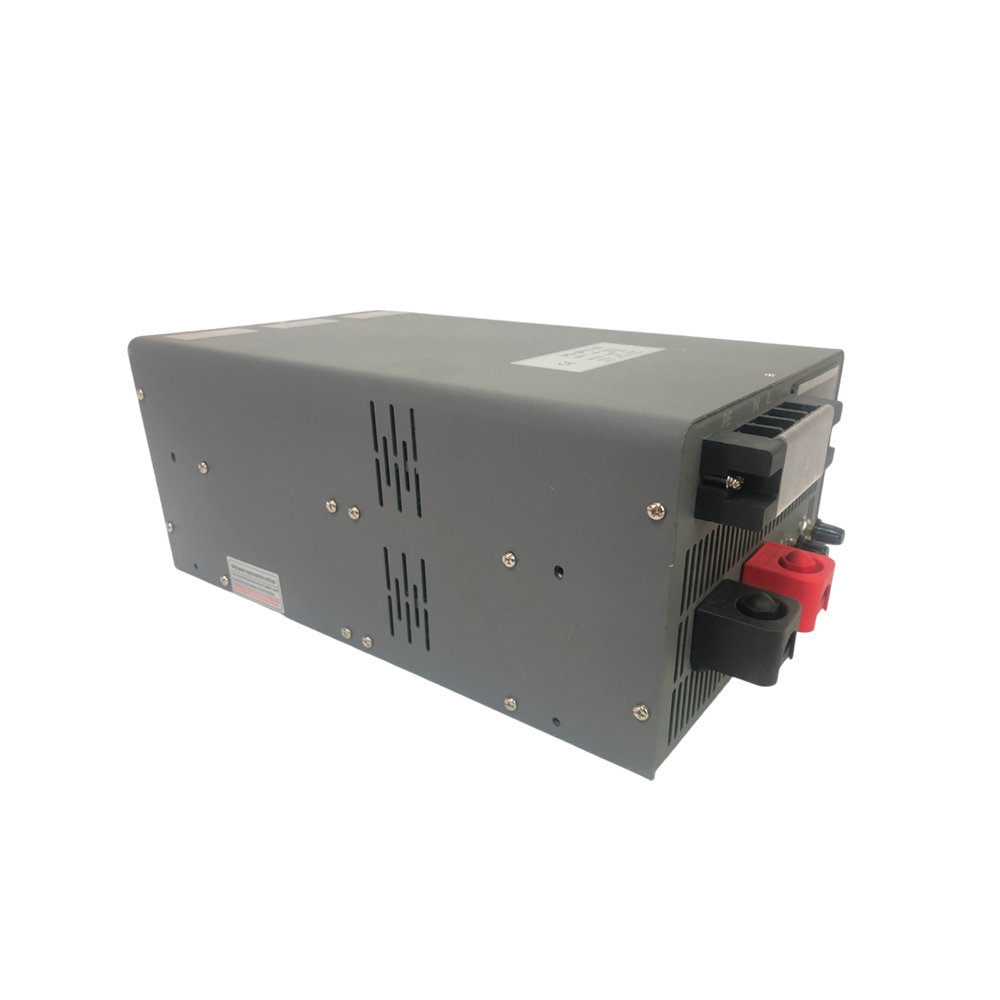

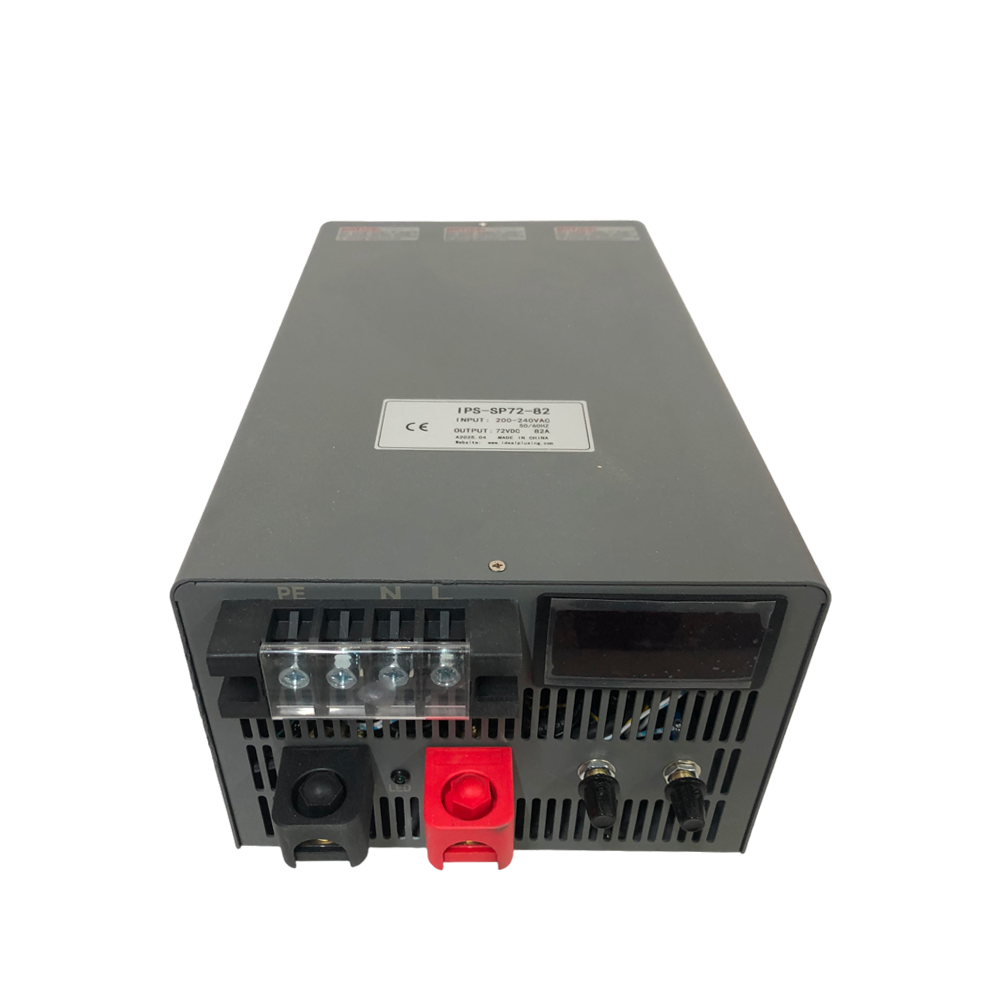

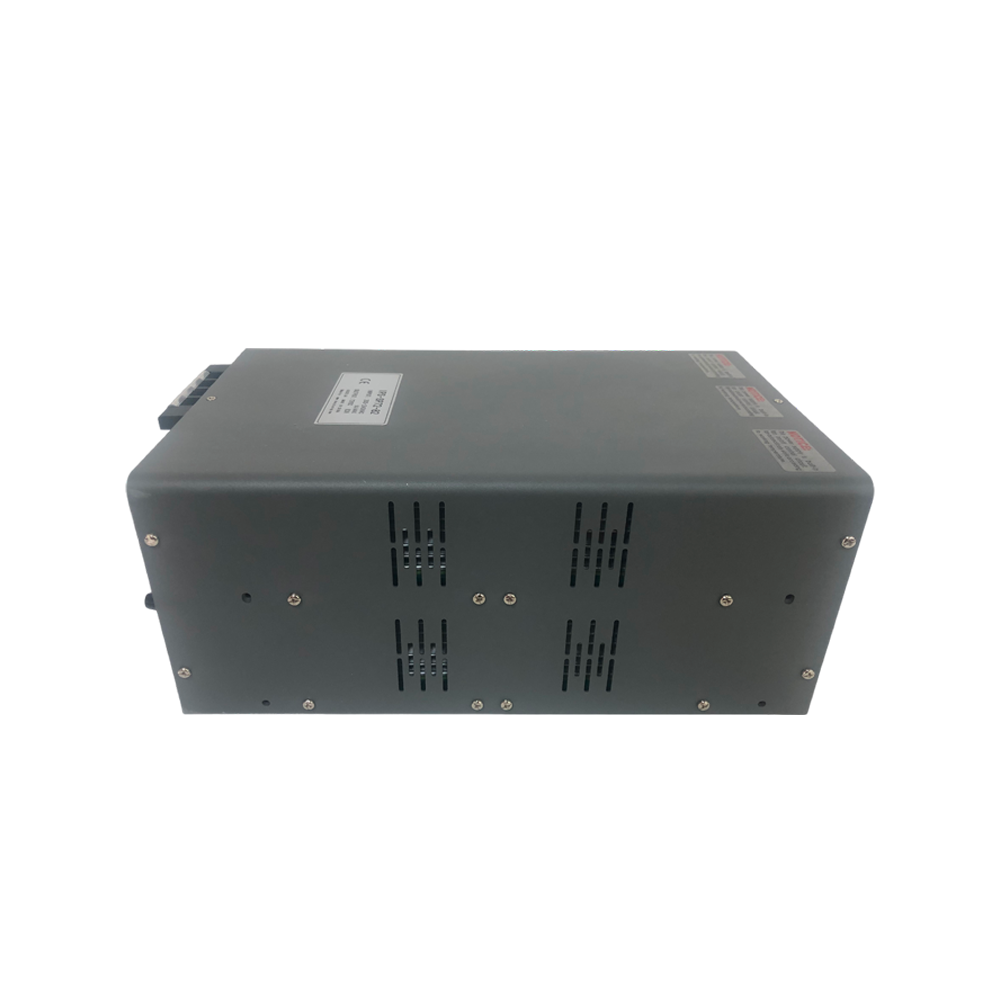

High Voltage Input 200-240V Output 24v 36v 48v 110v 200v 220v 30 Amp Dc Dc Switching Power Supply for Pc
Product Description
High Voltage Input 200-240V Output 24v 36v 48v 110v 200v 220v 30 Amp Dc Dc Switching Power Supply for Pc
Overview
We focus on the research and development, sales and service of D C to D C power supply module, A C to D C rectifier module, D C to A C inverter, A C power supply, D C power supply, L E D power supply, charger, rectifier system and other fields, to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries.
What we want to give our customers is the right power supply solution, giving a better quotation solution with the right items. We specialize in customizing switching Power Supply to meet your specific requirements.
Product Features
⚡
Adjustable & Compact: Designed with a compact size and light weight for versatile installation.
🔌
Standard Input: AC input 200-240VAC 50/60HZ. Customized 110VAC/120VAC options available.
🛡️
Full Protection: Built-in Short circuit, Over load, and Over voltage protection.
✅
Quality Assurance: 100% full load burn-in test with fixed switching frequency at 25KHz.
⚙️
Optional Controls: Supports 0-5Vdc / 0-10Vdc External control output and extra adjustable potentiometers.
Technical Specifications
| Parameter | Details |
|---|---|
| Type | Switching Mode Power Supply |
| Model | IPS-SP220-30 |
| Input Voltage | Single phase 200~240VAC |
| Input Frequency | 50/60hz |
| DC Output Voltage | Based on model |
| Output Power | 8000W Max |
| Dimension | 351*210.8*148.5(mm) |
| Weight | Net: 9.8KG / Gross: 14.6KG |
8000W Model List
| Model | Input Voltage (VAC) | Output Voltage (VDC) | Output Current (AMPS) |
|---|---|---|---|
| IPS-SP24-283 | 200-240VAC | 24VDC | 283A |
| IPS-SP36-188 | 200-240VAC | 36VDC | 188A |
| IPS-SP48-141 | 200-240VAC | 48VDC | 141A |
| IPS-SP110-61 | 200-240VAC | 110VDC | 61A |
| IPS-SP220-30 | 200-240VAC | 220VDC | 30A |
Hot Selling Models
IPS-PFC500-24 500W
Input: 95-264VAC
Output: 24VDC, 20.83A
IPS-PFC500-48 500W
Input: 95-264VAC
Output: 48VDC, 10.42A
IPS-PFC350-12 350W
Input: 95-264VAC
Output: 12VDC, 29.17A
IPS-SP12-250 3000W
Input: 200-240VAC
Output: 12VDC, 250A
IPS-SP48-106 6000W
Input: 200-240VAC
Output: 48VDC, 6000W
Customization Services
🛠️
Personalized Solutions: We specialize in customizing switching converters. Support ranges from 1V to 1000V and 1A to 1000A. Just tell us your needs and we will recommend the best solution for you.
Product Dimensions & Details
Applications & Factory
Frequently Asked Questions
What is the input voltage range for these power supplies?
The standard input is 200-240VAC. However, we also support customized 110VAC/120VAC inputs upon request.
Can the output voltage and current be customized?
Yes, we specialize in customization. We can provide output voltages and currents ranging from 1V to 1000V and 1A to 1000A.
What kind of protection features are included?
Our units come with integrated short circuit, overload, and over-voltage protection to ensure equipment safety.
Do you perform quality testing before shipping?
Absolutely. All products undergo a 100% full load burn-in test to ensure reliability and performance quality.
Is external control available for the output?
Yes, we offer optional external control features such as 0-5Vdc or 0-10Vdc analog control for voltage adjustment.
What is the cooling mechanism for high power models?
High power models (like 2000W-10000W) are equipped with high-efficiency cooling fans to maintain optimal operating temperatures.
