High Voltage 8~40V to 12V 5A 60W DC/DC Converter Waterproof Step-Up/Step-Down Inverter & Converter
Product Description
High Voltage 8~40V to 12V 5A 60W DC/DC Converter
Waterproof Step-Up/Step-Down Inverter & Converter Solution
Features & Control Technology
⚡
DC/DC converter is a voltage converter which can effectively output fixed voltage after converting input voltage. Categorized into Boost, Buck, and Boost-Buck types.
🎯
PWM control provides high efficiency with low output voltage ripple and noise. PFM control offers low power consumption for long-term use and small loads.
📱
Widely used in mobile phones, MP3 players, digital cameras, and portable media players. High reliability for complex working environments.
Custom Power Solutions
🛠️Our team specializes in customizing DC-DC converters to meet specific requirements. With more than 5000+ power supply solutions developed, we provide high-quality and high-specification units for global customers.
- Power range: 1 watt to 200 kilowatts
- Input voltage: up to 2000 volts
- Custom Output: 1V to 1000V DC and 1A to 1000A
- Isolated and non-isolated design options available
Technical Specifications
| Parameter | Details |
|---|---|
| Type | Non-isolate |
| Model | IPS-DTD8-40S125 or Customizable |
| Input voltage | 8~40VDC or Customizable |
| Output Voltage | 12VDC or Customizable |
| Output Current | 5Amps or Customizable |
| Output Power | 60Watts or Customizable |
| Material of shell | Aluminum |
| Waterproof Level | IP67 |
Standard Model Selection
| Input Range | Output Volts | Output Current |
|---|---|---|
| 8~40VDC | 12VDC | 1A / 2A / 3A |
| 8~40VDC | 12VDC | 5A / 10A / 15A |
| 8~40VDC | 12VDC | 20A / 25A / 30A |

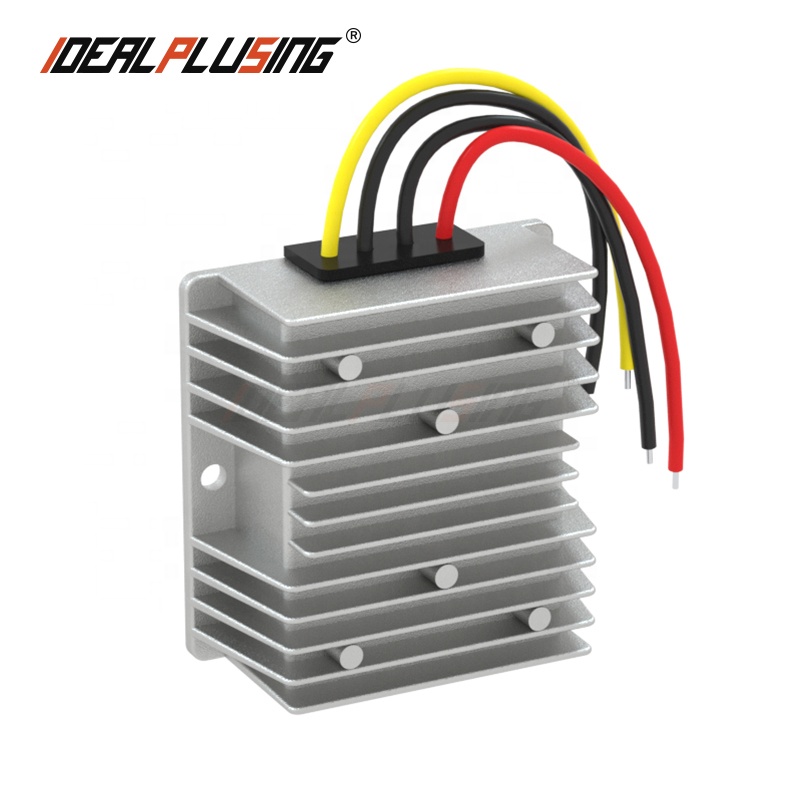

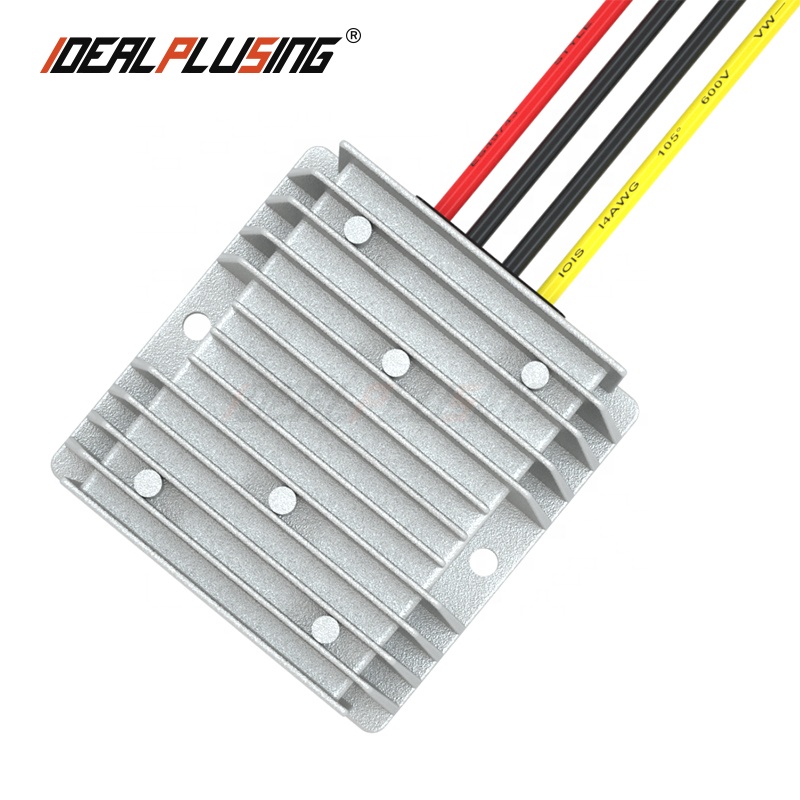

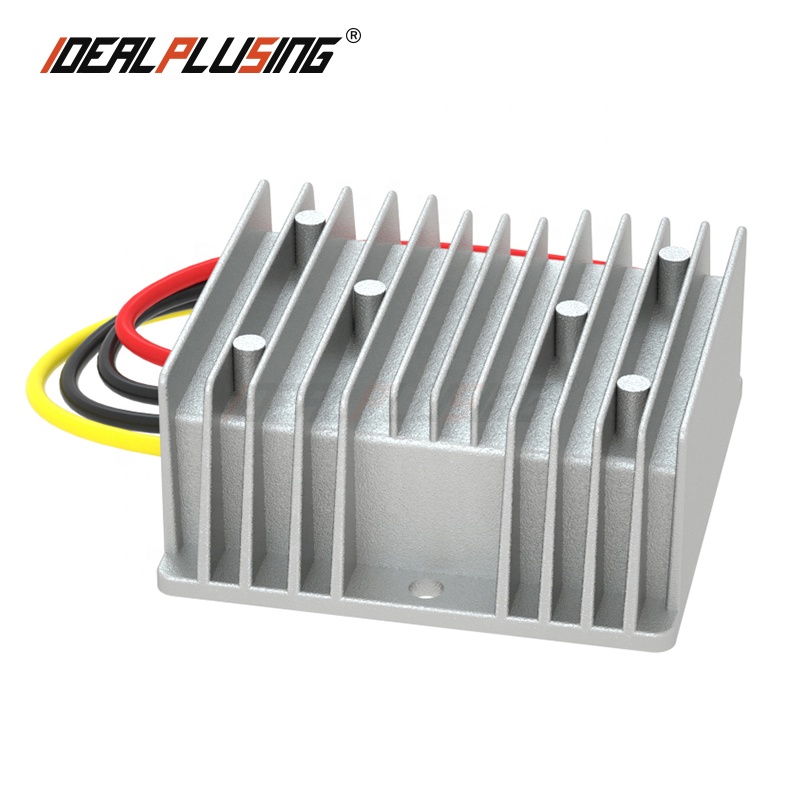

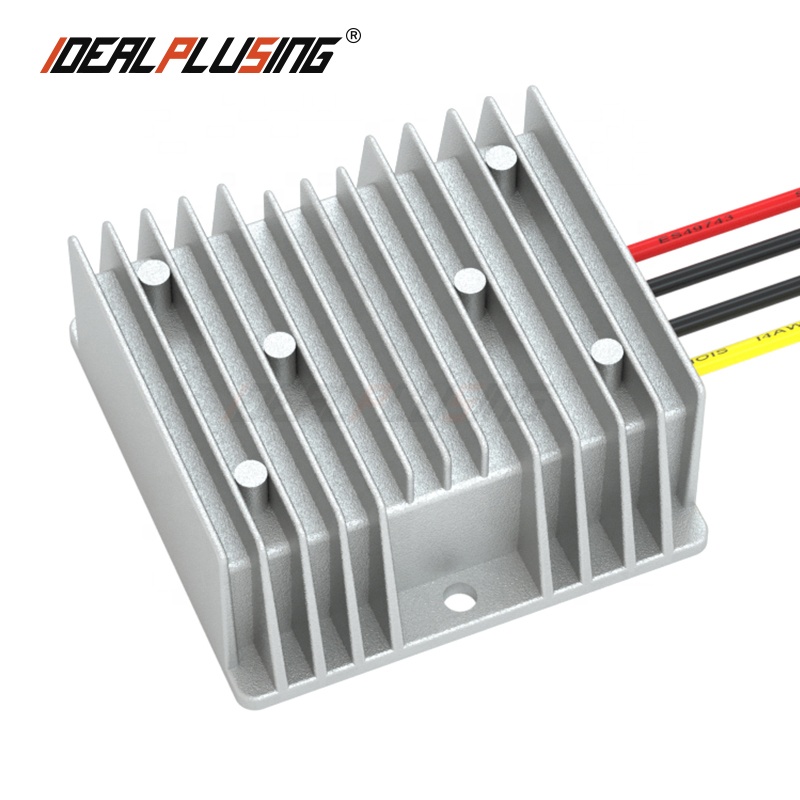

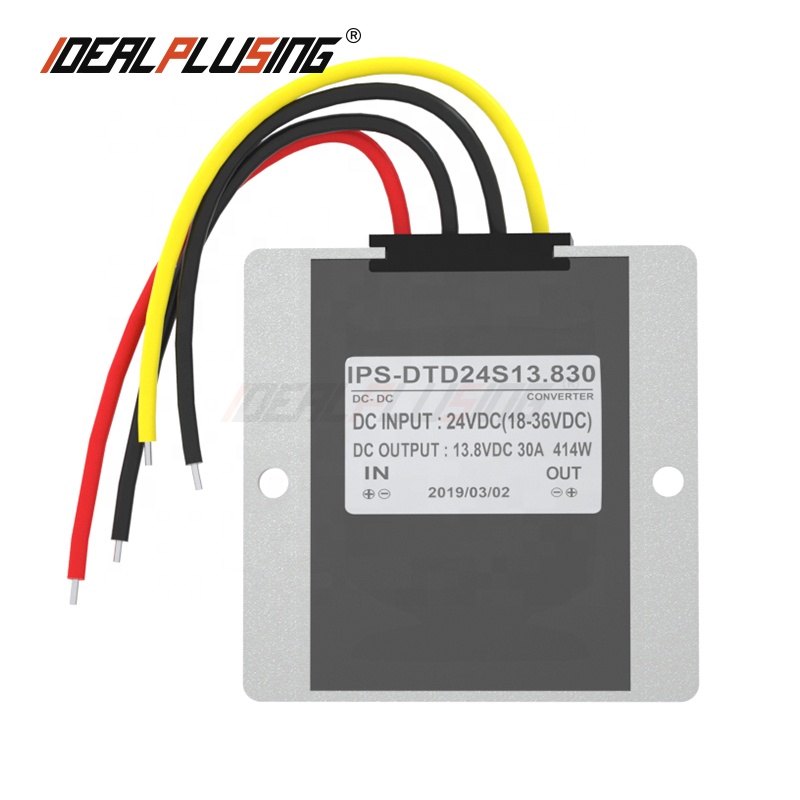

Product Shows
Technical Application Guide
- Built-in Protection: Standard features include output overcurrent, short-circuit, input undervoltage, and chip overheating protection.
- Inductive Loads: For coils, magnetic valves, and motors, we recommend a power supply 3-5 times the rated power of the load.
- Isolated vs Non-Isolated: Non-isolated buck supplies carry a risk of high input voltage passing to the output if they fail. Isolated products are recommended for precious loads to improve safety.
- Installation Advice: Fuses should be added to prevent short circuits from burning equipment; diodes can prevent current backflow and anti-reverse connection.
- Shell Design: Small aluminum casings are high-temperature resistant and highly reliable for outdoor applications.
Frequently Asked Questions
What are the main categories of DC/DC converters?
DC/DC converters are divided into three main categories: Boost type (step-up), Buck type (step-down), and Boost & Buck type (step-up/step-down).
What protection features are included?
Most products include output overcurrent protection, output short-circuit protection, input undervoltage protection, and overheating protection. Large power supplies may have over-temperature protection triggers at 90°C.
When should I choose an isolated converter over a non-isolated one?
Isolated converters are strongly recommended for precious loads or when the input voltage is three times higher than the output voltage. This prevents high input voltage from passing to the output in case of failure.
Can I customize the voltage and current specifications?
Yes, we specialize in customization. We can provide input/output ranges from 1V to 1000V and current from 1A to 1000A.
What are the design life and warranty for these products?
Our products have a design life of 15 to 20 years. Warranty periods vary between 1 to 3 years depending on the specific product type.
Are the converters waterproof for outdoor use?
Yes, our standard DC/DC converters feature waterproof levels up to IP67 and are often housed in high-temperature resistant aluminum shells for reliability.
