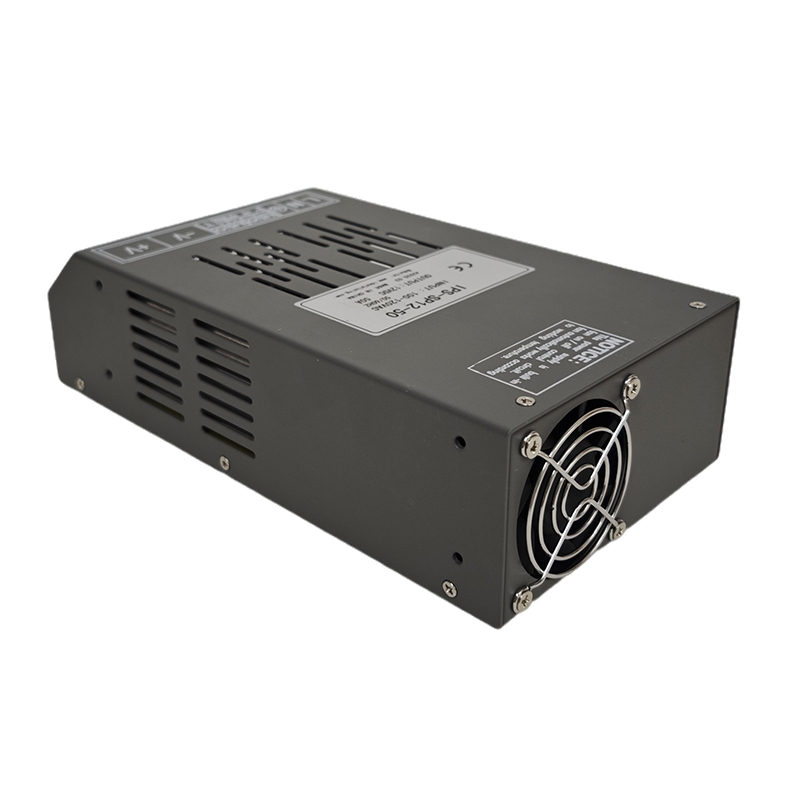

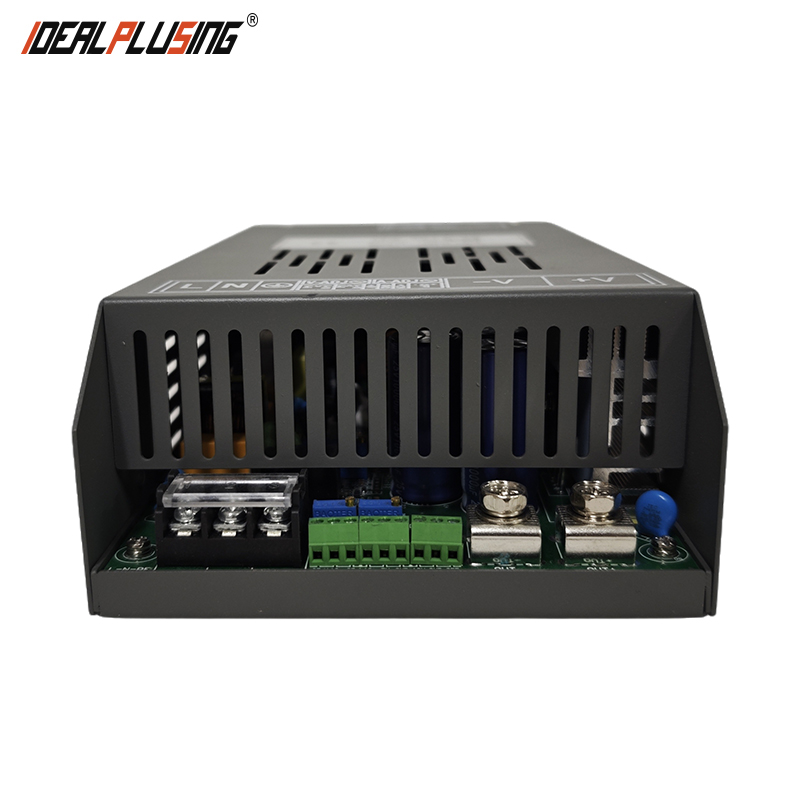

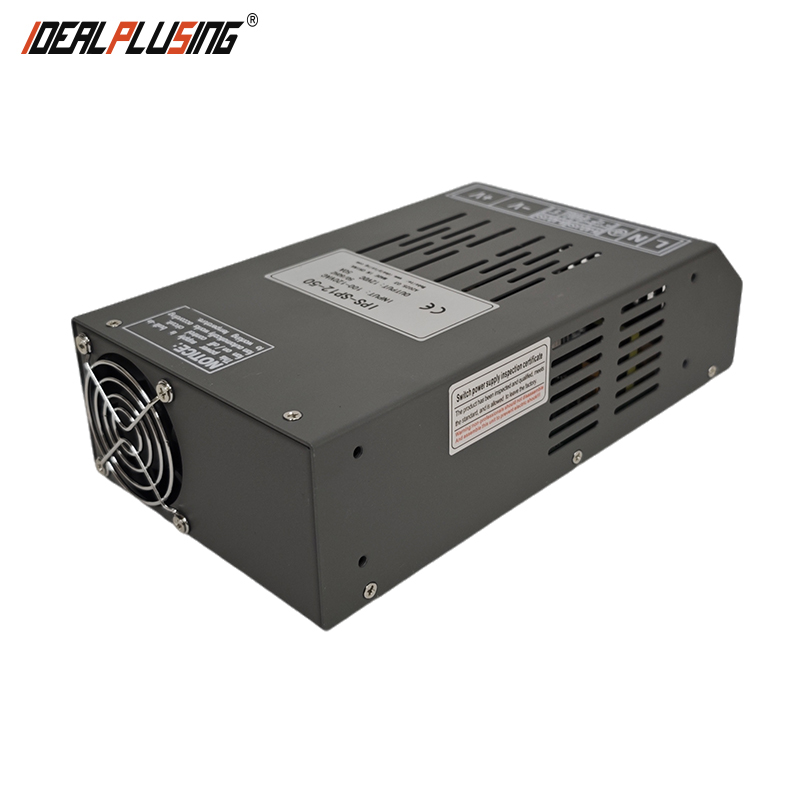

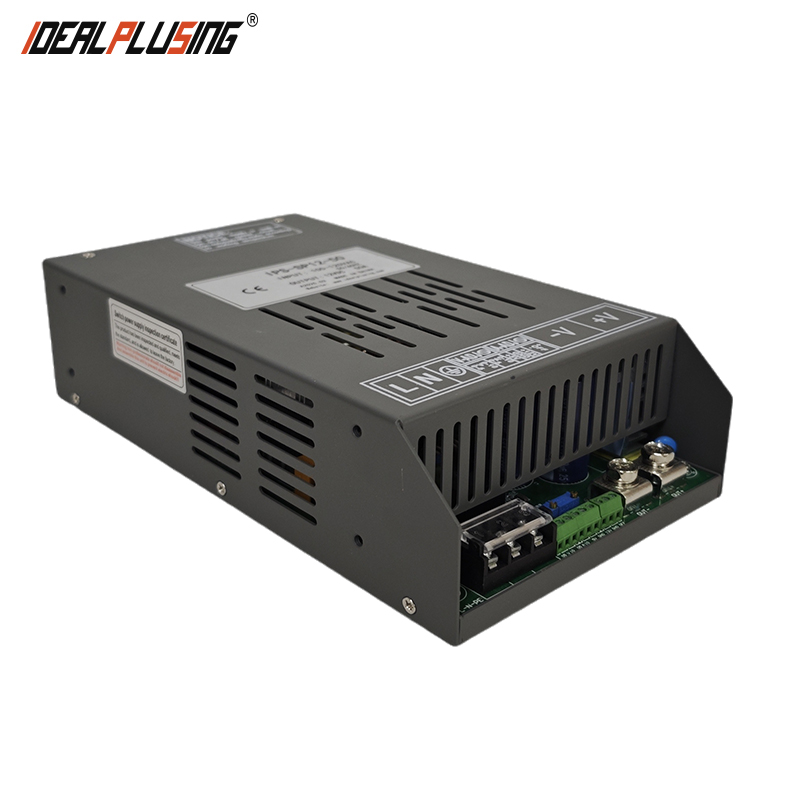

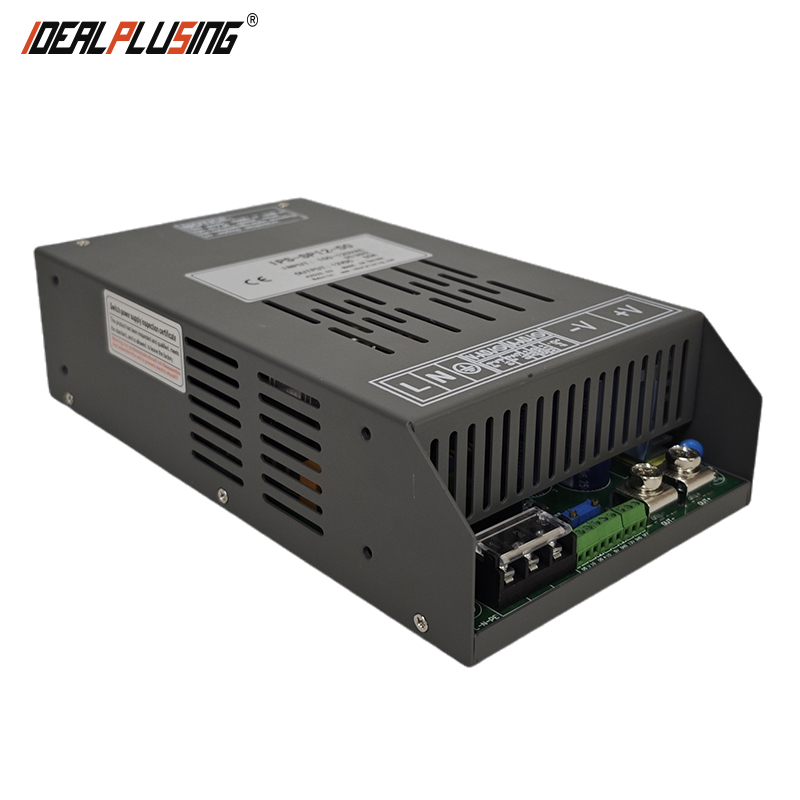

High Voltage Smps Design 100-240v 50-60hz 12v Ac Dc Adjustable Switching Power Supply for Recliner
Product Description
High Voltage Smps Design 100-240v 50-60hz 12v Ac Dc Adjustable Switching Power Supply for Recliner
We focus on the research and development, sales and service of D C to D C power supply module, A C to D C rectifier module, D C to A C inverter, A C power supply, D C power supply, L E D power supply, charger, rectifier system and other fields, to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries.
We are not only selling products. What we want to give our customers the right power supply solution, giving a better quotation solution with the right items.
✨
Our Advantages: We specialize in customizing switching Power Supply to meet your specific requirements. Please submit any inquiries to explore our capabilities further.
If you can not find the right specification to meet your requirement, contact us now! It will not cost you one cent when you ask us anything, but it may be a chance for both of us! Our dedicated team endeavors to respond within one hour.
| No. | Feature Description |
|---|---|
| 1 | Adjustable with Compact size, light weight |
| 2 | AC input 200-240VAC 50/60HZ (110VAC/120VAC support available) |
| 3 | 100% full load burn-in test |
| 4 | Protection: Short circuit / Over load / Over voltage |
| 5 | Fixed switching frequency at 25KHz |
| 6 | High efficiency, reliability quality, competitive cost |
| 7 | 0-5Vdc / 0-10Vdc External control output (Optional) |
| 8 | Extra adjustable potentiometer (Optional) |
| 9 | Output voltage adjustable, output current be fixed (Optional) |
| Type | Switching Mode Power Supply |
| Model Power | 1000W Max |
| Input Voltage | Single phase 200~240VAC |
| Input Frequency | 50/60Hz |
| DC Output Voltage | Base on model |
| Dimension | 237*130*65(mm) |
| Weight | 1.8KG/1.9KG |
| Model | Input Voltage (VAC) | Output Voltage (VDC) | Output Current (AMPS) |
|---|---|---|---|
| IPS-SP12-83.3 | 200-240VAC | 12VDC | 83.3A |
| IPS-SP24-41.7 | 200-240VAC | 24VDC | 41.7A |
| IPS-SP48-20.8 | 200-240VAC | 48VDC | 20.8A |
| IPS-SP150-6.6 | 200-240VAC | 150VDC | 6.6A |
| IPS-SP200-5 | 200-240VAC | 200VDC | 5A |
IPS-PFC500-24
Output: 24VDC, 20.83A (500W)
IPS-PFC500-48
Output: 48VDC, 10.42A (500W)
IPS-PFC350-12
Output: 12VDC, 29.17A (350W)
Contact us Now! It is Free service!
We specialize in customizing switching converters to meet your specific needs. Our products support customized input and output voltages and currents ranging from 1V to 1000V and 1A to 1000A.
⚙️
We provide one-to-one customization services. Just tell us your needs and we will recommend the best solution for you. You will receive solutions from our professional sales engineers in a very short time.
Frequently Asked Questions
Q1: Can the output voltage be adjusted for these power supplies?
A1: Yes, our SMPS designs include options for adjustable output voltage to suit specific application requirements.
Q2: What kind of protections are built into the units?
A2: All units come with standard protections including short circuit, overload, and over-voltage protection for maximum safety.
Q3: Do you support 110VAC input for US markets?
A3: While the standard range is 200-240VAC, we offer customized models that support 110VAC/120VAC switchable or wide-range inputs.
Q4: Is it possible to get external control options?
A4: Yes, we provide optional 0-5Vdc or 0-10Vdc external control signals for remote output adjustment.
Q5: How reliable are these switching power supplies?
A5: We perform 100% full load burn-in tests on all products to ensure high reliability and long-term quality performance.
Q6: Can you customize specific voltage/current parameters?
A6: Absolutely. We specialize in tailoring input/output ranging from 1V to 1000V and 1A to 1000A to meet your load information and usage scenarios.
