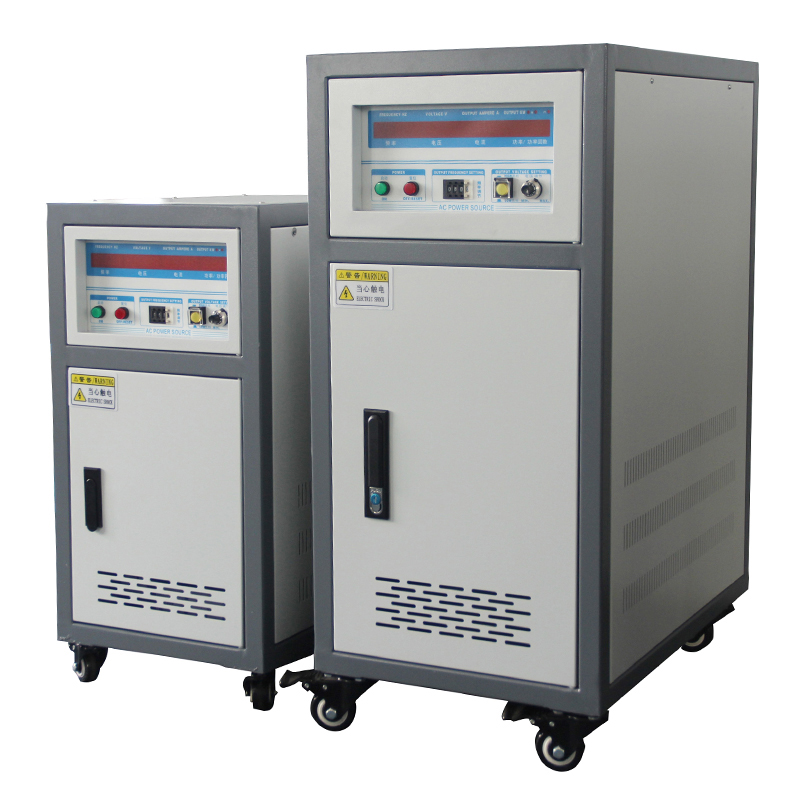

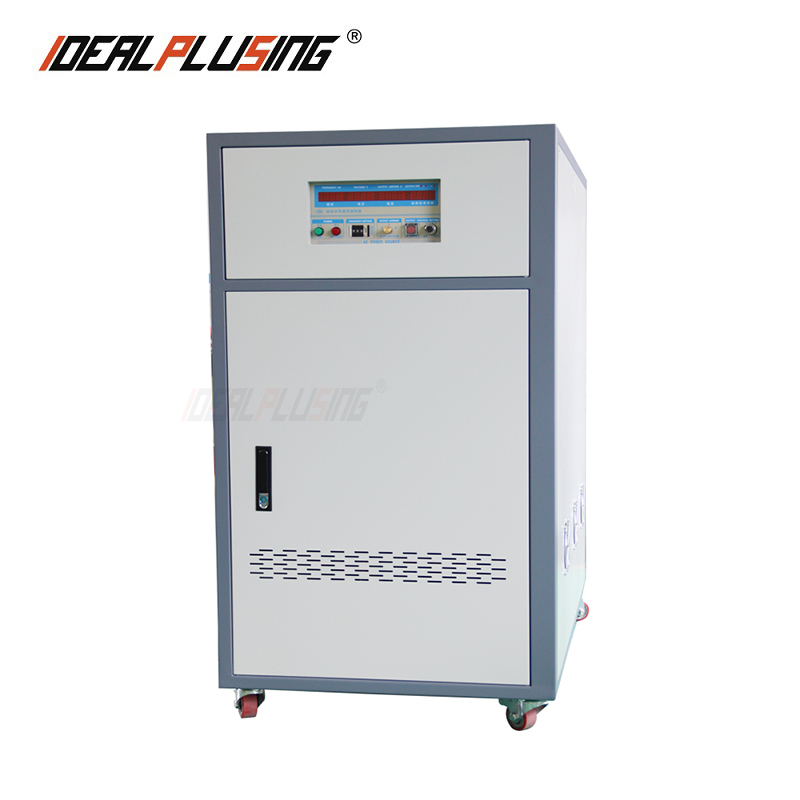

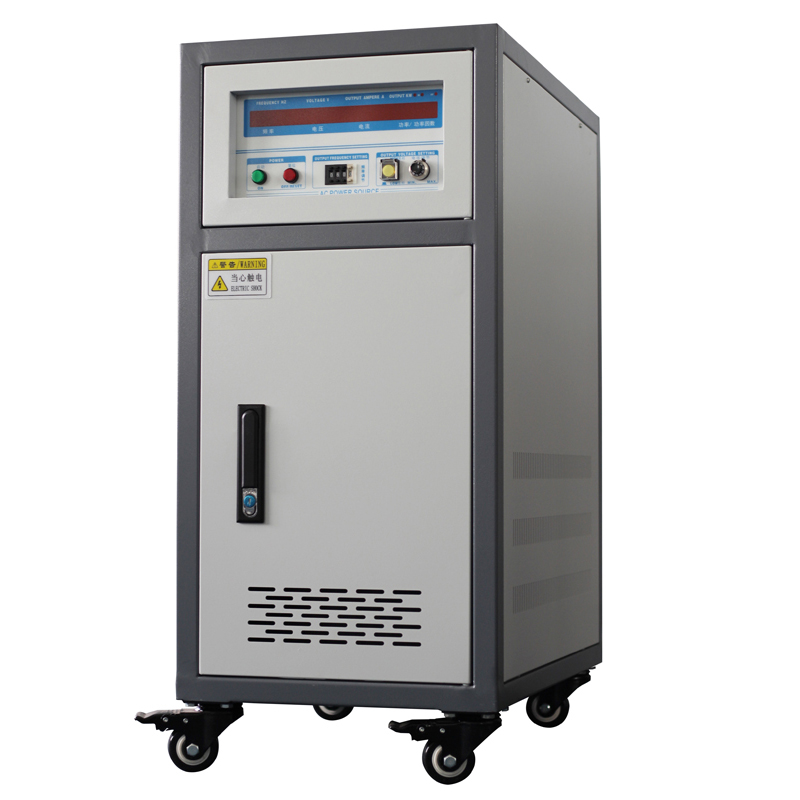

IDEALPLUSING 100kVA Three Phase Static Frequency Converter 415VAC ±10% 60Hz Input to Single Phase 200VAC 50Hz Output OEM/ODM
Product Description
100kVA High Frequency Converter Input 415V +/-10% 60Hz Output 200V 50Hz Three Phase Power Supply
★ PERFORMANCE CHARACTERISTICS
1Complete isolation of input and output technology, safe and reliable power supply
2SPWM sine wave pulse width modulation technology is adopted, with fast response speed and stable output
3IGBT high-frequency static inverter, small size, lightweight, low noise, and high efficiency
4Unique double-loop control mode of instantaneous and effective value for high precision and waveform quality
5High power IGBT module and integrated drive circuit for strong overload capacity and low loss
6Suitable for resistive, inductive, rectifier, and other various loads
7Multiple protection functions for overheating, overcurrent, and short circuit conditions
8Setting parameter memory and 10-groups shortcut key operation function
9Power supply voltage and frequency can be adjusted online in real-time
✔ APPLICATION FIELDS
| 1. Home appliances | 8. Photovoltaic |
| 2. Motors | 9. Lamps |
| 3. Power tools | 10. Electronic transformers |
| 4. Switching power supplies | 11. Electronic components |
| 5. Power adapters | 12. Low-voltage distribution |
| 6. UPS | 13. Power |
| 7. Information and communication | 14. Other industries |
SPECIFICATION (FC61) - SINGLE-PHASE INPUT/OUTPUT
| Model (IPS-FC61) | 61005 | 6101 | 6102 | 6103 | 6105 | 6106 | 6110 | 6115 |
|---|---|---|---|---|---|---|---|---|
| Output capacity (KVA) | 0.5 | 1 | 2 | 3 | 5 | 6 | 10 | 15 |
| AC input | Single-phase 220V/50Hz or 60Hz | |||||||
| Voltage Range | Low: 0~150V, High: 0~300V adjustable | |||||||
| Frequency | 40~499.9HZ can be setting by software | |||||||
| Protection | Overvoltage, over current, overload, over temperature and short-circuit | |||||||
SPECIFICATION (FC62) - SINGLE-PHASE INPUT TRI-PHASE OUTPUT
| Model (IPS-FC62) | 6220 | 6230 | 6245 | 6260 | 62100 | 62120 | 62150 | 62200 |
|---|---|---|---|---|---|---|---|---|
| Capacity (KVA) | 20 | 30 | 45 | 60 | 100 | 120 | 150 | 200 |
| AC input | Tri-phase 220V/50Hz or 60Hz | |||||||
| AC output Phase | 3-phases 380V | |||||||
SPECIFICATION (FC63) - 3-PHASE INPUT SINGLE-PHASE OUTPUT
| Model (IPS-FC63) | 6310 | 6320 | 6330 | 6345 | 6360 | 63100 | 63120 |
|---|---|---|---|---|---|---|---|
| Rated Capacity (KVA) | 10 | 20 | 30 | 45 | 60 | 100 | 120 |
| Output Frequency | 40~499.9HZ can be setting by software | ||||||

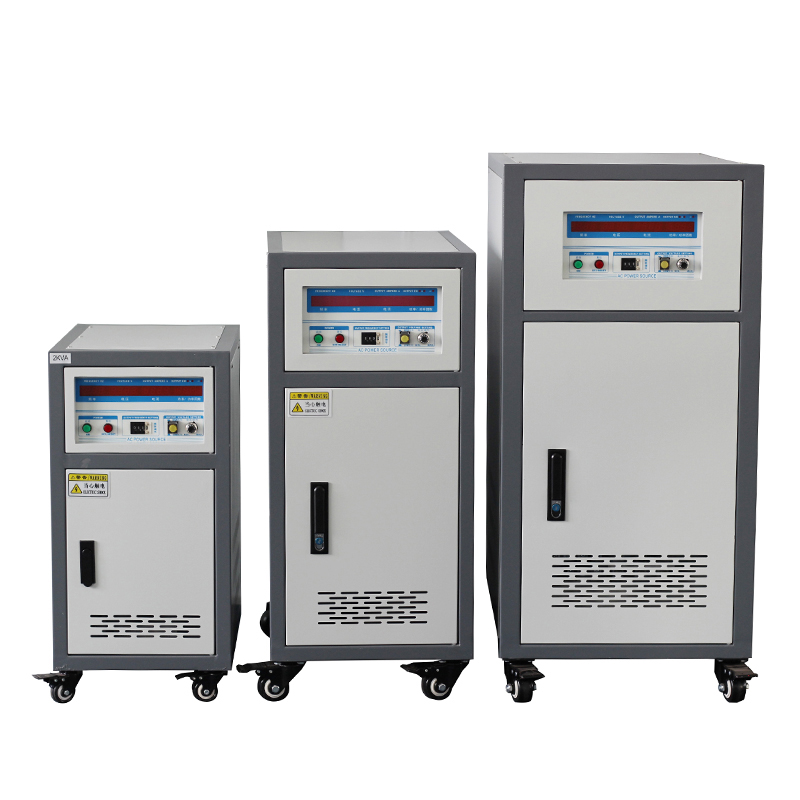

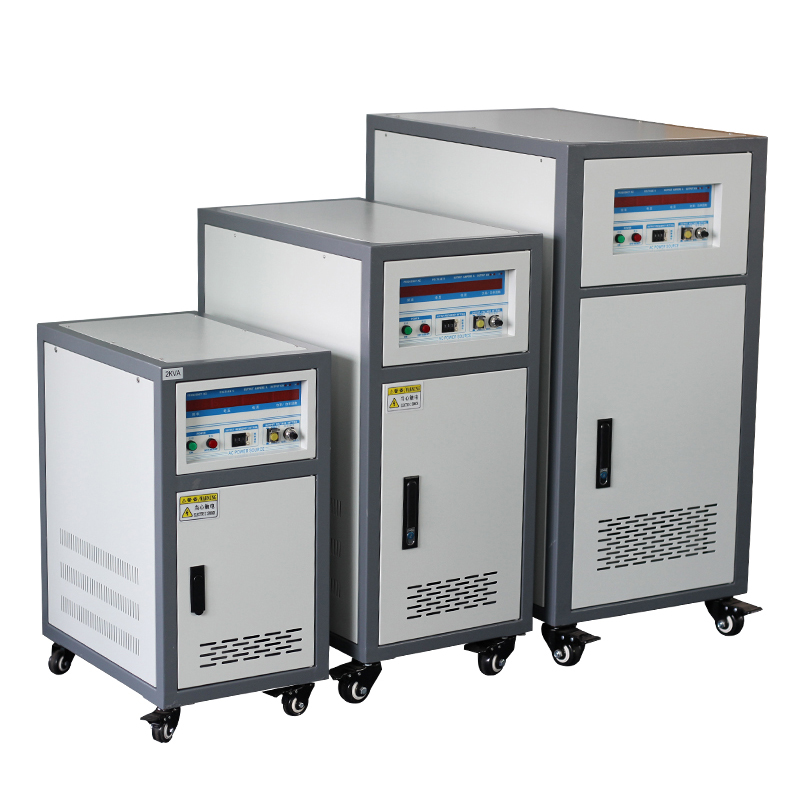

PRODUCT SHOWCASE
PRODUCT OVERVIEW
MODEL LIST
FREQUENTLY ASKED QUESTIONS
What are the primary benefits of using this frequency converter?
The converter provides complete isolation between input and output, ensuring a safe and stable power supply. It utilizes advanced SPWM and IGBT technology for high efficiency, low noise, and fast response times.
Can I adjust the output frequency and voltage during operation?
Yes, the power supply voltage and frequency can be adjusted online via the software interface, allowing for real-time changes to meet specific test or operational requirements.
What types of electrical loads can this system handle?
This high-frequency converter is versatile and suitable for resistive, inductive, rectifier, and other complex loads commonly found in home appliances, motors, and electronic components.
Does the unit include built-in safety protections?
Absolutely. The system features integrated protection for abnormal conditions such as overheating, overcurrent, overvoltage, and short circuits, including an automatic jump protection and alarm device.
What is the waveform quality of the output power?
The converter produces a high-quality sine wave with low waveform distortion (typically ≤2% for resistance loads), thanks to its instantaneous and effective value double-loop control mode.
