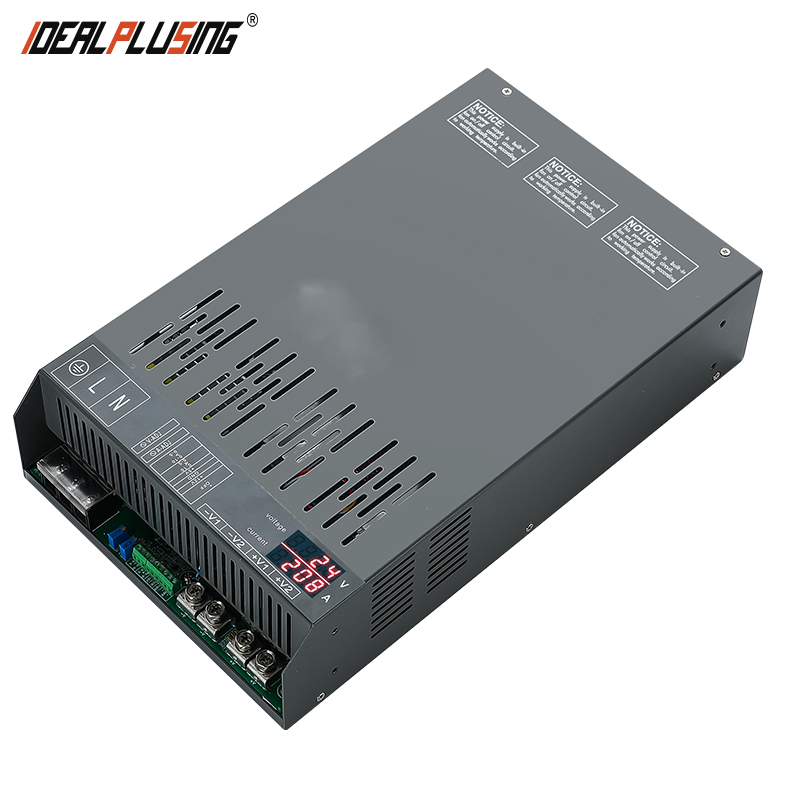

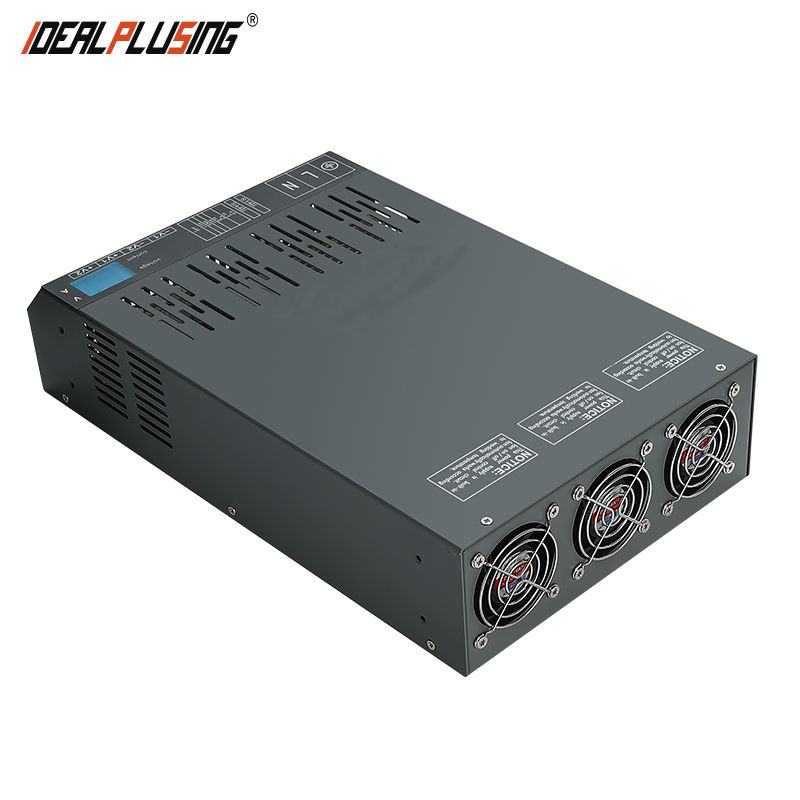

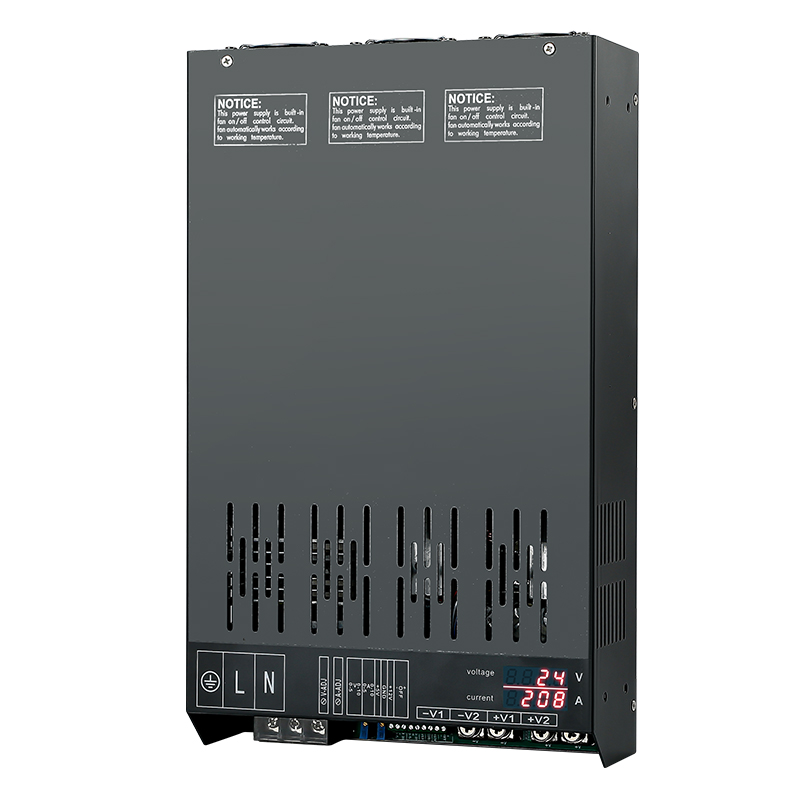

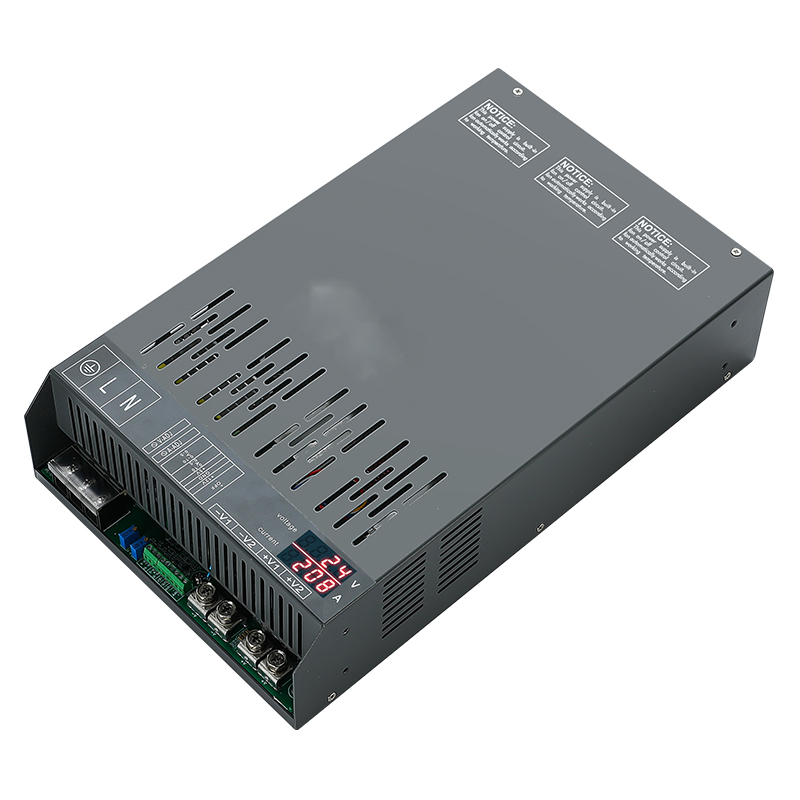

IDEALPLUSING 5000W AC DC Switching Power Supply 110VDC 45A High Reliability for Medical Equipment OEM/ODM
Product Description
High Quality 110V 45A Switch Power Supply Module 5000W AC DC Switching Power Supply for Medical Devices
We focus on the research and development, sales and service of D C to D C power supply module, A C to D C rectifier module, D C to A C inverter, A C power supply, D C power supply, L E D power supply, charger, rectifier system and other fields, to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries.
⚡ More Than Just Products
We want to give our customers the right power supply solution, giving a better quotation solution with the right items. We specialize in customizing switching Power Supply to meet your specific requirements.
Product Features
📏
Compact & Lightweight
Adjustable design with high power density.
Adjustable design with high power density.
🔌
Flexible Input
Standard AC 200-240VAC 50/60HZ (110VAC/120VAC support available).
Standard AC 200-240VAC 50/60HZ (110VAC/120VAC support available).
🛡️
Full Protection
Includes Short circuit, Over load, and Over voltage protection.
Includes Short circuit, Over load, and Over voltage protection.
✅
Reliability
100% full load burn-in test for guaranteed quality.
100% full load burn-in test for guaranteed quality.
⚙️
External Control
0-5Vdc / 0-10Vdc External control output and adjustable potentiometer optional.
0-5Vdc / 0-10Vdc External control output and adjustable potentiometer optional.
💎
High Efficiency
Fixed switching frequency at 25KHz for optimal performance.
Fixed switching frequency at 25KHz for optimal performance.
Technical Specifications
| Parameter | Details |
|---|---|
| Type | Switching Mode Power Supply |
| Model | IPS-SP110-45 |
| Input Voltage | Single phase 200~240VAC |
| Input Frequency | 50/60Hz |
| DC Output Voltage | Based on model (e.g., 110VDC) |
| Output Current | Based on model (e.g., 45A) |
| Output Power | 5000W Max |
| Dimension | 356*216*80 (mm) |
| Weight (Net/Gross) | 6.5KG / 6.7KG |
5000W Model List
| Model | Input Voltage | Output Voltage | Output Current |
|---|---|---|---|
| IPS-SP12-300 | 200-240VAC | 12VDC | 300A |
| IPS-SP24-208 | 200-240VAC | 24VDC | 208A |
| IPS-SP48-104 | 200-240VAC | 48VDC | 104A |
| IPS-SP110-45 | 200-240VAC | 110VDC | 45A |
| IPS-SP220-22.7 | 200-240VAC | 220VDC | 22.7A |
Hot Selling Models
IPS-PFC500-24 500W
Input: 95-264VAC
Output: 24VDC, 20.83A
IPS-PFC500-48 500W
Input: 95-264VAC
Output: 48VDC, 10.42A
IPS-PFC350-12 350W
Input: 95-264VAC
Output: 12VDC, 29.17A
Customization Service
We specialize in customizing switching converters to meet your specific needs. Our products support customized input and output voltages and currents ranging from 1V to 1000V and 1A to 1000A.
Our professional sales engineers provide one-to-one customization services to ensure the most suitable products for your usage scenarios and load information.

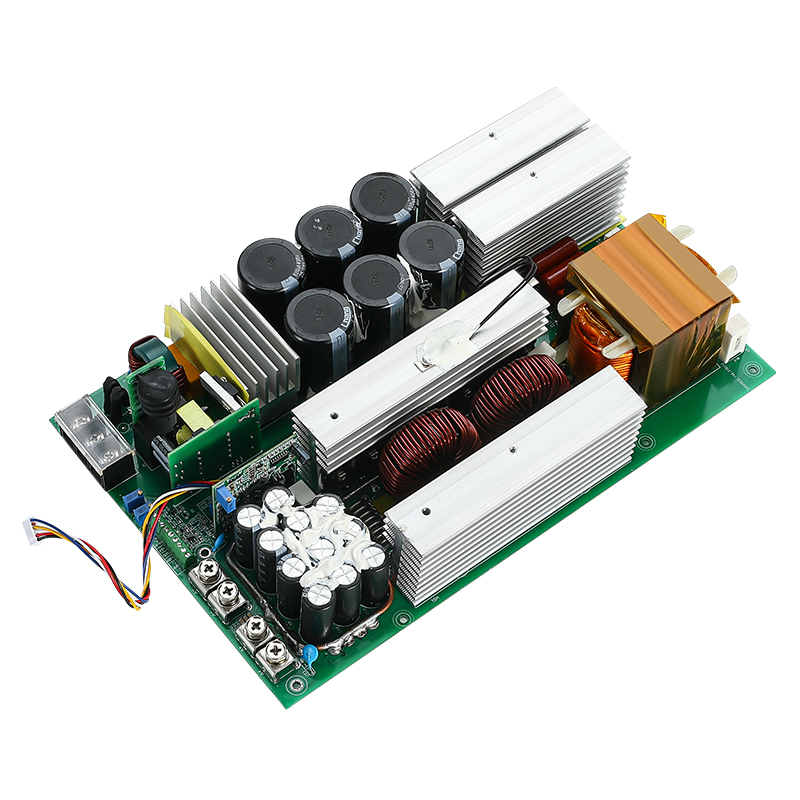

Product Detail & Dimensions
Application & Factory Show
Frequently Asked Questions
Can the output voltage and current be customized?
Yes, we specialize in customization. We support input and output voltages from 1V to 1000V and currents from 1A to 1000A based on your specific requirements.
Does the power supply support 110VAC input?
While the standard models are 200-240VAC, we can provide 110VAC or 120VAC versions upon request. Many models also feature a switchable input for global compatibility.
What safety protections are included?
All our switching power supplies are equipped with Short Circuit, Over Load, and Over Voltage protection to ensure the safety of your devices.
Is the quality of the modules tested?
Absolutely. Every unit undergoes a 100% full load burn-in test before shipment to ensure long-term reliability and performance.
Can I control the output externally?
Yes, we offer optional external control features, including 0-5Vdc or 0-10Vdc signals and external adjustable potentiometers for precise control.
How quickly can I receive a customized solution?
Our dedicated team of professional sales engineers endeavors to respond to inquiries within one hour with efficient and cost-effective solutions.
