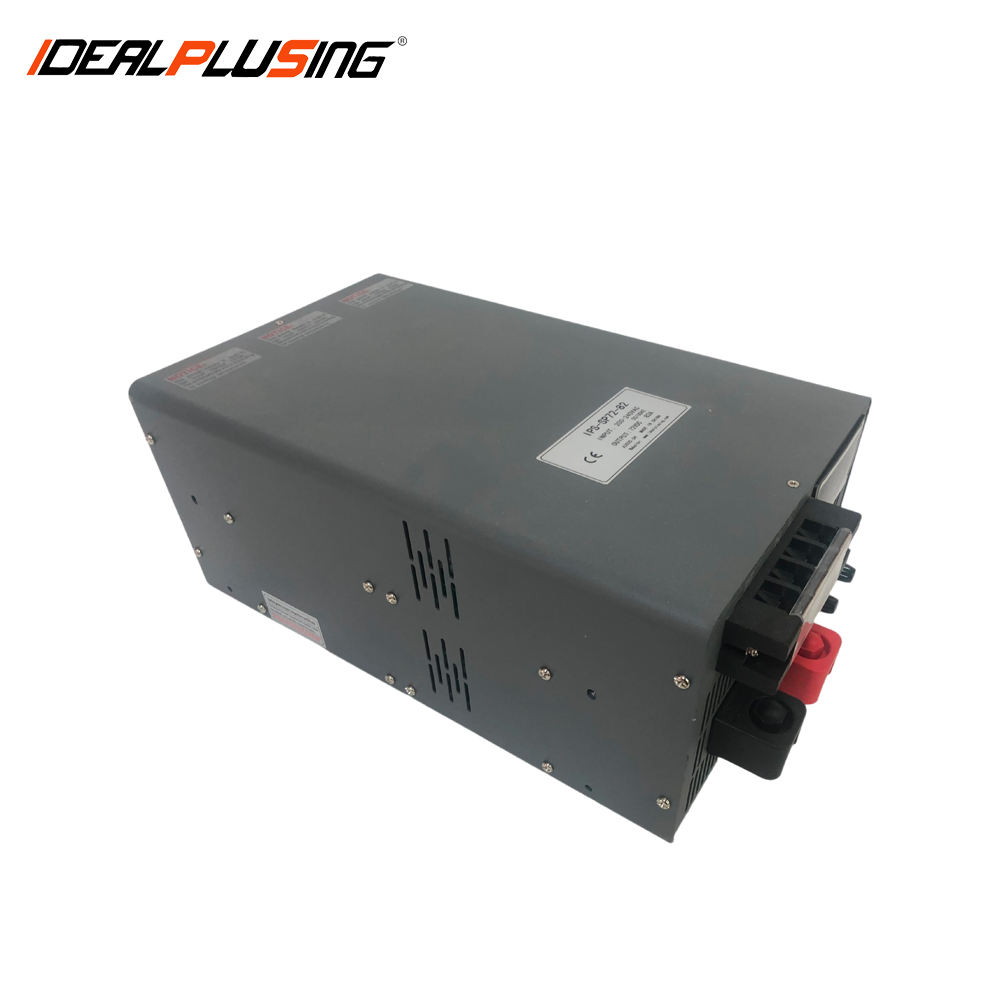

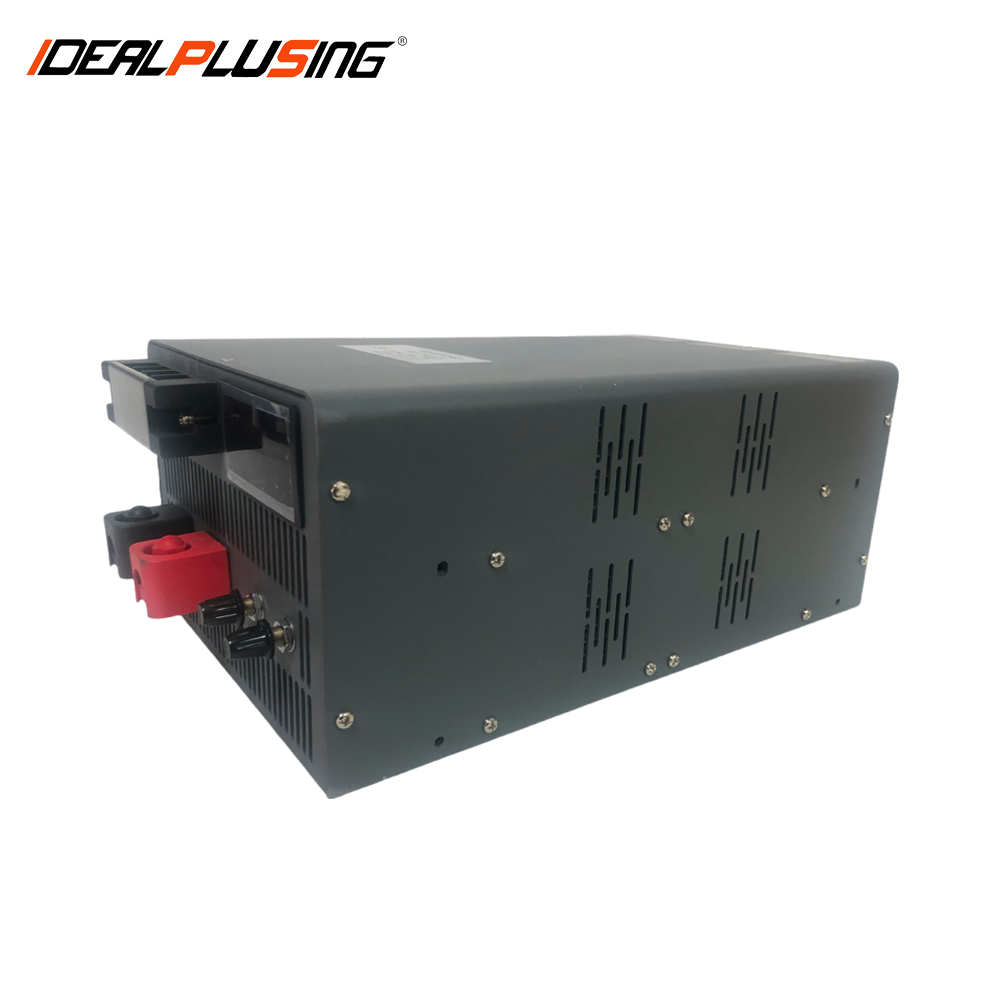

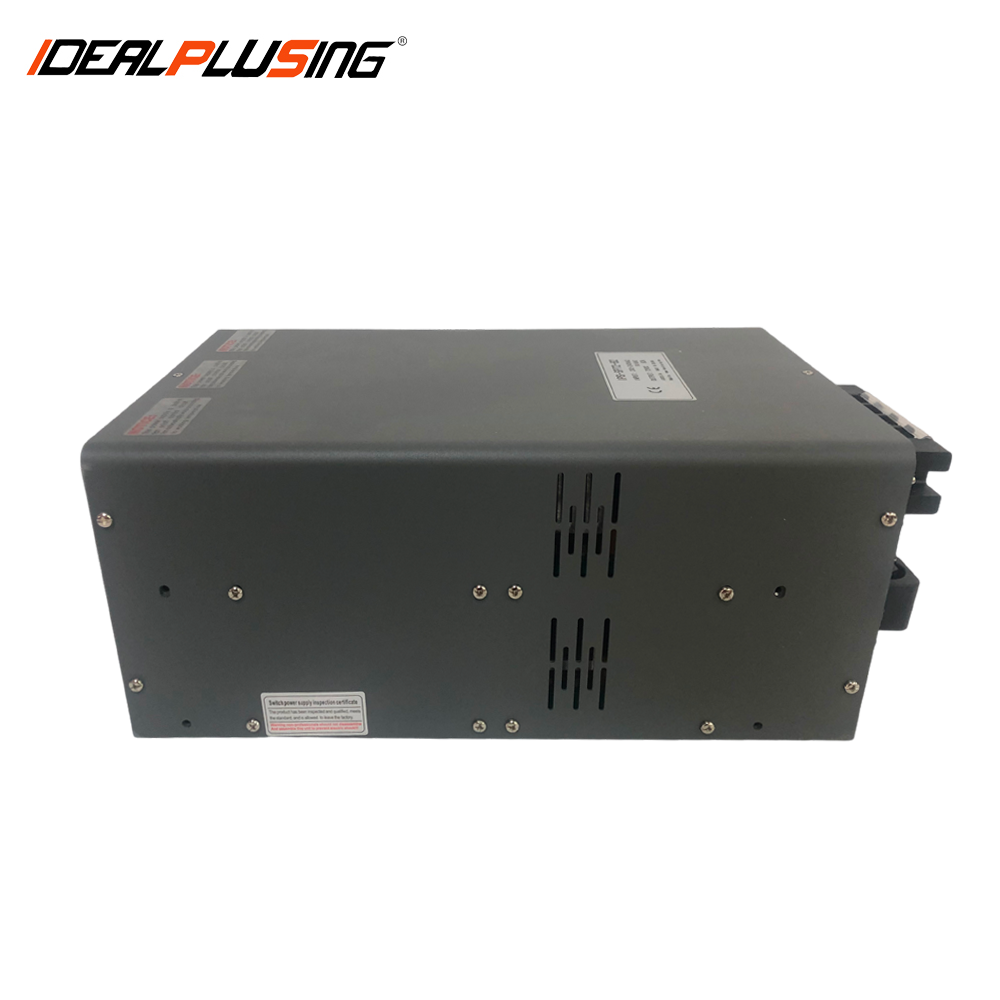

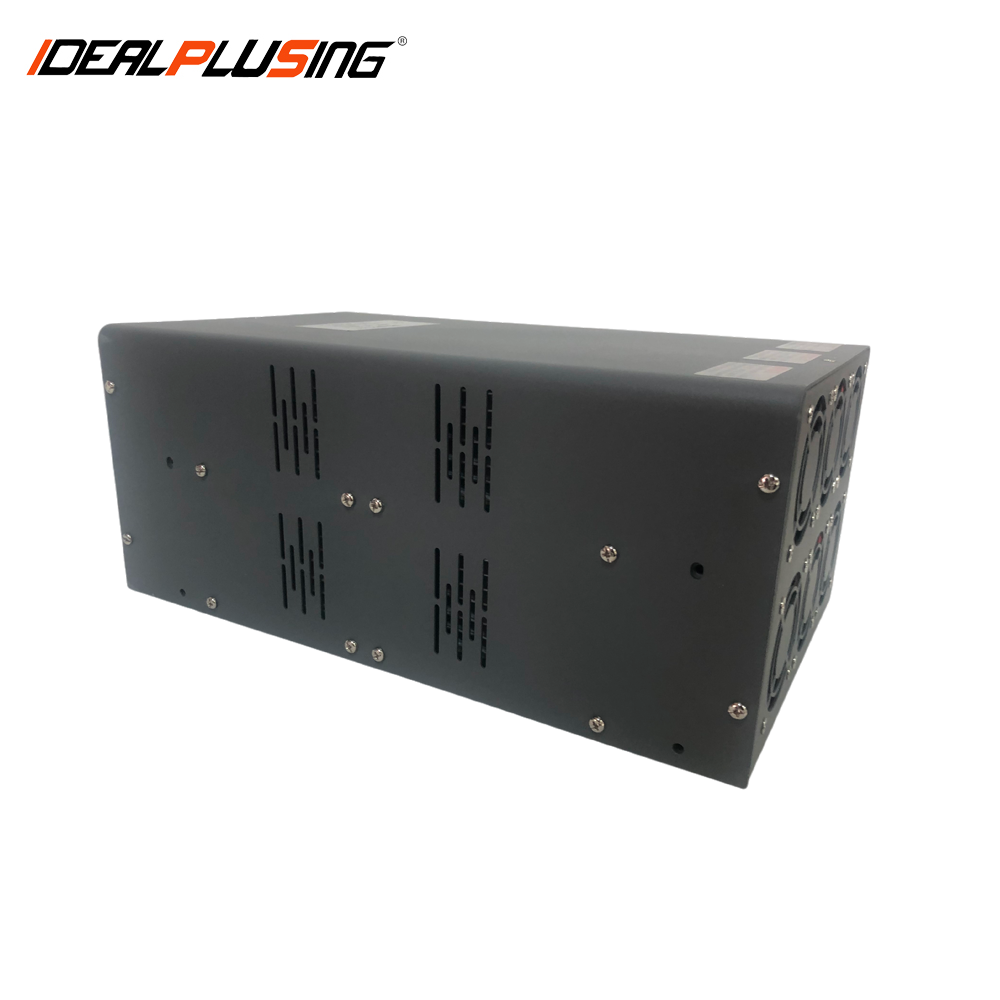

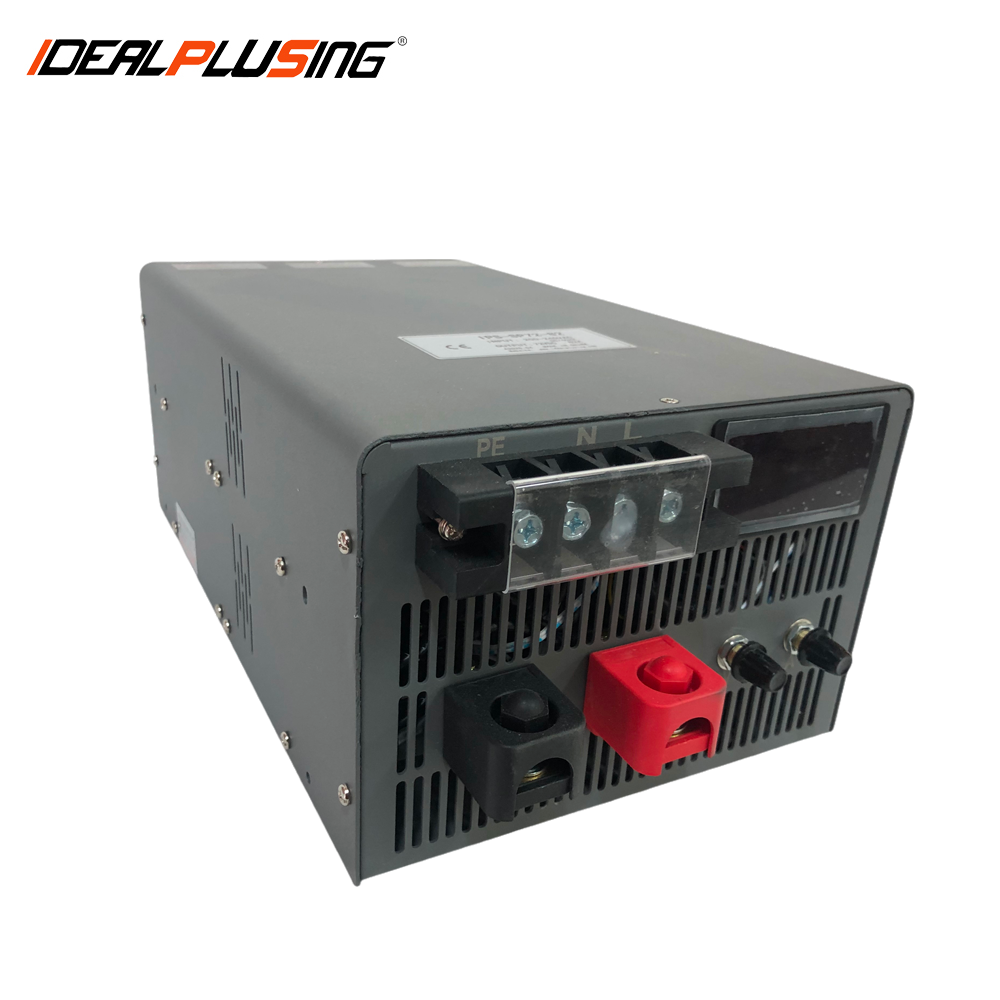

IDEALPLUSING 6000W AC-DC Switching Power Supply 24VDC 212A High Efficiency Industrial Grade OEM/ODM
Product Description
24V 212A Switching Power Supply 6000W AC to DC Module Power Supply
⚡ Overview & Power Solutions
We focus on the research and development, sales and service of DC to DC power supply module, AC to DC rectifier module, DC to AC inverter, AC power supply, DC power supply, LED power supply, charger, rectifier system and other fields, to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries.
Our goal is to provide customers with the right power supply solution, offering optimized quotations with precisely matched items. We specialize in customizing switching Power Supplies to meet specific requirements.
✔ Product Features
1 Adjustable with Compact size, light weight
2 AC input 200-240VAC 50/60HZ (110VAC/120VAC support available)
3 100% full load burn-in test
4 Protection: Short circuit / Over load / Over voltage
5 Fixed switching frequency at 25KHz
6 High efficiency, reliability quality, competitive cost
7 0-5Vdc / 0-10Vdc External control output (Optional)
8 Extra adjustable potentiometer (Optional)
9 Output voltage adjustable, output current be fixed (Optional)
📊 Technical Specifications
| Parameter | Details |
|---|---|
| Type | Switching Mode Power Supply |
| Model | IPS-SP24-212 |
| Input voltage | Single phase 200~240VAC |
| Input frequency | 50/60hz |
| DC Output Voltage | Based on model |
| Output Current | Based on model |
| Output Power | 6000W Max |
| Dimension | 351*188.8*148.2 (mm) |
| Net Weight / Gross Weight | 2.6KG/3.2KG |
🔥 Hot Selling Models
24VDC 500W SMPS
Input: 95-264VAC
Input: 95-264VAC
48VDC 500W SMPS
Input: 95-264VAC
Input: 95-264VAC
12VDC 350W SMPS
Input: 95-264VAC
Input: 95-264VAC
📋 Power Supply Model Range
| Capacity | Model | Input (VAC) | Output (VDC) | Current (A) |
|---|---|---|---|---|
| 1000W | IPS-SP12-83.3 | 220-240 | 0-12 | 83.3A |
| IPS-SP24-42 | 220-240 | 0-24 | 42A | |
| IPS-SP48-21 | 220-240 | 0-48 | 21A | |
| IPS-SP1000-1 | 200-240 | 0-1000 | 1A | |
| 3000W | IPS-SP12-250 | 200-240 | 12 | 250A |
| IPS-SP24-125 | 200-240 | 24 | 125A | |
| IPS-SP250-12 | 200-240 | 250 | 12A | |
| 6000W | IPS-SP24-212 | 200-240 | 24 | 212A |
| IPS-SP48-106 | 200-240 | 48 | 106A | |
| IPS-SP220-23 | 200-240 | 220 | 23A | |
| 10000W | IPS-SP24-354 | 200-240 | 24 | 354A |
| IPS-SP220-38 | 200-240 | 220 | 38A |
🛠 One-to-One Customization Services
We specialize in customizing switching converters to meet your specific needs. Our products support customized input and output voltages and currents ranging from 1V to 1000V and 1A to 1000A.
We provide one-to-one customization services. Just tell us your needs and we will recommend the best solution for you. Our service includes ensuring the most suitable products according to your usage scenarios and load information.
🏭 Application & Factory
Frequently Asked Questions
Q1: Can the output voltage and current be customized?
Yes, we specialize in customization. We can adjust output voltages from 1V to 1000V and currents from 1A to 1000A based on your specific requirements.
Q2: What protection features are included in these power supplies?
All our modules include built-in protection against short circuits, overloads, and over-voltage to ensure long-term reliability.
Q3: Does the unit support 110VAC input?
The standard models are 200-240VAC, but we can provide 110VAC/120VAC input versions upon request. Please specify your input needs when inquiring.
Q4: Are these power supplies tested before shipping?
Yes, every unit undergoes a 100% full load burn-in test to guarantee quality and performance stability before it reaches the customer.
Q5: Can I use external control for the output?
Yes, we offer optional 0-5Vdc or 0-10Vdc external control interfaces for remote output adjustment.
Q6: What are the typical applications for these modules?
Our power supplies are widely used in industrial control, UV curing equipment, CCTV systems, battery charging, and laboratory testing.
