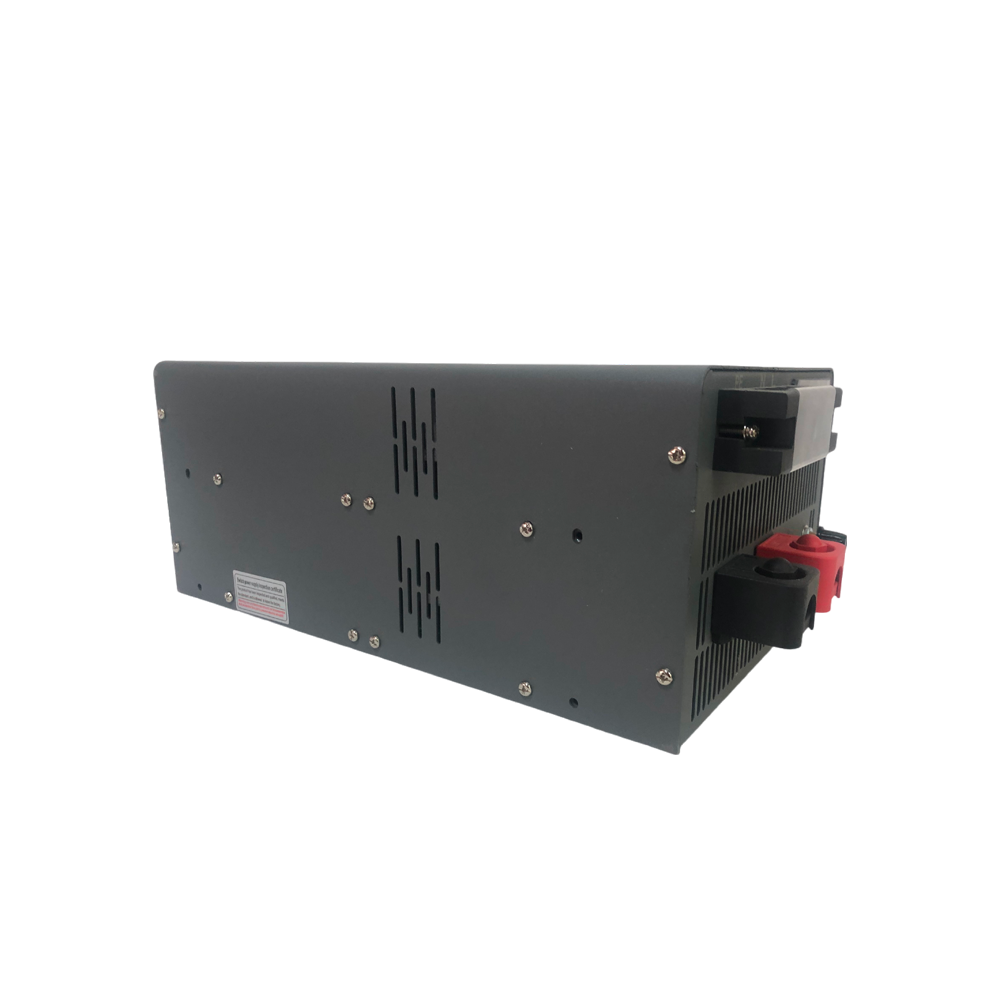

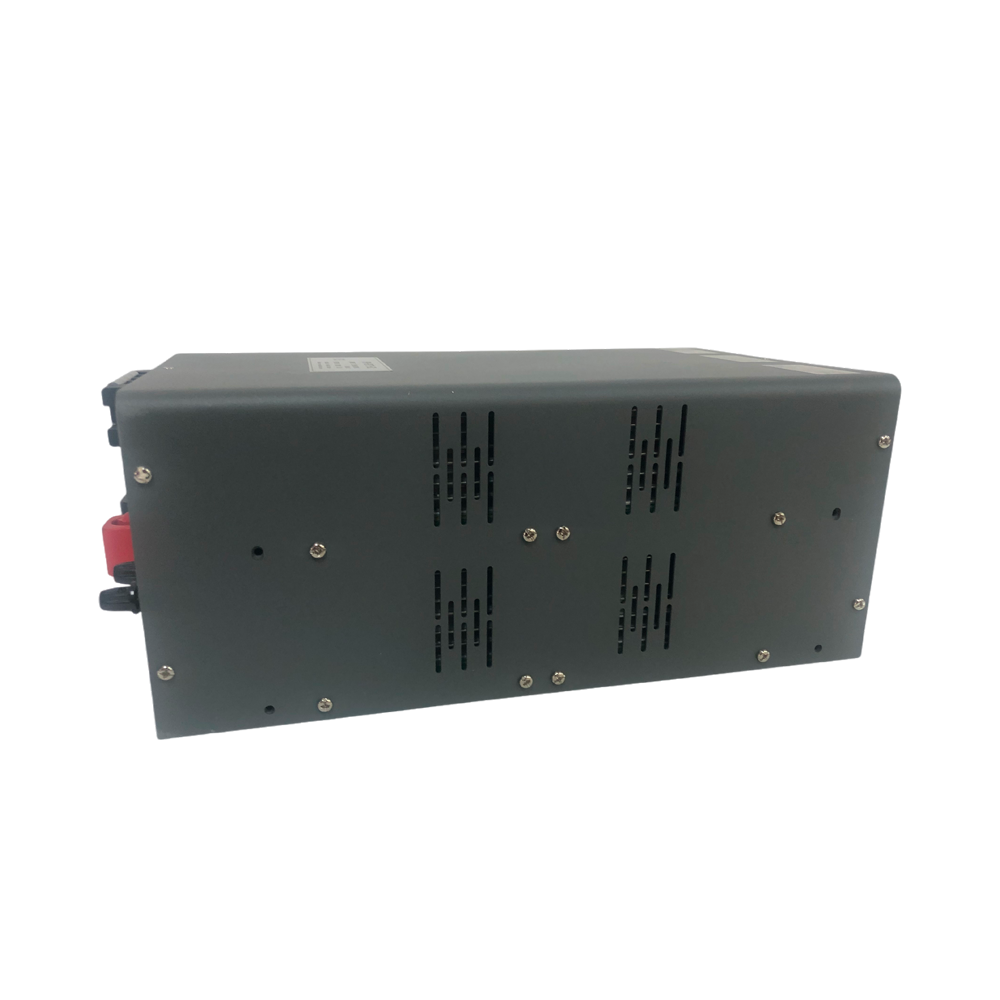

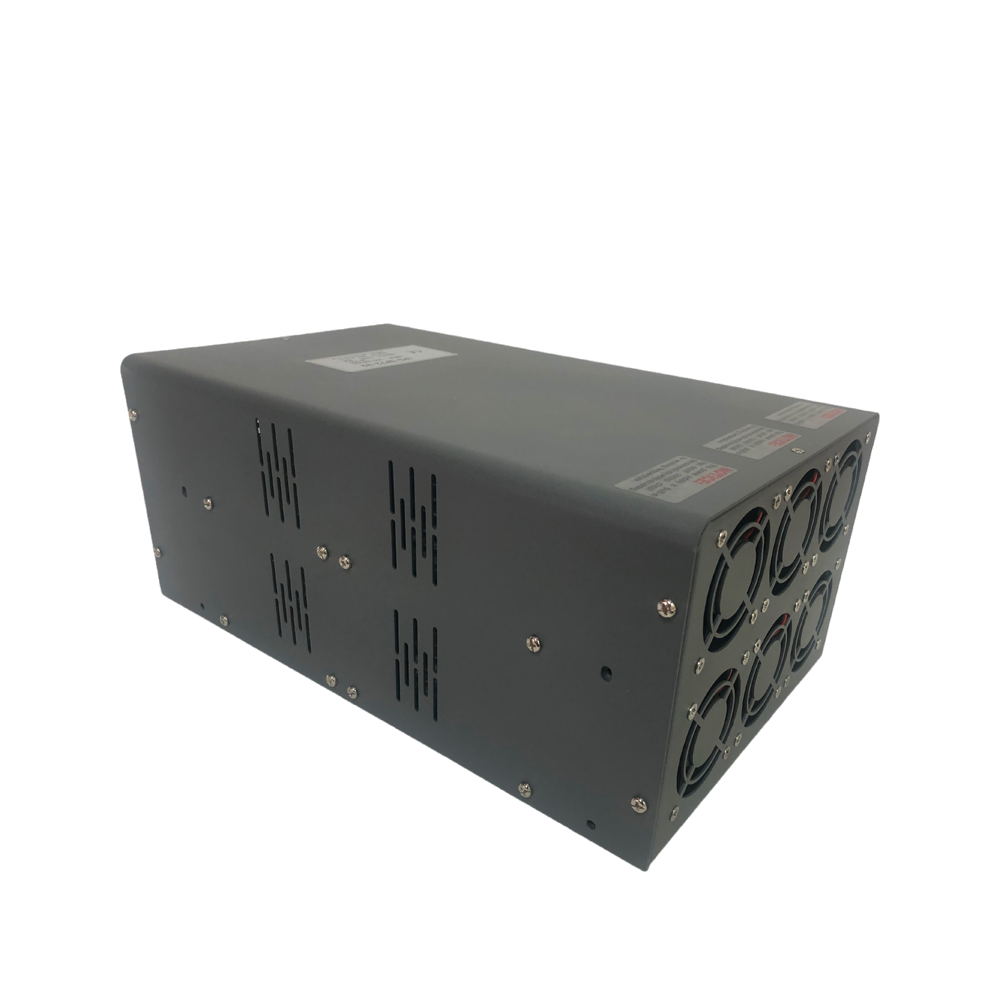

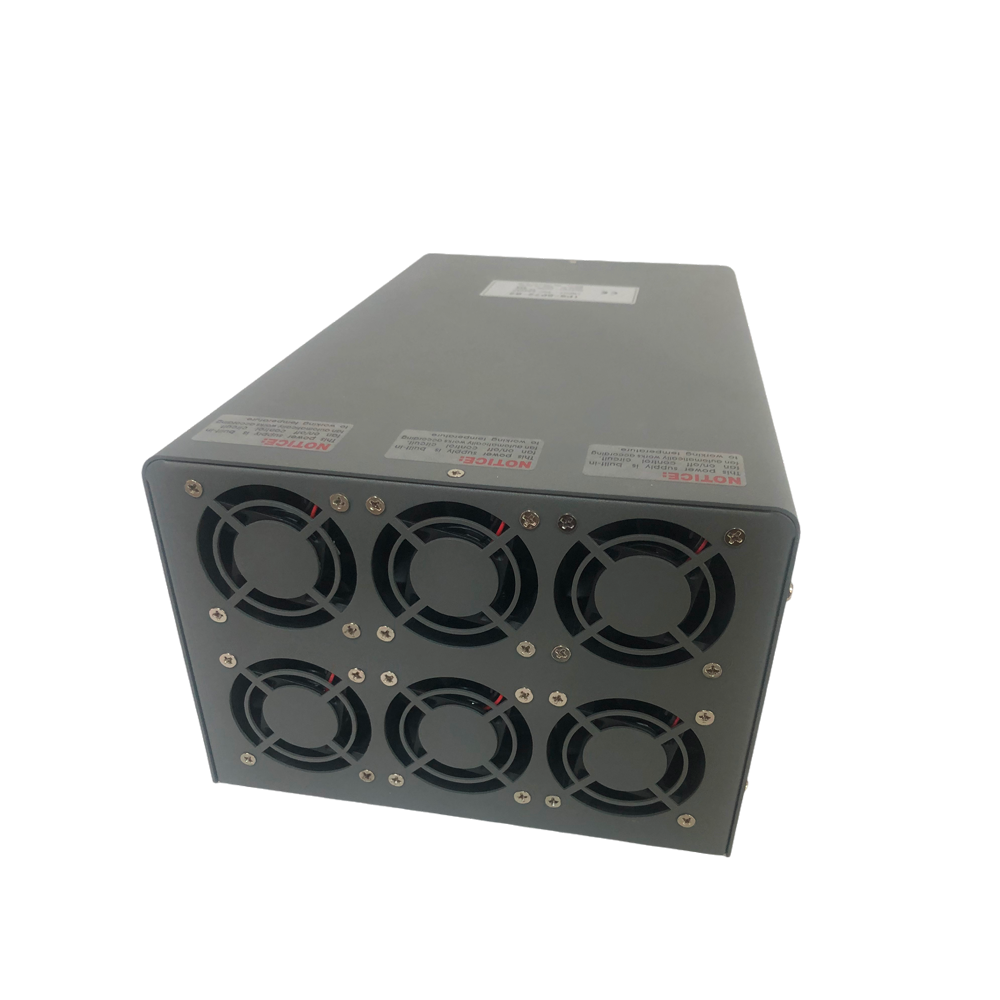

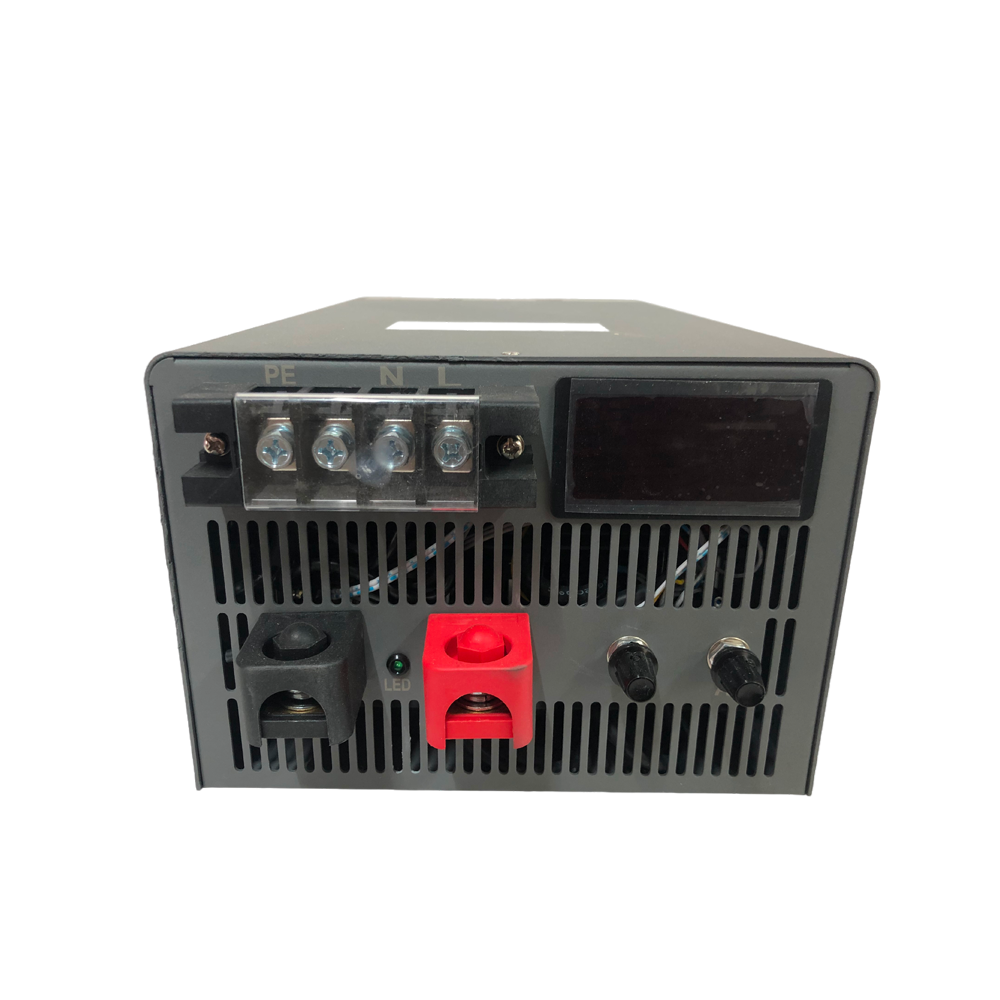

IDEALPLUSING High Power 7000W Switching Power Supply AC 220V to DC 24V 247A Laboratory Regulated Switch Mode Power Supply
Product Description
High Power 7000W Switching Power Supply
AC 220V to DC 24V 247A Laboratory Regulated Switch Mode Power Supply
AC 220V to DC 24V 247A Laboratory Regulated Switch Mode Power Supply
We focus on the research and development, sales and service of DC to DC power supply module, AC to DC rectifier module, DC to AC inverter, AC power supply, DC power supply, LED power supply, charger, rectifier system and other fields, to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries.
Our Philosophy: We are not only selling products. What we want to give our customers the right power supply solution, giving a better quotation solution with the right items.
🚀 Our Advantages
We specialize in customizing switching Power Supply to meet your specific requirements. If you cannot find the right specification to meet your requirement, contact us now! It will not cost you one cent when you ask us anything, but it may be a chance for both of us! Our dedicated team endeavors to respond within one hour.
✅ Product Features
- Adjustable with Compact size, light weight
- AC input 200-240VAC 50/60HZ (110VAC/120VAC support available upon request)
- 100% full load burn-in test
- Protection: Short circuit / Over load / Over voltage
- Fixed switching frequency at 25KHz
- High efficiency, reliability quality, competitive cost
- 0-5Vdc / 0-10Vdc External control output (Optional)
- Extra adjustable potentiometer (Optional)
- Output voltage adjustable, output current be fixed (Optional)
📊 Technical Specifications (7000W)
| Parameter | Specification |
|---|---|
| Type | Switching Mode Power Supply |
| Model | IPS-SP24-247 |
| Input voltage | Single phase 200~240VAC |
| Input frequency | 50/60Hz |
| DC Output Voltage | Base on model |
| Output Current | Base on model |
| Output Power | 7000W Max |
| Dimension | 351*210.8*148.5(mm) |
| Net Weight / Gross Weight | 9.8KG/14.6KG |
📑 7000W Model List
| Model | Input Voltage (VAC) | Output Voltage (VDC) | Output Current (AMPS) |
|---|---|---|---|
| IPS-SP24-247 | 200-240VAC | 24VDC | 247A |
| IPS-SP36-165 | 200-240VAC | 36VDC | 165A |
| IPS-SP48-123 | 200-240VAC | 48VDC | 123A |
| IPS-SP60-99 | 200-240VAC | 60VDC | 99A |
| IPS-SP220-27 | 200-240VAC | 220VDC | 27A |
🔥 Hot Selling Models
IPS-PFC500-24
24VDC 500W
IPS-PFC500-48
48VDC 500W
IPS-PFC350-12
12VDC 350W
IPS-PFC1000-24
24VDC 1000W
IPS-PFC2000-24
24VDC 2000W
IPS-PFC3000-24
24VDC 3000W
🛠️ Customization Service
We specialize in customizing switching converters to meet your specific needs. Our products support customized input and output voltages and currents ranging from 1V to 1000V and 1A to 1000A. We provide one-to-one customization services. Just tell us your needs and we will recommend the best solution for you. We are good at customizing various switching power supplies according to your usage scenarios and load information.
📐 Product Dimensions & Overview
🏗️ Application & Factory Show
❓ Frequently Asked Questions (FAQ)
1. Can the output voltage and current be customized?
Yes, we support extensive customization for output ranges from 1V to 1000V and current from 1A to 1000A to suit specific load requirements.
2. Does the power supply support 110V AC input?
Our standard models are 200-240VAC. However, we can provide 110VAC or 120VAC input options upon request. Please specify this when inquiring.
3. What safety protections are built into these units?
All units include comprehensive protection against short circuits, overloading, and overvoltage. Every unit undergoes a 100% full-load burn-in test.
4. Are there external control options available for laboratory use?
Yes, we offer optional 0-5Vdc or 0-10Vdc external control outputs and additional adjustable potentiometers for precise laboratory regulation.
5. What is the typical lead time for a response?
Our dedicated professional team endeavors to respond to all technical and sales inquiries within one hour.
6. Is the customization service free of charge?
Consultation and the design of customized solutions by our professional sales engineers are completely free of charge.
