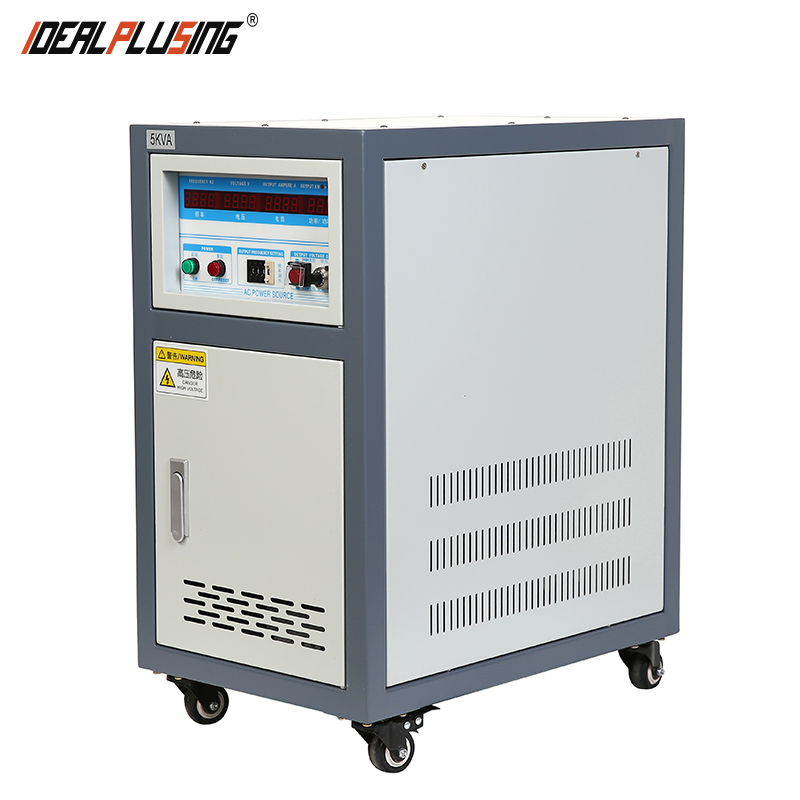

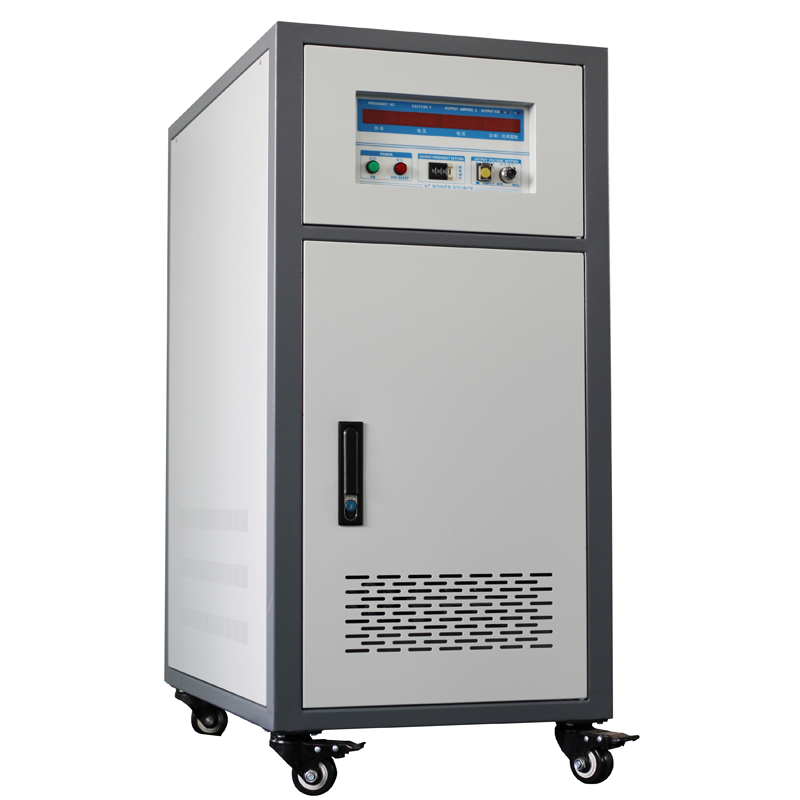

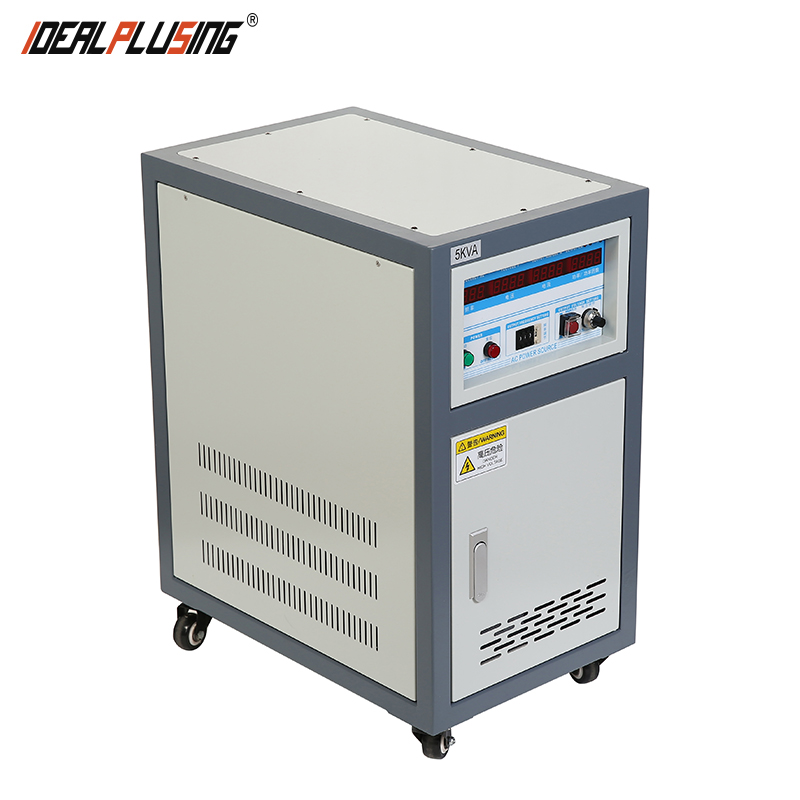

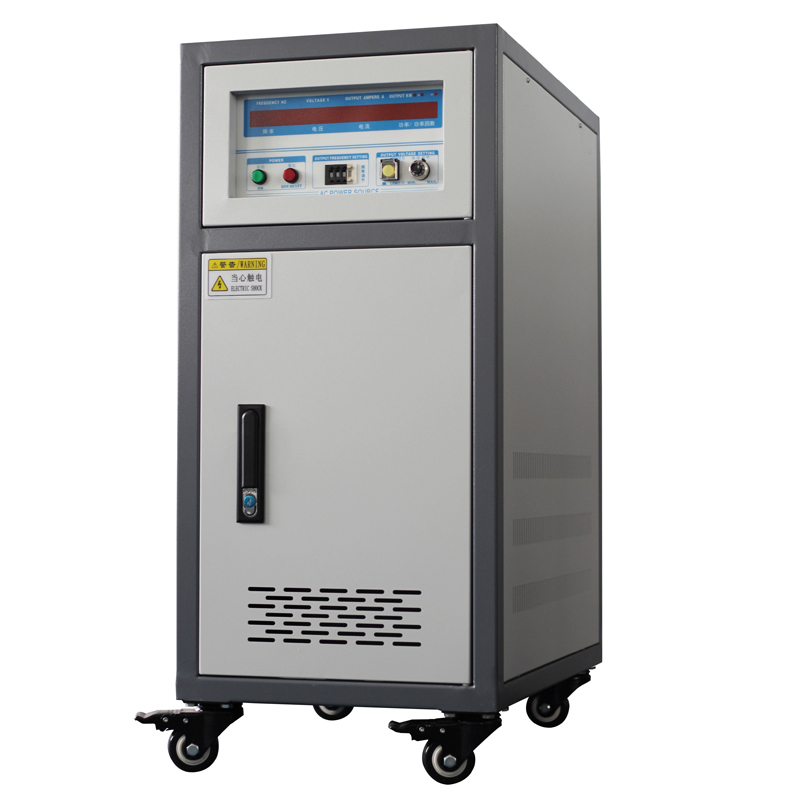

IDEALPLUSING 75kVA 400Hz Static Frequency Converter 380V to 115V 50Hz/60Hz for Aircraft Hangar and Ground Support
Product Description
Product Description
75kVA 50Hz/60Hz 380V to 115V 400Hz Static Frequency Converter for Aircraft Hangar Use
PERFORMANCE CHARACTERISTICS
1
Complete isolation of input and output technology, safe and reliable power supply.
2
SPWM sine wave pulse width modulation technology is adopted, with fast response speed and stable output.
3
IGBT high-frequency static inverter, small size, lightweight, low noise, and high efficiency.
4
Unique double-loop control mode of instantaneous value and effective value for high precision and good waveform quality.
5
High power IGBT module and integrated drive circuit for strong overload capacity and low loss.
6
Suitable for resistive, inductive, rectifier, and other various loads.
7
Multiple protection functions: overheating, overcurrent, and short circuit protection.
8
Parameter memory function with 10-groups shortcut key operation.
9
Online adjustment of voltage and frequency in real-time.
APPLICATIONS
Home appliances
Motors
Power tools
Switching power supplies
Power adapters
UPS Systems
Communication
Photovoltaic
Lamps
Electronic transformers
Electronic components
Distribution systems
Technical Specifications
IPS-FC61: Single-Phase Input / Single-Phase Output
| Model | 61005 | 6101 | 6102 | 6103 | 6105 | 6106 | 6110 | 6115 |
|---|---|---|---|---|---|---|---|---|
| Capacity (KVA) | 0.5 | 1 | 2 | 3 | 5 | 6 | 10 | 15 |
| Power (KW) | 0.4 | 0.8 | 1.6 | 2.4 | 4 | 4.8 | 8 | 12 |
| AC Input | Single-phase 220V/50Hz or 60Hz | |||||||
| AC Output Phase | Single-phase 220V | |||||||
| Voltage Range | Low: 0~150V | High: 0~300V Adjustable | |||||||
| Frequency | 40~499.9HZ (Software adjustable) | |||||||
IPS-FC62: Single-Phase Input / Tri-Phase Output
| Model | 6220 | 6230 | 6245 | 6260 | 62100 | 62120 | 62150 | 62200 |
|---|---|---|---|---|---|---|---|---|
| Capacity (KVA) | 20 | 30 | 45 | 60 | 100 | 120 | 150 | 200 |
| AC Input | Tri-phase 220V/50Hz or 60Hz | |||||||
| AC Output | 3-phases 380V (40~499.9HZ) | |||||||
IPS-FC63: 3-Phase Input / Single-Phase Output
| Model | 6303 | 6306 | 6310 | 6315 | 6320 | 6330 | 6345 | 6360 |
|---|---|---|---|---|---|---|---|---|
| Capacity (KVA) | 3 | 6 | 10 | 15 | 20 | 30 | 45 | 60 |
| Output Frequency | 40~499.9HZ software adjustable | |||||||
| Max Current (150V) | 8.4A | 16.8A | 28A | 42A | 50A | 84A | 125A | 168A |
IPS-FC68: 3-Phase Input / 3-Phase Output
| Model | 6805 | 6810 | 6815 | 6820 | 6830 | 6845 | 6860 | 68100 |
|---|---|---|---|---|---|---|---|---|
| Capacity (KVA) | 5 | 10 | 15 | 20 | 30 | 45 | 60 | 100 |
| Circuit Mode | IGBT/PWM | |||||||
| Protection | Over voltage, current, load, temperature and short-circuit | |||||||
Product Showcase
Product Overview & Dimensions
Model List & Selection
Frequently Asked Questions
What is a 400Hz static frequency converter used for?
It is primarily used in aircraft hangars and ground support to provide stable 115V 400Hz power to aircraft systems while they are on the ground, converting standard 50Hz or 60Hz utility power.
Can this unit handle both 50Hz and 60Hz input frequencies?
Yes, the converter is designed to accept either 50Hz or 60Hz input, making it versatile for use in different regions worldwide.
Is the output voltage and frequency adjustable?
Yes, the output voltage can be adjusted between 0-150V or 0-300V depending on the range setting, and the frequency is software-adjustable between 40Hz and 499.9Hz.
What kind of safety protections are built into the device?
The unit includes comprehensive protection against overvoltage, overcurrent, overload, over temperature, and short-circuits, featuring automatic jump protection and alarms.
Is the input and output isolated?
Yes, it utilizes complete isolation technology between the input and output to ensure the highest level of safety and reliability for sensitive aircraft electronics.
What technology ensures the output waveform quality?
The system uses SPWM (Sine Wave Pulse Width Modulation) and a unique double-loop control mode to ensure a high-precision, low-distortion sine wave output compatible with all types of loads.
