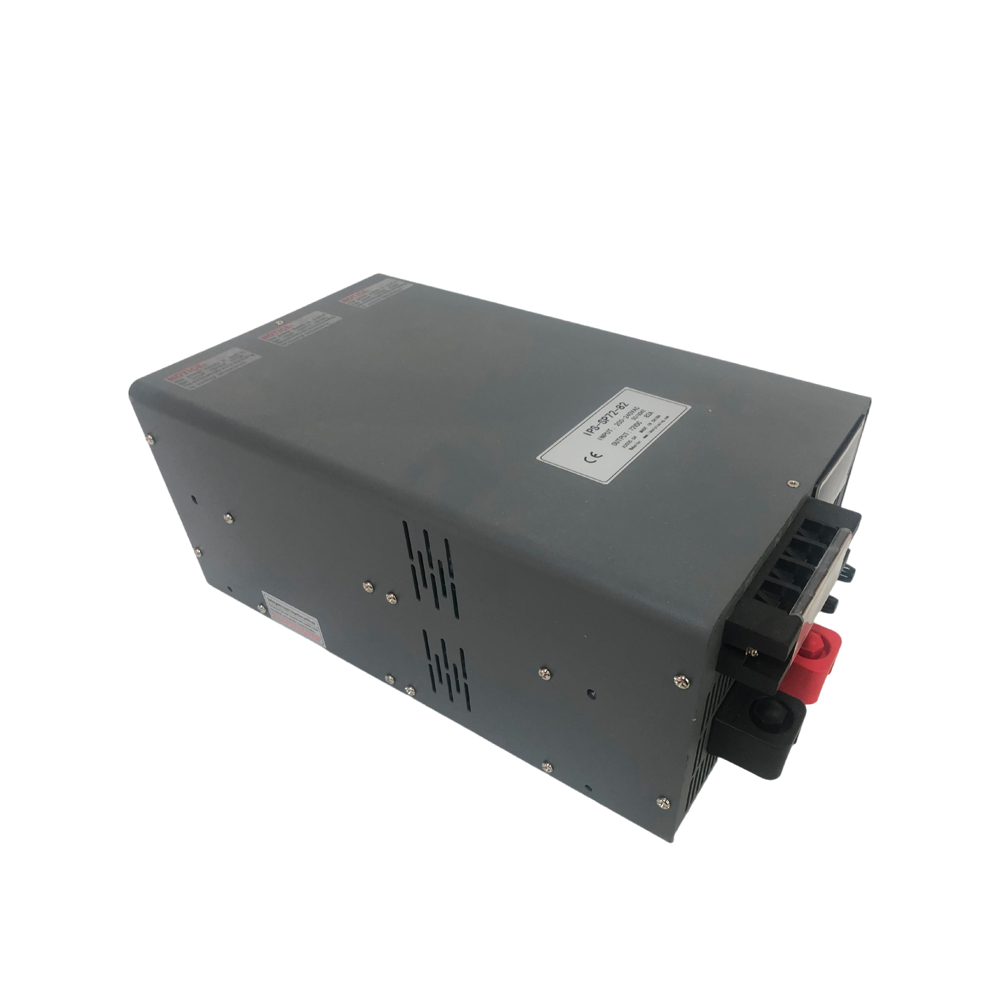

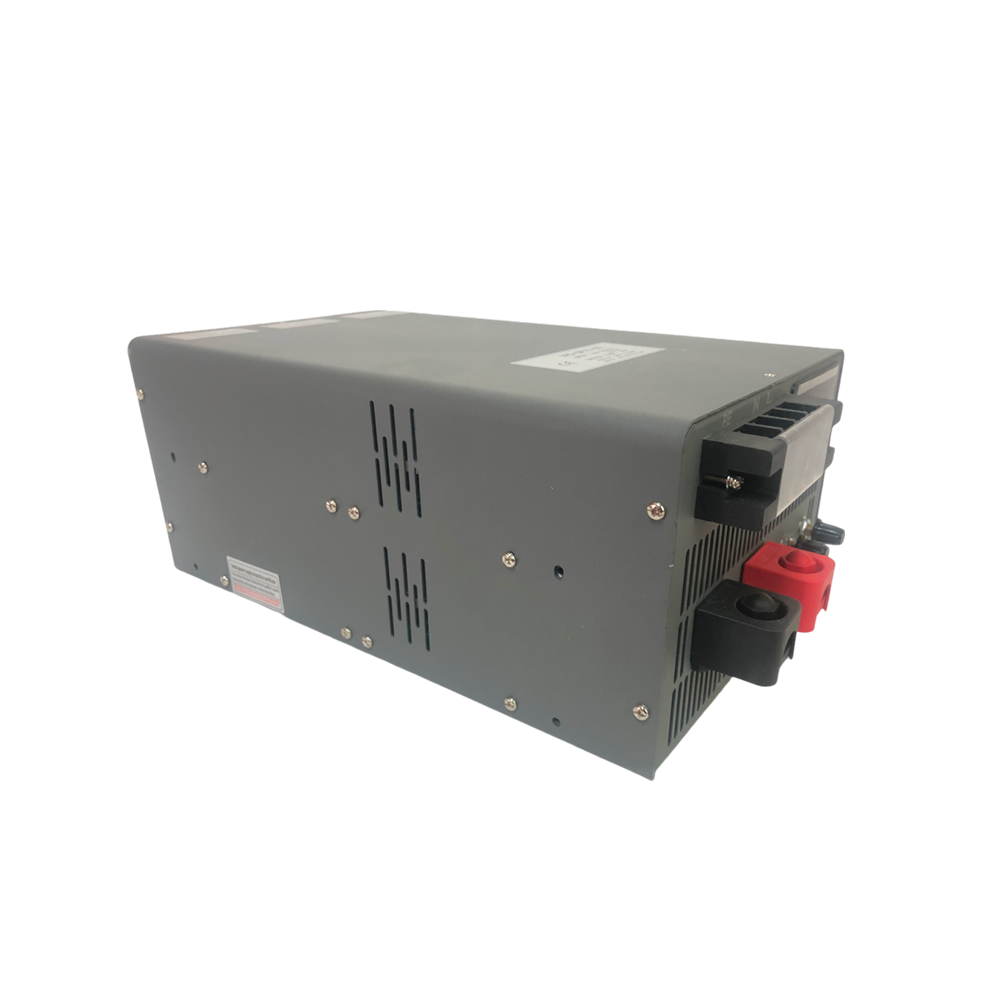

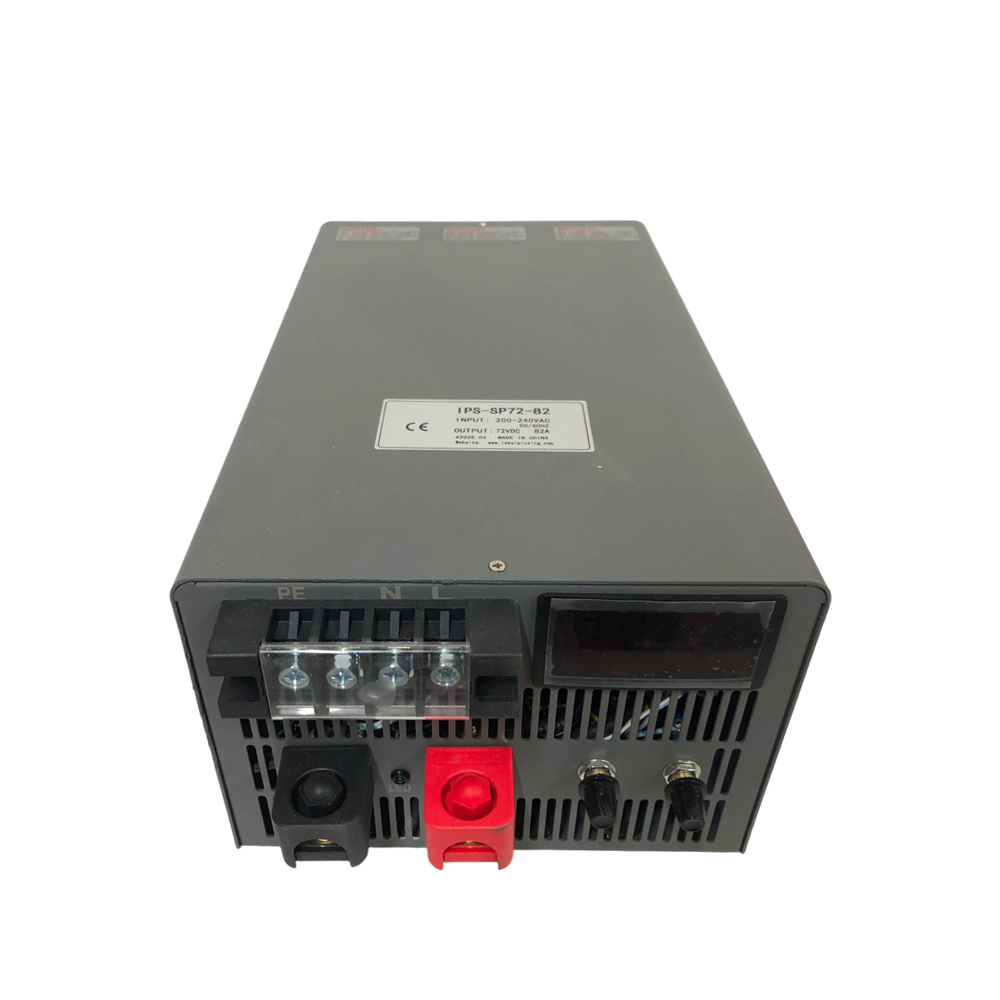

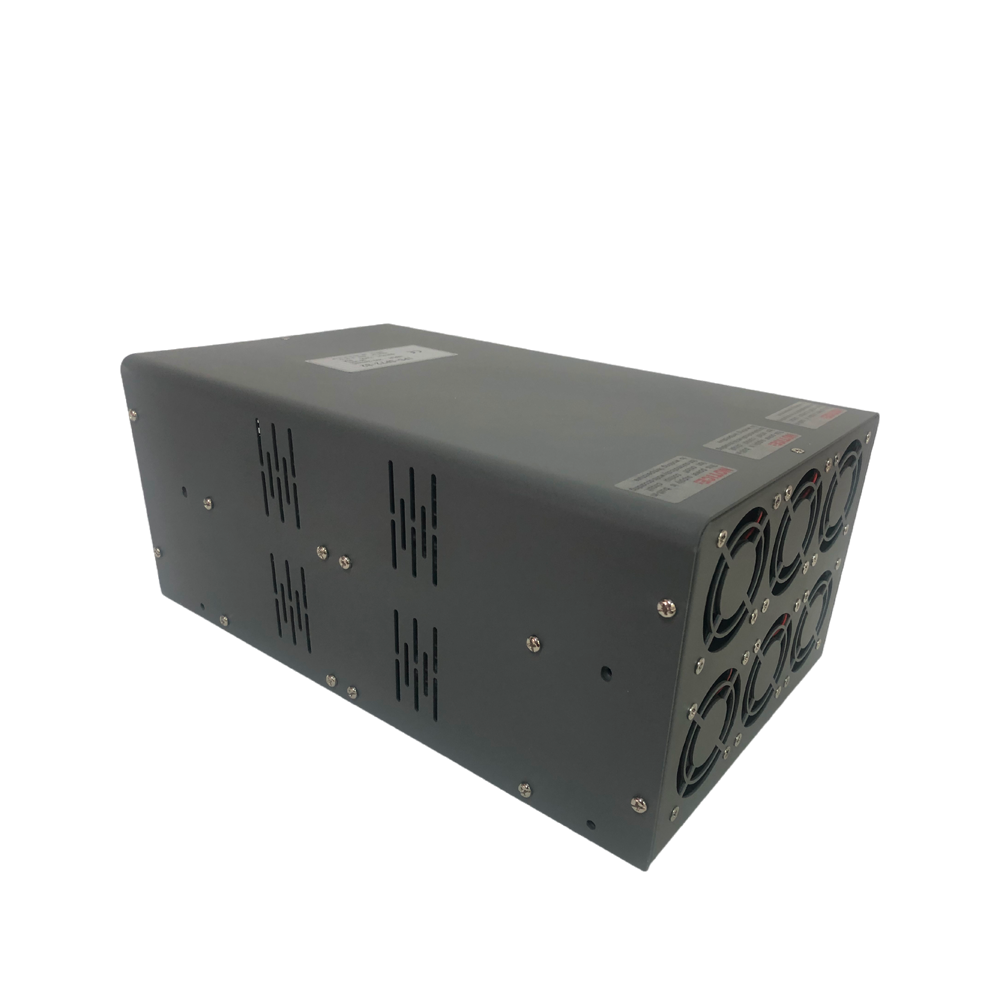

IDEALPLUSING Ac to Dc 6000W Switching Power Supply Module 24V 48V 60V 85A Custom Switching Power Supply
Product Description
We focus on the research and development, sales and service of D C to D C power supply module, A C to D C rectifier module, D C to A C inverter, A C power supply, D C power supply, L E D power supply, charger, rectifier system and other fields, to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries.
💡 Better Solutions: We are not only selling products. What we want to give our customers the right power supply solution, giving a better quotation solution with the right items.
Our Advantages: We specialize in customizing switching Power Supply to meet your specific requirements. Please submit any inquiries to explore our capabilities further. If you cannot find the right specification to meet your requirement, please contact us now! It will not cost you anything to ask, and our dedicated team endeavors to respond within one hour.
Product Features
| Item | Feature Highlights |
|---|---|
| 01 | Adjustable with Compact size, light weight |
| 02 | AC input 200-240VAC 50/60HZ (Optional 110VAC/120VAC customizable) |
| 03 | 100% full load burn-in test |
| 04 | Complete Protection: Short circuit / Over load / Over voltage |
| 05 | Fixed switching frequency at 25KHz |
| 06 | High efficiency, reliable quality, competitive cost |
| 07 | 0-5Vdc / 0-10Vdc External control output (Optional) |
| 08 | Extra adjustable potentiometer (Optional) |
| 09 | Output voltage adjustable, output current be fixed (Optional) |
IPS-SP60-85 Technical Parameters
| Type | Switching Mode Power Supply |
| Model | IPS-SP60-85 |
| Input voltage | Single phase 200~240VAC |
| Input frequency | 50/60Hz |
| DC Output Voltage | Based on exact model requirements |
| Output Current | Based on exact model requirements |
| Output Power | 6000W Max |
| Dimension | 351*188.8*148.2 (mm) |
| Net/Gross Weight | 9.1KG / 13.9KG |
Standard Model List (6000W)
| Model | Input Voltage (VAC) | Output Voltage (VDC) | Output Current (AMPS) |
|---|---|---|---|
| IPS-SP24-212 | 200-240VAC | 24VDC | 212A |
| IPS-SP36-141 | 200-240VAC | 36VDC | 141A |
| IPS-SP48-106 | 200-240VAC | 48VDC | 106A |
| IPS-SP60-85 | 200-240VAC | 60VDC | 85A |
| IPS-SP72-70 | 200-240VAC | 72VDC | 70A |
| IPS-SP96-53 | 200-240VAC | 96VDC | 53A |
| IPS-SP110-46 | 200-240VAC | 110VDC | 46A |
| IPS-SP150-40 | 200-240VAC | 150VDC | 40A |
| IPS-SP220-23 | 200-240VAC | 220VDC | 23A |
Hot Selling Models
IPS-PFC500-24 (500W)
Input: 95-264VAC | Output: 24VDC, 20.83A
IPS-PFC500-48 (500W)
Input: 95-264VAC | Output: 48VDC, 10.42A
IPS-PFC350-12 (350W)
Input: 95-264VAC | Output: 12VDC, 29.17A
IPS-PFC1000-24 (1000W)
Input: 110-240VAC | Output: 24VDC
IPS-PFC2000-24 (2000W)
Input: 110-240VAC | Output: 24VDC
IPS-PFC3000-24 (3000W)
Input: 110-240VAC | Output: 24VDC
IPS-SP12-150 (2000W)
Input: 200-240VAC | Output: 12VDC, 150A
IPS-SP12-200 (2500W)
Input: 200-240VAC | Output: 12VDC, 200A
IPS-SP12-250 (3000W)
Input: 200-240VAC | Output: 12VDC, 250A
IPS-SP24-212 (6000W)
Input: 200-240VAC | Output: 24VDC, 212A
IPS-SP48-106 (6000W)
Input: 200-240VAC | Output: 48VDC, 106A
IPS-SP150-40 (6000W)
Input: 200-240VAC | Output: 150VDC, 40A

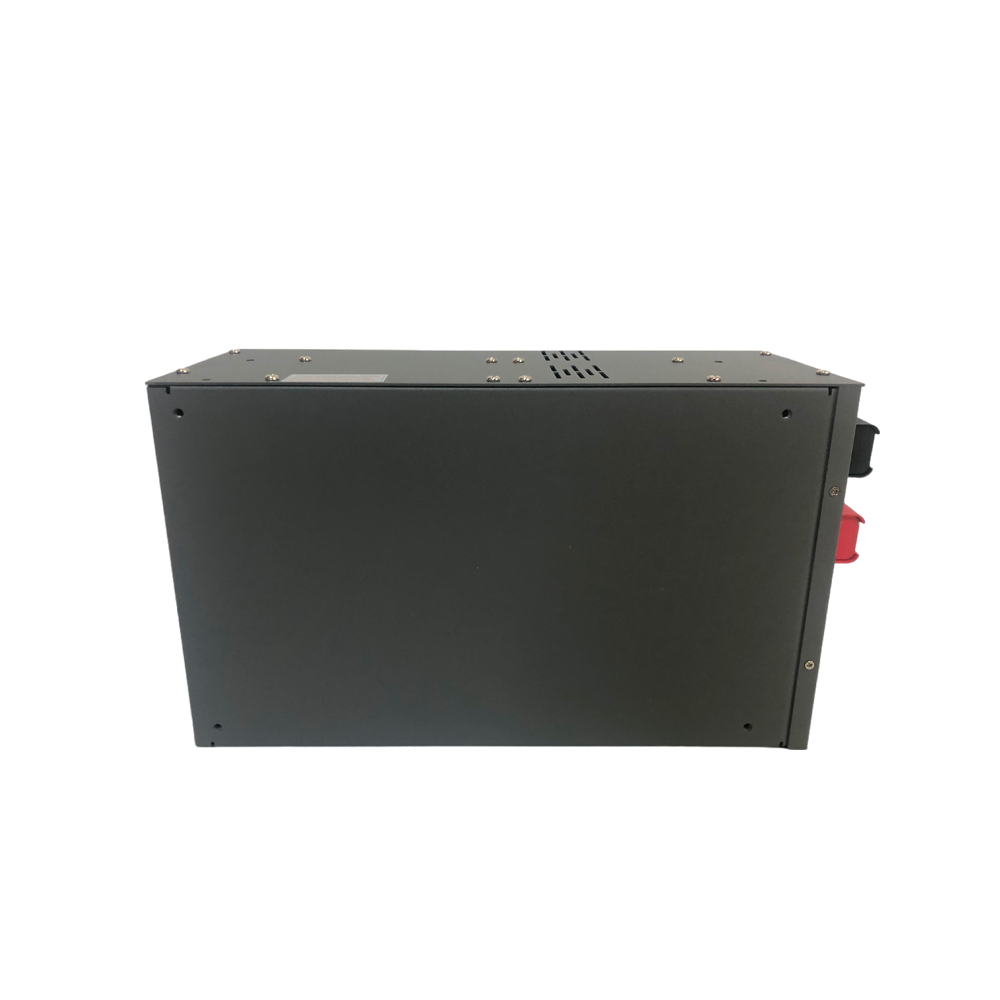

Product Detail Dimensions
Contact Us Now! Free Customization Services
We specialize in customizing switching converters to meet your specific needs. Our solutions support customizable input/output voltages and currents ranging from 1V to 1000V and 1A to 1000A. Just tell us your usage scenarios and load information, and our professional sales engineers will recommend the best-suited configuration in a very short time!

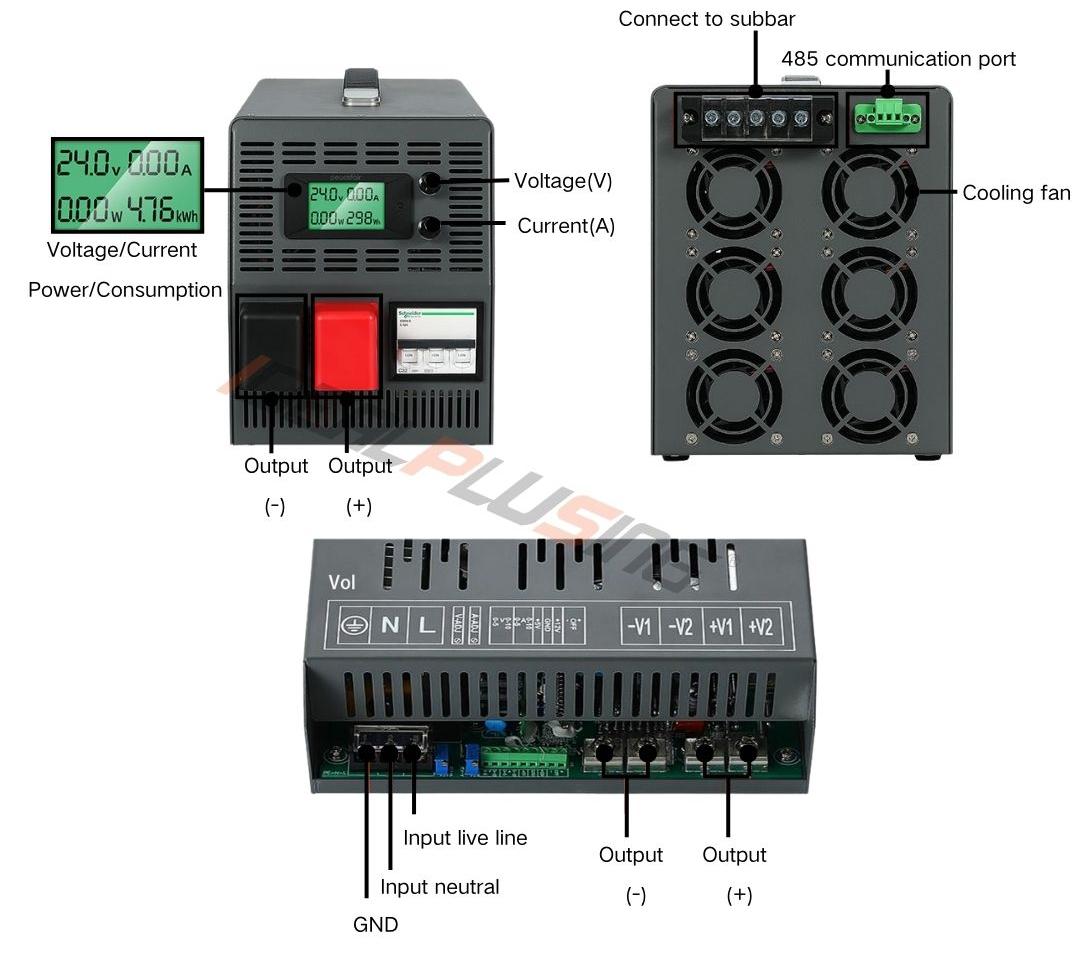

Recommended Power Modules
Application Scope & Production Strength
Frequently Asked Questions
Can I customize the input voltage (e.g., 110VAC/120VAC) for these power supplies?
Yes, although our standard model specifies an input of 200-240VAC 50/60HZ, we specialize in customize-to-order manufacturing. We can customize the unit to support 110VAC or 120VAC inputs upon your specific request.
What range of voltage and current outputs can you customize?
Our customization support capabilities are extremely comprehensive. We can configure specialized switching converters supporting stable DC outputs anywhere from 1V up to 1000V, and current flows anywhere from 1A up to 1000A.
What safety protection mechanisms are integrated within these power modules?
To guarantee utmost reliability and absolute safety, all customized modular designs features fully integrated automated safety mechanisms, which include Short Circuit Protection, Over Load Protection, and Over Voltage Protection.
Are your switching power supplies subjected to testing prior to shipping?
Absolutely. Quality assurance is our highest priority. Every customized switching power supply unit undergoes a strict 100% full load burn-in test parameter cycle before we clear the product for export packaging and shipment.
Does it cost extra to request customization proposals?
No, our engineering support and sales consultation services are completely free. Our professional sales engineers will evaluate your load specifications and design a optimal solution without any initial charge or obligations.
