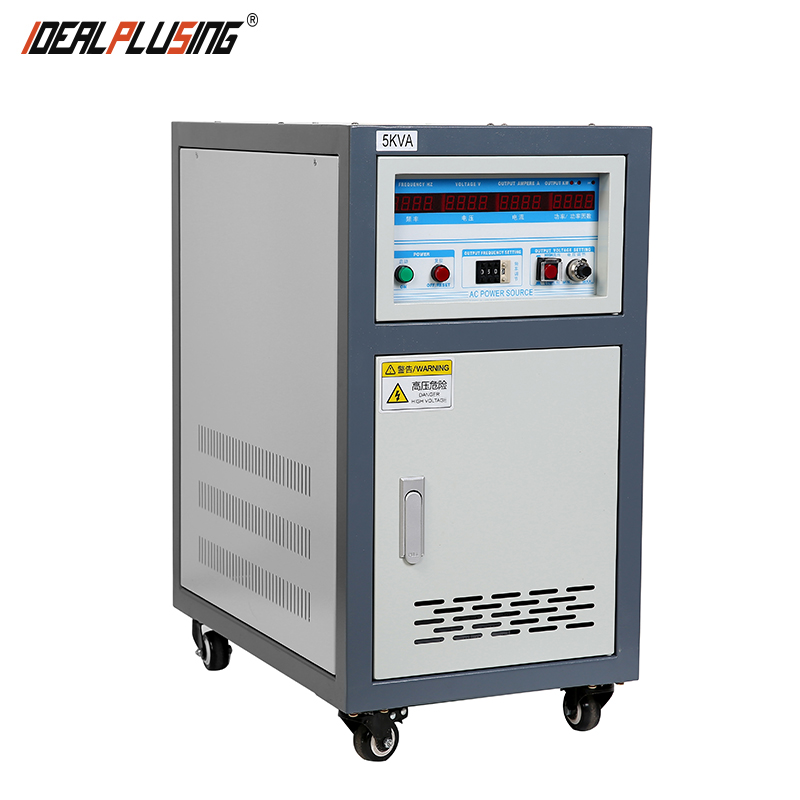

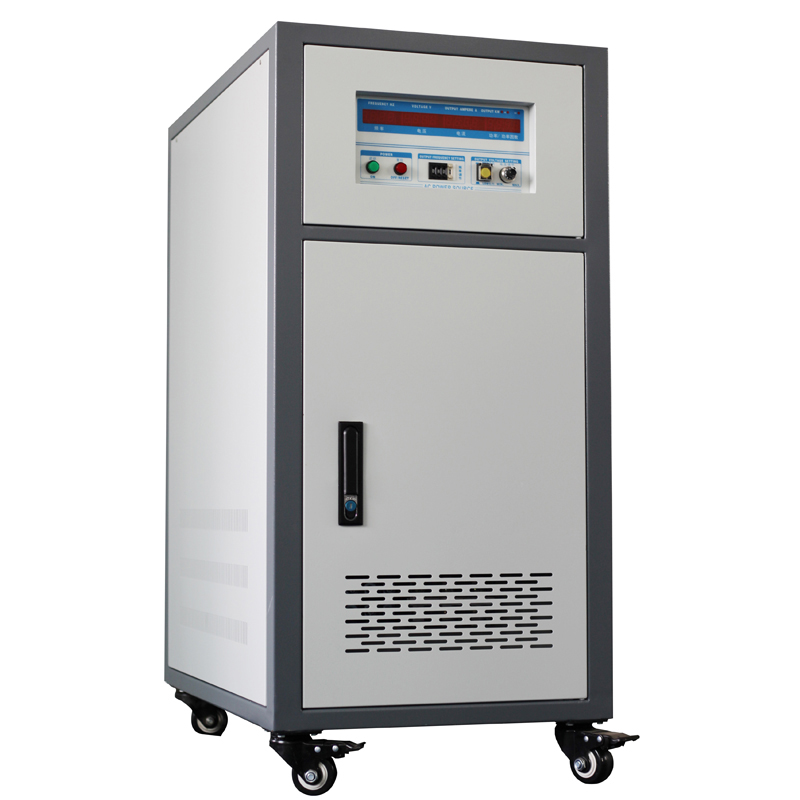

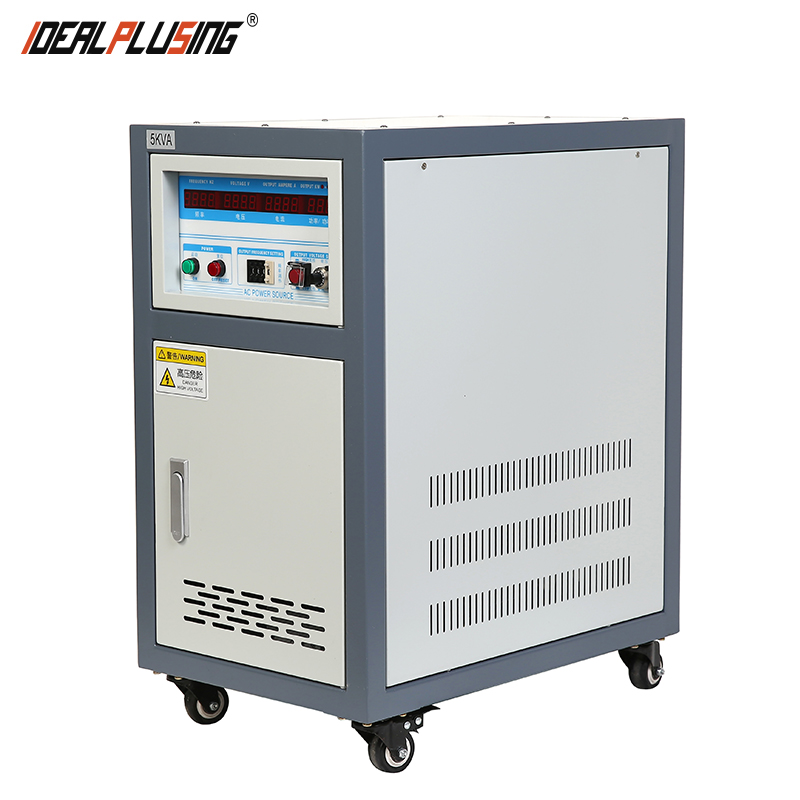

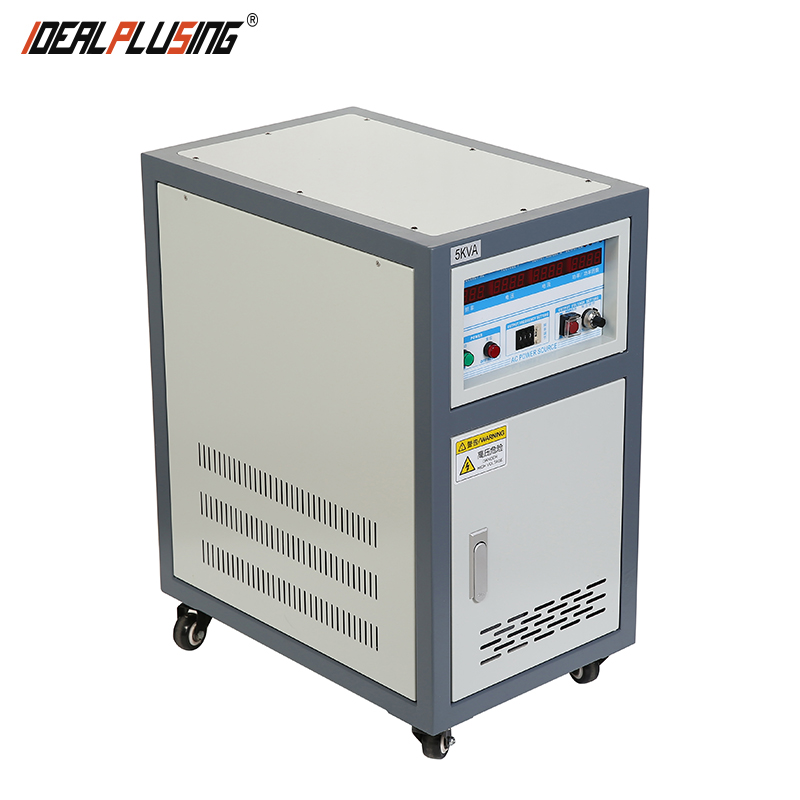

IDEALPLUSING 4kW 5kW 8kW 10kW 3kW-15kW Single Phase 220VAC to Three Phase 380VAC Frequency Converter OEM/ODM
Product Description
3kw 4kw 5kw 8kw 10kw 15kw 220V Single Phase to 380VAC 3 Phase Frequency Converter
Product Description
PERFORMANCE CHARACTERISTICS
Complete isolation of input and output technology, safe and reliable power supply
SPWM sine wave pulse width modulation technology is adopted, with fast response speed and stable output
IGBT high-frequency static inverter, small size, lightweight, low noise, and high efficiency
Unique double-loop control mode of instantaneous value and effective value with high control precision and good waveform quality
High power IGBT module and highly integrated module drive circuit, reliable operation and strong overload capacity
Suitable for resistive, inductive, rectifier, and other loads
Multiple protection functions for abnormal conditions such as overheating, overcurrent, and short circuit
Function of setting parameter memory with (10-groups) shortcut key operation
Power supply voltage and frequency can be adjusted online in real-time
APPLICATION
⚡ Home appliances
⚡ Photovoltaic
⚡ Motors
⚡ Lamps
⚡ Power tools
⚡ Electronic transformers
⚡ Switching power supplies
⚡ Electronic components
⚡ Power adapters
⚡ Low-voltage distribution
⚡ UPS
⚡ Power
⚡ Information and communication
⚡ Other industries
Specifications (IPS-FC61) Single-Phase Input Single-Phase Output
| Model (IPS-FC61) | 61005 | 6101 | 6102 | 6103 | 6105 | 6106 | 6110 | 6115 |
| Output capacity (KVA) | 0.5 | 1 | 2 | 3 | 5 | 6 | 10 | 15 |
| Rated power output(KW) | 0.4 | 0.8 | 1.6 | 2.4 | 4 | 4.8 | 8 | 12 |
| Circuit mode | IGBT/SPWM | |||||||
| AC input | Single-phase 220V/50Hz or 60Hz | |||||||
| Frequency | 40~499.9HZ setting by software | |||||||
| Max current (low-grade) | 4.2A | 8.4A | 17A | 25A | 42A | 50A | 84A | 125A |
| Net weight (kg) | 26 | 32 | 37 | 48 | 63 | 80 | 145 | 175 |
Specifications (IPS-FC62) Single-Phase Input Tri-Phase Output
| Model (IPS-FC62) | 6220 | 6230 | 6245 | 6260 | 62100 | 62120 | 62150 | 62200 |
| Output capacity (KVA) | 20 | 30 | 45 | 60 | 100 | 120 | 150 | 200 |
| Rated power output(KW) | 16 | 24 | 36 | 48 | 80 | 96 | 120 | 160 |
| AC Output Phase | 3-phases 380V | |||||||
| Voltage range | Low: 0-150V, High: 0-300V Adjustable | |||||||
| Max current (low-grade) | 168A | 250A | 375A | 500A | 834A | 1000A | 1250A | 1667A |
| Net weight (kg) | 285 | 385 | 420 | 560 | 960 | 1150 | 1450 | 1900 |
Specifications (IPS-FC63) 3-Phase Input Single-Phase Output
| Model IPS-FC63 | 6303 | 6306 | 6310 | 6315 | 6320 | 6330 | 6345 | 6360 | 63100 | 63120 |
| Rated Capacity (KVA) | 3 | 6 | 10 | 15 | 20 | 30 | 45 | 60 | 100 | 120 |
| AC Input | Single phase 220V | Tri phase 380V | ||||||||
| Output Frequency | 40~499.9HZ Adjustable | |||||||||
| Max Current (0-150V) | 8.4A | 16.8A | 28A | 42A | 50A | 84A | 125A | 168A | 276A | 336A |
Product Show-ACAC
Product Overview
Model List
Frequently Asked Questions
What is the primary function of this frequency converter?
It converts single-phase power (like 220V) to three-phase power (like 380V) or adjusts frequencies, allowing single-phase sources to run industrial three-phase equipment.
Is the output frequency adjustable?
Yes, the frequency can be set via software between 40Hz and 499.9Hz, suitable for various international standards and specific motor needs.
What kind of protection does the device offer?
The unit includes comprehensive protection against overvoltage, overcurrent, overload, over-temperature, and short circuits, complete with automatic jump protection and alarms.
Can it handle inductive loads like motors?
Absolutely. It is designed to adapt to various loads, including resistive, inductive, and rectifier loads, thanks to its high-power IGBT module.
What cooling method does the converter use?

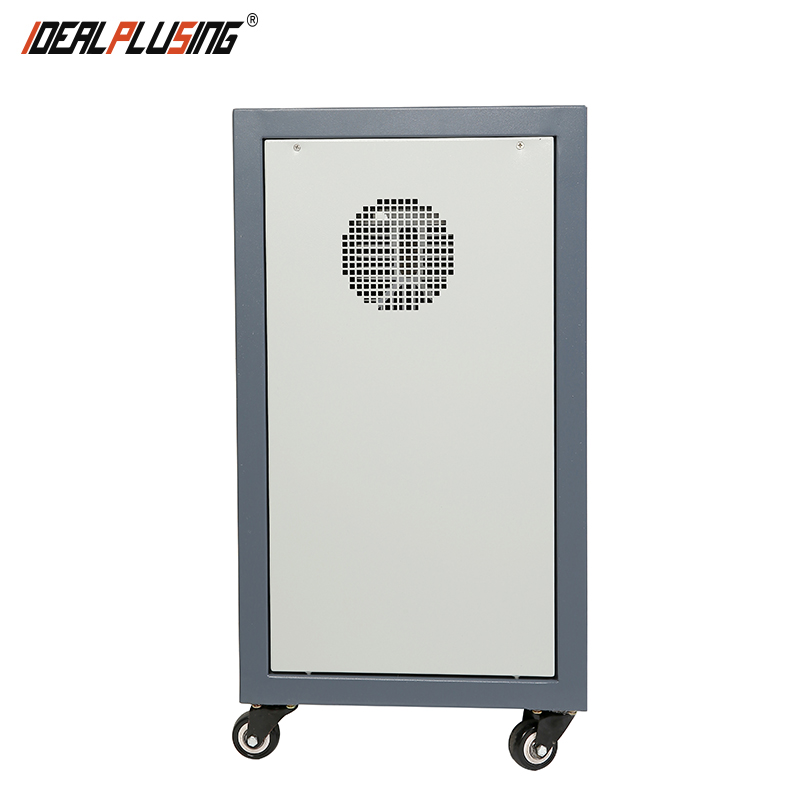

The system utilizes forced fan cooling to ensure efficient heat dissipation and stable operation during high-load performance.
Does the device store settings after power off?
Yes, it features a parameter memory function with 10-groups of shortcut keys for quick operation and data retention.
