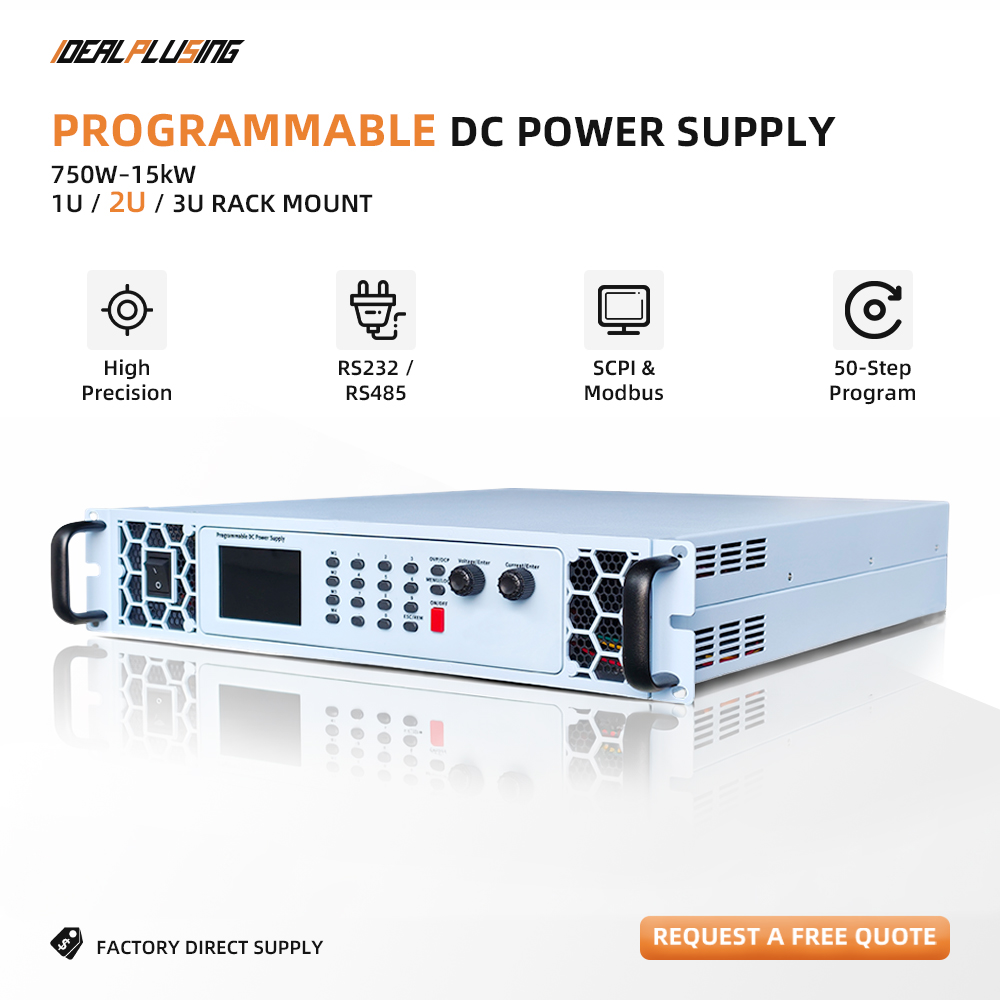

IDEALPLUSING ODM Programmable DC Power Supply 20VDC 64A 160A 400A with Modbus RTU High Reliability for Production Line Testing
Product Description
IDEALPLUSING ODM Programmable DC Power Supply 20VDC 64A 160A 400A with Modbus RTU High Reliability for Production Line Testing
💡 Friendly Reminder
Dear Customer:
The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment. Our company always adheres to the principle of integrity and avoids price misrepresentation. Thank you for your understanding and trust.
Product Description
1

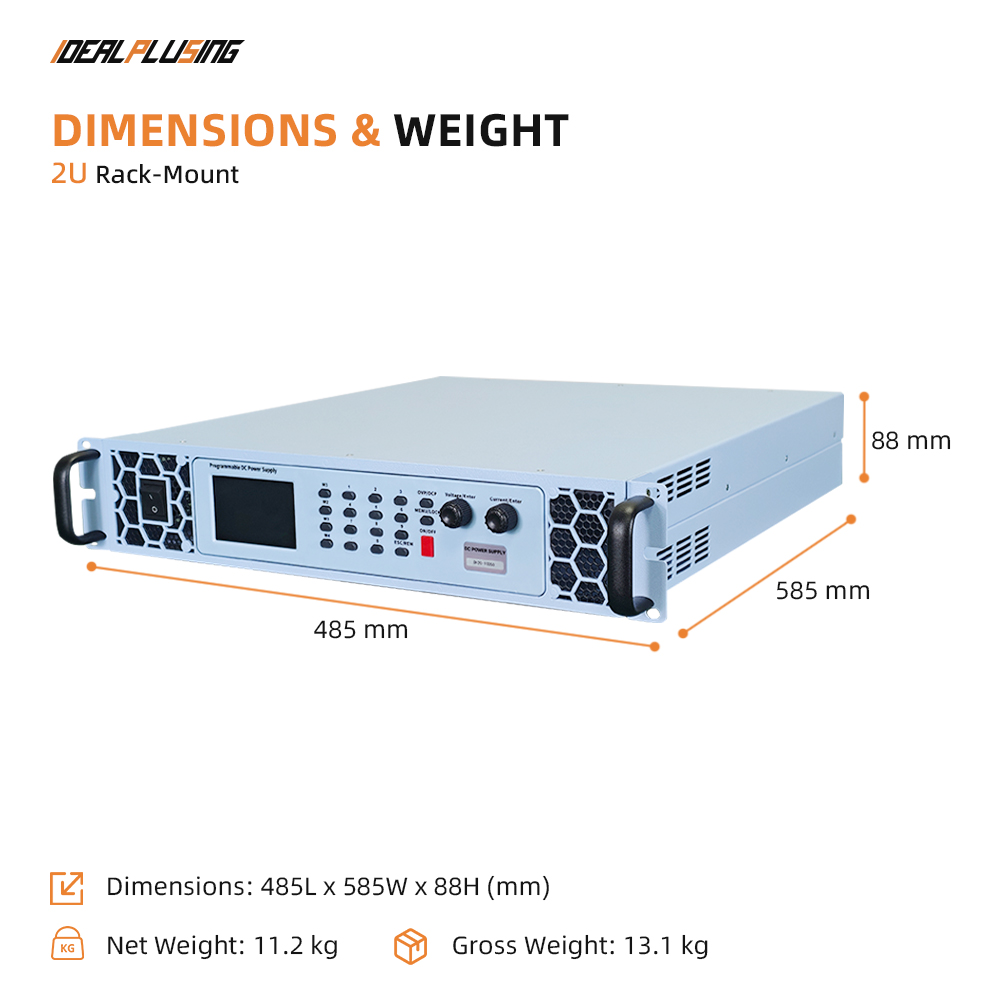

Standard 2U/3U full-width dimensions; compact and lightweight design suitable for both benchtop use and rack mounting.
2
Clear and prominent 5-digit display; the LCD screen provides comprehensive information.
3
Dual encoders for voltage and current adjustment ensure convenient and user-friendly operation.
4
Programmable control over voltage, current, and time outputs.
5

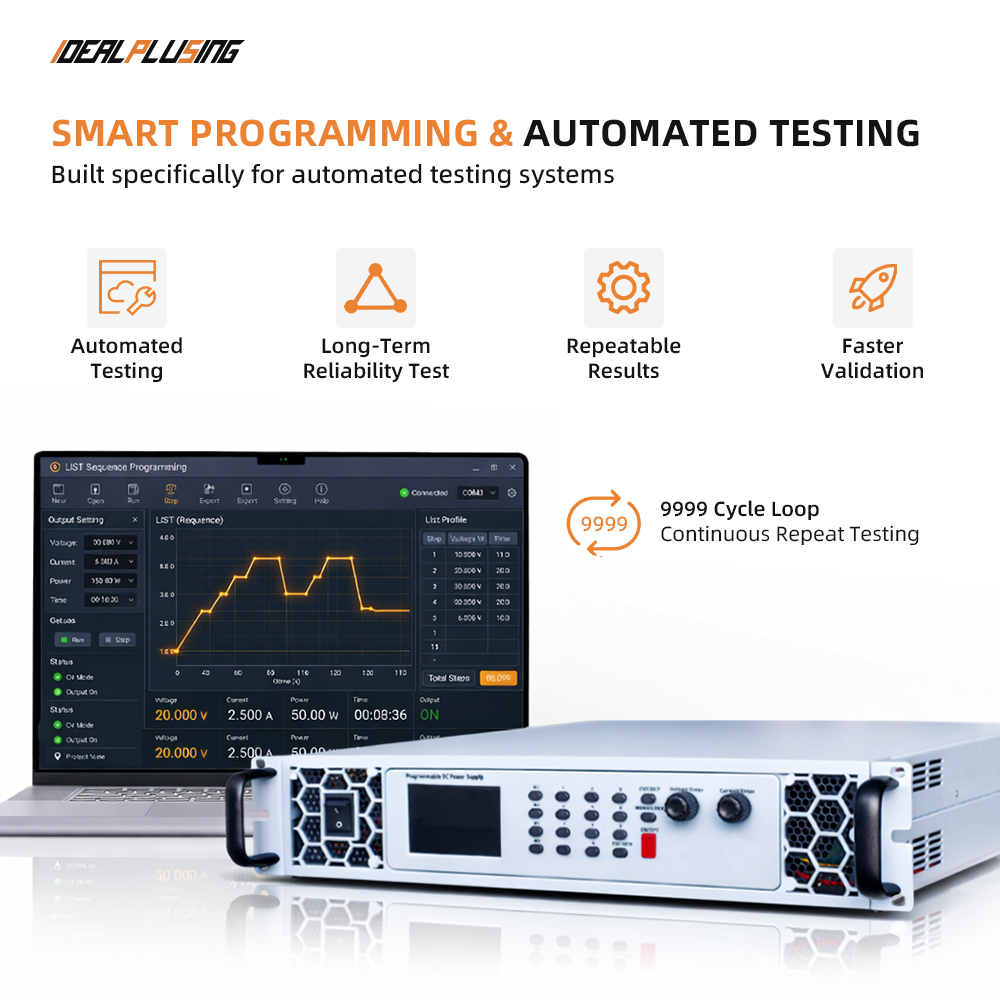

Built-in memory supports the creation of up to 50 programmable steps for voltage, current, and time outputs.
6
Features RS-232/485 interfaces, supporting both Modbus-RTU and SCPI communication protocols.
7
Equipped with dedicated load-side voltage sensing terminals, enabling accurate measurement of the actual voltage at the load and facilitating precise control.
Specification
| Specifications | 2U/3U Chassis Series |
|---|---|
| Model | 3KW-8KW/9KW-15KW |
| AC Input | Single Phase 220V±10%/Three Phase AC380V±10%; Frequency 50Hz/60Hz |
| Output Voltage | 0-20VDC Rated Voltage |
| Output Current | 0-400A Rated Current |
| Output Power | 0-8000W Rated Power |
| Source Regulation | ≤0.1%+10mV |
| Load Regulation | ≤0.1%+30mV |
| Voltage Accuracy | ≤±0.1%FS |
| Current Accuracy | ≤±0.1%FS |
| Ripple (rms) | ≤0.1%FS+10mV |
| Display Mode | Color LCD Display |
| Protection | Over-Voltage (OVP), Over-Current (OCP), Over-Temperature (OTP) 85℃±5% |
| Communication | RS-485/RS-232 (Modbus and SCPI) |

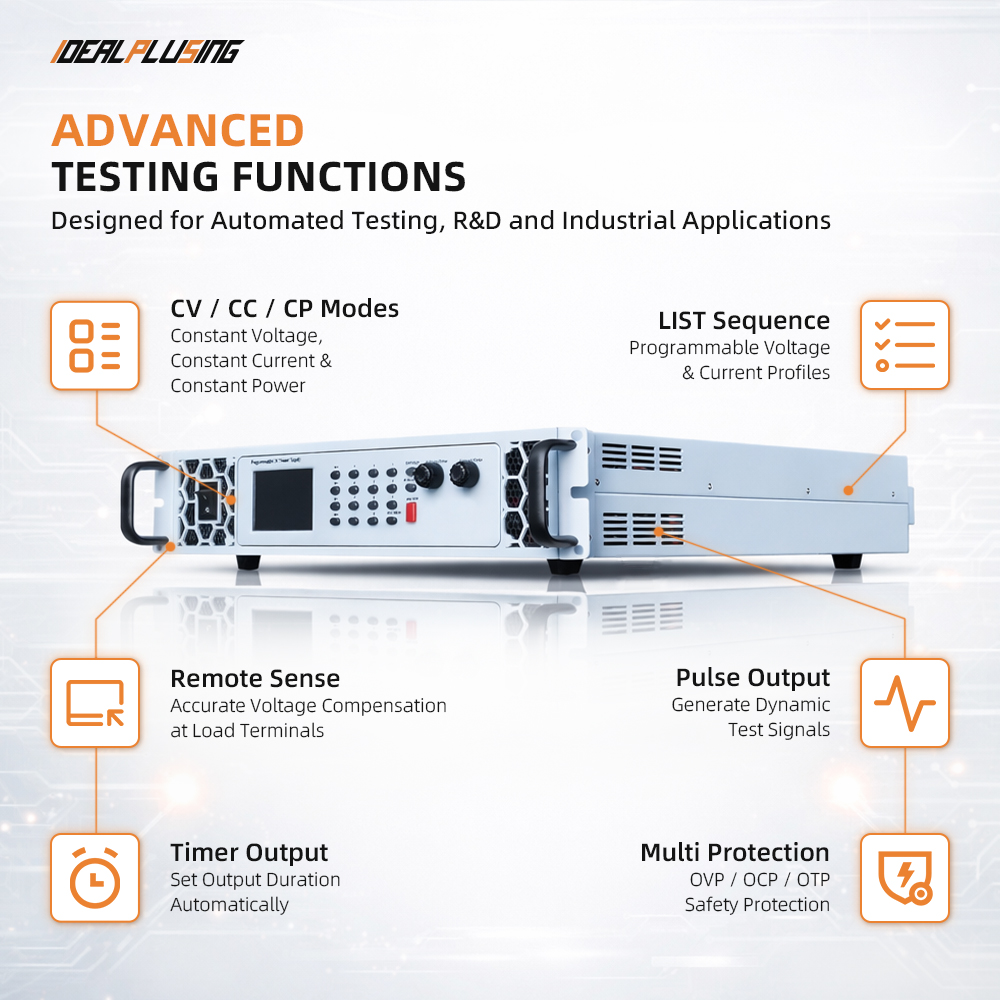

| Functions | CV / CC / CP Mode, Memory Mode, LIST Sequence Cycle, Pulse Width Output |
| Operating Env. | Temperature: 0℃～40℃; Humidity: 10%～85% RH |
| Description: All values are typical values. FS: Full Scale. deviations may occur due to temperature errors and component aging. | |
Hot Selling Models
IPS-DH10-6002 DC Power Supply
• AC IN: 220VAC 1ph
• DC OUT: 0~600VDC, 0~2A
• Max power: 1200W
IPS-DH20-12003 DC Power Supply
• AC IN: 220VAC 1ph
• DC OUT: 0~1200VDC, 0~3A
• Max power: 3600W
IPS-DH10-5001 DC Power Supply
• AC IN: 220VAC 1ph
• DC OUT: 0~500VDC, 0~1A
• Max power: 500W
IPS-DH30-8500 DC Power Supply
• AC IN: 220VAC 1ph
• DC OUT: 0~8VDC, 0~500A
• Max power: 4000W
IPS-DH10-10003 DC Power Supply
• AC IN: 220VAC 1ph
• DC OUT: 0~1000VDC, 0~3A
• Max power: 3000W
Details Images
Used in capacitive load testing applications, inductive load testing applications, battery discharge testing applications, pulsed load testing applications, and motor drive testing applications.
Application Scope
Model List (8000W Series)
| No | Model | Voltage | Current | Power | Resolution |
|---|---|---|---|---|---|
| 1 | IPS-DH20-32002.5 | 3200VDC | 2.5A | 8000W | 100mV/0.1mA |
| 11 | IPS-DH20-20040 | 200VDC | 40A | 8000W | 10mV/1mA |
| 21 | IPS-DH20-20400 | 20VDC | 400A | 8000W | 1mV/10mA |
Company Profile
IDEALPLUSING, we focus on the research and development, sales and service of D C to D C power supply module, A C to D C rectifier module, D C to A C inverter, A C power supply, D C power supply, L E D power supply, charger, rectifier system and other fields, to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries. We are not only selling products. What we want to give our customers the right power supply solution, giving a better quotation solution with the right items. Together, let's make it much better.
Frequently Asked Questions
1. Can the output voltage and current be programmed?
Yes, our DC power supplies support programmable control over voltage, current, and time outputs, with up to 50 programmable memory steps.
2. Which communication protocols are supported?
The units feature RS-232 and RS-485 interfaces and fully support both Modbus-RTU and SCPI communication protocols for industrial integration.
3. What are the installation options for these power supplies?
The products are designed with standard 2U and 3U full-width dimensions, making them ideal for both desktop testing and standard 19-inch rack mounting.
4. How accurate is the measurement at the load terminal?
The power supply is equipped with dedicated load-side voltage sensing terminals to compensate for line loss, ensuring highly accurate measurement directly at the load.
5. What safety protection features are built-in?
Each unit includes comprehensive protection systems: Over-Voltage Protection (OVP), Over-Current Protection (OCP), and Over-Temperature Protection (OTP) with configurable thresholds.
6. Are there customized models available?

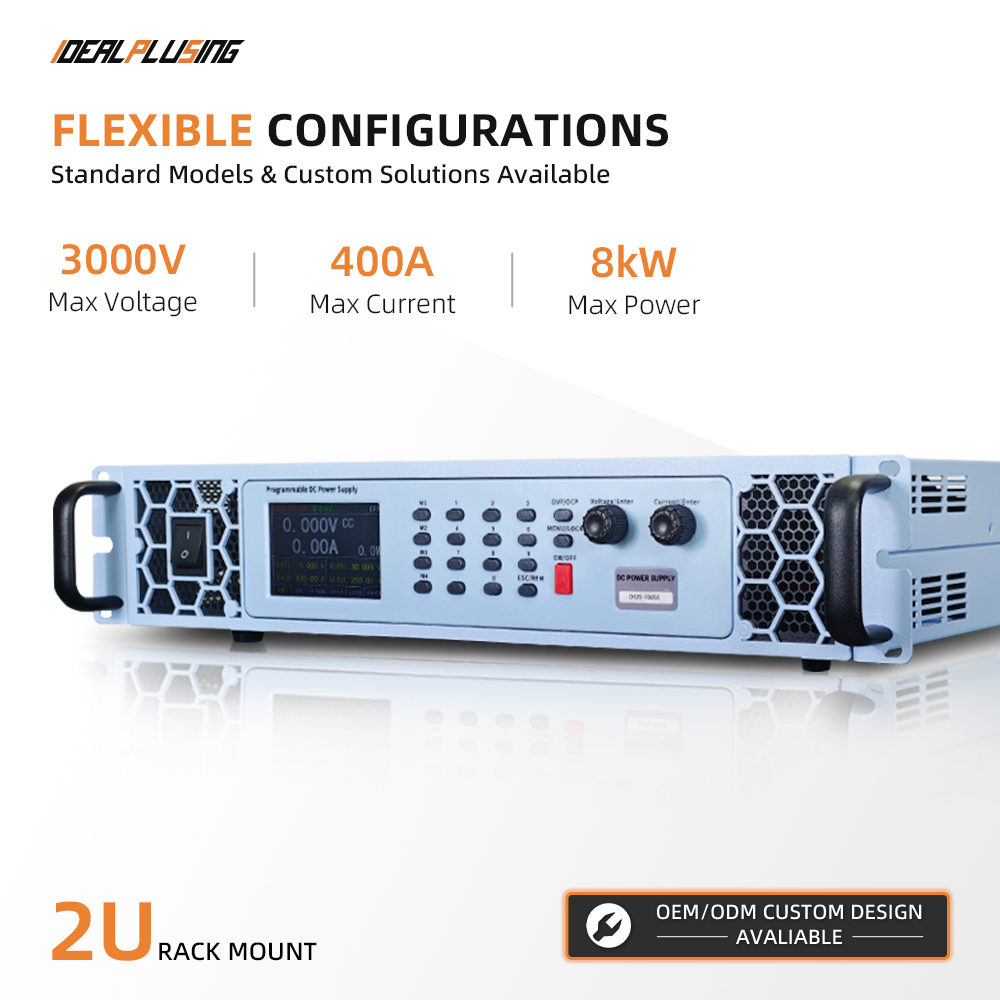

Yes, we provide ODM services and customization for various voltage (up to 3200V) and current requirements to fit specific production line or testing needs.
