IDEALPLUSING OEM Programmable DC Power Supply 250V 625VDC 8A with Multiple Protection High Reliability for Research Laboratory
Product Description
OEM Programmable DC Power Supply 250V 625VDC 8A with Multiple Protection High Reliability for Research Laboratory
š¢ Friendly Reminder
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment. Thank you for your understanding and trust.
1

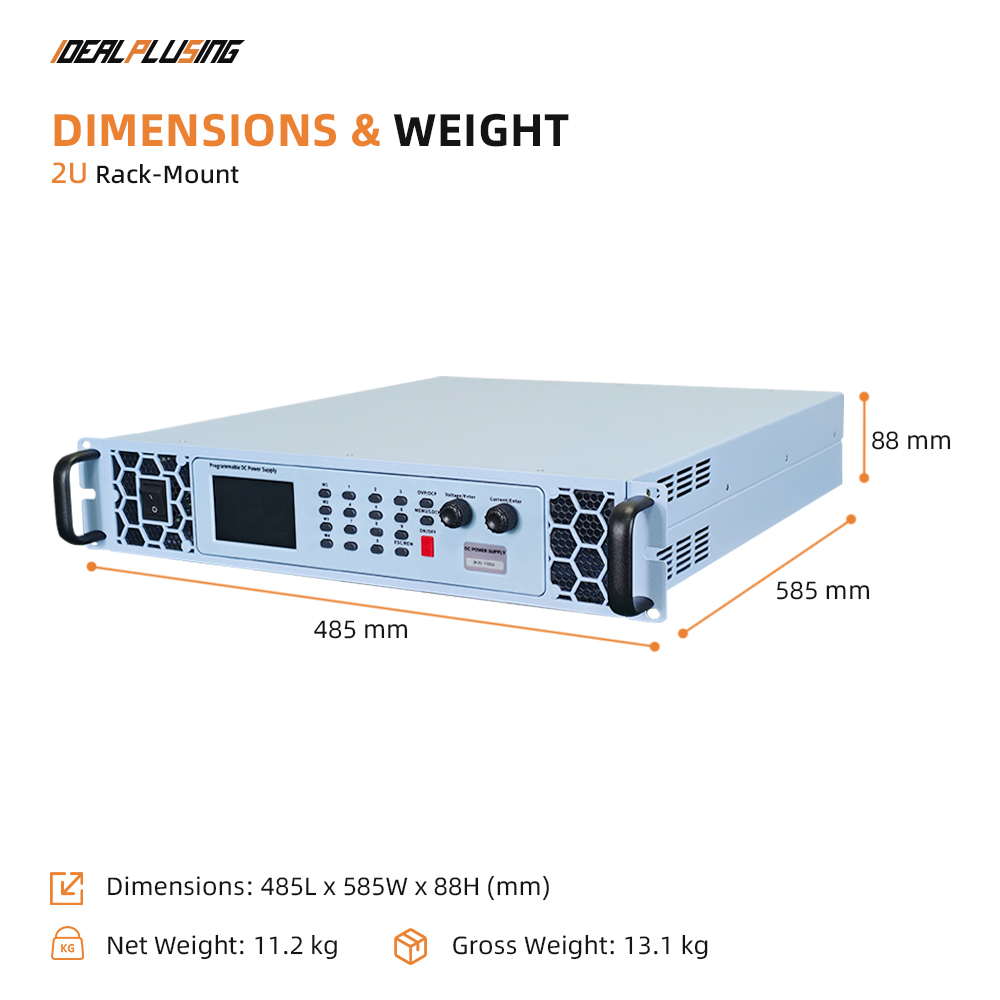

Standard 2U/3U full-width dimensions; compact and lightweight design suitable for both benchtop use and rack mounting.
2
Clear and prominent 5-digit display; the LCD screen provides comprehensive information.
3
Dual encoders for voltage and current adjustment ensure convenient and user-friendly operation.
4

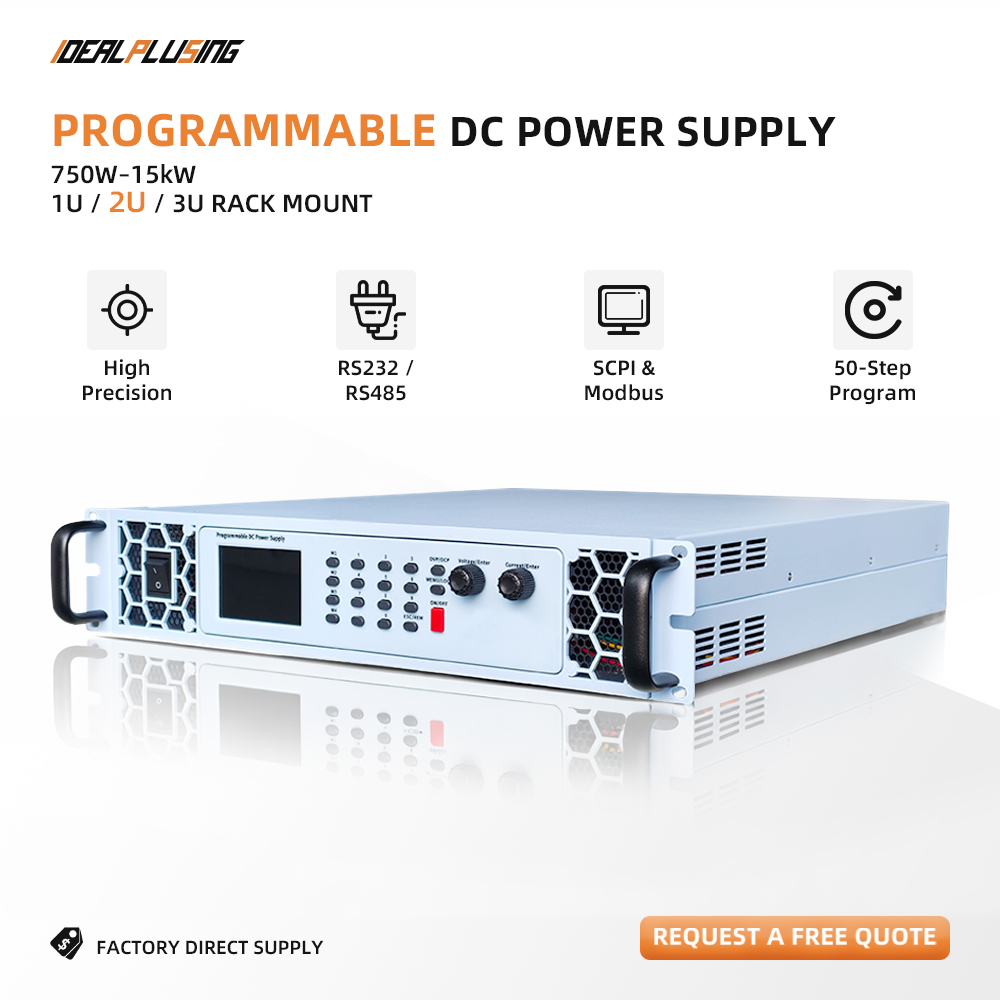

Programmable control over voltage, current, and time outputs.
5

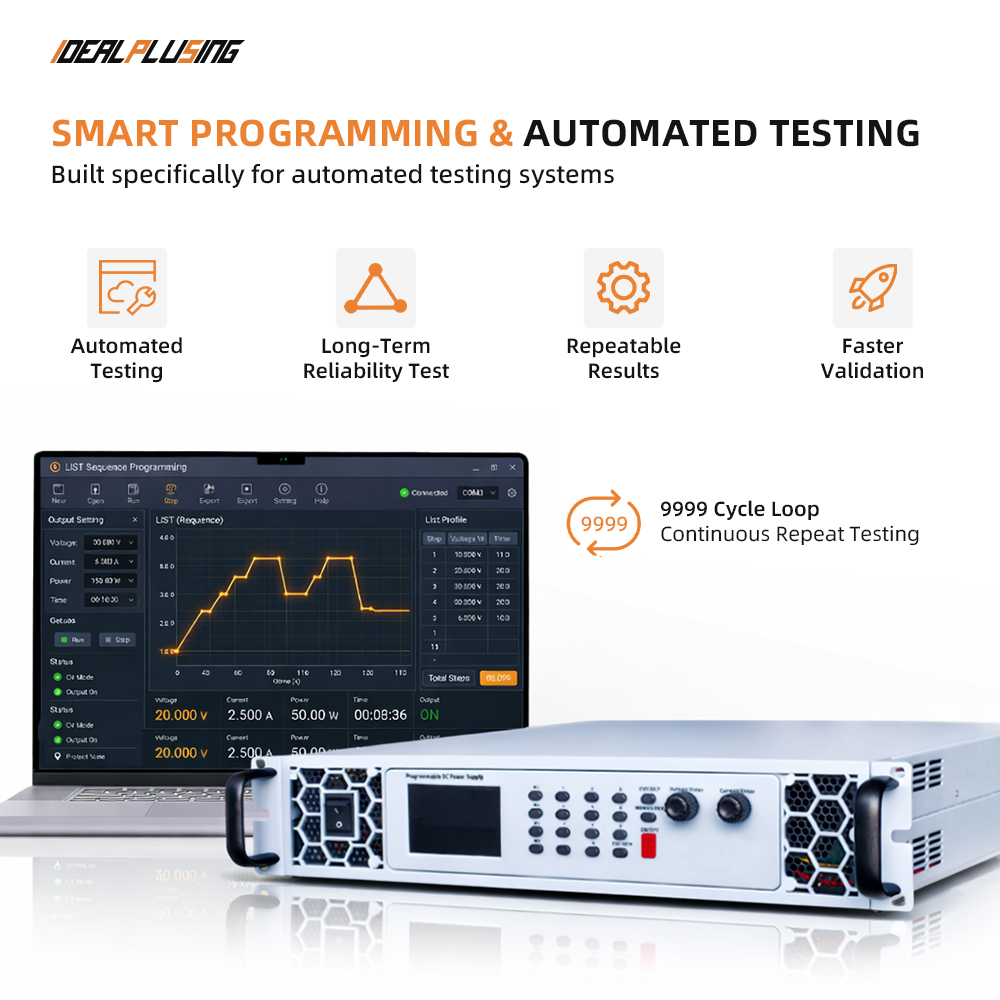

Built-in memory supports the creation of up to 50 programmable steps for voltage, current, and time outputs.
6
Features RS-232/485 interfaces, supporting both Modbus-RTU and SCPI communication protocols.
7
Equipped with dedicated load-side voltage sensing terminals, enabling accurate measurement of the actual voltage at the load.
| Specifications | 2U/3U Chassis Series |
|---|---|
| Model | 3KW-8KW / 9KW-15KW |
| AC Input | Single Phase 220VĀ±10% / Three Phase AC380VĀ±10%, 50Hz/60Hz |
| Output Voltage | 0-625VDC Rated Voltage |
| Output Current | 0-8A Rated Current |
| Output Power | 0-5000W Rated Power |
| Accuracy | ā¤Ā±0.1%FS for Voltage and Current Regulation |
| Ripple (rms) | ā¤0.1%FS + 10mV |
| Display Mode | Color LCD Display (5-digit) |
| Protections | OVP, OCP (Configurable), OTP (Threshold 85āĀ±5%) |
| Communication | RS-485/RS-232 (Modbus & SCPI Protocols) |

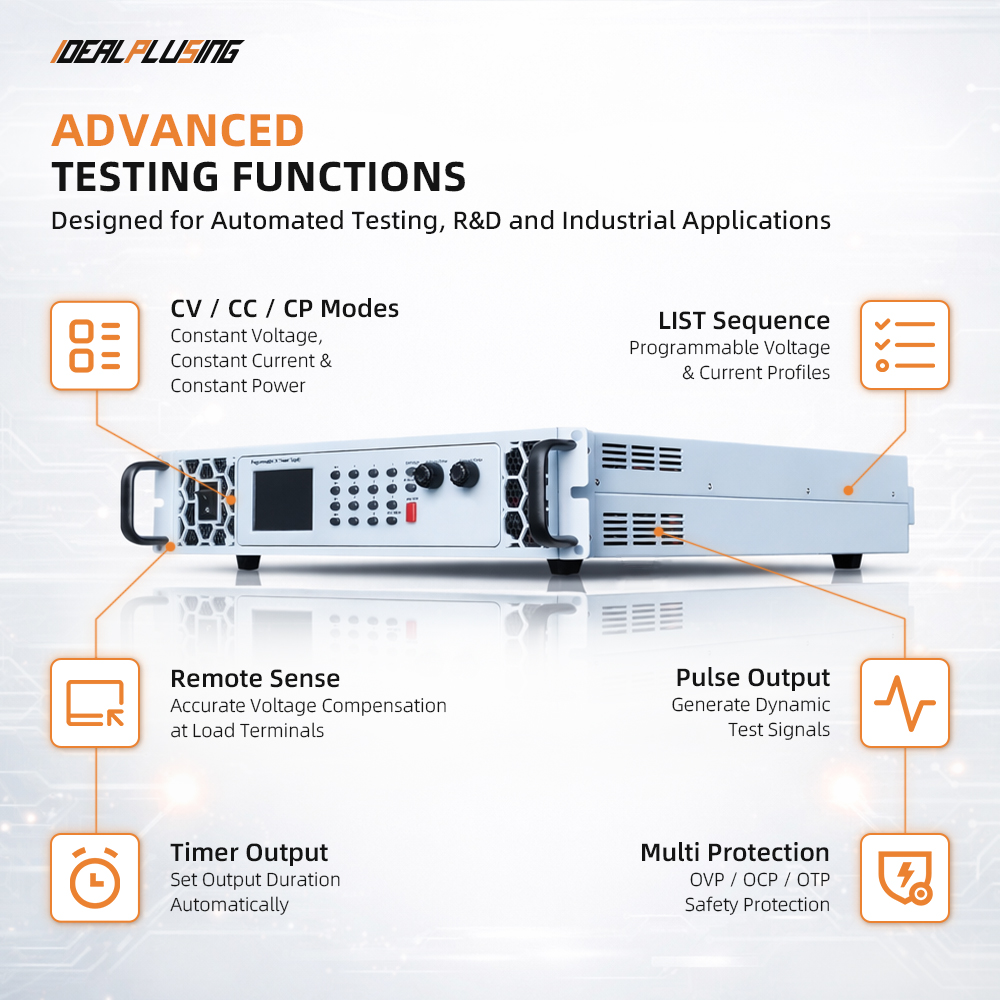

| Functions | CV / CC / CP Modes, LIST Sequence, Keypad Lock, Memory Mode |
| Environment | Indoor Use, 0āļ½40ā; Humidity: 10%ļ½85% RH |
*All values are typical values. Accuracy is measured with voltage detection at the load terminal. FS: Full Scale.
IPS-DH10-6002
DC OUT: 0~600VDC, 0~2A
Max Power: 1200W
IPS-DH20-12003
DC OUT: 0~1200VDC, 0~3A
Max Power: 3600W
IPS-DH10-5001
DC OUT: 0~500VDC, 0~1A
Max Power: 500W
IPS-DH30-8500
DC OUT: 0~8VDC, 0~500A
Max Power: 4000W
IPS-DH10-10003
DC OUT: 0~1000VDC, 0~3A
Max Power: 3000W
IPS-DH20-8005
DC OUT: 0~800VDC, 0~5A
Max Power: 4000W

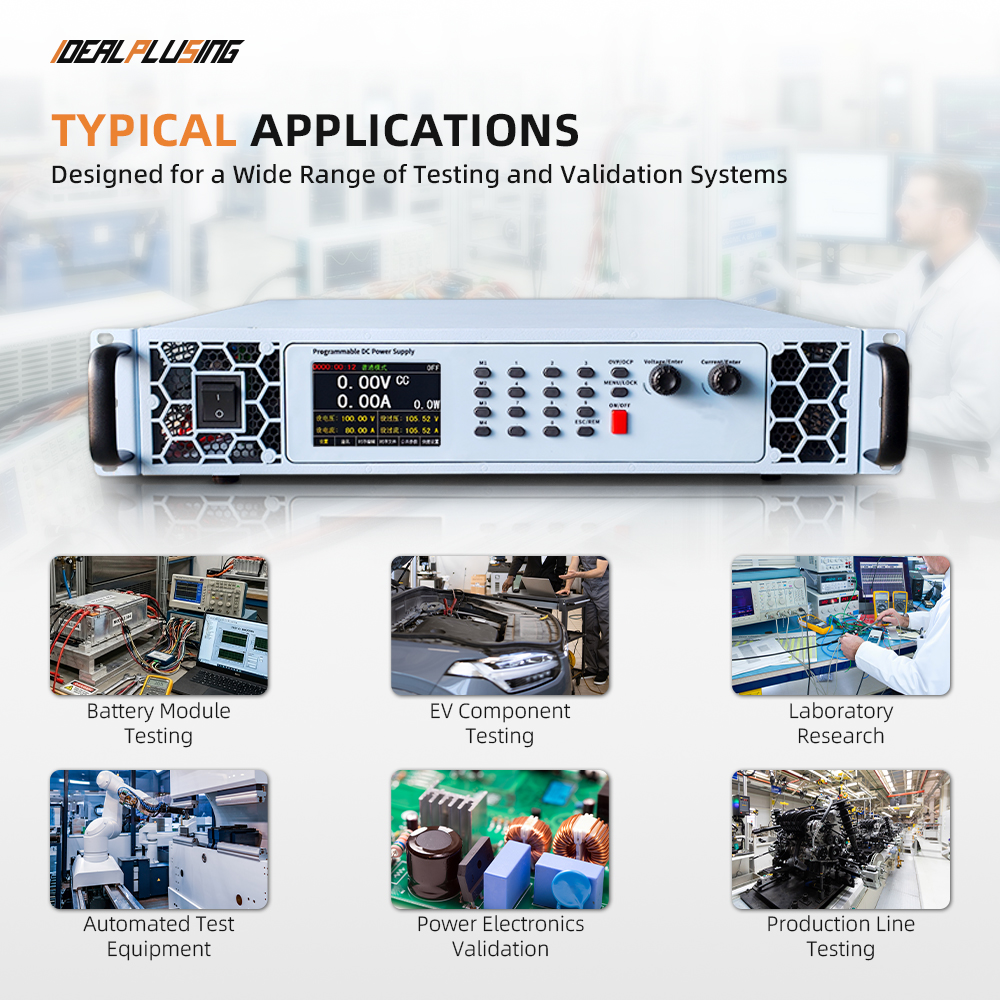

Used in capacitive load testing applications, inductive load testing applications, battery discharge testing applications, pulsed load testing applications, and motor drive testing applications.
5000W Series (2U/3U)
| Model | Voltage(Volt) | Current(Amp) | Power(Watt) | Resolution |
|---|---|---|---|---|
| IPS-DH20-6258 | 625VDC | 8A | 5000W | 10mV/1mA |
| IPS-DH20-25020 | 250VDC | 20A | 5000W | 10mV/1mA |
| IPS-DH20-10050 | 100VDC | 50A | 5000W | 10mV/1mA |
| IPS-DH30-10500 | 10VDC | 500A | 5000W | 1mV/10mA |
High Power Series Selection
| Model | Voltage Range | Current Range | Power |
|---|---|---|---|
| IPS-DH20-30200 | 0-30V | 0-200A | 6000W |
| IPS-DH20-60100 | 0-60V | 0-100A | 6000W |
| IPS-DH20-10008 | 0-1000V | 0-8A | 8000W |
| IPS-DH30-151000 | 0-15V | 0-1000A | 15000W |
| IPS-DH30-50300 | 0-50V | 0-300A | 15000W |
| IPS-DH30-50030 | 0-500V | 0-30A | 15000W |
We focus on the research and development, sales and service of DC to DC power supply modules, AC to DC rectifier modules, DC to AC inverters, AC power supplies, DC power supplies, LED power supplies, chargers, and rectifier systems. Our goal is to provide personalized, efficient, reliable, and cost-effective power supply solutions for all industries.
Frequently Asked Questions (FAQ)
What are the primary applications for this DC power supply?
This unit is ideal for research laboratories, battery discharge testing, motor drive analysis, and both capacitive and inductive load testing applications.
Does the device support remote control and programming?
Yes, it features RS-232 and RS-485 interfaces and fully supports Modbus-RTU and SCPI communication protocols for programmable automation.
What safety features are built into the system?
The power supply includes multiple protection layers: Over-Voltage Protection (OVP), Over-Current Protection (OCP), and Over-Temperature Protection (OTP) to ensure hardware safety.
Can I set custom voltage and current sequences?
Yes, the built-in memory supports up to 50 programmable steps, allowing you to define specific voltage, current, and time outputs for complex testing cycles.
How accurate is the measurement readback?
The unit utilizes a 5-digit high-precision LCD display with a readback accuracy of Ā±0.1%FS + 3 digits, ensuring reliable data for research.
Is this power supply suitable for industrial rack mounting?
Absolutely. It is designed in standard 2U and 3U full-width dimensions, making it compatible with standard industrial racks as well as benchtop use.
