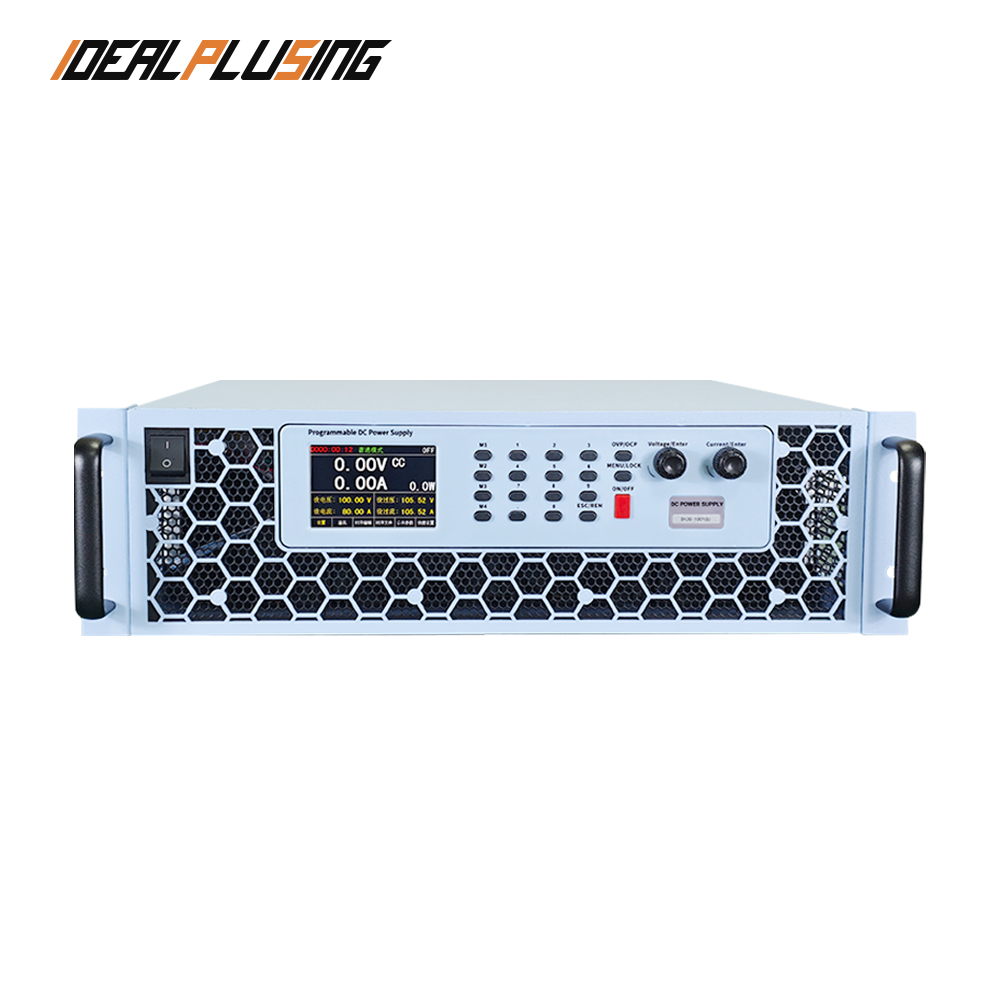

IDEALPLUSING OEM/ODM Programmable DC Power Supply 10VDC 200A 300A 600A 6000W with RS232 High Stability for Research Laboratories
Product Description
Friendly Reminder
Dear Customer:
The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment.
Our company always adheres to the principle of integrity and avoids price misrepresentation. Thank you for your understanding and trust.
Product Description

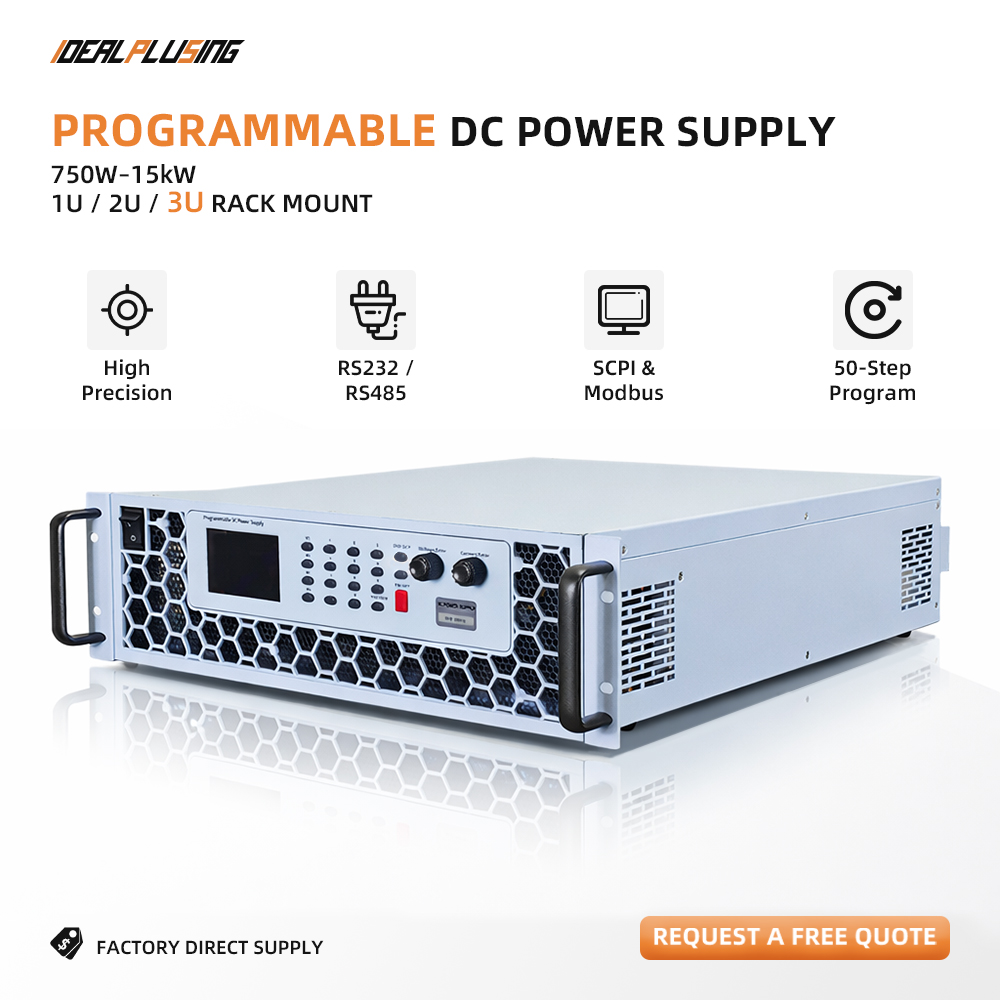

- Standard 2U/3U full-width dimensions; compact and lightweight design suitable for both benchtop use and rack mounting.
- Clear and prominent 5-digit display; the LCD screen provides comprehensive information.
- Dual encoders for voltage and current adjustment ensure convenient and user-friendly operation.

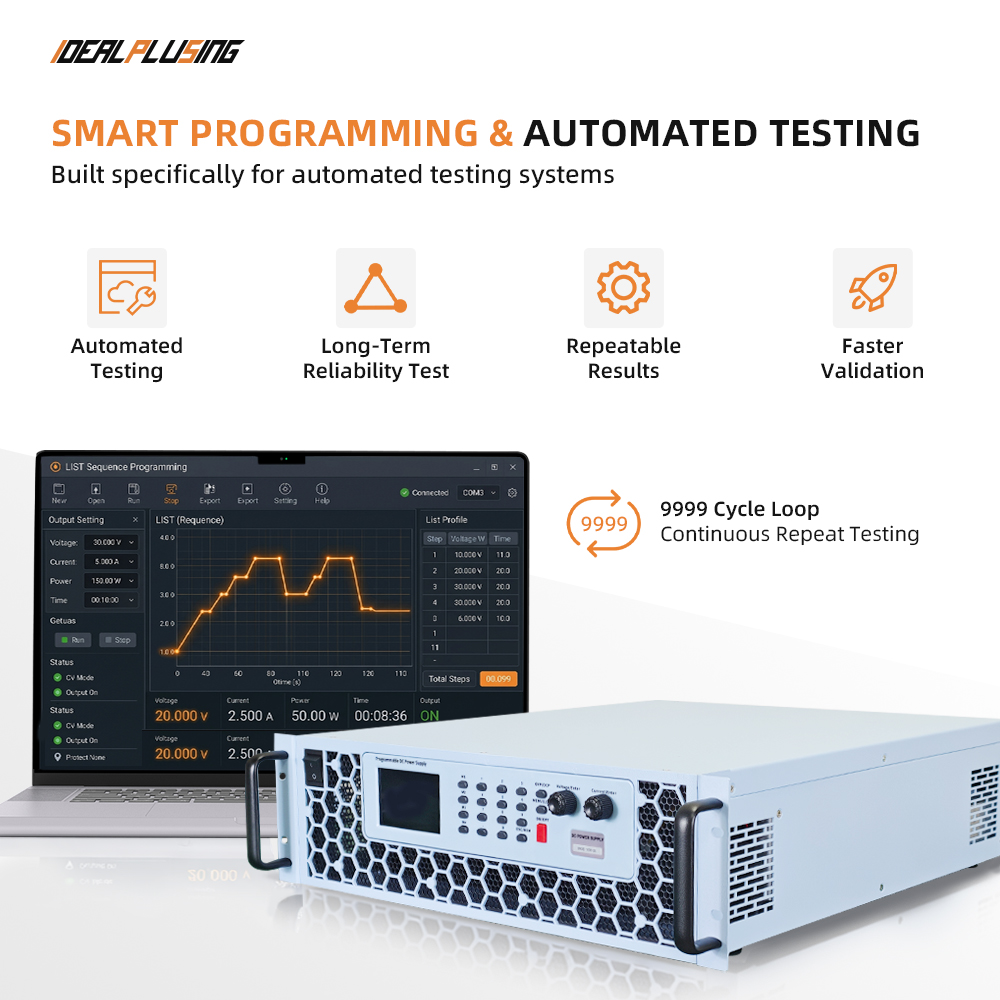

- Programmable control over voltage, current, and time outputs.
- Built-in memory supports the creation of up to 50 programmable steps for voltage, current, and time outputs.
- Features RS-232/485 interfaces, supporting both Modbus-RTU and SCPI communication protocols.
- Equipped with dedicated load-side voltage sensing terminals, enabling accurate measurement of the actual voltage at the load and facilitating precise control.
Specification
| Specifications | 2U/3U Chassis Series |
|---|---|
| Model | 3KW-8KW/9KW-15KW |
| AC Input | Single Phase 220V±10%/Three Phase AC380V±10% Frequency 50Hz/60Hz |
| Output Voltage | 0-10VDC Rated Voltage |
| Output Current | 0-600A Rated Current |
| Output Power | 0-6000W Rated Power |
| Source Regulation | ≤0.1%+10mV |
| Load Regulation | ≤0.1%+30mV |
| Voltage Regulation Accuracy | ≤±0.1%FS |
| Current Regulation Accuracy | ≤±0.1%FS |
| Ripple (rms) | ≤0.1%FS+10mV |
| Voltage Setting Accuracy | ±0.1%FS+10mV |
| Current Setting Accuracy | ±0.1%FS+10mA |
| Voltage Readback Accuracy | 5-digit Digital Meter, Accuracy: ±0.1%FS+3 digits (10%-100% Rated Value) |
| Current Readback Accuracy | 5-digit Digital Meter, Accuracy: ±0.1%FS+3 digits (10%-100% Rated Value) |
| Display Mode | Color LCD Display |
| Over-Voltage Protection (OVP) | OVP protection configurable via menu, protection value can be set arbitrarily, output turns off after protection |
| Over-Current Protection (OCP) | OCP protection configurable via menu, protection value can be set arbitrarily, output turns off after protection |
| Over-Temperature Protection (OTP) | Built-in OTP protection, protection threshold 85℃±5% (Heatsink Temperature) |
| Voltage Setting | Configurable via menu, encoder knob input |
| Current Setting | Configurable via menu, encoder knob input |
| Communication Interface | RS-485/RS-232 (Support Modbus and SCPI Protocols) |

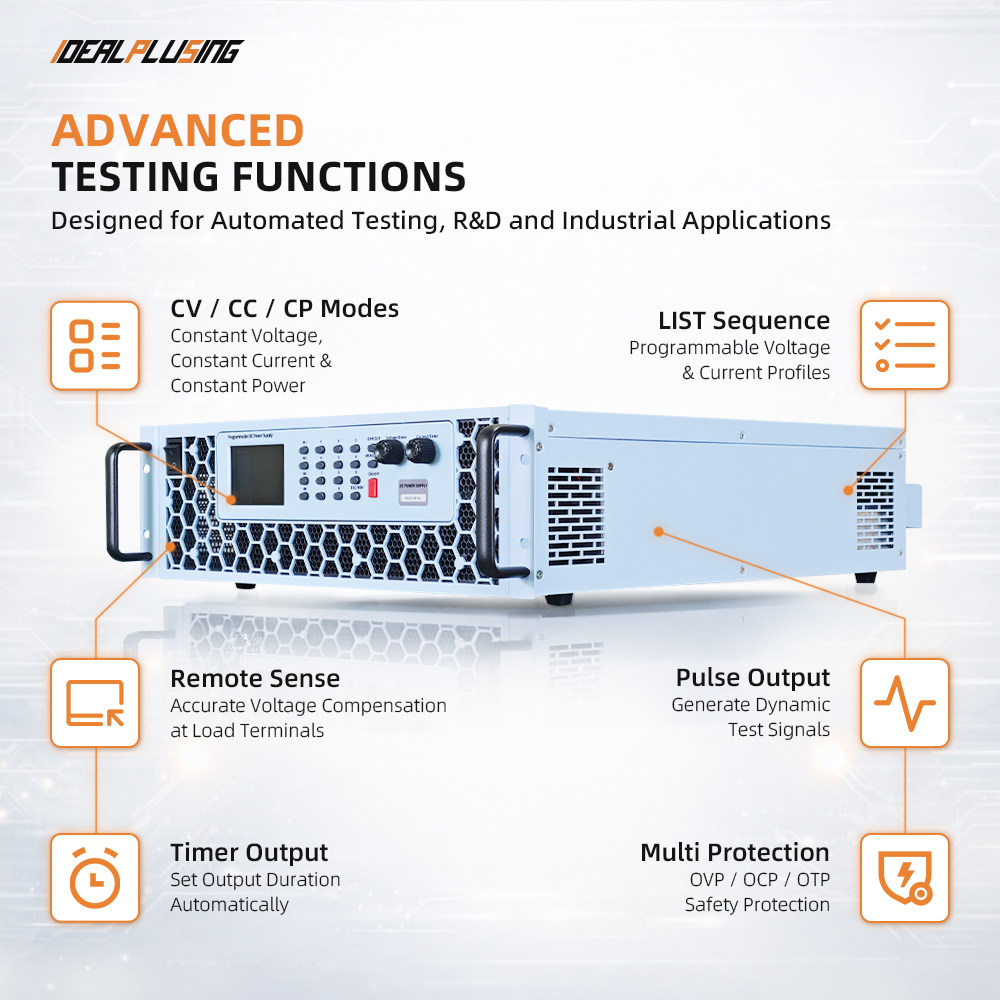

| Functions | Constant Voltage (CV) / Constant Current (CC) / Constant Power (CP) Mode, Memory Mode, LIST Sequence Cycle, Configurable ON/OFF Time, Pulse Width Output, up to 9999 Cycles, 4 Groups of Preset Voltage & Current, Keypad Lock. |
| Output Polarity | Output Positive (+) and Negative (-) terminals can be grounded arbitrarily |
| Cooling Method | Forced Air Cooling |
| Operating Environment | Designed for Indoor Use, Temperature: 0℃～40℃; Humidity: 10%～85% RH |
| Storage Environment | Temperature: -20℃～70℃; Humidity: 10%～90% RH |
|
Description: All values are typical values, which may be exceeded under different loads or other conditions. Accuracy is measured with voltage detection at the load terminal. Deviations between actual and rated values may occur due to temperature errors and component aging. Remarks: FS: Full Scale; 3 digits: the last digit of the display can fluctuate by 3 digits. |
|
Hot selling models
IPS-DH10-6002 DC Power Supply
① AC IN: 1 phase 220VAC±10% 50/60HZ
② DC OUT: 0~600VDC, 0~2A
③ Max power: 1200W
② DC OUT: 0~600VDC, 0~2A
③ Max power: 1200W
IPS-DH20-12003 DC Power Supply
① AC IN: 1 phase 220VAC±10% 50/60HZ
② DC OUT: 0~1200VDC, 0~3A
③ Max power: 3600W
② DC OUT: 0~1200VDC, 0~3A
③ Max power: 3600W
IPS-DH10-5001 DC Power Supply
① AC IN: 1 phase 220VAC±10% 50/60HZ
② DC OUT: 0~500VDC, 0~1A
③ Max power: 500W
② DC OUT: 0~500VDC, 0~1A
③ Max power: 500W
IPS-DH30-8500 DC Power Supply
① AC IN: 1 phase 220VAC±10% 50/60HZ
② DC OUT: 0~8VDC, 0~500A
③ Max power: 4000W
② DC OUT: 0~8VDC, 0~500A
③ Max power: 4000W
IPS-DH10-10003 DC Power Supply
① AC IN: 1 phase 220VAC±10% 50/60HZ
② DC OUT: 0~1000VDC, 0~3A
③ Max power: 3000W
② DC OUT: 0~1000VDC, 0~3A
③ Max power: 3000W
IPS-DH20-8005 DC Power Supply
① AC IN: 1 phase 220VAC±10% 50/60HZ
② DC OUT: 0~800VDC, 0~5A
③ Max power: 4000W
② DC OUT: 0~800VDC, 0~5A
③ Max power: 4000W
IPS-DH10-8003 DC Power Supply
① AC IN: 1 phase 220VAC±10% 50/60HZ
② DC OUT: 0~800VDC, 0~3A
③ Max power: 2400W
② DC OUT: 0~800VDC, 0~3A
③ Max power: 2400W
IPS-DH10-6004 DC Power Supply
① AC IN: 1 phase 220VAC±10% 50/60HZ
② DC OUT: 0~600VDC, 0~4A
③ Max power: 2400W
② DC OUT: 0~600VDC, 0~4A
③ Max power: 2400W
IPS-DH30-9500 DC Power Supply
① AC IN: 1 phase 220VAC±10% 50/60HZ
② DC OUT: 0~9VDC, 0~500A
③ Max power: 4500W
② DC OUT: 0~9VDC, 0~500A
③ Max power: 4500W
IPS-DH20-30240 DC Power Supply
① AC IN: 1 phase 220VAC±10% 50/60HZ
② DC OUT: 0~30VDC, 0~240A
③ Max power: 7200W
② DC OUT: 0~30VDC, 0~240A
③ Max power: 7200W
IPS-DH30-10600 DC Power Supply
① AC IN: 1 phase 220VAC±10% 50/60HZ
② DC OUT: 0~10VDC, 0~600A
③ Max power: 6000W
② DC OUT: 0~10VDC, 0~600A
③ Max power: 6000W
IPS-DH20-20400 DC Power Supply
① AC IN: 1 phase 220VAC±10% 50/60HZ
② DC OUT: 0~20VDC, 0~400A
③ Max power: 8000W
② DC OUT: 0~20VDC, 0~400A
③ Max power: 8000W
Details Images
Used in capacitive load testing applications, inductive load testing applications, battery discharge testing applications, pulsed load testing applications, and motor drive testing applications.
Application Scope
Model list
6000W Series (including 2U/3U; Customization Available)
| No | Model | Voltage(Volt) | Current(Amp) | Power(Watt) | Resolution |
|---|---|---|---|---|---|
| 1 | IPS-DH20-30002 | 3000VDC | 2A | 6000W | 100mV/0.1mA |
| 2 | IPS-DH20-24002.5 | 2400VDC | 2.5A | 6000W | 100mV/0.1mA |
| 3 | IPS-DH20-20003 | 2000VDC | 3A | 6000W | 100mV/0.1mA |
| 4 | IPS-DH20-15004 | 1500VDC | 4A | 6000W | 100mV/0.1mA |
| 5 | IPS-DH20-12005 | 1200VDC | 5A | 6000W | 100mV/0.1mA |
| 6 | IPS-DH20-10006 | 1000VDC | 6A | 6000W | 100mV/1mA |
| 7 | IPS-DH20-8007.5 | 800VDC | 7.5A | 6000W | 100mV/1mA |
| 8 | IPS-DH20-7508 | 750VDC | 8A | 6000W | 100mV/1mA |
| 9 | IPS-DH20-60010 | 600VDC | 10A | 6000W | 10mV/1mA |
| 10 | IPS-DH20-50012 | 500VDC | 12A | 6000W | 10mV/1mA |
| 11 | IPS-DH20-48012.5 | 480VDC | 12.5A | 6000W | 10mV/1mA |
| 12 | IPS-DH20-40015 | 400VDC | 15A | 6000W | 10mV/1mA |
| 13 | IPS-DH20-37516 | 375VDC | 16A | 6000W | 10mV/1mA |
| 14 | IPS-DH20-30020 | 300VDC | 20A | 6000W | 10mV/1mA |
| 15 | IPS-DH20-25024 | 250VDC | 24A | 6000W | 10mV/1mA |
| 16 | IPS-DH20-24025 | 240VDC | 25A | 6000W | 10mV/1mA |
| 17 | IPS-DH20-20030 | 200VDC | 30A | 6000W | 10mV/1mA |
| 18 | IPS-DH20-16037.5 | 160VDC | 37.5A | 6000W | 10mV/1mA |
| 19 | IPS-DH20-15040 | 150VDC | 40A | 6000W | 10mV/1mA |
| 20 | IPS-DH20-12548 | 125VDC | 48A | 6000W | 10mV/1mA |
| 21 | IPS-DH20-12050 | 120VDC | 50A | 6000W | 10mV/1mA |
| 22 | IPS-DH20-10060 | 100VDC | 60A | 6000W | 10mV/1mA |
| 23 | IPS-DH20-8075 | 80VDC | 75A | 6000W | 10mV/10mA |
| 24 | IPS-DH20-7580 | 75VDC | 80A | 6000W | 10mV/10mA |
| 25 | IPS-DH20-60100 | 60VDC | 100A | 6000W | 1mV/10mA |
| 26 | IPS-DH20-50120 | 50VDC | 120A | 6000W | 1mV/10mA |
| 27 | IPS-DH20-48125 | 48VDC | 125A | 6000W | 1mV/10mA |
| 28 | IPS-DH20-40150 | 40VDC | 150A | 6000W | 1mV/10mA |
| 29 | IPS-DH20-37.5160 | 37.5VDC | 160A | 6000W | 1mV/10mA |
| 30 | IPS-DH20-30200 | 30VDC | 200A | 6000W | 1mV/10mA |
| 31 | IPS-DH20-25240 | 25VDC | 240A | 6000W | 1mV/10mA |
| 32 | IPS-DH20-24250 | 24VDC | 250A | 6000W | 1mV/10mA |
| 33 | IPS-DH20-20300 | 20VDC | 300A | 6000W | 1mV/10mA |
| 34 | IPS-DH20-16375 | 16VDC | 375A | 6000W | 1mV/10mA |
| 35 | IPS-DH20-15400 | 15VDC | 400A | 6000W | 1mV/10mA |
| 36 | IPS-DH30-12.5480 | 12.5VDC | 480A | 6000W | 1mV/10mA |
| 37 | IPS-DH30-12500 | 12VDC | 500A | 6000W | 1mV/10mA |
| 38 | IPS-DH30-10600 | 10VDC | 600A | 6000W | 1mV/10mA |
2U Series (Customization Available)
| No | Model | Voltage(Volt) | Current(Amp) | Power(Watt) | Resolution |
|---|---|---|---|---|---|
| 2 | IPS-DH20-15200 | 0-15V | 0-200A | 3000W | 1mV/10mA |
| 3 | IPS-DH20-15300 | 0-15V | 0-300A | 4500W | 1mV/10mA |
| 4 | IPS-DH20-15400 | 0-15V | 0-400A | 6000W | 1mV/10mA |
| 5 | IPS-DH20-30150 | 0-30V | 0-150A | 4500W | 1mV/10mA |
| 6 | IPS-DH20-30200 | 0-30V | 0-200A | 6000W | 1mV/10mA |
| 7 | IPS-DH20-30250 | 0-30V | 0-250A | 7500W | 1mV/10mA |
| 8 | IPS-DH20-5080 | 0-50V | 0-80A | 4000W | 1mV/10mA |
| 9 | IPS-DH20-50100 | 0-50V | 0-100A | 5000W | 1mV/10mA |
| 10 | IPS-DH20-50150 | 0-50V | 0-150A | 7500W | 1mV/10mA |
| 11 | IPS-DH20-6060 | 0-60V | 0-60A | 3600W | 1mV/1mA |
| 12 | IPS-DH20-60100 | 0-60V | 0-100A | 6000W | 1mV/10mA |
| 13 | IPS-DH20-60120 | 0-60V | 0-120A | 7200W | 1mV/10mA |
| 14 | IPS-DH20-8050 | 0-80V | 0-50A | 4000W | 10mV/1mA |
| 15 | IPS-DH20-8060 | 0-80V | 0-60A | 4800W | 10mV/1mA |
| 16 | IPS-DH20-8080 | 0-80V | 0-80A | 6400W | 10mV/10mA |
| 17 | IPS-DH20-80100 | 0-80V | 0-100A | 8000W | 10mV/10mA |
| 18 | IPS-DH20-10040 | 0-100V | 0-40A | 4000W | 10mV/1mA |
| 19 | IPS-DH20-10050 | 0-100V | 0-50A | 5000W | 10mV/1mA |
| 20 | IPS-DH20-10060 | 0-100V | 0-60A | 6000W | 10mV/1mA |
| 21 | IPS-DH20-10080 | 0-100V | 0-80A | 8000W | 10mV/10mA |
| 22 | IPS-DH20-15030 | 0-150V | 0-30A | 4500W | 10mV/1mA |
| 23 | IPS-DH20-15040 | 0-150V | 0-40A | 6000W | 10mV/1mA |
| 24 | IPS-DH20-15050 | 0-150V | 0-50A | 7500W | 10mV/1mA |
| 25 | IPS-DH20-20020 | 0-200V | 0-20A | 4000W | 10mV/1mA |
| 26 | IPS-DH20-20030 | 0-200V | 0-30A | 6000W | 10mV/1mA |
| 27 | IPS-DH20-20040 | 0-200V | 0-40A | 8000W | 10mV/1mA |
| 28 | IPS-DH20-30015 | 0-300V | 0-15A | 4500W | 10mV/1mA |
| 29 | IPS-DH20-30020 | 0-300V | 0-20A | 6000W | 10mV/1mA |
| 30 | IPS-DH20-30025 | 0-300V | 0-25A | 7500W | 10mV/1mA |
| 31 | IPS-DH20-40010 | 0-400V | 0-10A | 4000W | 10mV/1mA |
| 32 | IPS-DH20-40015 | 0-400V | 0-15A | 6000W | 10mV/1mA |
| 33 | IPS-DH20-40020 | 0-400V | 0-20A | 8000W | 10mV/1mA |
| 34 | IPS-DH20-50010 | 0-500V | 0-10A | 5000W | 10mV/1mA |
| 35 | IPS-DH20-50015 | 0-500V | 0-15A | 7500W | 10mV/1mA |
| 36 | IPS-DH20-6006 | 0-600V | 0-6A | 3600W | 10mV/0.1mA |
| 37 | IPS-DH20-6008 | 0-600V | 0-8A | 4800W | 10mV/1mA |
| 38 | IPS-DH20-60010 | 0-600V | 0-10A | 6000W | 10mV/1mA |
| 39 | IPS-DH20-8005 | 0-800V | 0-5A | 4000W | 10mV/0.1mA |
| 40 | IPS-DH20-80010 | 0-800V | 0-10A | 8000W | 10mV/1mA |
| 41 | IPS-DH20-10005 | 0-1000V | 0-5A | 5000W | 100mV/0.1mA |
| 42 | IPS-DH20-10006 | 0-1000V | 0-6A | 6000W | 100mV/0.1mA |
| 43 | IPS-DH20-10008 | 0-1000V | 0-8A | 8000W | 100mV/1mA |
| 44 | IPS-DH20-12004 | 0-1200V | 0-4A | 4800W | 100mV/0.1mA |
| 45 | IPS-DH20-12005 | 0-1200V | 0-5A | 6000W | 100mV/0.1mA |
| 46 | IPS-DH20-12006 | 0-1200V | 0-6A | 7200W | 100mV/0.1mA |
| 47 | IPS-DH20-15001 | 0-1500V | 0-1A | 1500W | 100mV/0.1mA |
| 48 | IPS-DH20-15002 | 0-1500V | 0-2A | 3000W | 100mV/0.1mA |
| 49 | IPS-DH20-15003 | 0-1500V | 0-3A | 4500W | 100mV/0.1mA |
| 50 | IPS-DH20-15004 | 0-1500V | 0-4A | 6000W | 100mV/0.1mA |
| 51 | IPS-DH20-15005 | 0-1500V | 0-5A | 7500W | 100mV/0.1mA |
| 52 | IPS-DH20-20001 | 0-2000V | 0-1A | 2000W | 100mV/0.1mA |
| 53 | IPS-DH20-20002 | 0-2000V | 0-2A | 4000W | 100mV/0.1mA |
| 54 | IPS-DH20-20003 | 0-2000V | 0-3A | 6000W | 100mV/0.1mA |
| 55 | IPS-DH20-20004 | 0-2000V | 0-4A | 8000W | 100mV/0.1mA |
| 56 | IPS-DH20-30001 | 0-3000V | 0-1A | 3000W | 100mV/0.1mA |
| 57 | IPS-DH20-30002 | 0-3000V | 0-2A | 6000W | 100mV/0.1mA |
3U Series (Customization Available)
| No | Model | Voltage(Volt) | Current(Amp) | Power(Watt) | Resolution |
|---|---|---|---|---|---|
| 2 | IPS-DH30-15500 | 0-15V | 0-500A | 7500W | 1mV/10mA |
| 3 | IPS-DH30-15600 | 0-15V | 0-600A | 9000W | 1mV/10mA |
| 4 | IPS-DH30-151000 | 0-15V | 0-1000A | 15000W | 1mV/100mA |
| 5 | IPS-DH30-30300 | 0-30V | 0-300A | 9000W | 1mV/10mA |
| 6 | IPS-DH30-30400 | 0-30V | 0-400A | 12000W | 1mV/10mA |
| 7 | IPS-DH30-30500 | 0-30V | 0-500A | 15000W | 1mV/10mA |
| 8 | IPS-DH30-50200 | 0-50V | 0-200A | 10000W | 1mV/10mA |
| 9 | IPS-DH30-50250 | 0-50V | 0-250A | 12500W | 1mV/10mA |
| 10 | IPS-DH30-50300 | 0-50V | 0-300A | 15000W | 1mV/10mA |
| 11 | IPS-DH30-60150 | 0-60V | 0-150A | 9000W | 1mV/10mA |
| 12 | IPS-DH30-60200 | 0-60V | 0-200A | 12000W | 1mV/10mA |
| 13 | IPS-DH30-60250 | 0-60V | 0-250A | 15000W | 1mV/10mA |
| 14 | IPS-DH30-100100 | 0-100V | 0-100A | 10000W | 10mV/10mA |
| 15 | IPS-DH30-100120 | 0-100V | 0-120A | 12000W | 10mV/10mA |
| 16 | IPS-DH30-100150 | 0-100V | 0-150A | 15000W | 10mV/10mA |
| 17 | IPS-DH30-15060 | 0-150V | 0-60A | 9000W | 100mV/10mA |
| 18 | IPS-DH30-15080 | 0-150V | 0-80A | 12000W | 100mV/10mA |
| 19 | IPS-DH30-150100 | 0-150V | 0-100A | 15000W | 100mV/10mA |
| 20 | IPS-DH30-20050 | 0-200V | 0-50A | 10000W | 100mV/1mA |
| 21 | IPS-DH30-20060 | 0-200V | 0-60A | 12000W | 100mV/1mA |
| 22 | IPS-DH30-20080 | 0-200V | 0-80A | 16000W | 100mV/10mA |
| 23 | IPS-DH30-30030 | 0-300V | 0-30A | 9000W | 10mV/1mA |
| 24 | IPS-DH30-30040 | 0-300V | 0-40A | 12000W | 10mV/1mA |
| 25 | IPS-DH30-30050 | 0-300V | 0-50A | 15000W | 10mV/1mA |
| 26 | IPS-DH30-40030 | 0-400V | 0-30A | 12000W | 10mV/1mA |
| 27 | IPS-DH30-40040 | 0-400V | 0-40A | 16000W | 10mV/1mA |
| 28 | IPS-DH30-50020 | 0-500V | 0-20A | 10000W | 10mV/1mA |
| 29 | IPS-DH30-50030 | 0-500V | 0-30A | 15000W | 10mV/1mA |
| 30 | IPS-DH30-60020 | 0-600V | 0-20A | 12000W | 10mV/1mA |
| 31 | IPS-DH30-80015 | 0-800V | 0-15A | 12000W | 100mV/1mA |
| 32 | IPS-DH30-80020 | 0-800V | 0-20A | 16000W | 100mV/1mA |
| 33 | IPS-DH30-100010 | 0-1000V | 0-10A | 10000W | 100mV/1mA |
| 34 | IPS-DH30-100015 | 0-1000V | 0-15A | 15000W | 100mV/1mA |
| 35 | IPS-DH30-20005 | 0-2000V | 0-5A | 10000W | 100mV/0.1mA |
| 36 | IPS-DH30-20006 | 0-2000V | 0-6A | 12000W | 100mV/0.1mA |
| 37 | IPS-DH30-30003 | 0-3000V | 0-3A | 9000W | 100mV/0.1mA |
| 38 | IPS-DH30-30005 | 0-3000V | 0-5A | 15000W | 100mV/0.1mA |
Company Profile
We focus on the research and development, sales and service of D C to D C power supply module, A C to D C rectifier module, D C to A C inverter, A C power supply, D C power supply, L E D power supply, charger, rectifier system and other fields,to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries.We are not only selling products. What we want to give our customers the right power supply solution, giving a better quotation solution with the right items. Together. let's make it much better.
Frequently Asked Questions
What applications are these programmable DC power supplies suitable for?
They are highly suitable for research laboratories, capacitive/inductive load testing, battery discharge testing, pulsed load testing, and motor drive testing applications.
Do these power supplies support communication interfaces?
Yes, they are equipped with RS-232 and RS-485 interfaces, fully supporting both Modbus-RTU and SCPI communication protocols.
Can I program the output voltage and current steps?
Yes. The built-in memory supports programming and saving up to 50 individual steps for customized voltage, current, and time outputs.
What safety protection mechanisms are integrated?
They feature configurable Over-Voltage Protection (OVP), Over-Current Protection (OCP), and built-in Over-Temperature Protection (OTP) triggered at 85℃±5% heatsink temperature.
Is customized voltage or current output available?
Yes, customization is available across our 2U and 3U series. Please consult our technical sales team with your detailed specification requirements.
How is accurate measurement ensured at the load side?
The units are equipped with dedicated load-side voltage sensing terminals, allowing the system to measure and regulate the exact voltage present at the load to compensate for lead drop.
