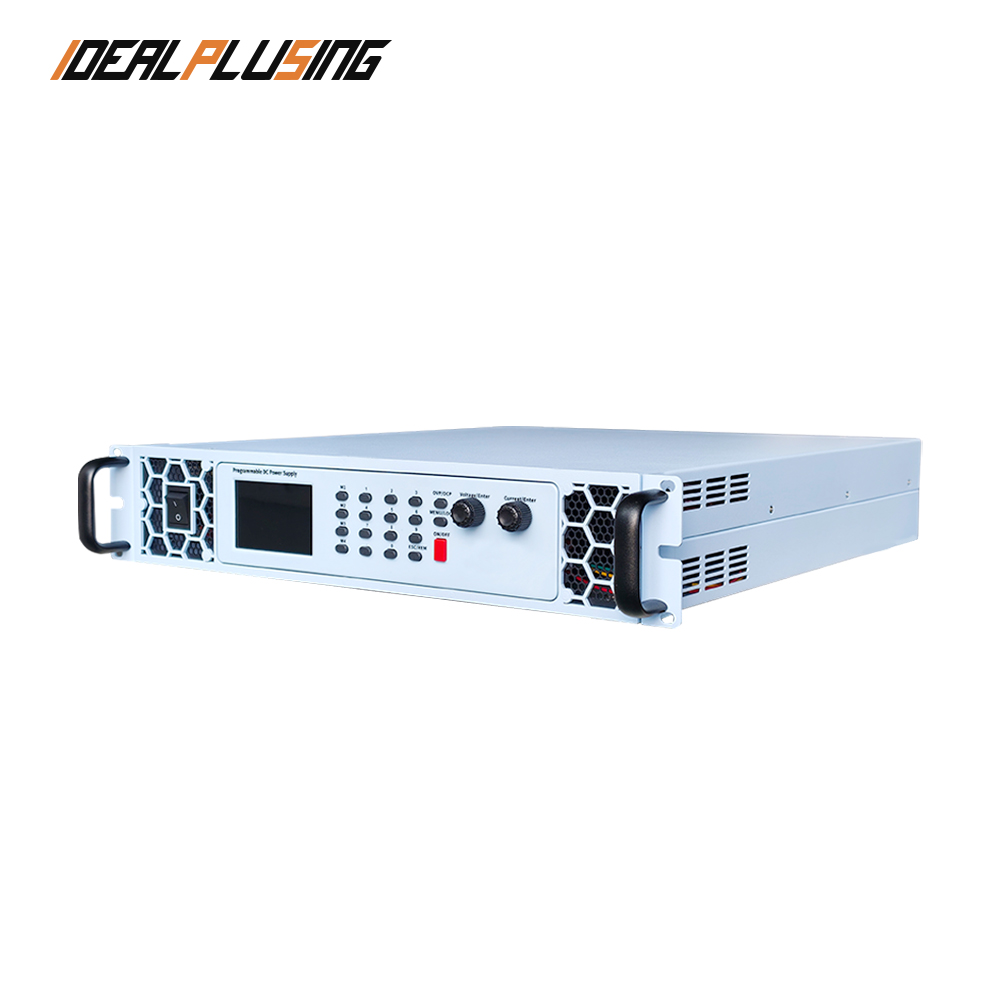

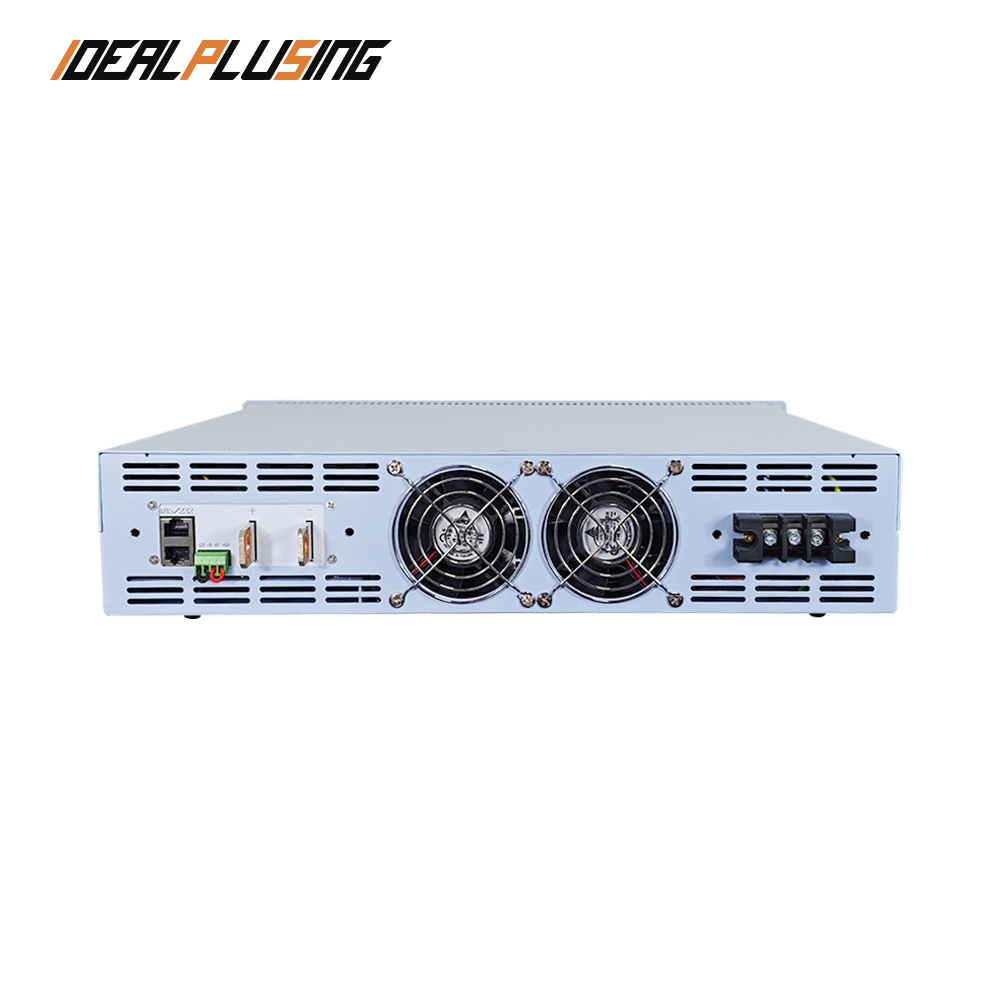

IDEALPLUSING Programmable DC Power Supply 25VDC 160VDC 800VDC 5A 4000W with Modbus RTU High Stability for Research Laboratories
Product Description
Programmable DC Power Supply 25VDC 160VDC 800VDC 5A 4000W with Modbus RTU High Stability for Research Laboratories
Friendly Reminder
Dear Customer:
The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment.
Our company always adheres to the principle of integrity and avoids price misrepresentation. Thank you for your understanding and trust.
Product Description
-

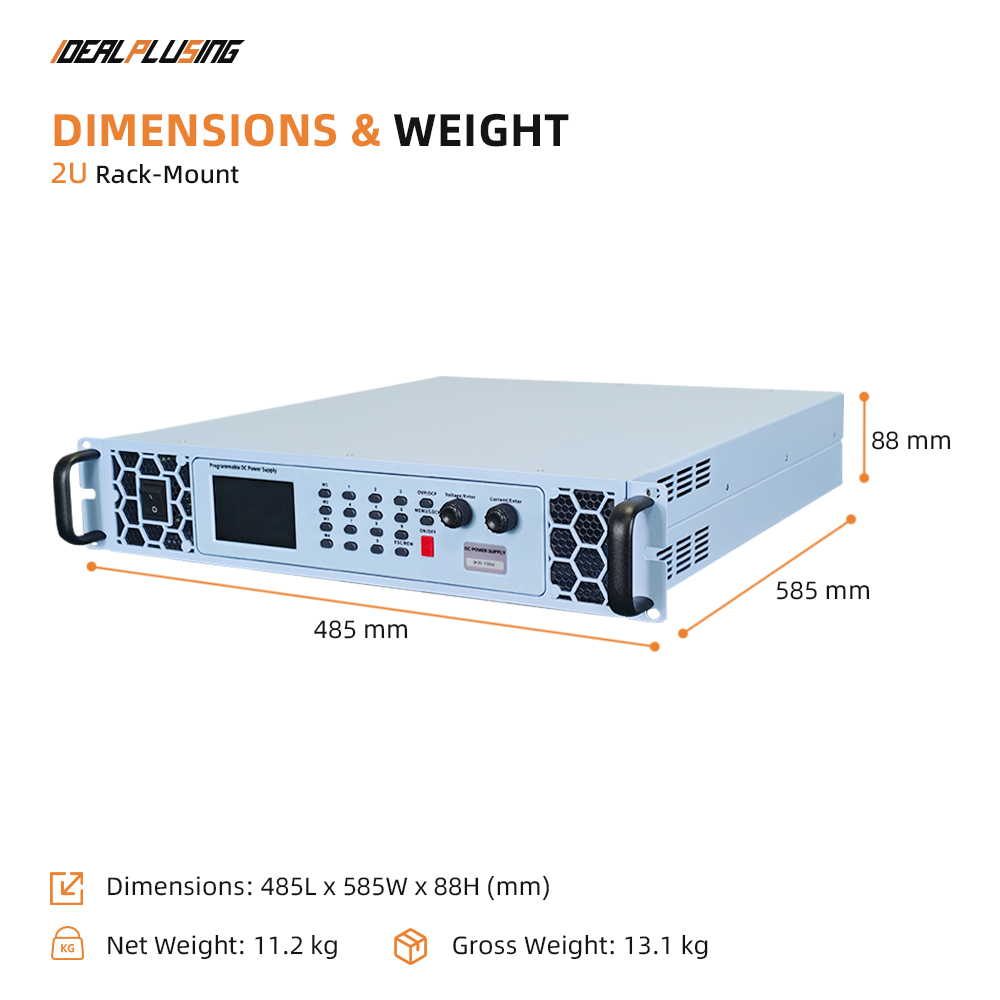

1Standard 2U/3U full-width dimensions; compact and lightweight design suitable for both benchtop use and rack mounting.
-

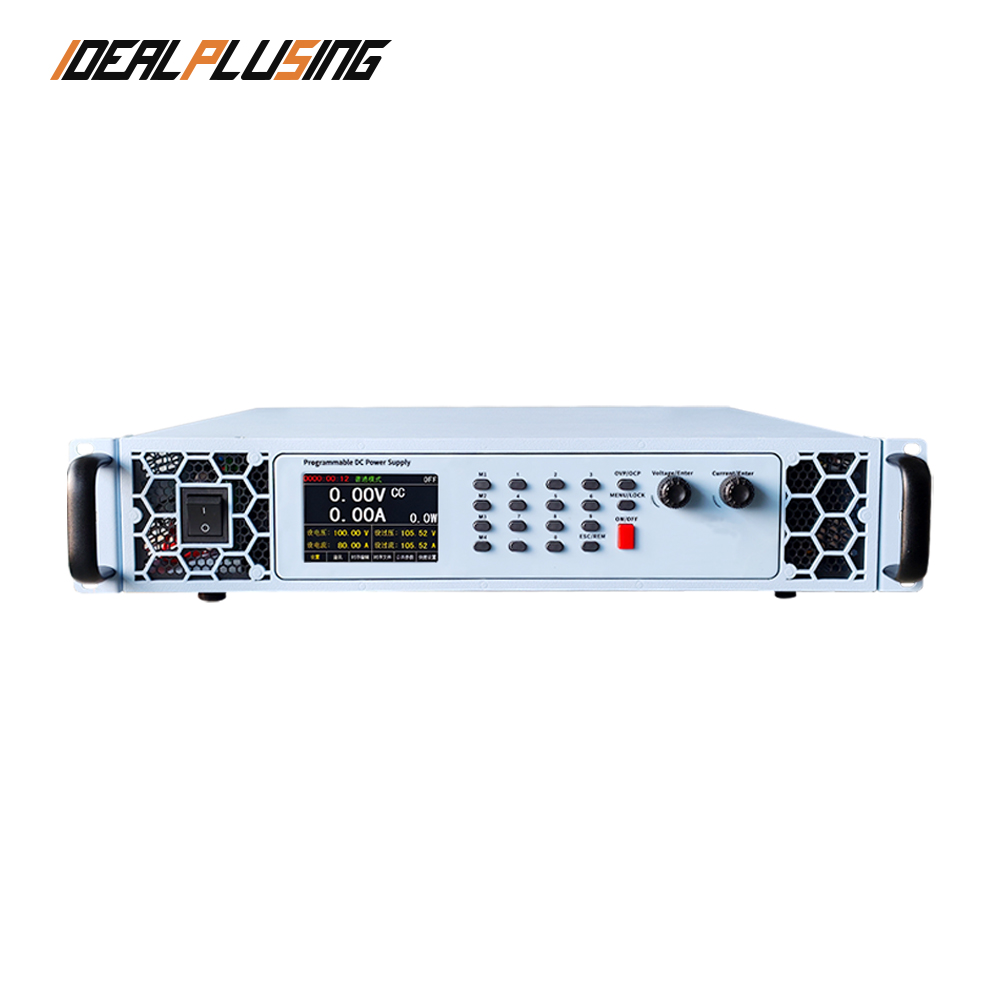

2Clear and prominent 5-digit display; the LCD screen provides comprehensive information.
-
3Dual encoders for voltage and current adjustment ensure convenient and user-friendly operation.
-

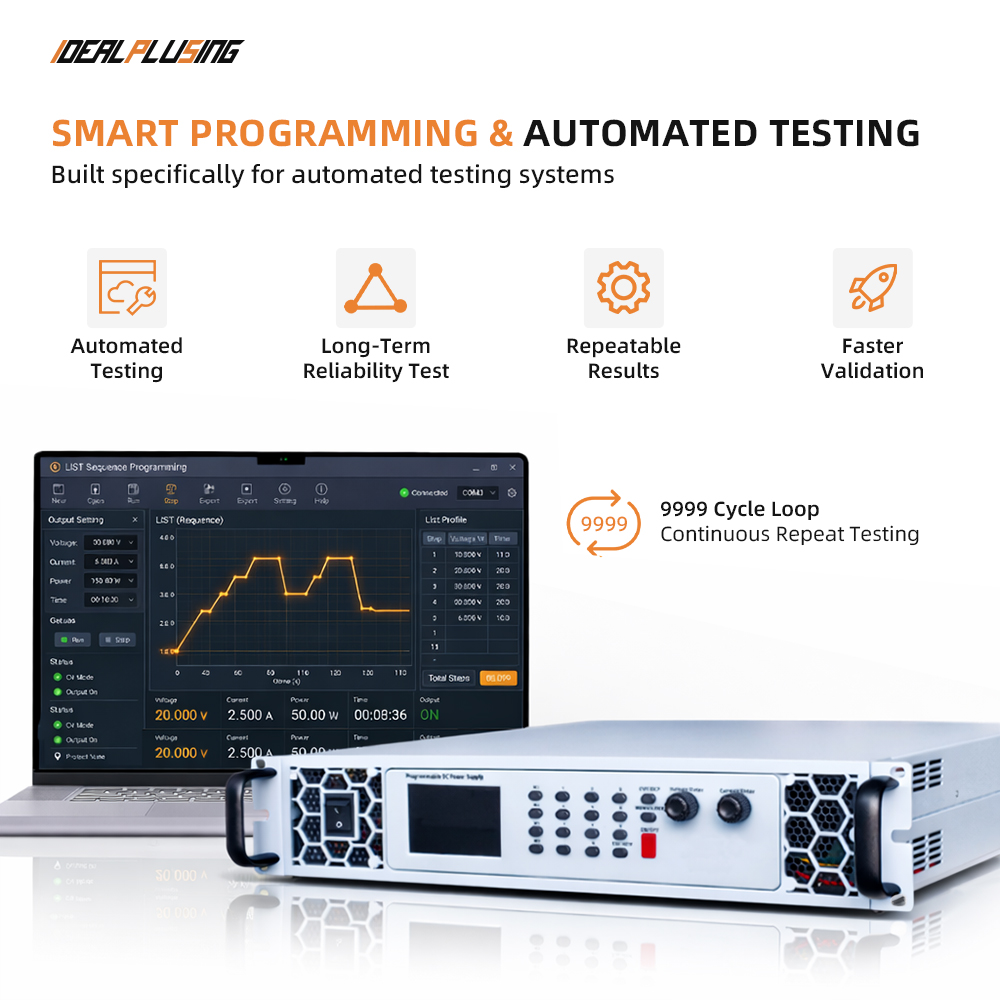

4Programmable control over voltage, current, and time outputs.
-
5Built-in memory supports the creation of up to 50 programmable steps for voltage, current, and time outputs.
-
6Features RS-232/485 interfaces, supporting both Modbus-RTU and SCPI communication protocols.
-
7Equipped with dedicated load-side voltage sensing terminals, enabling accurate measurement of the actual voltage at the load and facilitating precise control.
Specifications
| Specifications | 2U/3U Chassis Series |
|---|---|
| Model | 3KW-8KW/9KW-15KW |
| AC Input | Single Phase 220V±10%/Three Phase AC380V±10% Frequency 50Hz/60Hz |
| Output Voltage | 0-800VDC Rated Voltage |
| Output Current | 0-5A Rated Current |
| Output Power | 0-4000W Rated Power |
| Source Regulation | ≤0.1%+10mV |
| Load Regulation | ≤0.1%+30mV |
| Voltage Regulation Accuracy | ≤±0.1%FS |
| Current Regulation Accuracy | ≤±0.1%FS |
| Ripple (rms) | ≤0.1%FS+10mV |
| Voltage Setting Accuracy | ±0.1%FS+10mV |
| Current Setting Accuracy | ±0.1%FS+10mA |
| Voltage Readback Accuracy | 5-digit Digital Meter, Accuracy: ±0.1%FS+3 digits (10%-100% Rated Value) |
| Current Readback Accuracy | 5-digit Digital Meter, Accuracy: ±0.1%FS+3 digits (10%-100% Rated Value) |
| Display Mode | Color LCD Display |
| Over-Voltage Protection (OVP) | OVP protection configurable via menu, protection value can be set arbitrarily, output turns off after protection |
| Over-Current Protection (OCP) | OCP protection configurable via menu, protection value can be set arbitrarily, output turns off after protection |
| Over-Temperature Protection (OTP) | Built-in OTP protection, protection threshold 85℃±5% (Heatsink Temperature) |
| Voltage Setting | Configurable via menu, encoder knob input |
| Current Setting | Configurable via menu, encoder knob input |
| Communication Interface | RS-485/RS-232 (Support Modbus and SCPI Protocols) |
| Functions | Constant Voltage (CV) / Constant Current (CC) / Constant Power (CP) Mode, Memory Mode, LIST Sequence Cycle, Configurable ON/OFF Time, Pulse Width Output, up to 9999 Cycles, 4 Groups of Preset Voltage & Current, Keypad Lock. |
| Output Polarity | Output Positive (+) and Negative (-) terminals can be grounded arbitrarily |
| Cooling Method | Forced Air Cooling |
| Operating Environment | Designed for Indoor Use, Temperature: 0℃～40℃; Humidity: 10%～85% RH |
| Storage Environment | Temperature: -20℃～70℃; Humidity: 10%～90% RH |
Description: All values are typical values, which may be exceeded under different loads or other conditions. Accuracy is measured with voltage detection at the load terminal. Deviations between actual and rated values may occur due to temperature errors and component aging.
Remarks: FS: Full Scale; 3 digits: the last digit of the display can fluctuate by 3 digits.
Remarks: FS: Full Scale; 3 digits: the last digit of the display can fluctuate by 3 digits.
Hot Selling Models
IPS-DH10-6002 DC Power Supply
① AC IN: 1 phase 220VAC±10% 50/60HZ
② DC OUT: 0~600VDC, 0~2A
③ Max power: 1200W
IPS-DH20-12003 DC Power Supply
① AC IN: 1 phase 220VAC±10% 50/60HZ
② DC OUT: 0~1200VDC, 0~3A
③ Max power: 3600W
IPS-DH10-5001 DC Power Supply
① AC IN: 1 phase 220VAC±10% 50/60HZ
② DC OUT: 0~500VDC, 0~1A
③ Max power: 500W
IPS-DH30-8500 DC Power Supply
① AC IN: 1 phase 220VAC±10% 50/60HZ
② DC OUT: 0~8VDC, 0~500A
③ Max power: 4000W
IPS-DH10-10003 DC Power Supply
① AC IN: 1 phase 220VAC±10% 50/60HZ
② DC OUT: 0~1000VDC, 0~3A
③ Max power: 3000W
IPS-DH20-8005 DC Power Supply
① AC IN: 1 phase 220VAC±10% 50/60HZ
② DC OUT: 0~800VDC, 0~5A
③ Max power: 4000W
IPS-DH10-8003 DC Power Supply
① AC IN: 1 phase 220VAC±10% 50/60HZ
② DC OUT: 0~800VDC, 0~3A
③ Max power: 2400W
IPS-DH10-6004 DC Power Supply
① AC IN: 1 phase 220VAC±10% 50/60HZ
② DC OUT: 0~600VDC, 0~4A
③ Max power: 2400W
IPS-DH30-9500 DC Power Supply
① AC IN: 1 phase 220VAC±10% 50/60HZ
② DC OUT: 0~9VDC, 0~500A
③ Max power: 4500W
IPS-DH20-30240 DC Power Supply
① AC IN: 1 phase 220VAC±10% 50/60HZ
② DC OUT: 0~30VDC, 0~240A
③ Max power: 7200W
IPS-DH30-10600 DC Power Supply
① AC IN: 1 phase 220VAC±10% 50/60HZ
② DC OUT: 0~10VDC, 0~600A
③ Max power: 6000W
IPS-DH20-20400 DC Power Supply
① AC IN: 1 phase 220VAC±10% 50/60HZ
② DC OUT: 0~20VDC, 0~400A
③ Max power: 8000W
Detailed Product Gallery
Used in capacitive load testing applications, inductive load testing applications, battery discharge testing applications, pulsed load testing applications, and motor drive testing applications.
Application Scope
Model List
| 4000W Series (including 2U/3U; Customization Available) | |||||
|---|---|---|---|---|---|
| No | Model | Voltage (Volt) | Current (Amp) | Power (Watt) | Resolution |
| 1 | IPS-DH20-20002 | 2000VDC | 2A | 4000W | 100mV/0.1mA |
| 2 | IPS-DH20-16002.5 | 1600VDC | 2.5A | 4000W | 100mV/0.1mA |
| 3 | IPS-DH20-10004 | 1000VDC | 4A | 4000W | 100mV/0.1mA |
| 4 | IPS-DH20-8005 | 800VDC | 5A | 4000W | 100mV/0.1mA |
| 5 | IPS-DH20-5008 | 500VDC | 8A | 4000W | 10mV/1mA |
| 6 | IPS-DH20-40010 | 400VDC | 10A | 4000W | 10mV/1mA |
| 7 | IPS-DH20-32012.5 | 320VDC | 12.5A | 4000W | 10mV/1mA |
| 8 | IPS-DH20-25016 | 250VDC | 16A | 4000W | 10mV/1mA |
| 9 | IPS-DH20-20020 | 200VDC | 20A | 4000W | 10mV/1mA |
| 10 | IPS-DH20-16025 | 160VDC | 25A | 4000W | 10mV/1mA |
| 11 | IPS-DH20-12532 | 125VDC | 32A | 4000W | 10mV/1mA |
| 12 | IPS-DH20-10040 | 100VDC | 40A | 4000W | 10mV/1mA |
| 13 | IPS-DH20-8050 | 80VDC | 50A | 4000W | 10mV/1mA |
| 14 | IPS-DH20-6462.5 | 64VDC | 62.5A | 4000W | 1mV/1mA |
| 15 | IPS-DH20-62.564 | 62.5VDC | 64A | 4000W | 1mV/1mA |
| 16 | IPS-DH20-5080 | 50VDC | 80A | 4000W | 1mV/10mA |
| 17 | IPS-DH20-40100 | 40VDC | 100A | 4000W | 1mV/10mA |
| 18 | IPS-DH20-32125 | 32VDC | 125A | 4000W | 1mV/10mA |
| 19 | IPS-DH20-25160 | 25VDC | 160A | 4000W | 1mV/10mA |
| 20 | IPS-DH20-20200 | 20VDC | 200A | 4000W | 1mV/10mA |
| 21 | IPS-DH20-16250 | 16VDC | 250A | 4000W | 1mV/10mA |
| 22 | IPS-DH20-12.5320 | 12.5VDC | 320A | 4000W | 1mV/10mA |
| 23 | IPS-DH20-10400 | 10VDC | 400A | 4000W | 1mV/10mA |
| 24 | IPS-DH30-8500 | 8VDC | 500A | 4000W | 1mV/10mA |
| 2U Series (Customization Available) | |||||
|---|---|---|---|---|---|
| No | Model | Voltage (Volt) | Current (Amp) | Power (Watt) | Resolution |
| 2 | IPS-DH20-15200 | 0-15V | 0-200A | 3000W | 1mV/10mA |
| 3 | IPS-DH20-15300 | 0-15V | 0-300A | 4500W | 1mV/10mA |
| 4 | IPS-DH20-15400 | 0-15V | 0-400A | 6000W | 1mV/10mA |
| 5 | IPS-DH20-30150 | 0-30V | 0-150A | 4500W | 1mV/10mA |
| 6 | IPS-DH20-30200 | 0-30V | 0-200A | 6000W | 1mV/10mA |
| 7 | IPS-DH20-30250 | 0-30V | 0-250A | 7500W | 1mV/10mA |
| 8 | IPS-DH20-5080 | 0-50V | 0-80A | 4000W | 1mV/10mA |
| 9 | IPS-DH20-50100 | 0-50V | 0-100A | 5000W | 1mV/10mA |
| 10 | IPS-DH20-50150 | 0-50V | 0-150A | 7500W | 1mV/10mA |
| 11 | IPS-DH20-6060 | 0-60V | 0-60A | 3600W | 1mV/1mA |
| 12 | IPS-DH20-60100 | 0-60V | 0-100A | 6000W | 1mV/10mA |
| 13 | IPS-DH20-60120 | 0-60V | 0-120A | 7200W | 1mV/10mA |
| 14 | IPS-DH20-8050 | 0-80V | 0-50A | 4000W | 10mV/1mA |
| 15 | IPS-DH20-8060 | 0-80V | 0-60A | 4800W | 10mV/1mA |
| 16 | IPS-DH20-8080 | 0-80V | 0-80A | 6400W | 10mV/10mA |
| 17 | IPS-DH20-80100 | 0-80V | 0-100A | 8000W | 10mV/10mA |
| 18 | IPS-DH20-10040 | 0-100V | 0-40A | 4000W | 10mV/1mA |
| 19 | IPS-DH20-10050 | 0-100V | 0-50A | 5000W | 10mV/1mA |
| 20 | IPS-DH20-10060 | 0-100V | 0-60A | 6000W | 10mV/1mA |
| 21 | IPS-DH20-10080 | 0-100V | 0-80A | 8000W | 10mV/10mA |
| 22 | IPS-DH20-15030 | 0-150V | 0-30A | 4500W | 10mV/1mA |
| 23 | IPS-DH20-15040 | 0-150V | 0-40A | 6000W | 10mV/1mA |
| 24 | IPS-DH20-15050 | 0-150V | 0-50A | 7500W | 10mV/1mA |
| 25 | IPS-DH20-20020 | 0-200V | 0-20A | 4000W | 10mV/1mA |
| 26 | IPS-DH20-20030 | 0-200V | 0-30A | 6000W | 10mV/1mA |
| 27 | IPS-DH20-20040 | 0-200V | 0-40A | 8000W | 10mV/1mA |
| 28 | IPS-DH20-30015 | 0-300V | 0-15A | 4500W | 10mV/1mA |
| 29 | IPS-DH20-30020 | 0-300V | 0-20A | 6000W | 10mV/1mA |
| 30 | IPS-DH20-30025 | 0-300V | 0-25A | 7500W | 10mV/1mA |
| 31 | IPS-DH20-40010 | 0-400V | 0-10A | 4000W | 10mV/1mA |
| 32 | IPS-DH20-40015 | 0-400V | 0-15A | 6000W | 10mV/1mA |
| 33 | IPS-DH20-40020 | 0-400V | 0-20A | 8000W | 10mV/1mA |
| 34 | IPS-DH20-50010 | 0-500V | 0-10A | 5000W | 10mV/1mA |
| 35 | IPS-DH20-50015 | 0-500V | 0-15A | 7500W | 10mV/1mA |
| 36 | IPS-DH20-6006 | 0-600V | 0-6A | 3600W | 10mV/0.1mA |
| 37 | IPS-DH20-6008 | 0-600V | 0-8A | 4800W | 10mV/1mA |
| 38 | IPS-DH20-60010 | 0-600V | 0-10A | 6000W | 10mV/1mA |
| 39 | IPS-DH20-8005 | 0-800V | 0-5A | 4000W | 10mV/0.1mA |
| 40 | IPS-DH20-80010 | 0-800V | 0-10A | 8000W | 10mV/1mA |
| 41 | IPS-DH20-10005 | 0-1000V | 0-5A | 5000W | 100mV/0.1mA |
| 42 | IPS-DH20-10006 | 0-1000V | 0-6A | 6000W | 100mV/0.1mA |
| 43 | IPS-DH20-10008 | 0-1000V | 0-8A | 8000W | 100mV/1mA |
| 44 | IPS-DH20-12004 | 0-1200V | 0-4A | 4800W | 100mV/0.1mA |
| 45 | IPS-DH20-12005 | 0-1200V | 0-5A | 6000W | 100mV/0.1mA |
| 46 | IPS-DH20-12006 | 0-1200V | 0-6A | 7200W | 100mV/0.1mA |
| 47 | IPS-DH20-15001 | 0-1500V | 0-1A | 1500W | 100mV/0.1mA |
| 48 | IPS-DH20-15002 | 0-1500V | 0-2A | 3000W | 100mV/0.1mA |
| 49 | IPS-DH20-15003 | 0-1500V | 0-3A | 4500W | 100mV/0.1mA |
| 50 | IPS-DH20-15004 | 0-1500V | 0-4A | 6000W | 100mV/0.1mA |
| 51 | IPS-DH20-15005 | 0-1500V | 0-5A | 7500W | 100mV/0.1mA |
| 52 | IPS-DH20-20001 | 0-2000V | 0-1A | 2000W | 100mV/0.1mA |
| 53 | IPS-DH20-20002 | 0-2000V | 0-2A | 4000W | 100mV/0.1mA |
| 54 | IPS-DH20-20003 | 0-2000V | 0-3A | 6000W | 100mV/0.1mA |
| 55 | IPS-DH20-20004 | 0-2000V | 0-4A | 8000W | 100mV/0.1mA |
| 56 | IPS-DH20-30001 | 0-3000V | 0-1A | 3000W | 100mV/0.1mA |
| 57 | IPS-DH20-30002 | 0-3000V | 0-2A | 6000W | 100mV/0.1mA |
| 3U Series (Customization Available) | |||||
|---|---|---|---|---|---|
| No | Model | Voltage (Volt) | Current (Amp) | Power (Watt) | Resolution |
| 2 | IPS-DH30-15500 | 0-15V | 0-500A | 7500W | 1mV/10mA |
| 3 | IPS-DH30-15600 | 0-15V | 0-600A | 9000W | 1mV/10mA |
| 4 | IPS-DH30-151000 | 0-15V | 0-1000A | 15000W | 1mV/100mA |
| 5 | IPS-DH30-30300 | 0-30V | 0-300A | 9000W | 1mV/10mA |
| 6 | IPS-DH30-30400 | 0-30V | 0-400A | 12000W | 1mV/10mA |
| 7 | IPS-DH30-30500 | 0-30V | 0-500A | 15000W | 1mV/10mA |
| 8 | IPS-DH30-50200 | 0-50V | 0-200A | 10000W | 1mV/10mA |
| 9 | IPS-DH30-50250 | 0-50V | 0-250A | 12500W | 1mV/10mA |
| 10 | IPS-DH30-50300 | 0-50V | 0-300A | 15000W | 1mV/10mA |
| 11 | IPS-DH30-60150 | 0-60V | 0-150A | 9000W | 1mV/10mA |
| 12 | IPS-DH30-60200 | 0-60V | 0-200A | 12000W | 1mV/10mA |
| 13 | IPS-DH30-60250 | 0-60V | 0-250A | 15000W | 1mV/10mA |
| 14 | IPS-DH30-100100 | 0-100V | 0-100A | 10000W | 10mV/10mA |
| 15 | IPS-DH30-100120 | 0-100V | 0-120A | 12000W | 10mV/10mA |
| 16 | IPS-DH30-100150 | 0-100V | 0-150A | 15000W | 10mV/10mA |
| 17 | IPS-DH30-15060 | 0-150V | 0-60A | 9000W | 100mV/10mA |
| 18 | IPS-DH30-15080 | 0-150V | 0-80A | 12000W | 100mV/10mA |
| 19 | IPS-DH30-150100 | 0-150V | 0-100A | 15000W | 100mV/10mA |
| 20 | IPS-DH30-20050 | 0-200V | 0-50A | 10000W | 100mV/1mA |
| 21 | IPS-DH30-20060 | 0-200V | 0-60A | 12000W | 100mV/1mA |
| 22 | IPS-DH30-20080 | 0-200V | 0-80A | 16000W | 100mV/10mA |
| 23 | IPS-DH30-30030 | 0-300V | 0-30A | 9000W | 10mV/1mA |
| 24 | IPS-DH30-30040 | 0-300V | 0-40A | 12000W | 10mV/1mA |
| 25 | IPS-DH30-30050 | 0-300V | 0-50A | 15000W | 10mV/1mA |
| 26 | IPS-DH30-40030 | 0-400V | 0-30A | 12000W | 10mV/1mA |
| 27 | IPS-DH30-40040 | 0-400V | 0-40A | 16000W | 10mV/1mA |
| 28 | IPS-DH30-50020 | 0-500V | 0-20A | 10000W | 10mV/1mA |
| 29 | IPS-DH30-50030 | 0-500V | 0-30A | 15000W | 10mV/1mA |
| 30 | IPS-DH30-60020 | 0-600V | 0-20A | 12000W | 10mV/1mA |
| 31 | IPS-DH30-80015 | 0-800V | 0-15A | 12000W | 100mV/1mA |
| 32 | IPS-DH30-80020 | 0-800V | 0-20A | 16000W | 100mV/1mA |
| 33 | IPS-DH30-100010 | 0-1000V | 0-10A | 10000W | 100mV/1mA |
| 34 | IPS-DH30-100015 | 0-1000V | 0-15A | 15000W | 100mV/1mA |
| 35 | IPS-DH30-20005 | 0-2000V | 0-5A | 10000W | 100mV/0.1mA |
| 36 | IPS-DH30-20006 | 0-2000V | 0-6A | 12000W | 100mV/0.1mA |
| 37 | IPS-DH30-30003 | 0-3000V | 0-3A | 9000W | 100mV/0.1mA |
| 38 | IPS-DH30-30005 | 0-3000V | 0-5A | 15000W | 100mV/0.1mA |
Frequently Asked Questions
What are the main applications of this programmable DC power supply?
This series is heavily used in capacitive load testing, inductive load testing, battery discharge analysis, pulsed load testing, and motor drive testing environments.
What safety mechanisms are built into the device?
It features configurable Over-Voltage Protection (OVP) and Over-Current Protection (OCP) directly adjustable via the setup menu. It also includes an Over-Temperature Protection (OTP) trigger set at a heatsink temperature of 85℃±5%.
Does it support automated remote operations?
Yes. Equipped with standard RS-232 and RS-485 interfaces, the system fully supports both Modbus-RTU and SCPI communication protocols for seamless remote integration.
How does the load-side voltage sensing terminal help measurement accuracy?
The load-side sensing terminals allow the power supply to monitor the actual voltage at the load terminals rather than the output terminals, compensating for any voltage drop caused by connection leads.
Can I program customized test profiles?
Absolutely. The built-in memory supports up to 50 programmable sequence steps for setting precise voltage, current, and execution time outputs.
Is the cooling method passive or active?
It utilizes forced air cooling with internal fans to manage heat dissipation effectively under heavy load operations.
