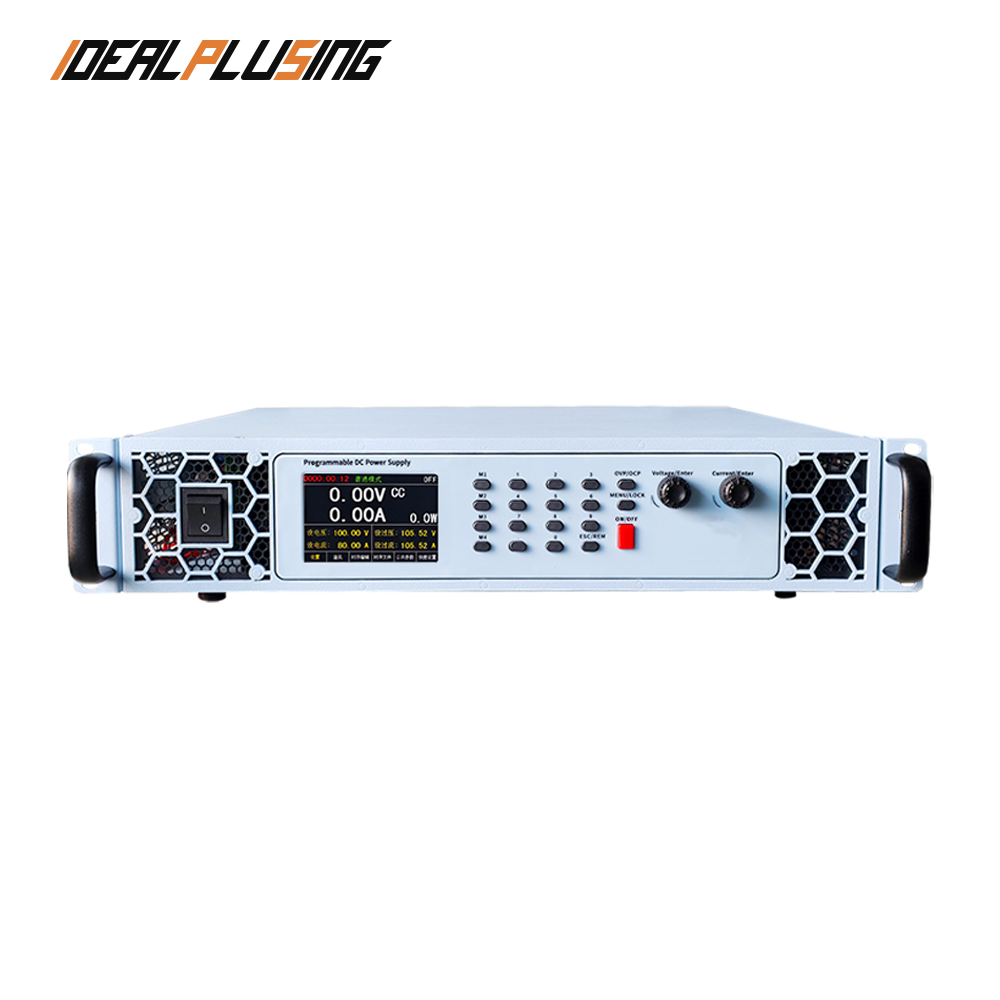

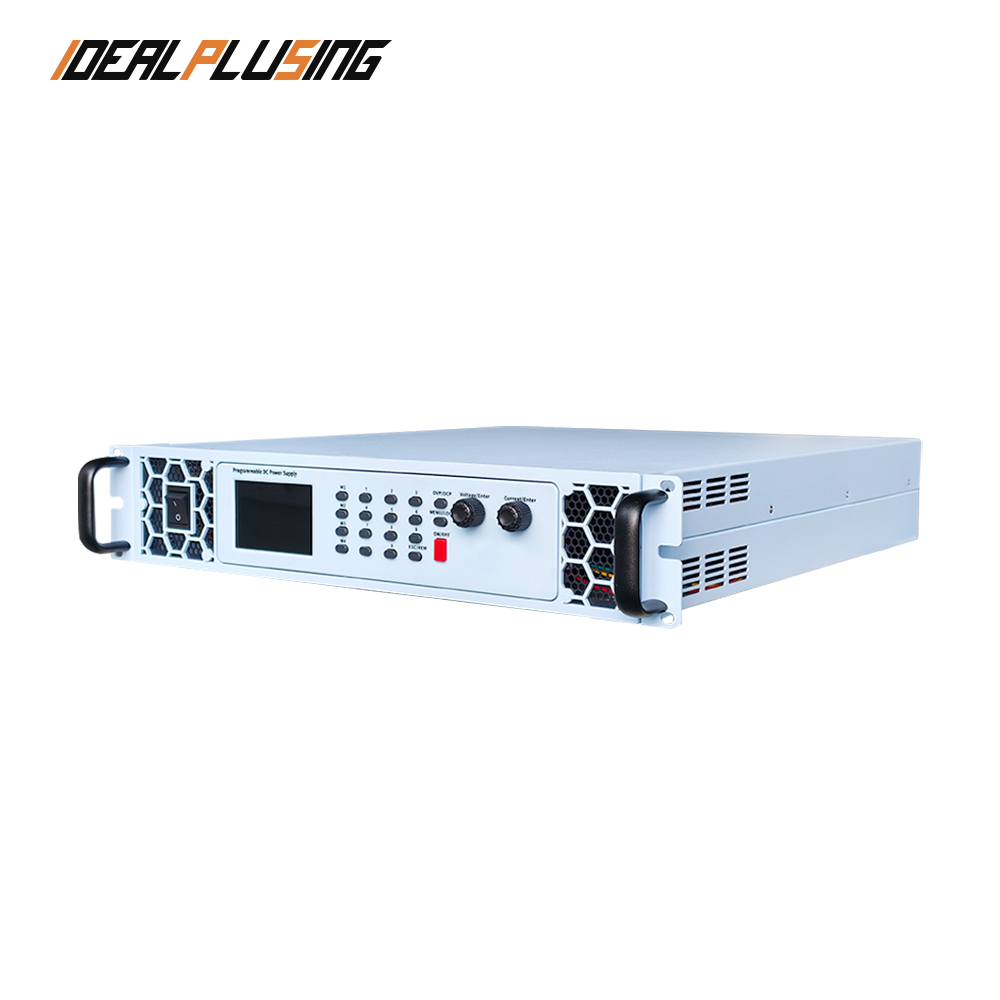

IDEALPLUSING Programmable DC Power Supply 360VDC 1200VDC 3A with RS485 2U Rack Mount High Precision for Automated Test Systems
Product Description
Programmable DC Power Supply 360VDC 1200VDC 3A with RS485 2U Rack Mount High Precision for Automated Test Systems
Friendly Reminder
Dear Customer:
The prices shown on this page are for reference only. The final transaction price will be recalculated and quoted by our sales staff based on your actual needs, purchase quantity, and market conditions. The online prices are for your preliminary budget reference only and do not constitute a final transaction commitment. We always adhere to the principle of integrity and avoid price misrepresentation. Thank you for your understanding and trust.
Product Description
1

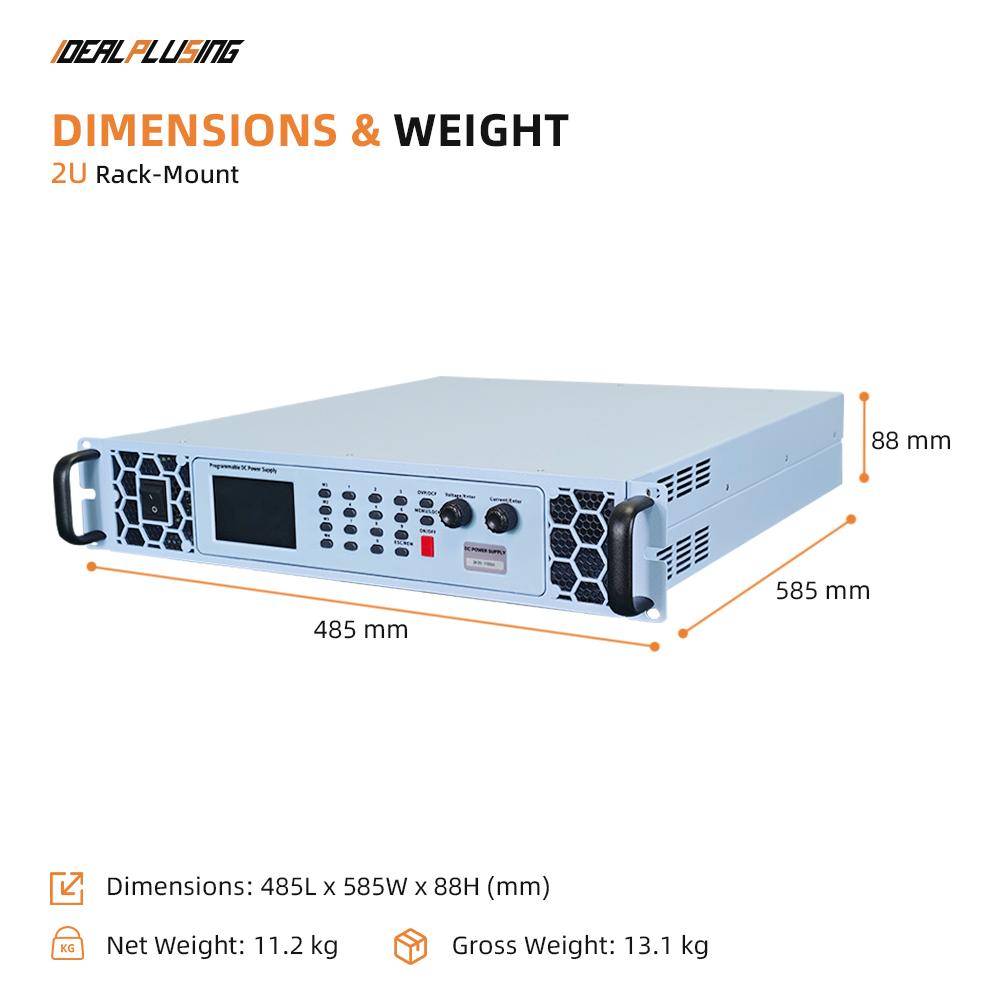

Standard 2U/3U full-width dimensions; compact and lightweight design suitable for both benchtop use and rack mounting.
2
Clear and prominent 5-digit display; the LCD screen provides comprehensive information.
3
Dual encoders for voltage and current adjustment ensure convenient and user-friendly operation.
4
Programmable control over voltage, current, and time outputs.
5

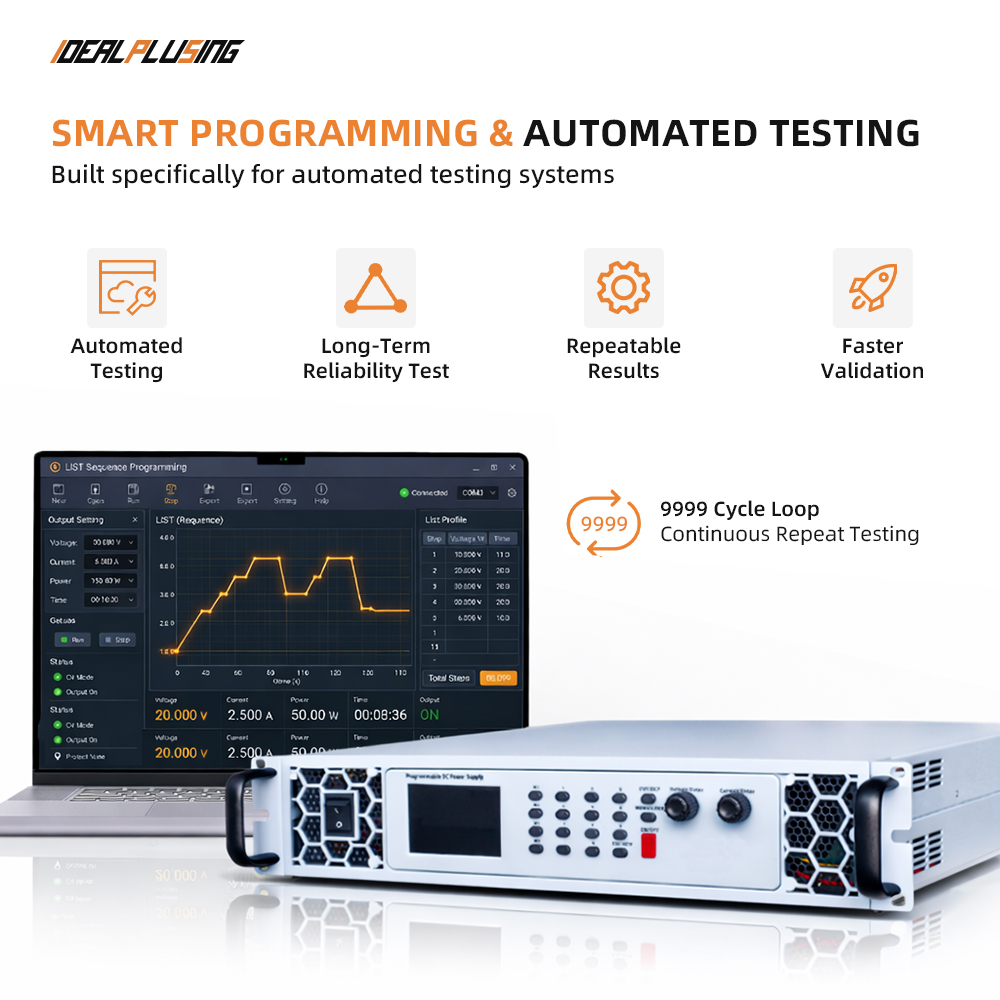

Built-in memory supports the creation of up to 50 programmable steps for voltage, current, and time outputs.
6
Features RS-232/485 interfaces, supporting both Modbus-RTU and SCPI communication protocols.
7
Equipped with dedicated load-side voltage sensing terminals, enabling accurate measurement of the actual voltage at the load.
Specification
| Specifications | 2U/3U Chassis Series |
|---|---|
| Model | 3KW-8KW/9KW-15KW |
| AC Input | Single Phase 220V±10% / Three Phase AC380V±10% Frequency 50Hz/60Hz |
| Output Voltage | 0-1200VDC Rated Voltage |
| Output Current | 0-3A Rated Current |
| Output Power | 0-3600W Rated Power |
| Source Regulation | ≤0.1%+10mV |
| Load Regulation | ≤0.1%+30mV |
| Regulation Accuracy | Voltage & Current: ≤±0.1%FS |
| Ripple (rms) | ≤0.1%FS+10mV |
| Setting Accuracy | Voltage: ±0.1%FS+10mV; Current: ±0.1%FS+10mA |
| Readback Accuracy | 5-digit Digital Meter, Accuracy: ±0.1%FS+3 digits (10%-100% Rated Value) |
| Display Mode | Color LCD Display |
| Protections | OVP, OCP (configurable via menu), OTP (Threshold 85℃±5%) |
| Communication | RS-485/RS-232 (Support Modbus and SCPI Protocols) |
| Functions | CV/CC/CP Mode, Memory Mode, LIST Sequence Cycle, Pulse Width Output, 4 Groups Preset. |
| Environment | Indoor Use, Temp: 0℃～40℃; Humidity: 10%～85% RH |
| *All values are typical values. FS: Full Scale; 3 digits: last digit fluctuation. | |
Hot Selling Models
IPS-DH10-6002 DC Power Supply
① AC IN: 1 phase 220VAC±10% 50/60HZ
② DC OUT: 0~600VDC, 0~2A
③ Max power: 1200W
② DC OUT: 0~600VDC, 0~2A
③ Max power: 1200W
IPS-DH20-12003 DC Power Supply
① AC IN: 1 phase 220VAC±10% 50/60HZ
② DC OUT: 0~1200VDC, 0~3A
③ Max power: 3600W
② DC OUT: 0~1200VDC, 0~3A
③ Max power: 3600W
IPS-DH10-5001 DC Power Supply
① AC IN: 1 phase 220VAC±10% 50/60HZ
② DC OUT: 0~500VDC, 0~1A
③ Max power: 500W
② DC OUT: 0~500VDC, 0~1A
③ Max power: 500W
Details Images
Application Scope
Used in capacitive load testing applications, inductive load testing applications, battery discharge testing applications, pulsed load testing applications, and motor drive testing applications.
Model list - 3600W Series
| 3600W Series (2U/3U; Customization Available) | ||||
| Model | Voltage(Volt) | Current(Amp) | Power(Watt) | Resolution |
|---|---|---|---|---|
| IPS-DH20-12003 | 1200VDC | 3A | 3600W | 100mV/0.1mA |
| IPS-DH20-6006 | 600VDC | 6A | 3600W | 100mV/0.1mA |
| IPS-DH20-36010 | 360VDC | 10A | 3600W | 10mV/1mA |
| IPS-DH20-6060 | 60VDC | 60A | 3600W | 1mV/1mA |
Professional Power Solutions
We focus on the research and development, sales and service of DC to DC power supply modules, AC to DC rectifier modules, DC to AC inverters, AC power supplies, DC power supplies, LED power supplies, chargers, and rectifier systems. Our goal is to provide personalized, efficient, reliable and cost-effective power supply solutions for all industries. We aim to give our customers the right power supply solution with optimized technical specifications.
Frequently Asked Questions
What communication protocols does this power supply support?
The system features RS-232 and RS-485 interfaces, supporting both Modbus-RTU and SCPI standard communication protocols for easy integration into automated test systems.
Can I program multiple steps for testing?
Yes, the unit features built-in memory that supports up to 50 programmable steps for voltage, current, and time outputs, allowing for complex sequence cycles.
Is the unit suitable for rack mounting?
Absolutely. It is designed with standard 2U/3U full-width dimensions, making it ideal for both benchtop laboratory use and industrial rack mounting.
What kind of protection features are included?
The power supply is equipped with Over-Voltage Protection (OVP), Over-Current Protection (OCP) - both of which are configurable via the menu - and built-in Over-Temperature Protection (OTP).
How accurate is the voltage measurement at the load?
The system is equipped with dedicated load-side voltage sensing terminals. This allows the unit to compensate for voltage drops in the leads and accurately measure the actual voltage at the load terminal.

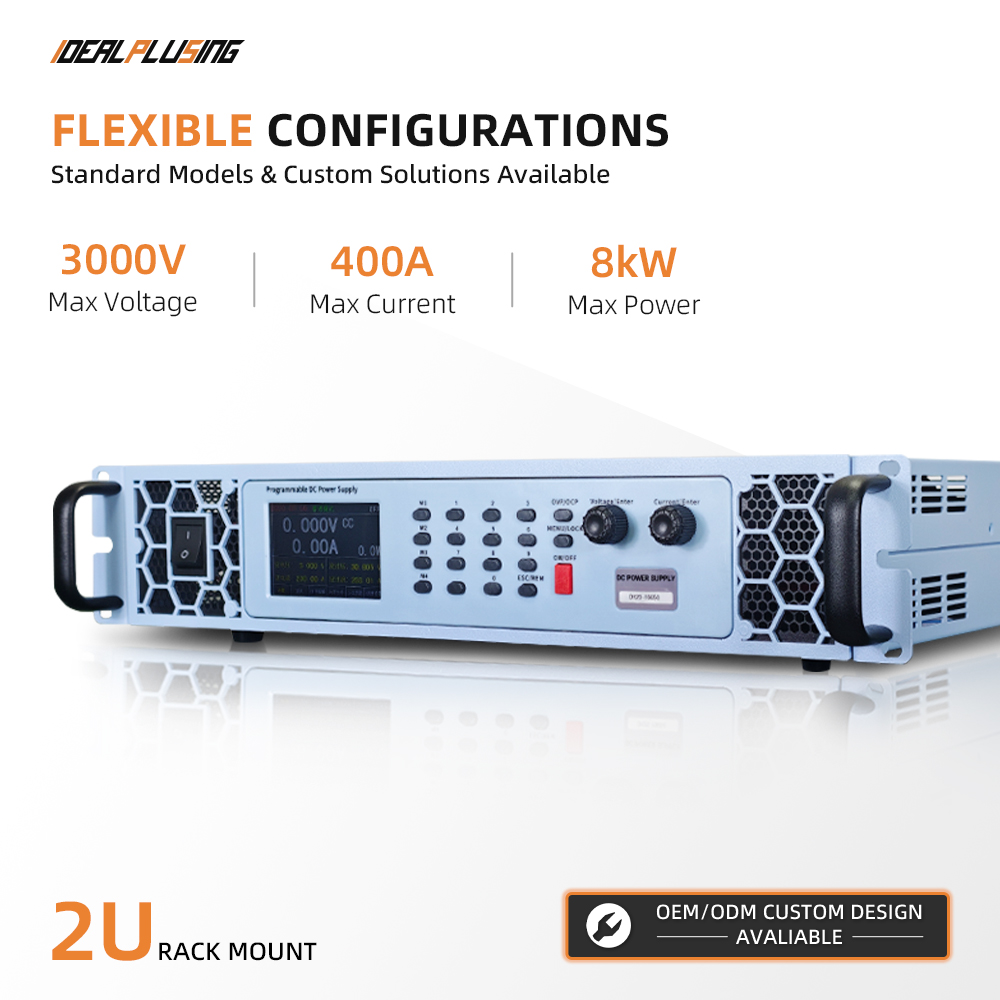

Is customization available for specific requirements?
Yes, we offer customization for various voltage and current combinations across our 2U and 3U series to meet your specific industrial or laboratory needs.
