IDEALPLUSING Programmable DC Power Supply 80V 260V 1600VDC 4A 6400W with Modbus RTU Compact for Industrial Automation Equipment
Product Description
Programmable DC Power Supply 80V-1600VDC 6400W High Precision System
Friendly Reminder
Dear Customer: The prices shown on this page are for reference only. The final transaction price will be recalculated based on your actual needs, purchase quantity, and market conditions. We adhere to the principle of integrity and provide personalized quotations for your preliminary budget.
1

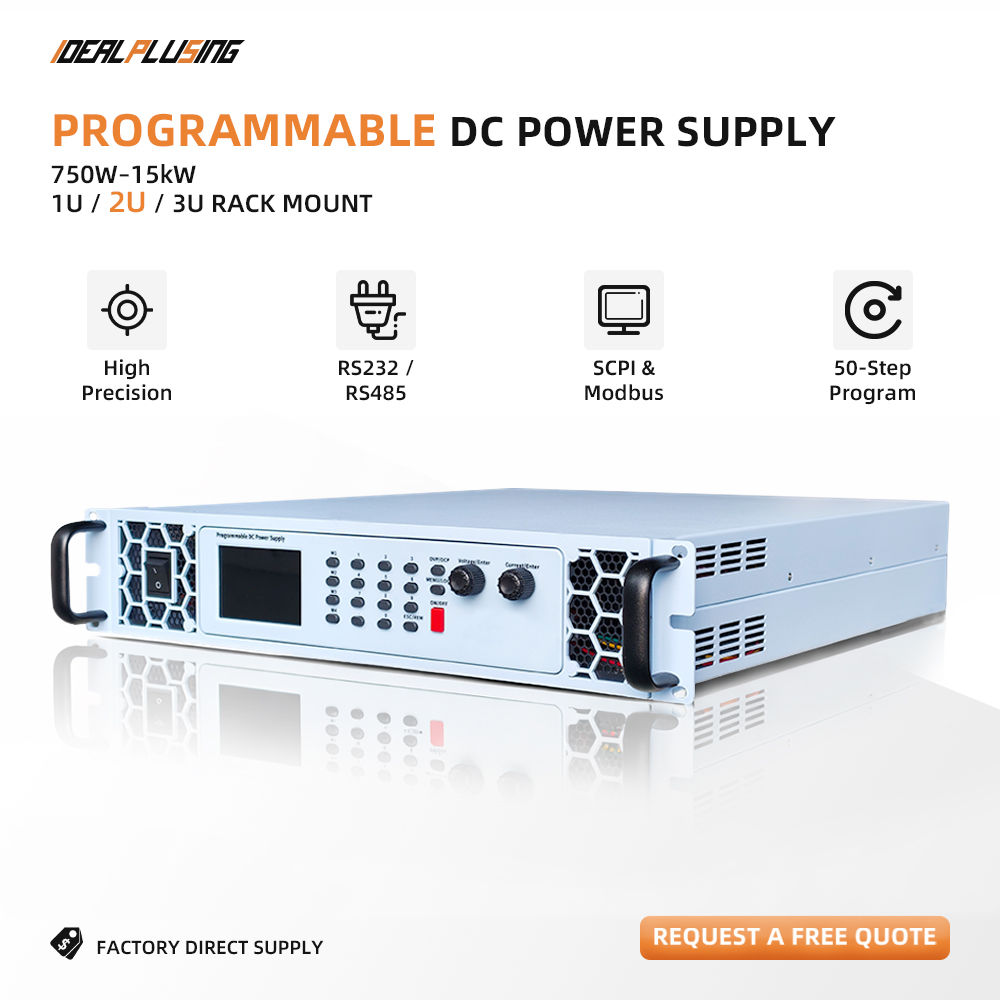

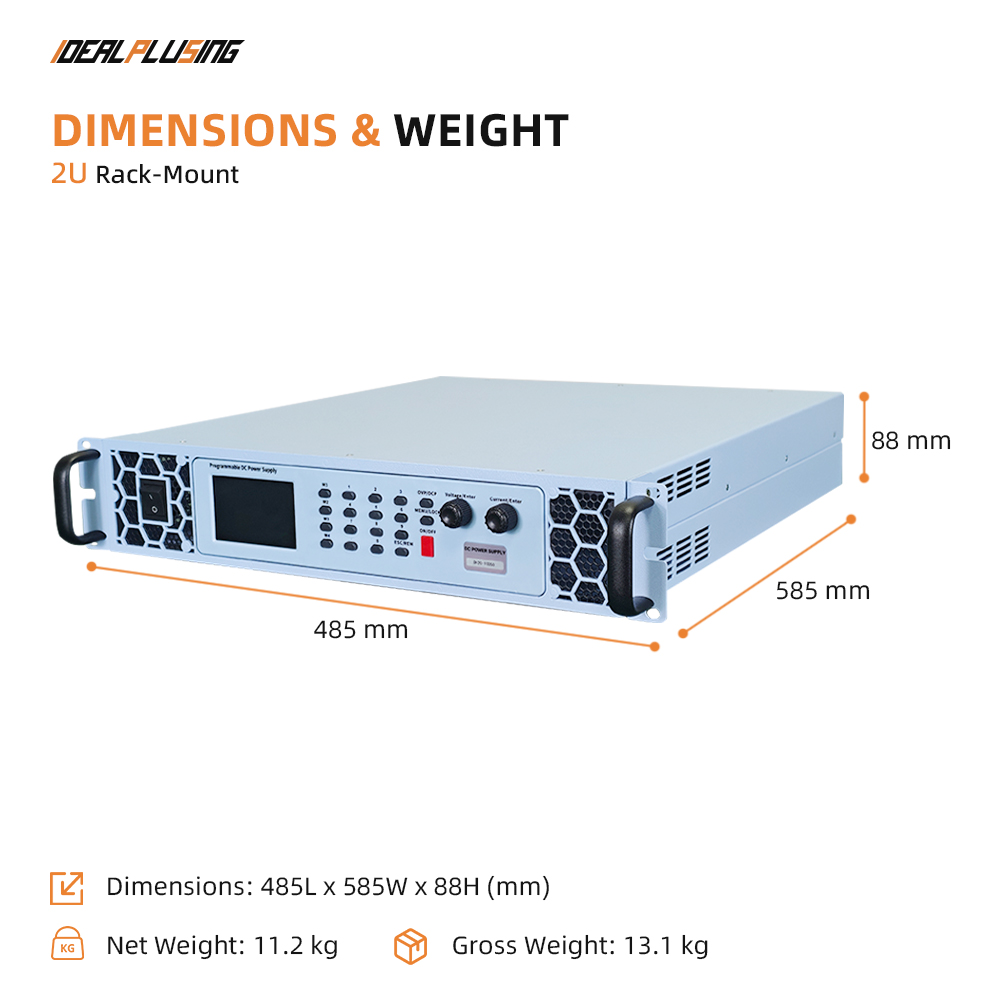

Standard 2U/3U full-width dimensions; compact and lightweight design suitable for both benchtop use and rack mounting.
2
Clear and prominent 5-digit display; the LCD screen provides comprehensive information at a glance.
3
Dual encoders for voltage and current adjustment ensure convenient and user-friendly operation.
4
Programmable control over voltage, current, and time outputs with high precision.
5
Built-in memory supports up to 50 programmable steps for complex voltage and current profiles.
6

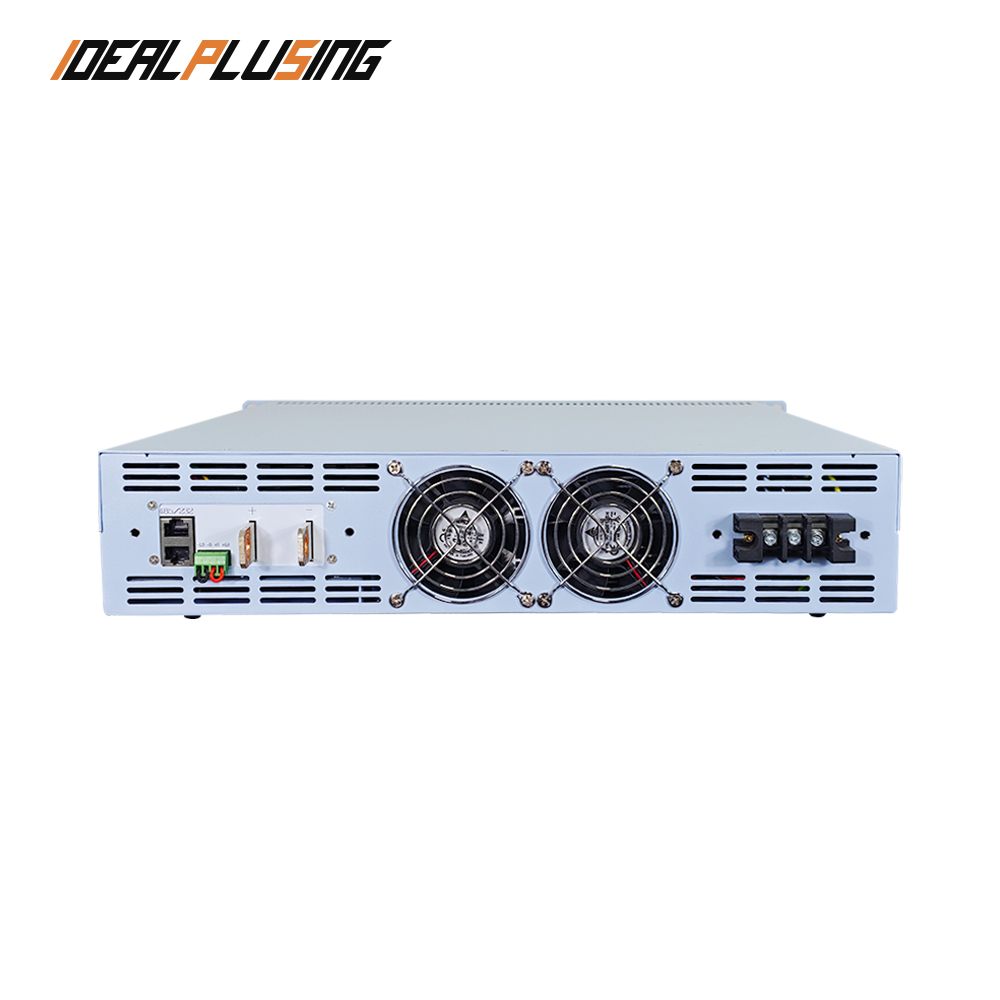

RS-232/485 interfaces, supporting both Modbus-RTU and SCPI communication protocols for industrial automation.
7
Equipped with dedicated load-side voltage sensing terminals for accurate remote measurement.
| Parameter | Details |
|---|---|
| Chassis Series | 2U/3U Standard Rackmount |
| Model Power Range | 3KW-8KW / 9KW-15KW |
| AC Input | Single Phase 220V±10% / Three Phase 380V±10%; 50Hz/60Hz |
| Output Voltage | 0-1600VDC Rated |
| Output Current | 0-4A Rated |
| Output Power | 0-6400W Rated |
| Accuracy | Voltage/Current: ≤±0.1%FS |
| Ripple (rms) | ≤0.1%FS + 10mV |
| Display | Color LCD, 5-digit Readback Accuracy |
| Protection | OVP (Over-Voltage), OCP (Over-Current), OTP (Over-Temp 85℃) |
| Protocols | Modbus-RTU and SCPI via RS-485/RS-232 |
| Cooling | Forced Air Cooling |
*All values are typical. FS: Full Scale. Customization available upon request.
IPS-DH10-6002
600VDC | 2A | 1200W
IPS-DH20-12003
1200VDC | 3A | 3600W
IPS-DH10-5001
500VDC | 1A | 500W
IPS-DH30-8500
8VDC | 500A | 4000W
IPS-DH10-10003
1000VDC | 3A | 3000W
Used in capacitive load testing, inductive load testing, battery discharge testing, pulsed load testing, and motor drive testing.

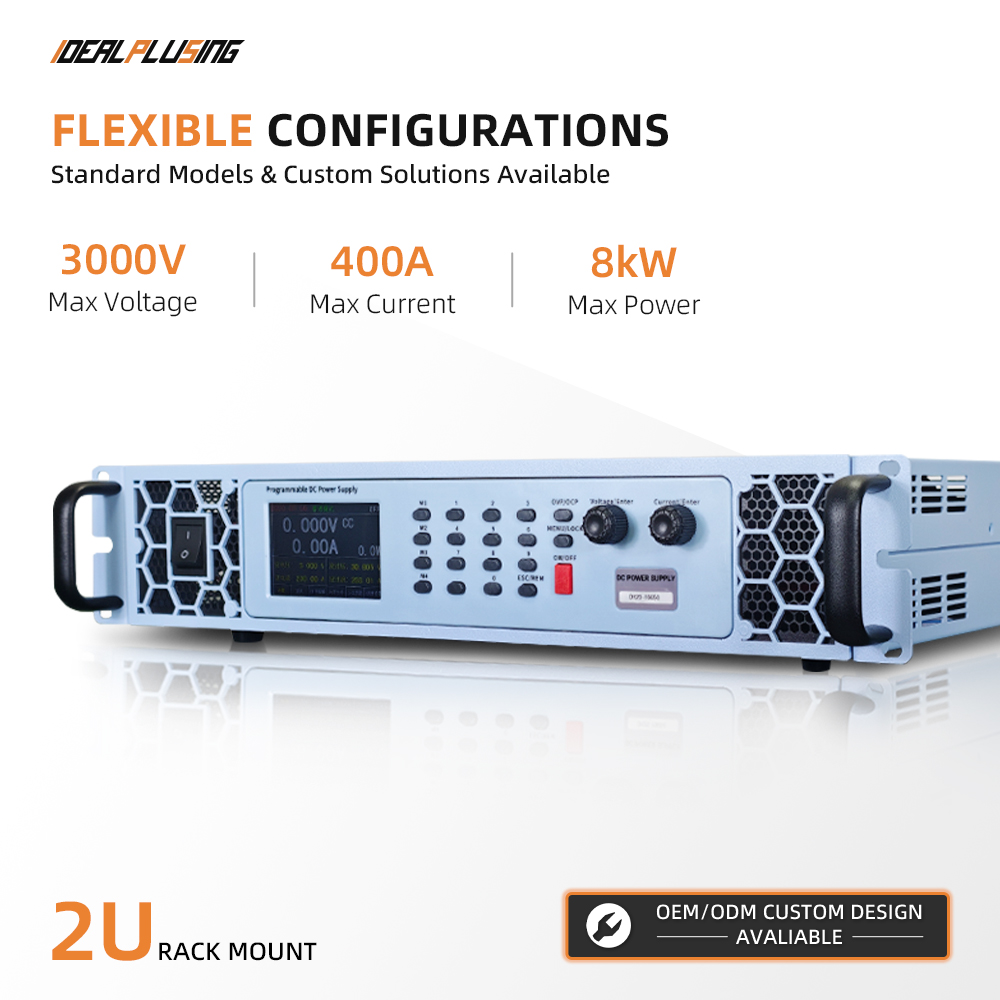

| Model | Voltage | Current | Power | Resolution |
|---|---|---|---|---|
| IPS-DH20-32002 | 3200VDC | 2A | 6400W | 100mV/0.1mA |
| IPS-DH20-16004 | 1600VDC | 4A | 6400W | 100mV/0.1mA |
| IPS-DH20-8008 | 800VDC | 8A | 6400W | 100mV/1mA |
| IPS-DH20-26025 | 260VDC | 25A | 6500W | 10mV/1mA |
| IPS-DH20-16040 | 160VDC | 40A | 6400W | 10mV/1mA |
| IPS-DH20-8080 | 80VDC | 80A | 6400W | 10mV/10mA |
| IPS-DH20-16400 | 16VDC | 400A | 6400W | 1mV/10mA |
We focus on the research, development, and service of DC to DC power supply modules, AC to DC rectifiers, inverters, and programmable power systems. Our goal is to provide personalized, efficient, and reliable power solutions for all industries. We provide expert quotation solutions tailored to your specific project needs. Together, let's make it much better.
Which communication protocols are supported?
The power supply features RS-232 and RS-485 interfaces, fully supporting Modbus-RTU and SCPI protocols for easy integration into industrial automation systems.

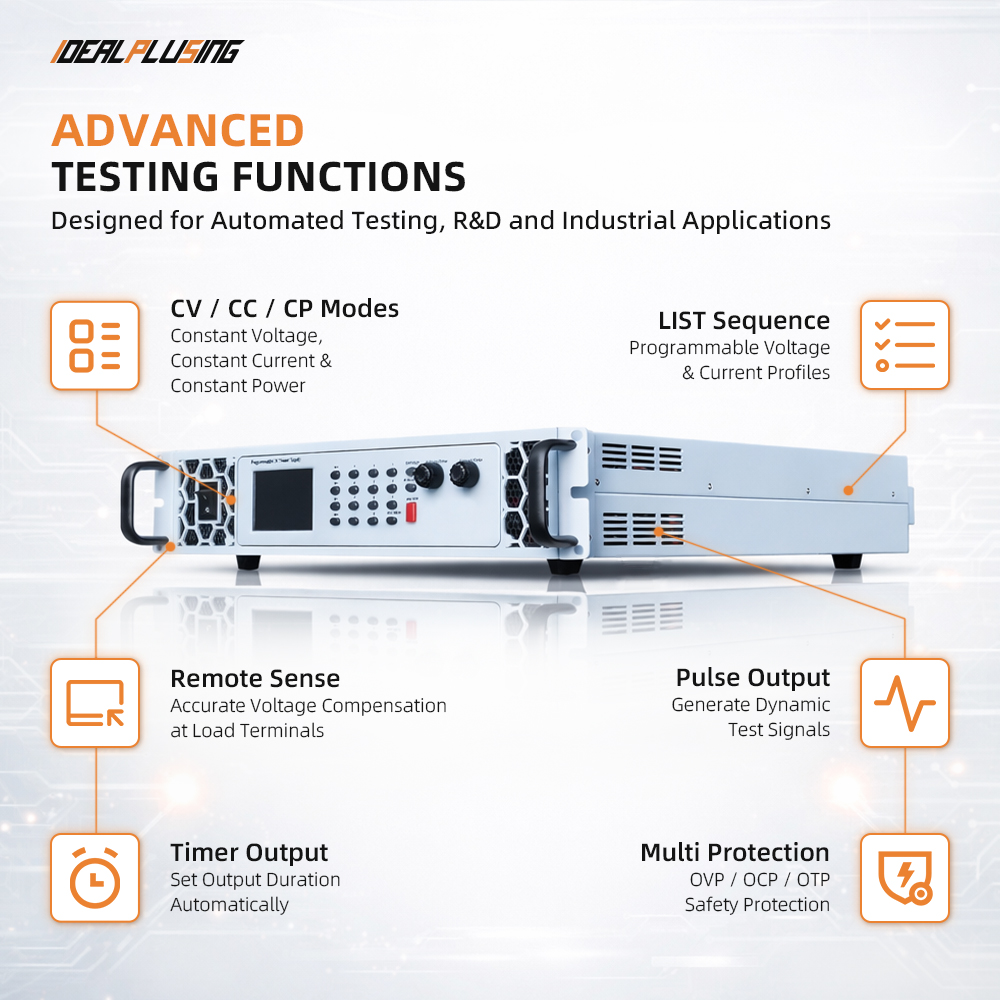

Can the output be programmed for complex sequences?
Yes, it includes a LIST sequence mode with built-in memory that supports up to 50 programmable steps for voltage, current, and time outputs.
How accurate is the voltage measurement at the load?
The unit is equipped with dedicated load-side voltage sensing terminals (Remote Sense), enabling accurate measurement and compensation of voltage drops across long leads.
What safety protections are included?
It features configurable Over-Voltage Protection (OVP), Over-Current Protection (OCP), and built-in Over-Temperature Protection (OTP) with a threshold of 85℃.
Is this unit suitable for rack mounting?
Yes, the power supply is designed with standard 2U or 3U full-width dimensions, making it ideal for both benchtop laboratory use and standard industrial rack mounting.
What types of testing applications can this power supply handle?
It is widely used for capacitive load testing, inductive load testing, battery discharge analysis, pulsed load testing, and motor drive performance evaluation.
